Circular display 2.1 inch 480x480 round screen

Please kindly contact us for full data sheet of the display.

DESCRIPTION

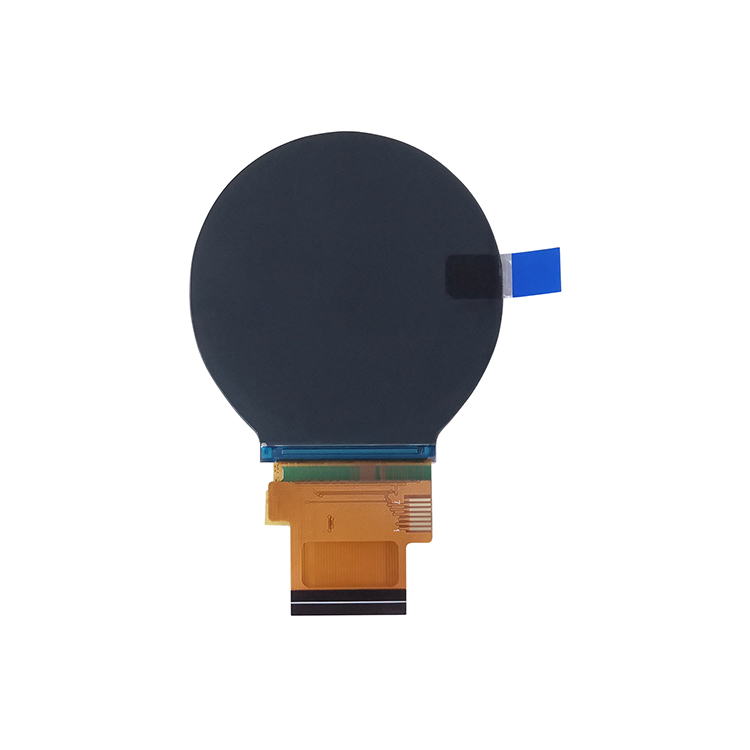

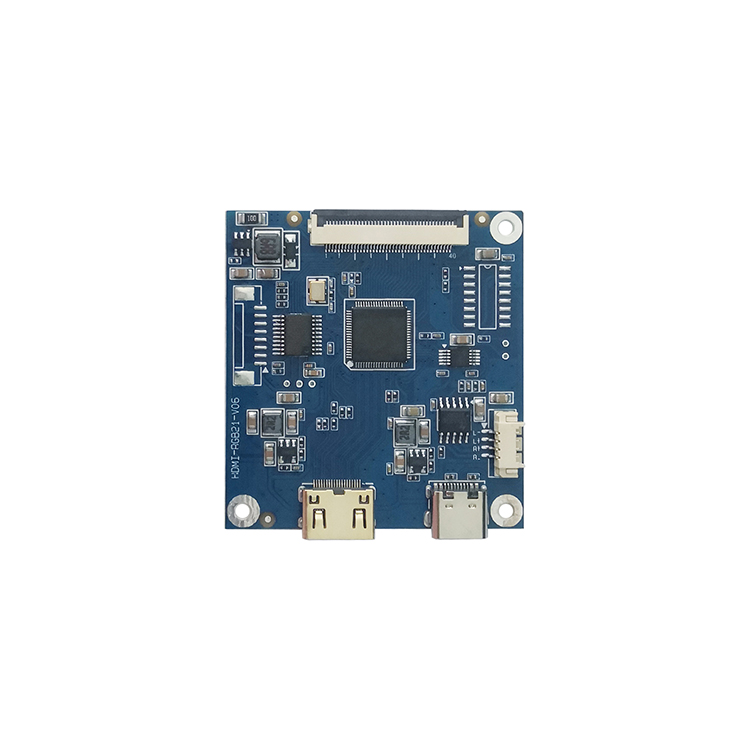

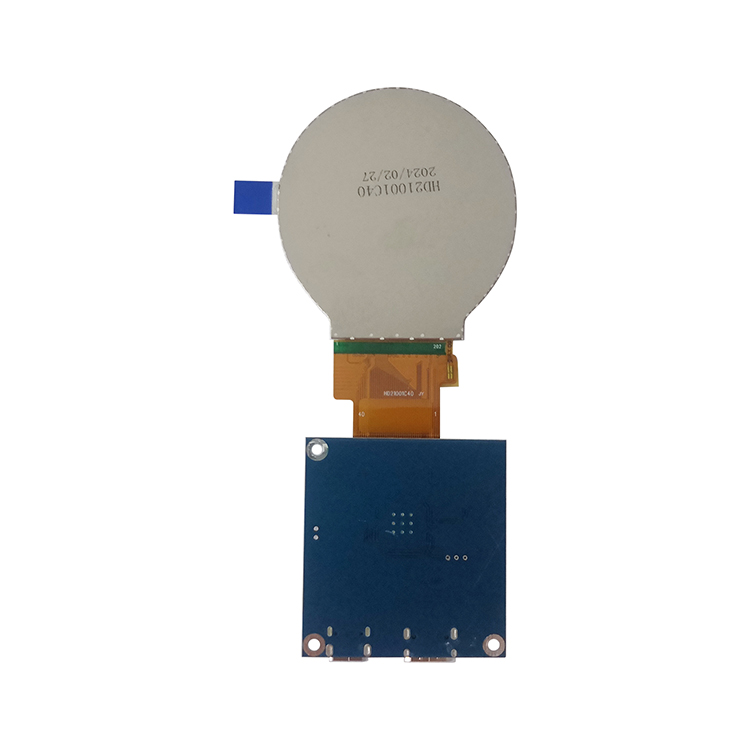

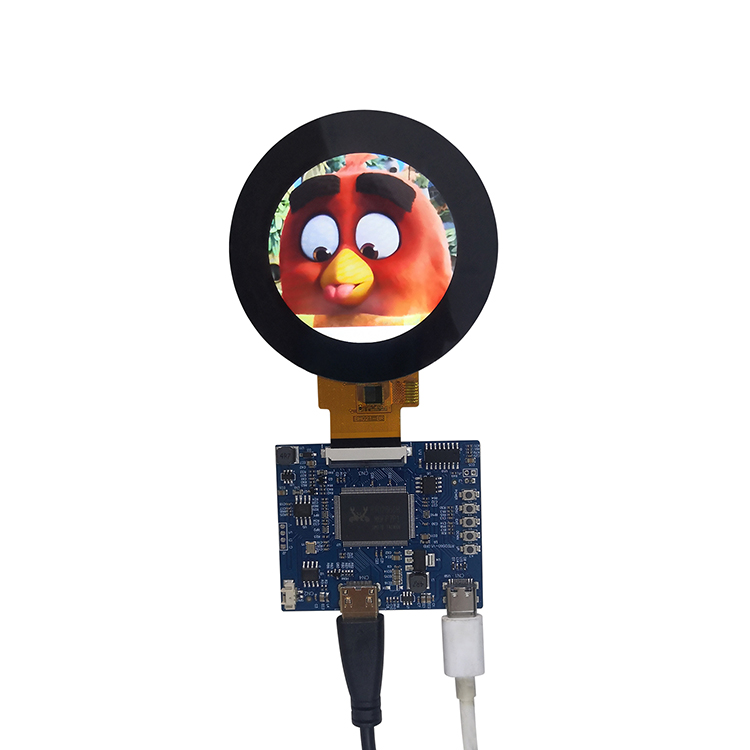

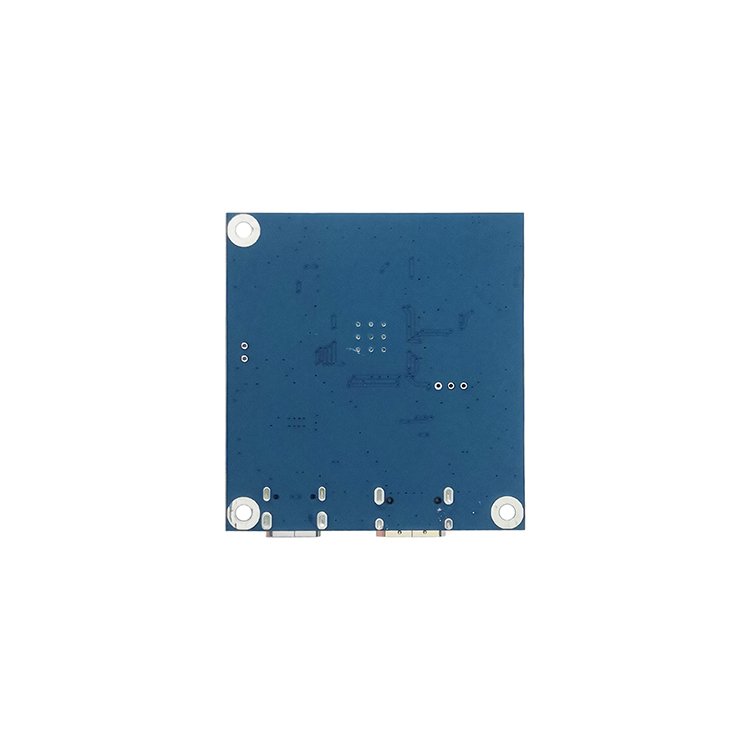

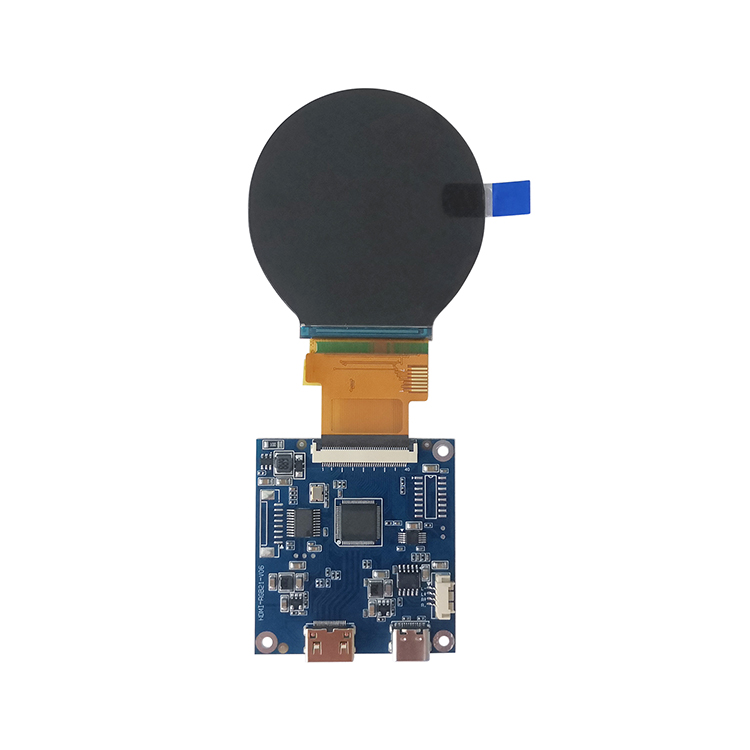

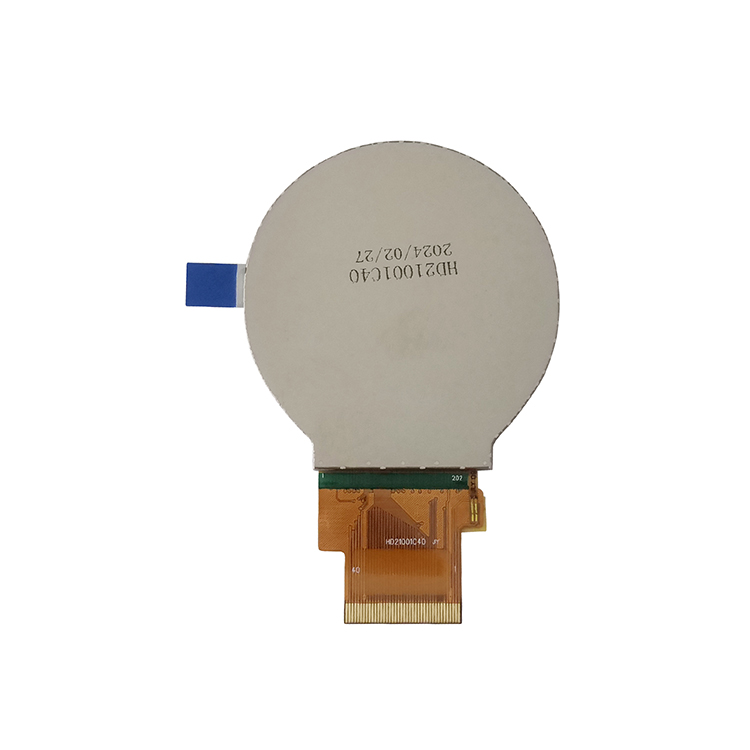

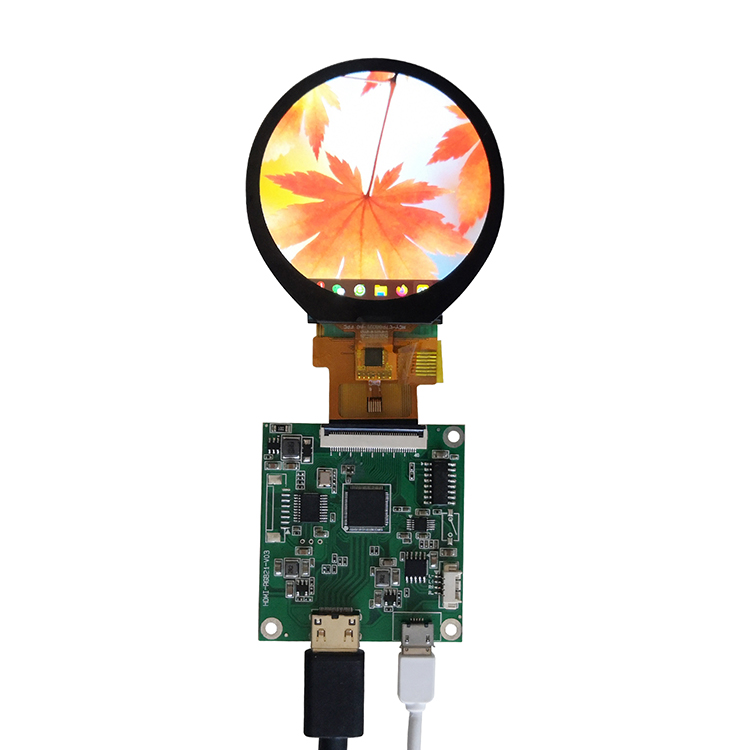

Hicenda HT021WVC02-B1323A is a small CIRCLE tft display with 480x480 resolution, 2.1 inch diagonalcolorful IPS tft lcd screen panel with ST7701S driver ic, the 2.1 round display moduel is with wide view angle, HDMI Driver Controller Board with Mini HDMI Cable parts ,It can be used in smart watch or any circle display application.It's 3SPI+18RGB interface with optional FPC with zif connector is easily to assemble or remove.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	color active matrix
Model Number:	HT021WVC02-B1323A
Diagonal Screen size:	2.1 inch
Interface:	3SPI+18RGB
Number of color:	262K
Number of Pixels:	480(RGB)×480
Panel Size:	56.18*59.71*2.3 mm
Driver IC:	ST7701S
Active Area:	53.28*53.28 mm
Pixel Pitch:	39.6 (H) x 118.8(V) um
Viewing Direction:	All View
Weight:	TBD
Operating Temperature:	-20~70°

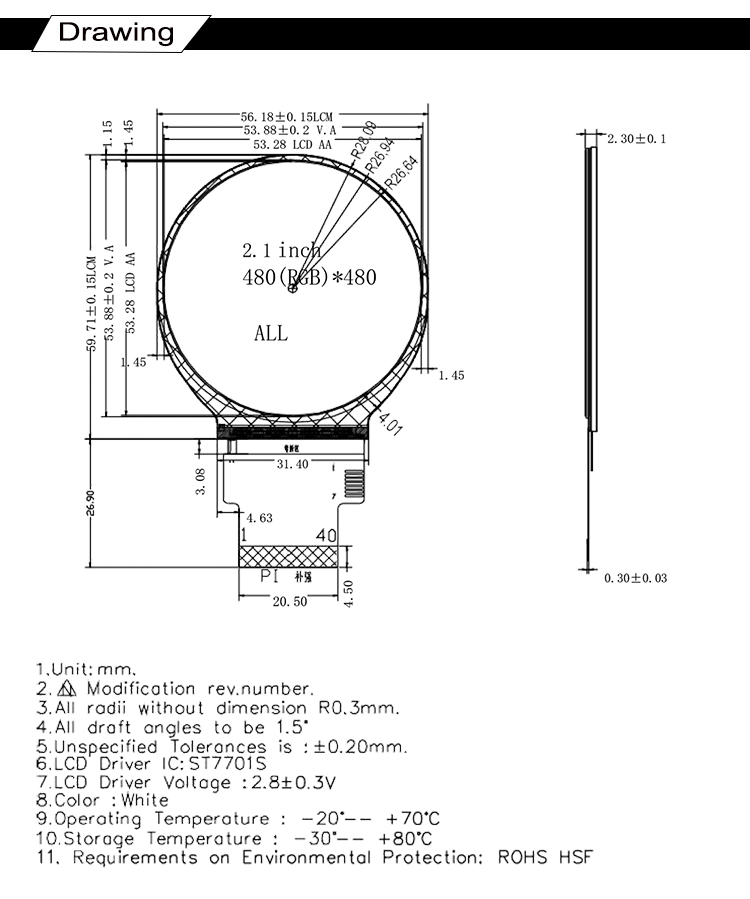

DRAWING

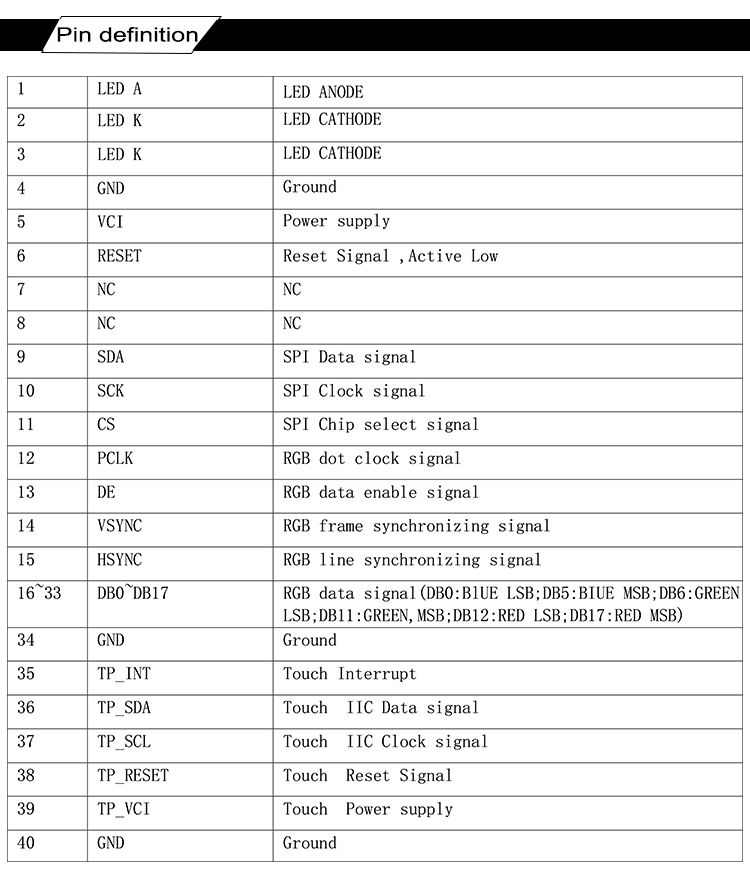

INTERFACE PIN FUNCTION
