DESCRIPTION

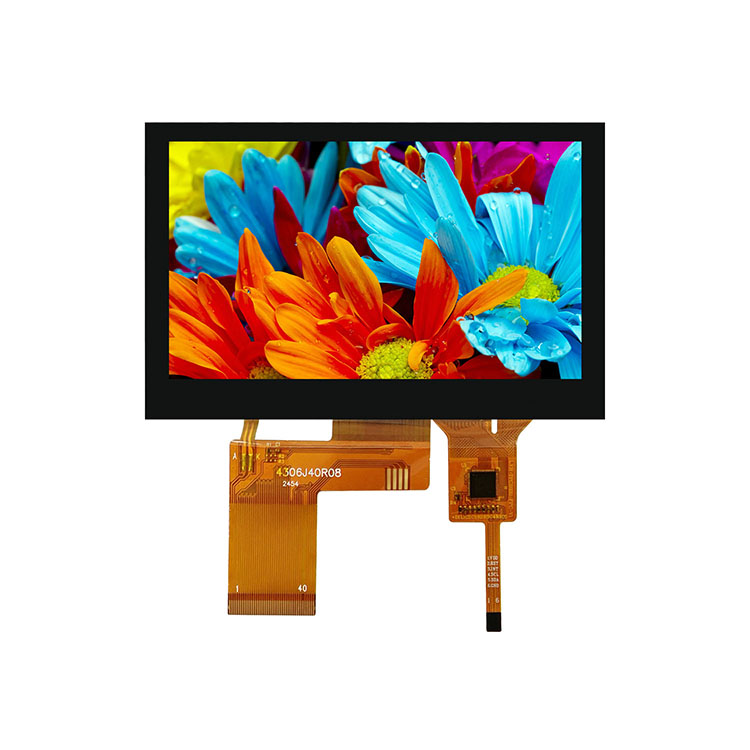

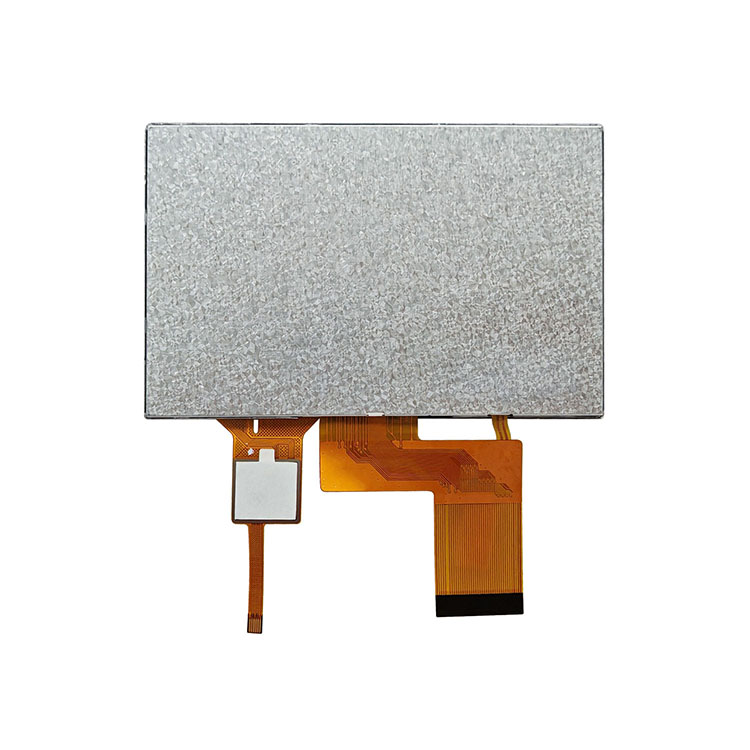

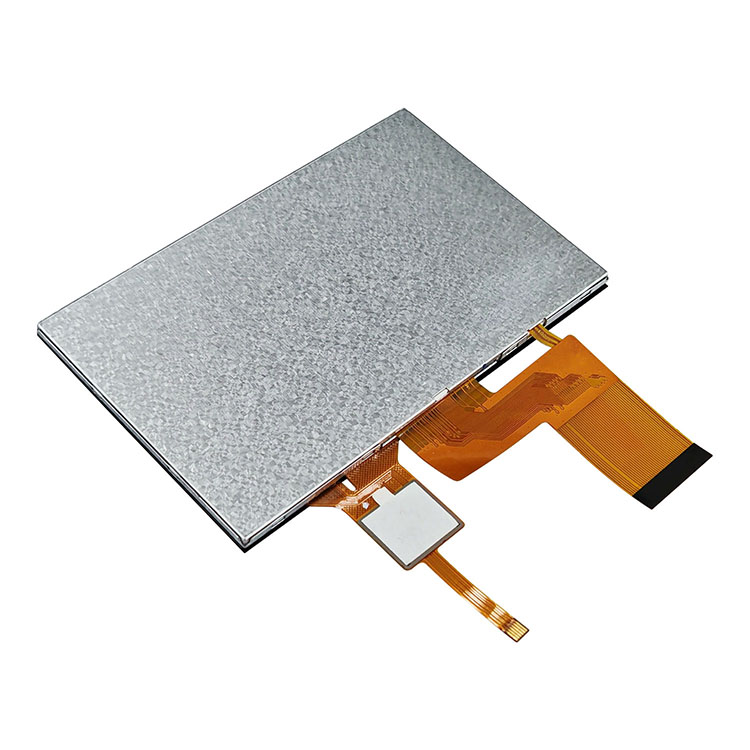

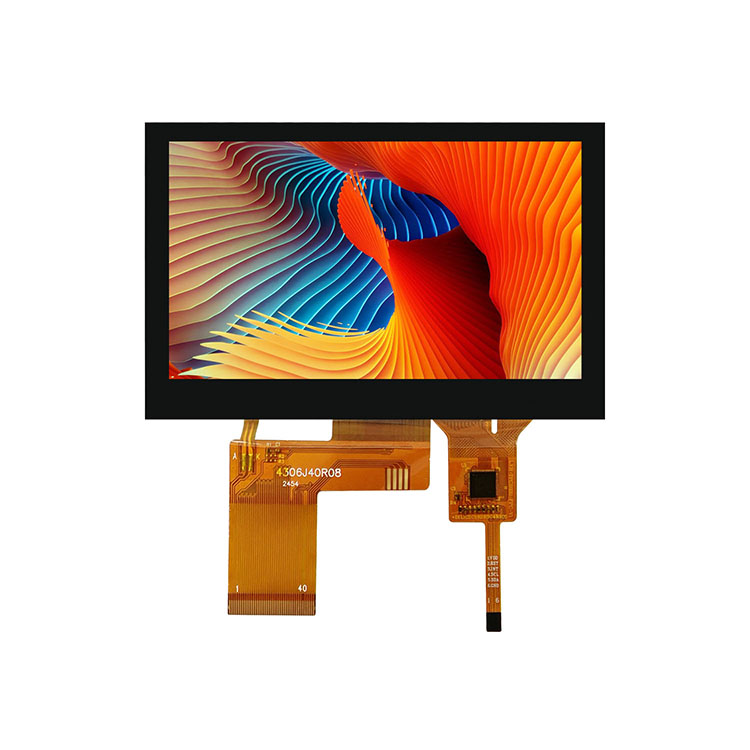

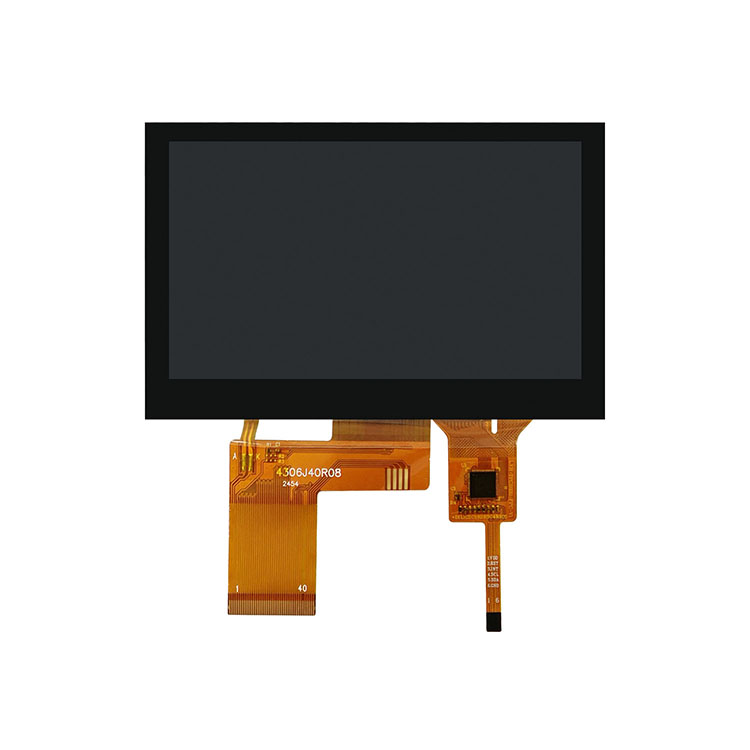

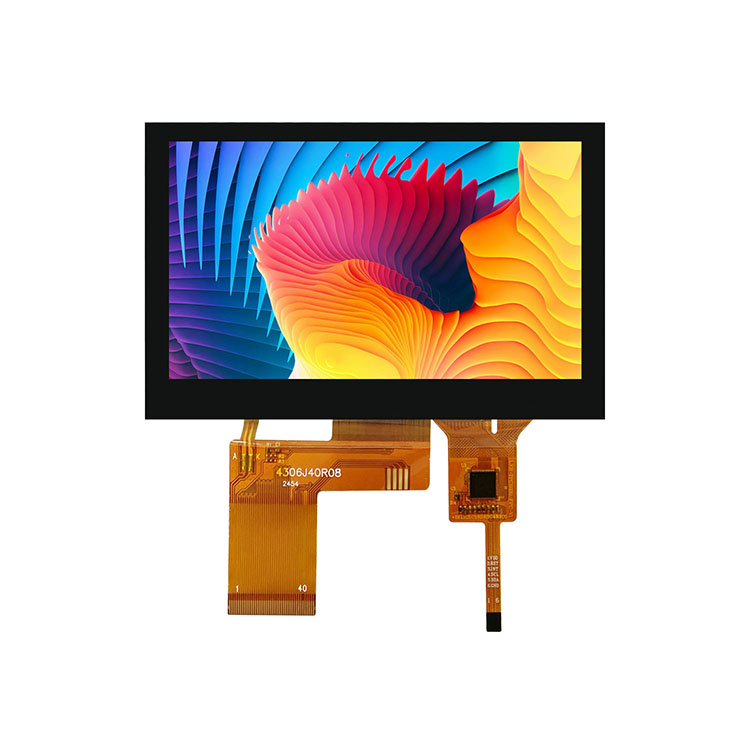

High-Performance 4.3-Inch TFT LCD Module with ILI6485 Driver and 24-bit RGB Interface
The display module, model HT430N1024V1, is a 4.3-inch IPS TFT LCD featuring a resolution of 480(RGB)×272 pixels, equipped with a touch screen and driven by the ILI6485 controller IC. Designed with a 24-bit RGB interface, this module is built for vibrant color rendering and wide-angle viewing. With a robust operational temperature range from -20°C to +70°C, and storage tolerance from -30°C to +80°C, this module is ideal for applications requiring reliable visual performance under diverse environmental conditions. The IPS (In-Plane Switching) technology ensures consistent color and contrast, supporting 16.7M colors across a compact and durable mechanical footprint.
The 4.3-inch TFT LCD display module is increasingly utilized in embedded systems, industrial panels, medical instrumentation, and portable monitoring equipment due to its balanced combination of resolution, physical size, and color fidelity. This module provides an active matrix a-Si TFT architecture that ensures fast response time and low power consumption while maintaining excellent image clarity.
Incorporating In-Plane Switching (IPS), the display offers uniform brightness and superior color accuracy across a full viewing angle. This makes it highly suitable for user interfaces where visual consistency is critical, such as touch-based control panels or hand-held devices.
This display module is constructed using a-Si TFT active matrix technology, which is widely recognized for its durability and visual stability. The mechanical and optical specifications of the model HT430N1024V1 are summarized below:
GENERAL SPECIFICATION
| Specification | Parameter |
|---|---|
| Model No | HT430N1024V1 |
| Display Size | 4.3 inch |
| Resolution | 480(RGB)×272 |
| LCD Type | a-Si IPS TFT Active Matrix |
| Viewing Direction | IPS (All-angle viewing) |
| Display Format | Graphic Dot-Matrix |
| Outline Dimension (mm) | 105.4(W) × 67.1(H) × 2.9(T) |
| Active Area (mm) | 95.04(W) × 53.86(H) |
| Pixel Pitch (mm) | 0.066(W) × 0.198(H) |
| Pixel Arrangement | RGB Vertical Stripe, 16.7M Colors |
| Backlight Type | White LED |
| Driver IC | ILI6485 |
| Interface Type | 24-bit RGB Parallel |
| Display Mode | Full Color |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
Conclusion
The HT430N1024V1 is designed to withstand a broad range of environmental conditions, with a functional operating temperature of -20°C to +70°C and storage temperature capability from -30°C to +80°C. This robustness makes it well-suited for outdoor terminals, automation panels, and vehicle-mounted systems.
With a slim profile of just 2.9mm thickness (excluding the FPC), the module is optimized for embedded system integration. The flexible printed circuit (FPC) design facilitates easy connectivity, allowing manufacturers to streamline the assembly process without compromising on signal integrity.
The 4.3-inch TFT LCD module HT430N1024V1, built around the ILI6485 driver and 24-bit RGB interface, embodies a well-balanced fusion of optical excellence, mechanical durability, and integration simplicity. Ideal for embedded HMIs, industrial controllers, and display panels, it ensures a reliable and high-quality visual experience across a wide range of use scenarios.

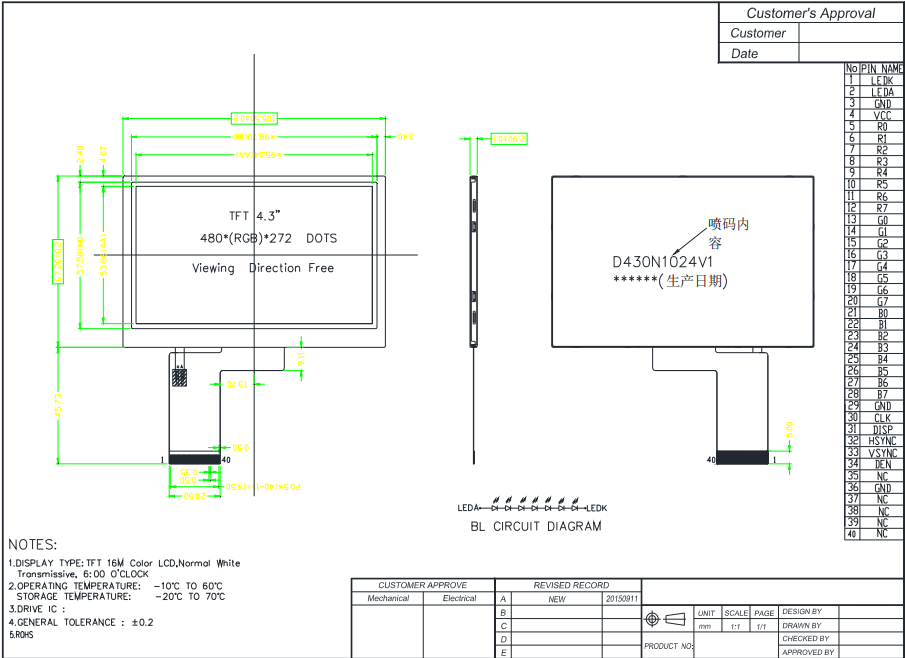

Drawing

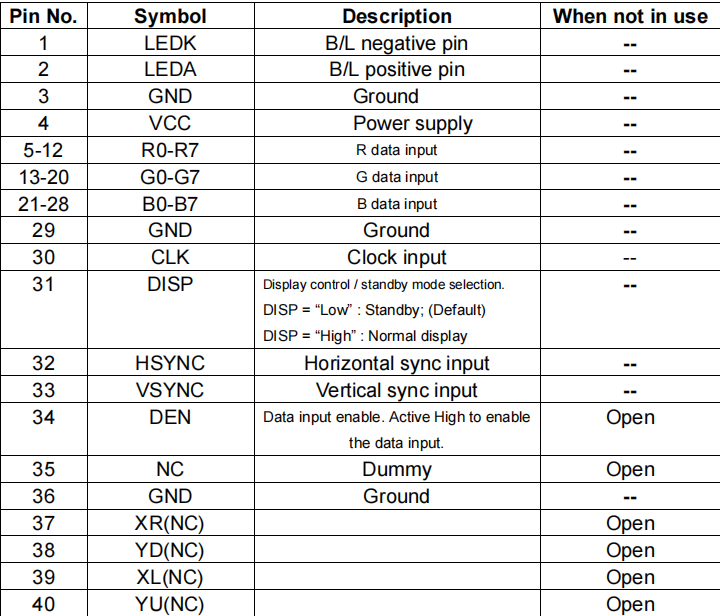

INTERFACE PIN FUNCTION
