DESCRIPTION

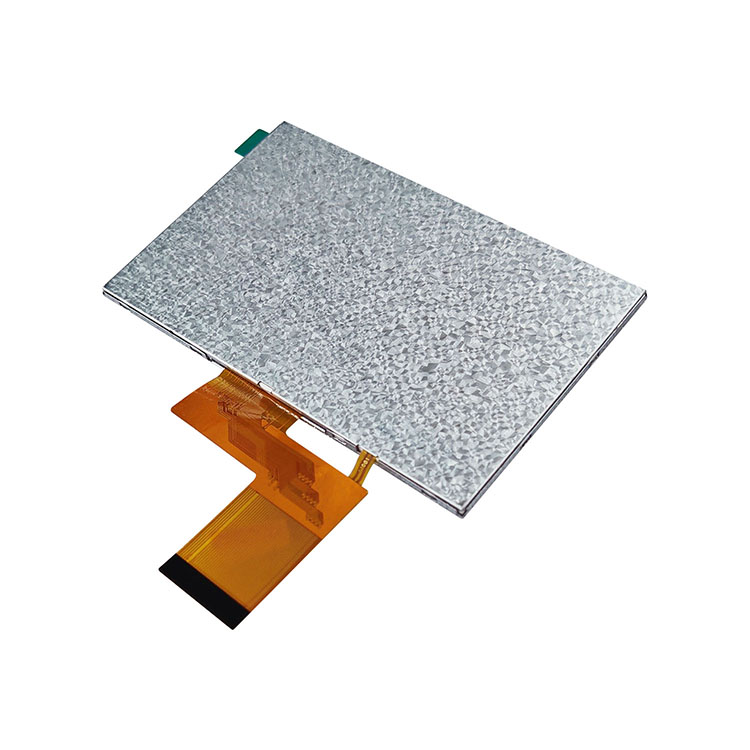

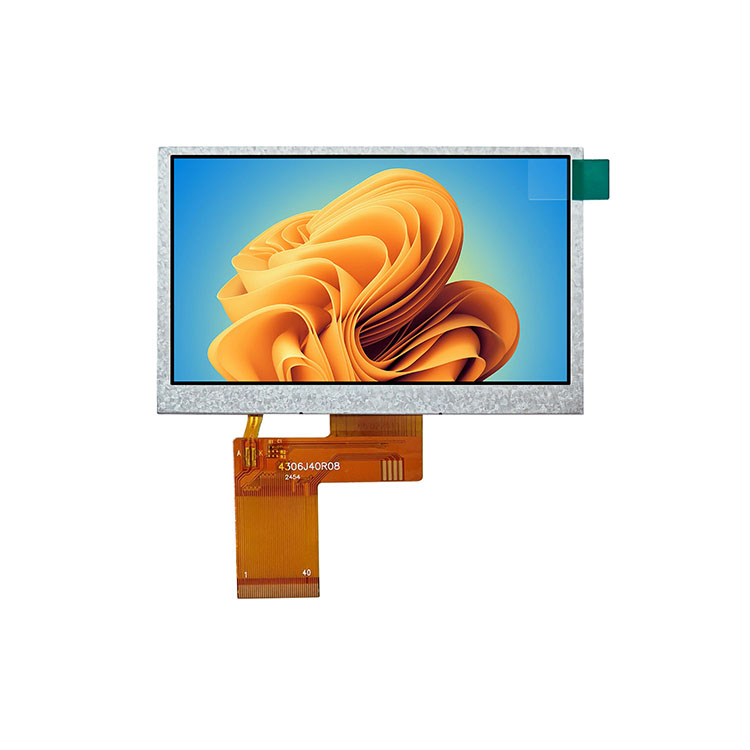

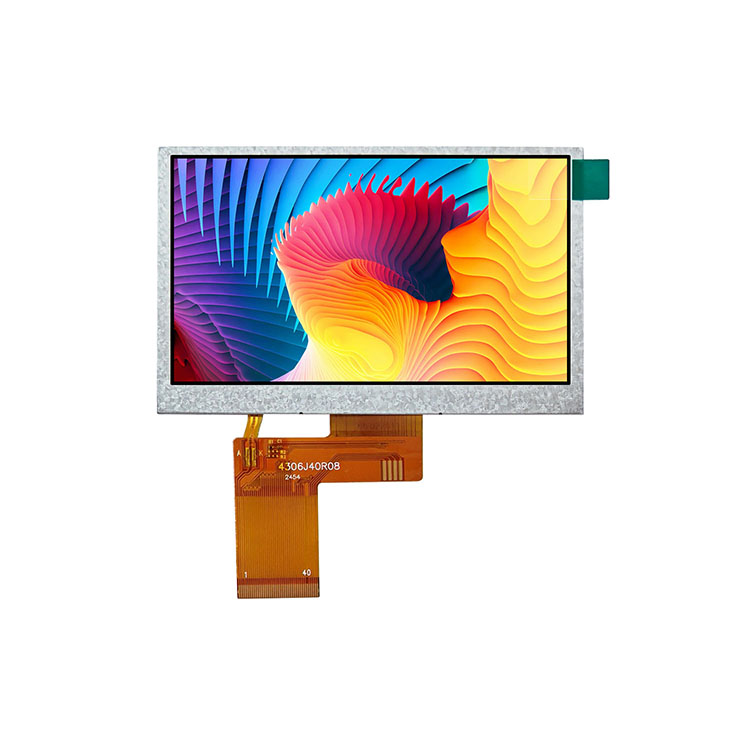

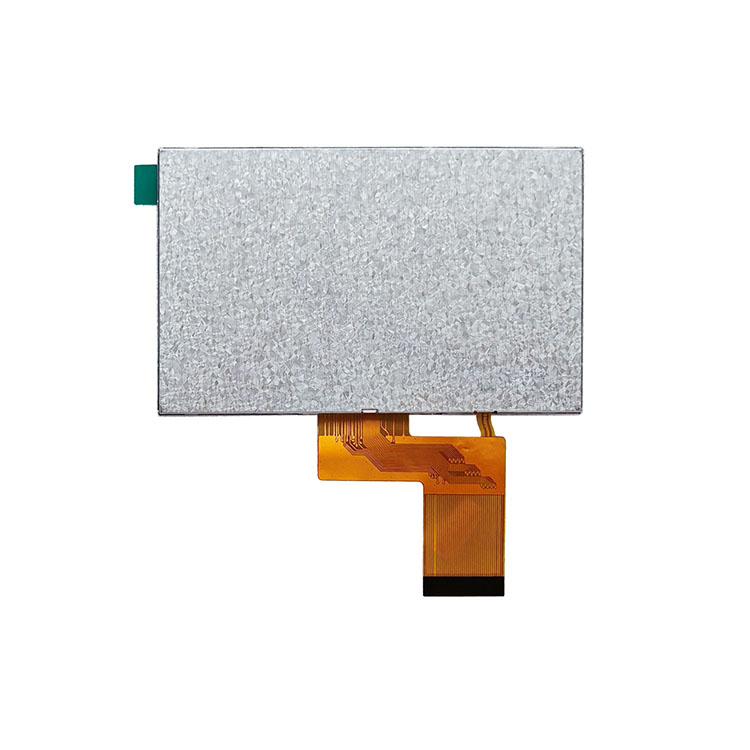

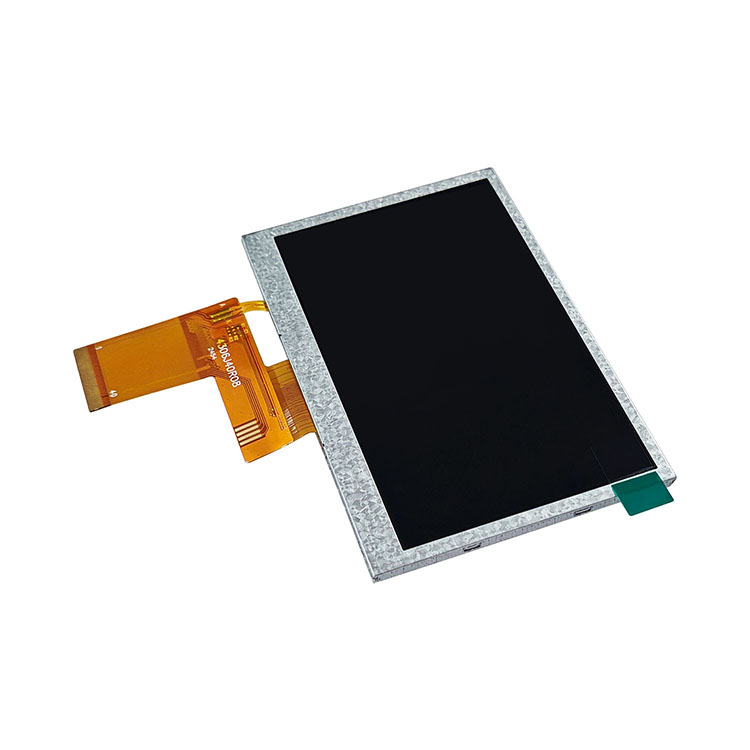

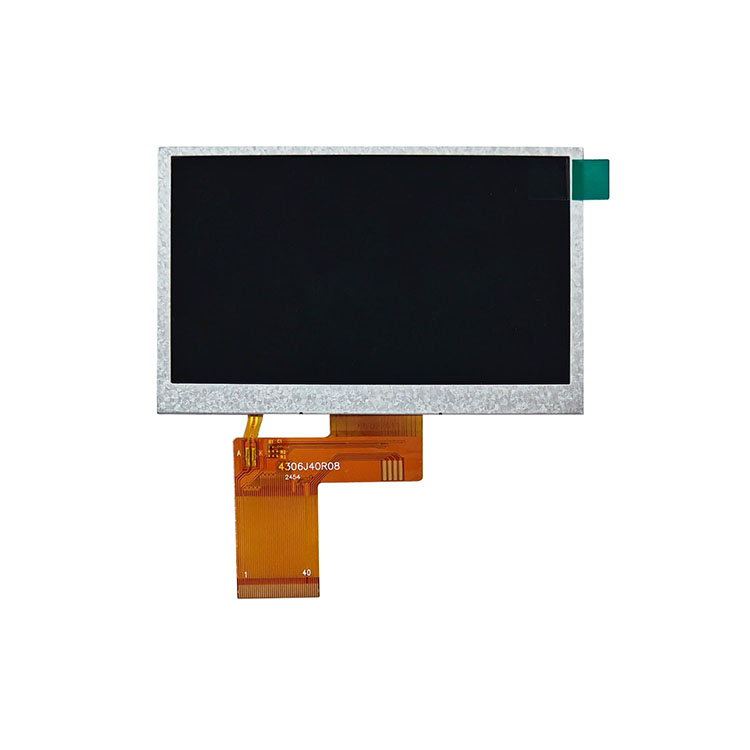

High-Performance 4.3-Inch TFT LCD Module with ILI6485 Driver and 24-bit RGB Interface

The original product, an IPS TFT display 4.3-inch LCD module with a resolution of 480x272, equipped with the ILI6485 driver IC and a 24-bit RGB interface, offers a compact and high-fidelity visual solution. The display features a-si IPS TFT active matrix technology, delivering wide viewing angles and accurate color reproduction. With an outline dimension of 105.4mm by 67.1mm, an active display area of 95.04mm by 53.86mm, and robust operating conditions, the module is a reliable choice for various embedded and industrial applications.

Advanced Visual Performance for Embedded Systems

The HT430N1024V1 4.3" TFT LCD module is engineered for applications demanding vibrant imagery, high reliability, and seamless integration. With a 480(RGB)×272 resolution and a 16.7M color palette, the display ensures precise visual output across the spectrum. The module’s IPS (In-Plane Switching) technology guarantees consistent brightness and color accuracy from all viewing angles, critical for touch-based systems and user-facing displays.

Display Technology and Driver Interface

Central to the module’s functionality is the ILI6485 driver IC, which supports a 24-bit parallel RGB interface. This driver architecture enables high-speed transmission of image data, ensuring flicker-free rendering even under dynamic content conditions. Combined with the a-Si (amorphous silicon) TFT active matrix, the display responds rapidly with low latency, suitable for real-time visual feedback systems.

GENERAL SPECIFICATION

Robust Design for Industrial Applications

Temperature Tolerance and Durability
Compact and Modular Integration

Conclusion

The HT430N1024V1 is designed to withstand a broad range of environmental conditions, with a functional operating temperature of -20°C to +70°C and storage temperature capability from -30°C to +80°C. This robustness makes it well-suited for outdoor terminals, automation panels, and vehicle-mounted systems.

With a slim profile of just 2.9mm thickness (excluding the FPC), the module is optimized for embedded system integration. The flexible printed circuit (FPC) design facilitates easy connectivity, allowing manufacturers to streamline the assembly process without compromising on signal integrity.

The 4.3-inch TFT LCD module HT430N1024V1, built around the ILI6485 driver and 24-bit RGB interface, embodies a well-balanced fusion of optical excellence, mechanical durability, and integration simplicity. Ideal for embedded HMIs, industrial controllers, and display panels, it ensures a reliable and high-quality visual experience across a wide range of use scenarios.

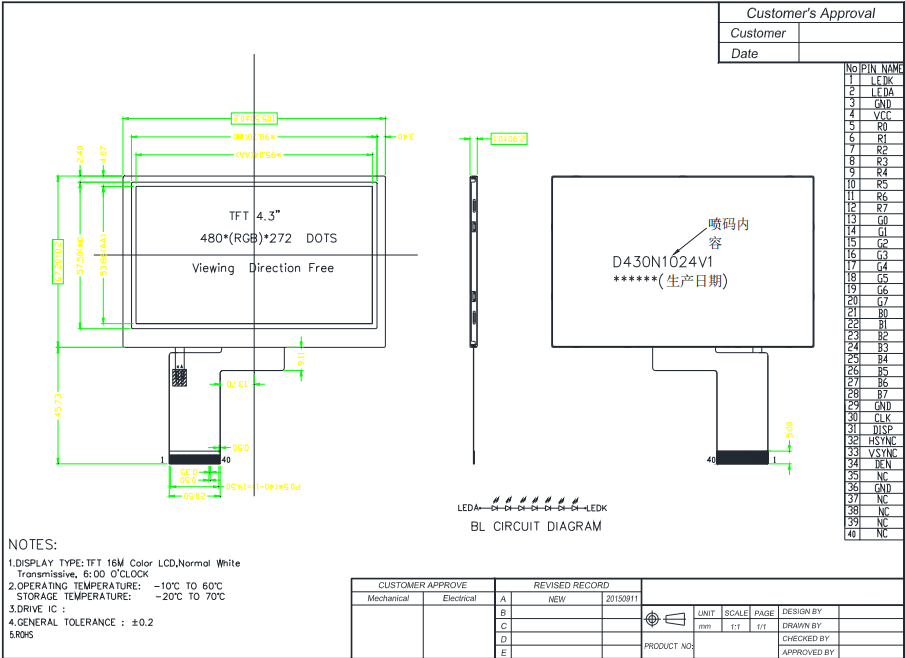

Drawing

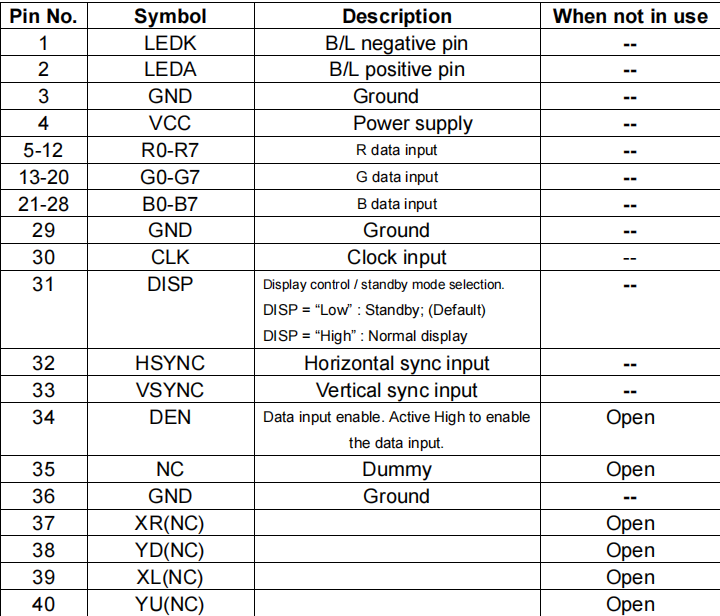

INTERFACE PIN FUNCTION
