0.4"

FLCOS Micro display 0.4

FLCOS Micro display 0.4

FLCOS Micro display 0.4

FLCOS Micro display 0.4

FLCOS Micro display 0.4

FLCOS Micro display 0.4

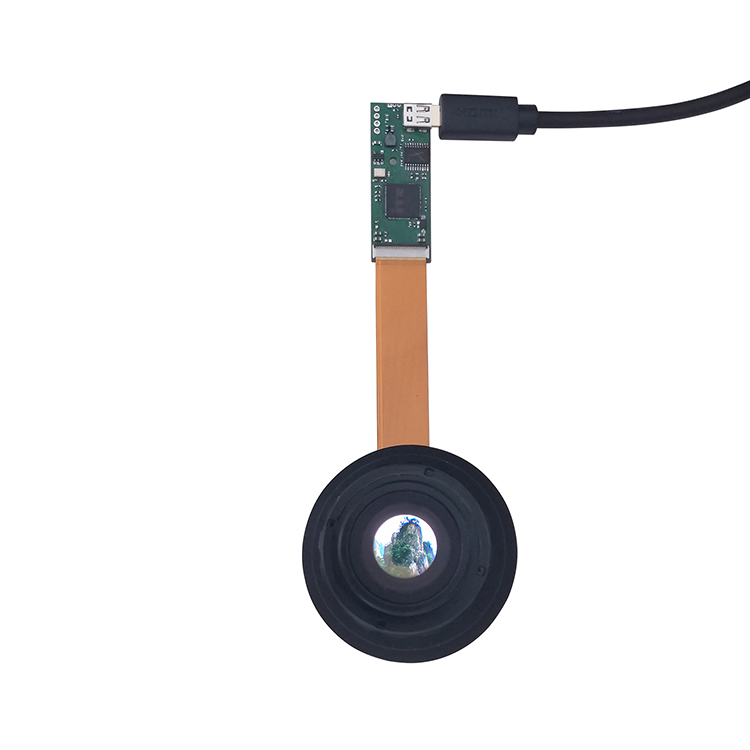

FLCOS Micro display 0.4", 1280(RGB)X960

Size: 0.4 FLCOS
Driver Board: HDMI
Resolution: 280(RGB)X960
Luminance:220 cd/m2 (Typical)
Product description: FLCOS Micro display 0.4", 1280(RGB)X960
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA 1280(RGB)X960 FLCOS micro display is a high-resolution, High light-emitting OLED micro display based on a CMOS backplane that also has a standard video interface.The display integrates a panel drive unit and a logic drive unit, while using low power consumption and RGB interface.

This product has high contrast, high consistency and highlight performance.

GENERAL SPECIFICATION

Display Type:	flcos display
Display Mode:	Field sequential color
Model Number:	flcos040
Diagonal Screen size:	0.40 Inch
Interface:	RGB888/RGB666/RGB565/YCbCr(4:4:4)/YCbCr(4:2:2)
Number of Pixels:	1280(RGB)X960
Panel Size:	10.16mm (0.40'')
Active Area:	8.127 x 6.095mm
Weight:	TBD
Operating Temperature:	-10C to 70C (Panel temperature)

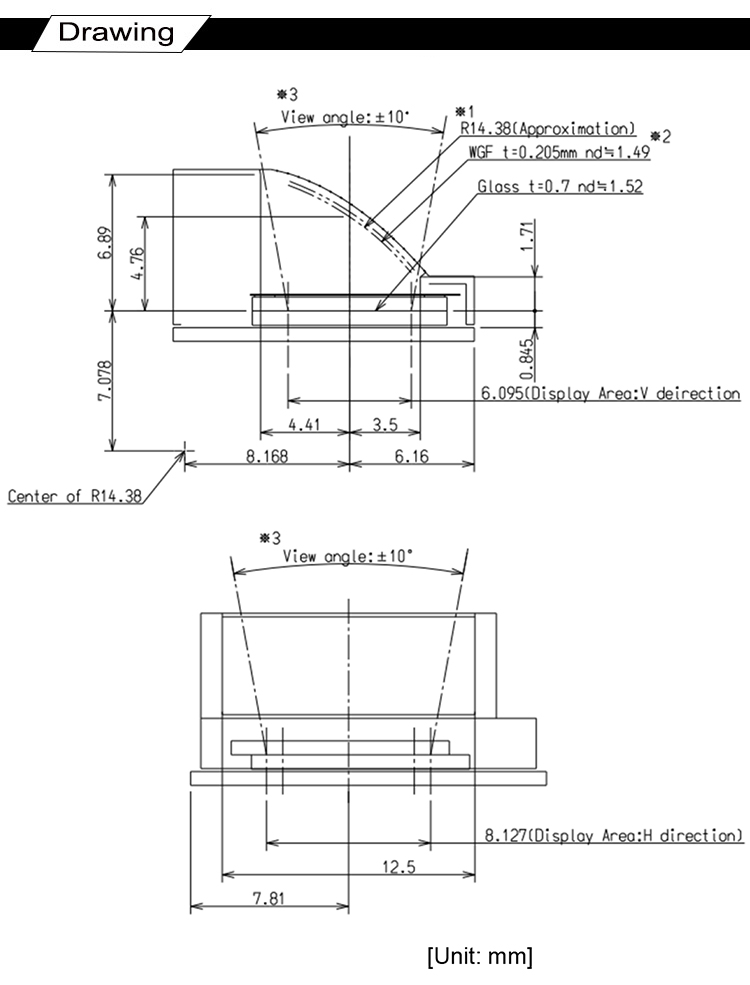

DRAWING

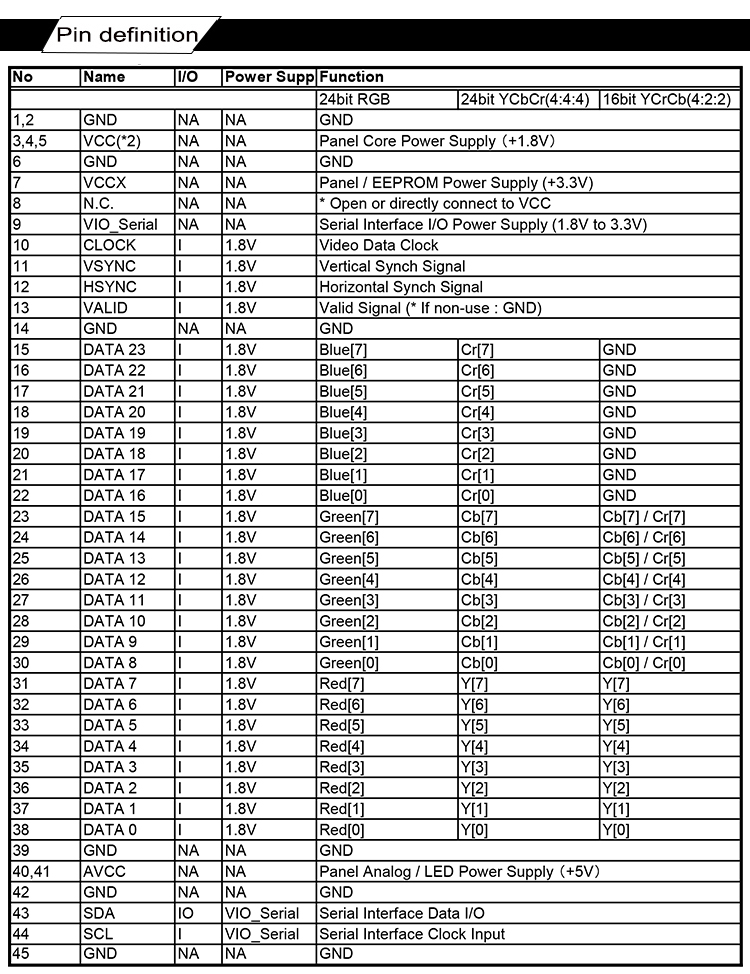

INTERFACE PIN FUNCTION
