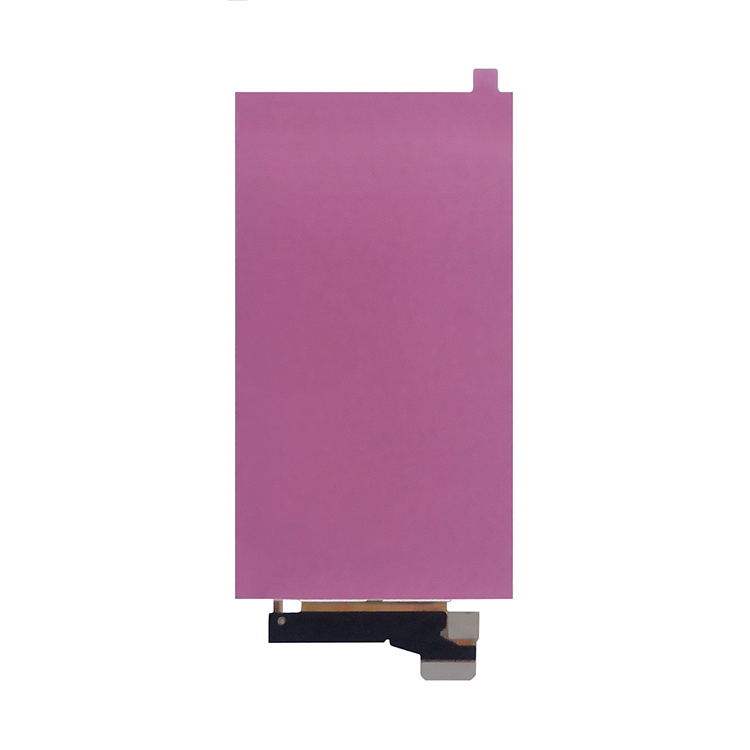

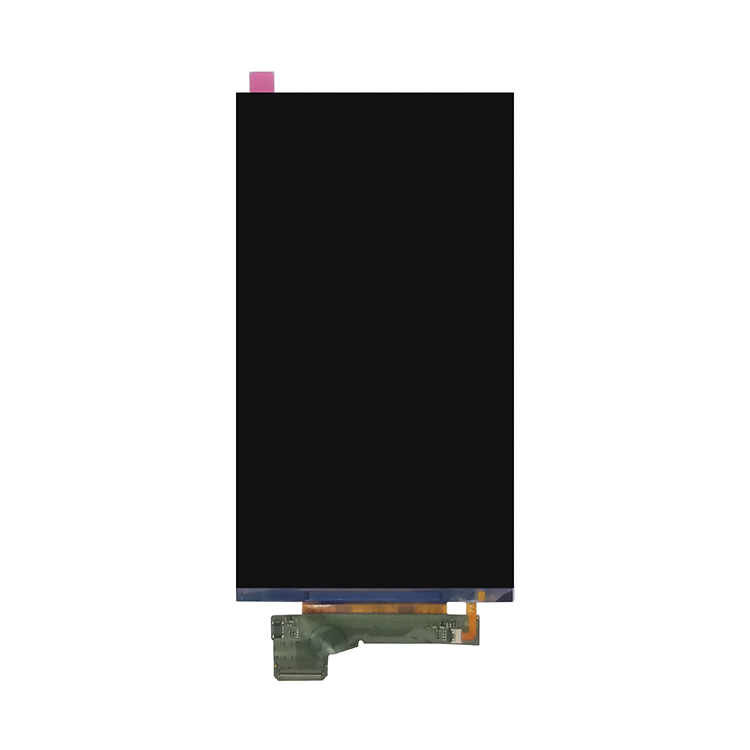

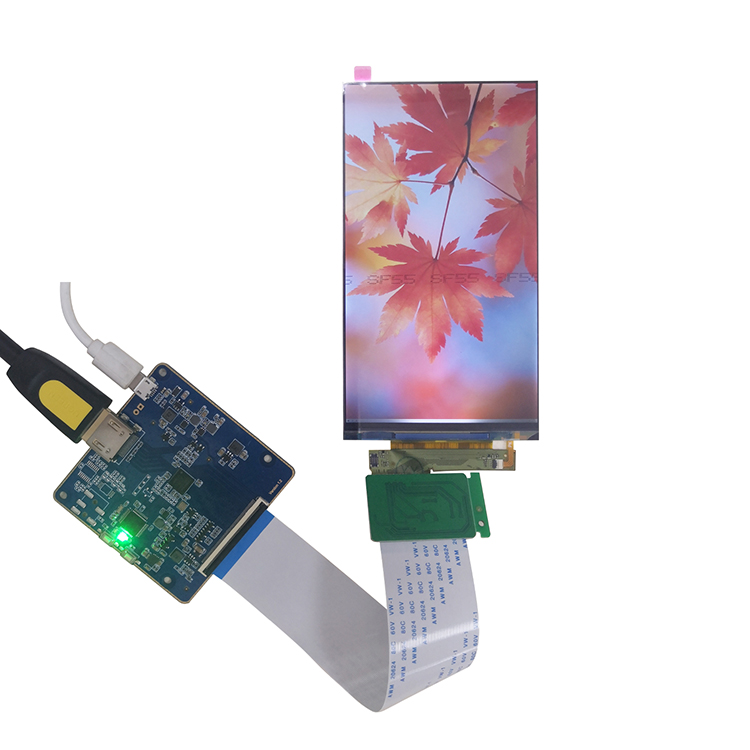

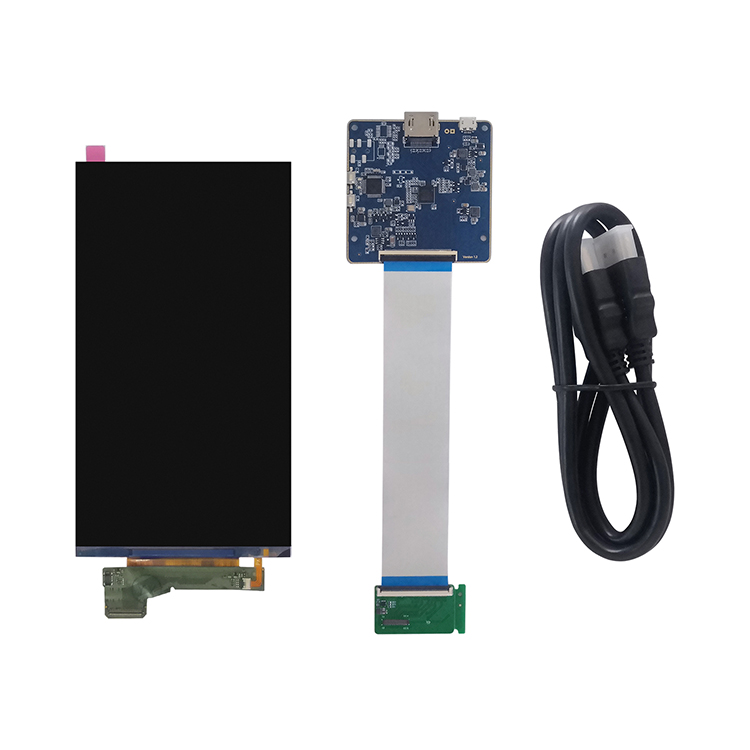

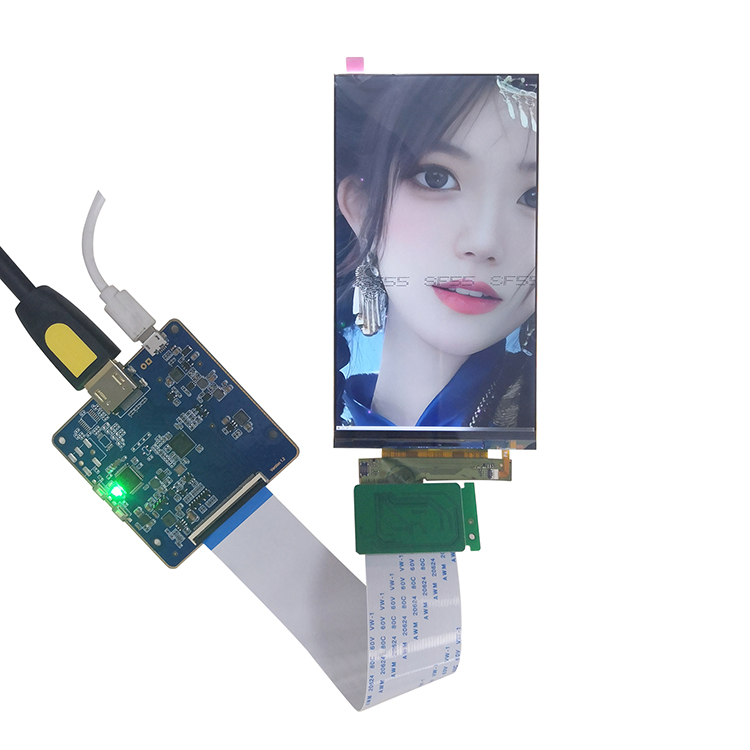

5.5" sharp ls055d1sx05(g) tft lcd display 2160(RGB)x3840

Size: 5.5 TFT
Controller IC: TBD
Resolution:1280(RGB)x800
Interface: -
Product description: 5.5" FHD 4K TFT LCD Display,2160(RGB)x3840
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT 5.5 color active matrix LCD module incorporating amorphous silicon TFT (Thin

Film Transistor). It is composed of a color TFT - LCD panel, driver IC, FPC and a

back light unit. The module display area contains 2160*3840 pixels. This product

accords with ROHS environmental criterion.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	LS055D1SX05(G)
Diagonal Screen size:	5.5 inch
Interface:	-
Backlight:	White LED
Number of Pixels:	2160(RGB)x3840
Panel Size:	69.84 (W) x 128.76 (H) x1.24 (D)(mm)
Driver IC:	TBD
Active Area:	68.04 (W)×120.96 (H)(mm)
Brightness:	530CD/M2
Dot pitch:	0.01575(W) x 0.0315(H)MM
Weight:	TBD
Operating Temperature:	-10~60°

DRAWING

INTERFACE PIN FUNCTION
