Please kindly contact us for full data sheet of the display.
DESCRIPTION

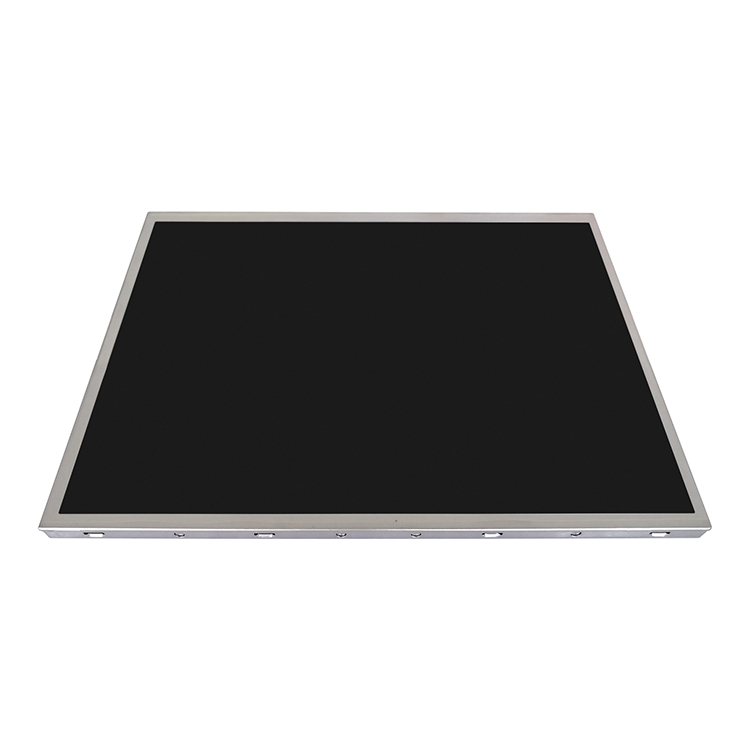

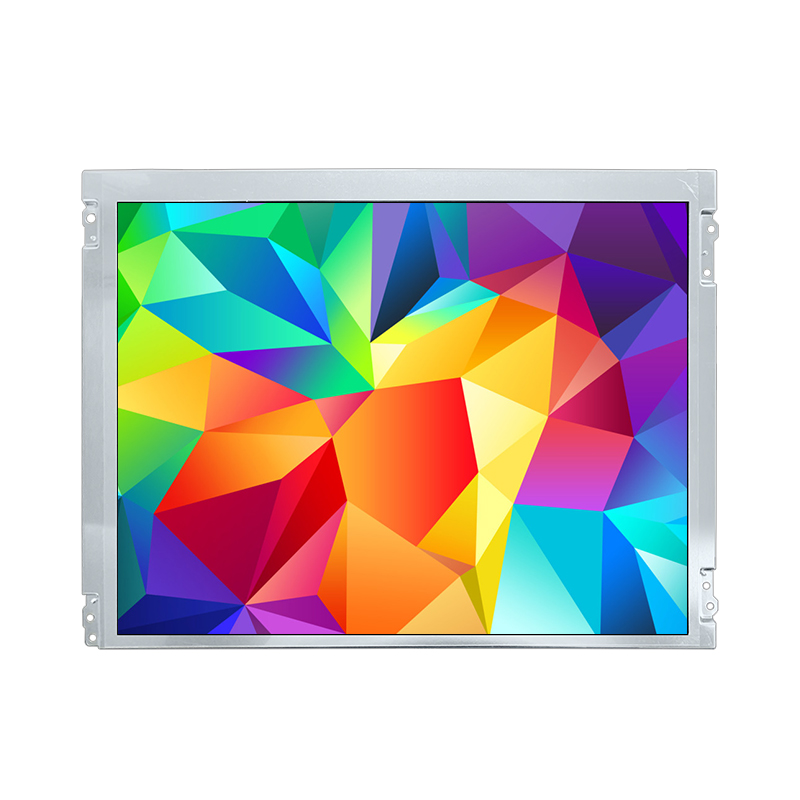

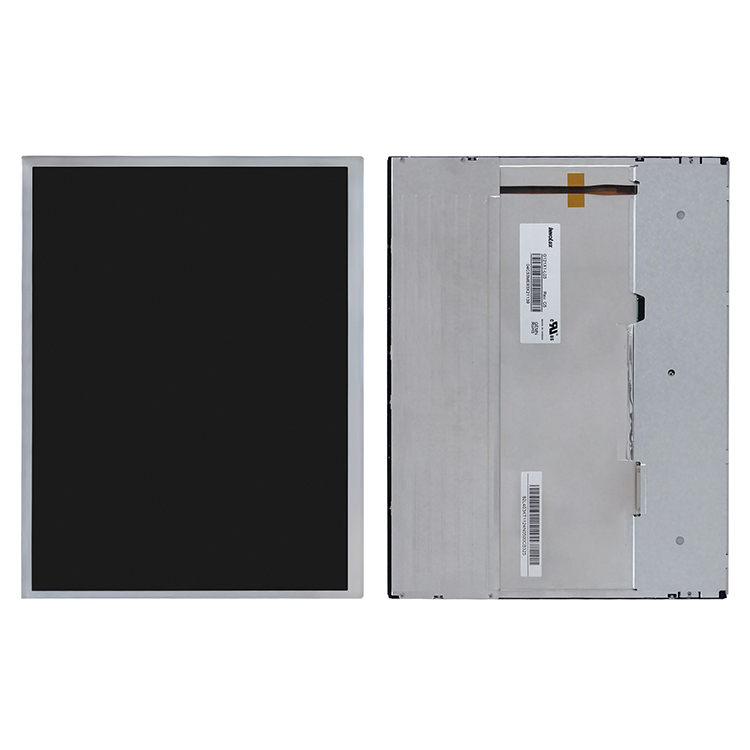

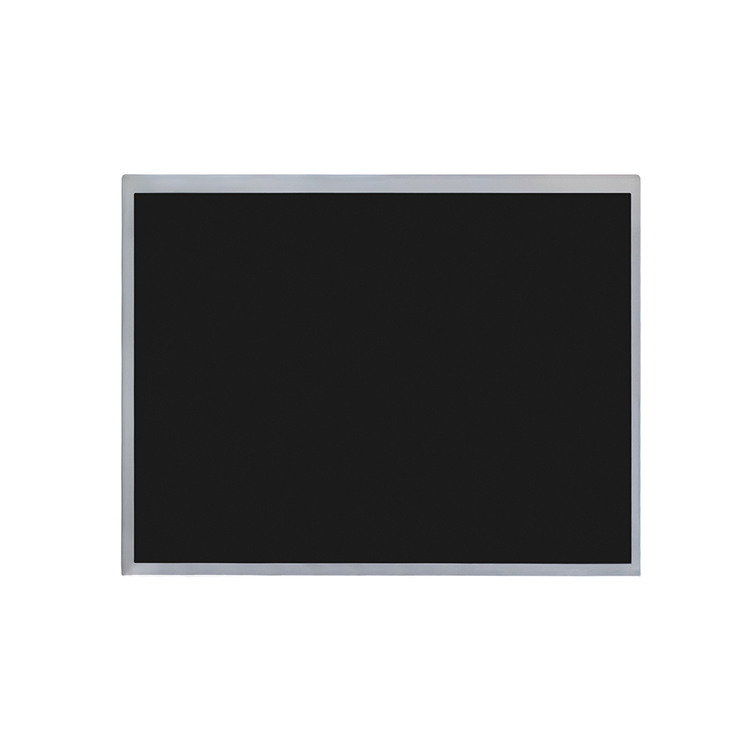

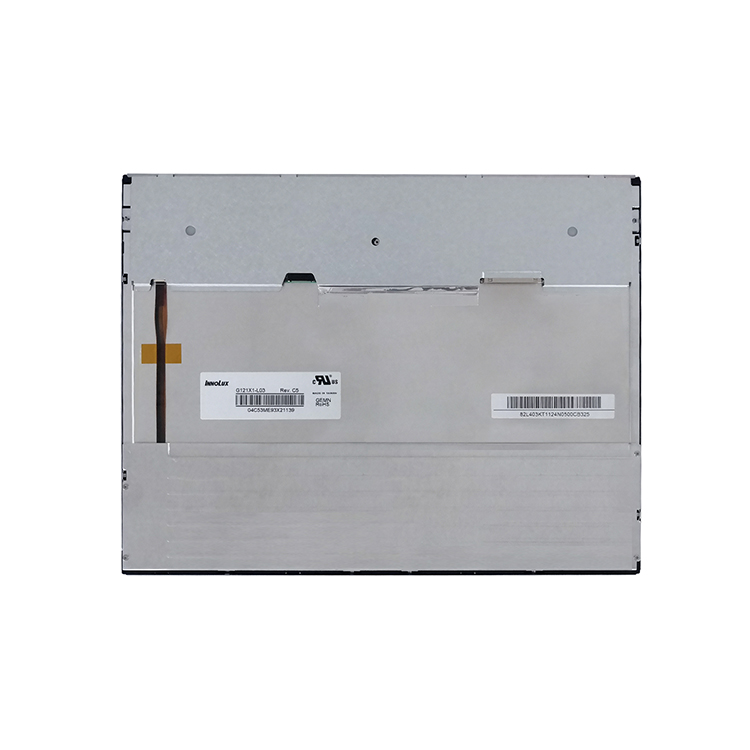

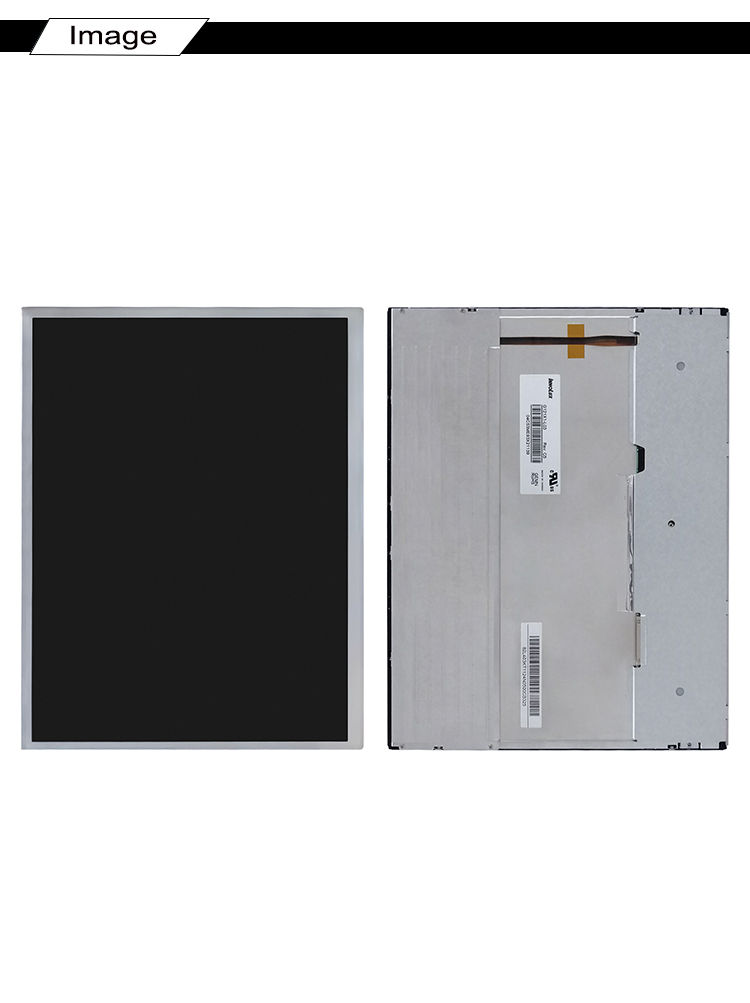

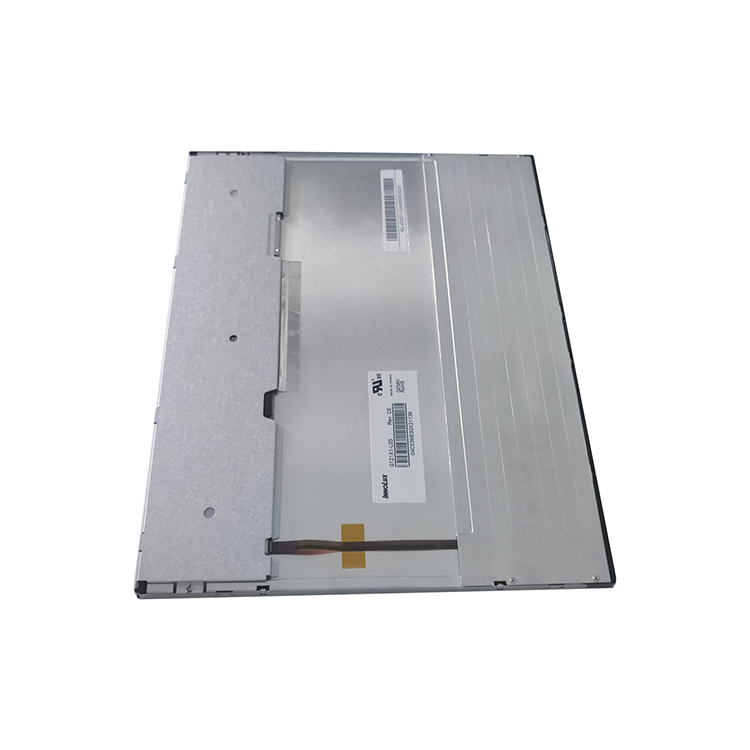

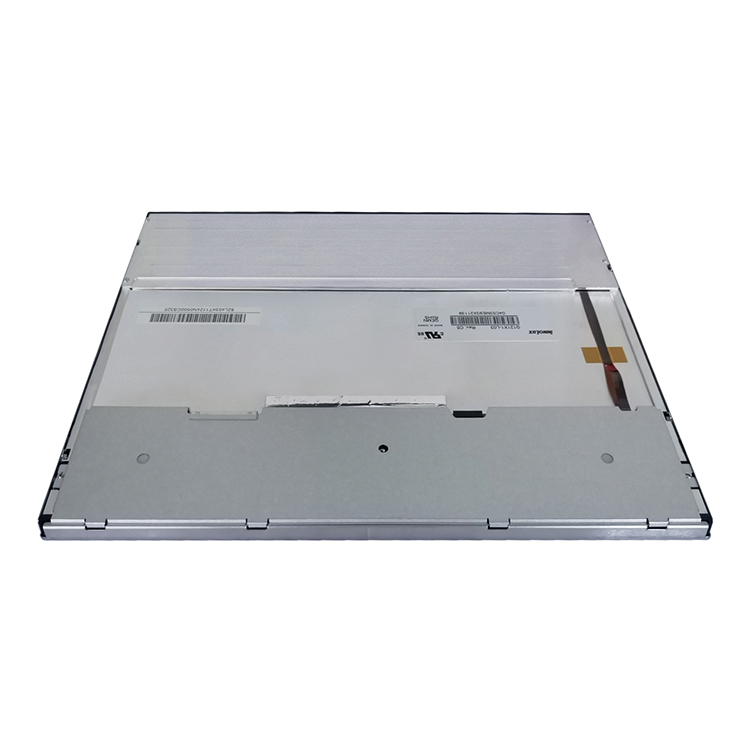

The G121X1-L03 model is a 12.1” TFT-LCD module with a white LED Backlight Unit and a 20-pin
1ch-LVDS interface. This module supports 1024 x 768 XGA mode and displays 262k/16.2M colors. The
converter for the Backlight Unit is built in.
GENERAL SPECIFICATION
| Display Type: | TFT display |
| Display Mode: | Passive Matrix |
| Model Number: |
Innolux 1G121X1-L03 |
| Diagonal Screen size: | 12.1 inch |
| Interface: |
LVDS
|
|
Backlight:
|
Chip White LED
|
| Number of Pixels: |
1024(RGB)x768 |
|
Bezel Opening Area:
|
249.0 x 187.5(mm)
|
| Driver IC: |
- |
| Active Area: |
245.76(H) x 184.32(V)(mm)
|
|
Display Mode:
|
Normally white/Transmissive
|
|
Pixel Pitch:
|
0.240(H) x 0.240(V)(mm)
|
|
Weight: |
TBD |
|
Operating Temperature: |
-40~85° |
DRAWING

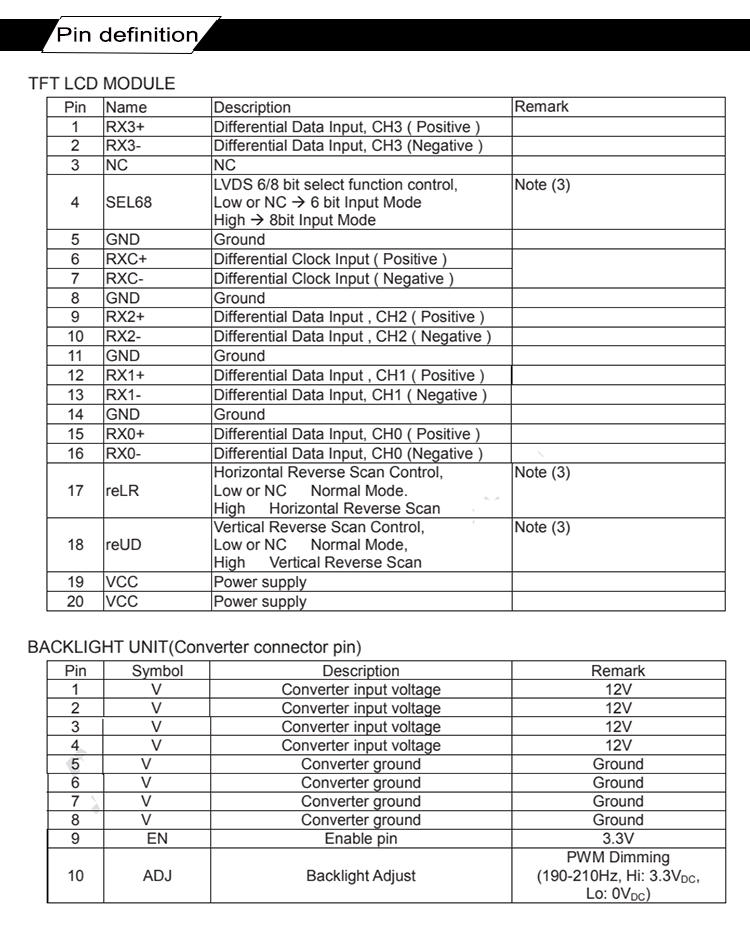

INTERFACE PIN FUNCTION
