0.4 Inch FLCOS Micro Display Module 1280x960 with HDMI CVBS Controller Board

0.4 Inch FLCOS Micro Display Module 1280x960 with HDMI CVBS Controller Board

Size: 0.4 FLCOS
Driver Board: HDMI/CVBS
Resolution: 1280(RGB)X960
Luminance:220 cd/m2 (Typical)
Product description: High-resolution 0.4 inch FLCOS micro display 1280x960 module. Features optional HDMI/CVBS driver board and magnifying optical lens for AR, HUD, and optical viewfinders. Factory direct supply.
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

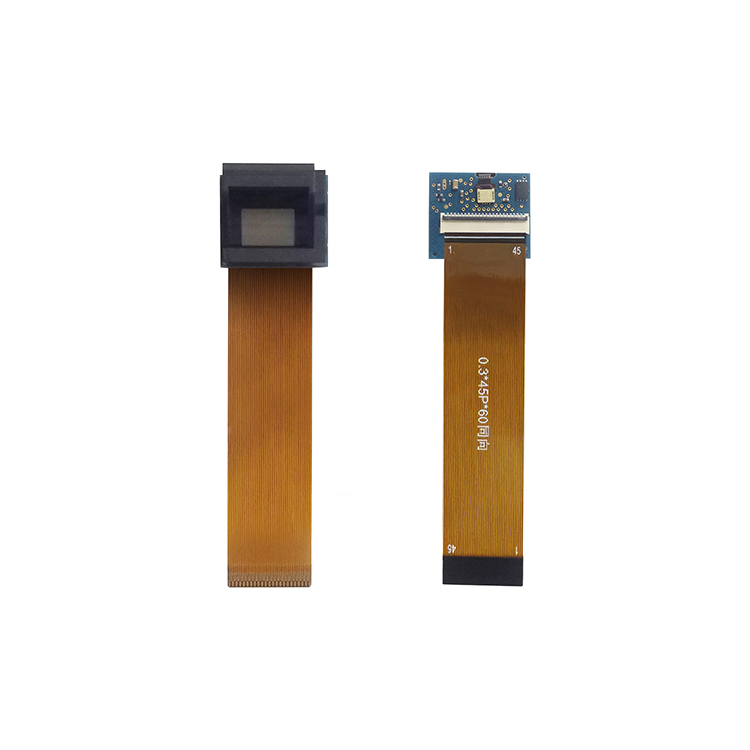

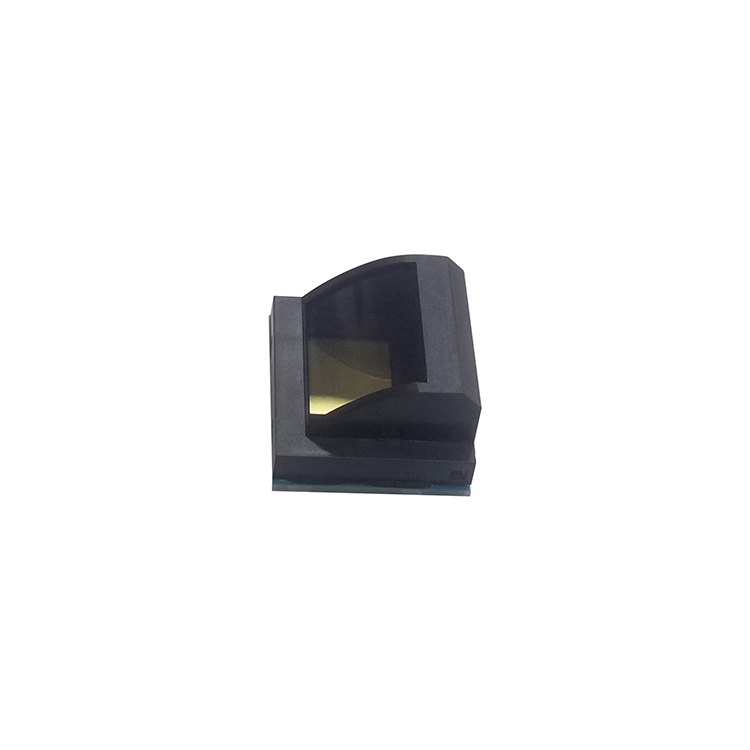

HICENDA The 0.4 inch FLCOS micro display module delivers high-definition 1280x960 resolution in an ultra-compact optical frame. Built on advanced Ferroelectric Liquid Crystal on Silicon technology, this microdisplay offers exceptional pixel density, low power consumption, and high contrast imaging performance.

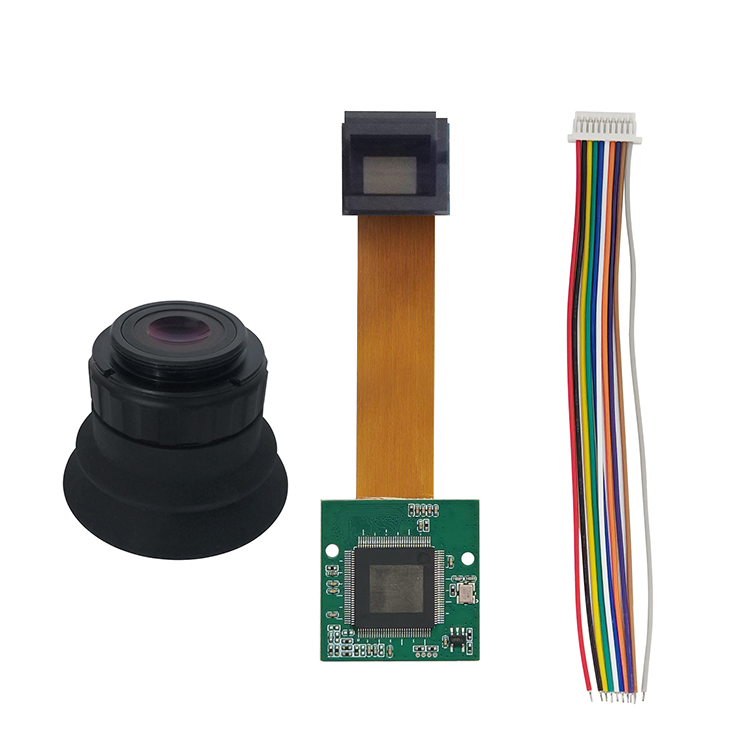

Designed for versatile industrial and optical setups, the display module comes equipped with optional HDMI and CVBS controller boards to streamline your signal interface and engineering evaluation. To meet complex optical alignment requirements, an integrated magnifying lens assembly is available, delivering optimal clarity, visual magnification, and light efficiency for near-eye applications.

GENERAL SPECIFICATION

Parameter	Specification
Model No	FL09S
Display Size	0.4 inches
Resolution	1280 (RGB) × 960
Display Technology	FLCOS (Ferroelectric LC on CMOS, Reflective)
Display Mode	Field Sequential Color
Luminance	220 cd/m² (Typical, Color)
Active Area	8.127 × 6.095 mm
Diagonal Size	0.40 inches (10.16 mm)
Dot Pitch	6.35 µm
Refresh Rate	60Hz/540Hz (NTSC), 50Hz/450Hz (PAL)
Data Clock Rate	25 MHz – 103 MHz
Input Format	RGB888 / YCbCr (4:4:4)
Grayscale Levels	256 per color (8-bit)
Color Depth	16.78 Million Colors
Contrast Ratio	150:1 (Typical)
Structure Size	17.6 × 14.9 × 9.7 mm
Operating Temperature	-10°C to 70°C
Storage Temperature	-30°C to 83°C

DRAWING

INTERFACE PIN FUNCTION

Key Features

Ultra-High Resolution: 0.4 inch active area displaying 1280x960 pixels for sharp and vivid micro-imaging.
Fast Response Speed: Liquid Crystal on Silicon (FLCOS) technology offers rapid switching speed with smooth frame performance.

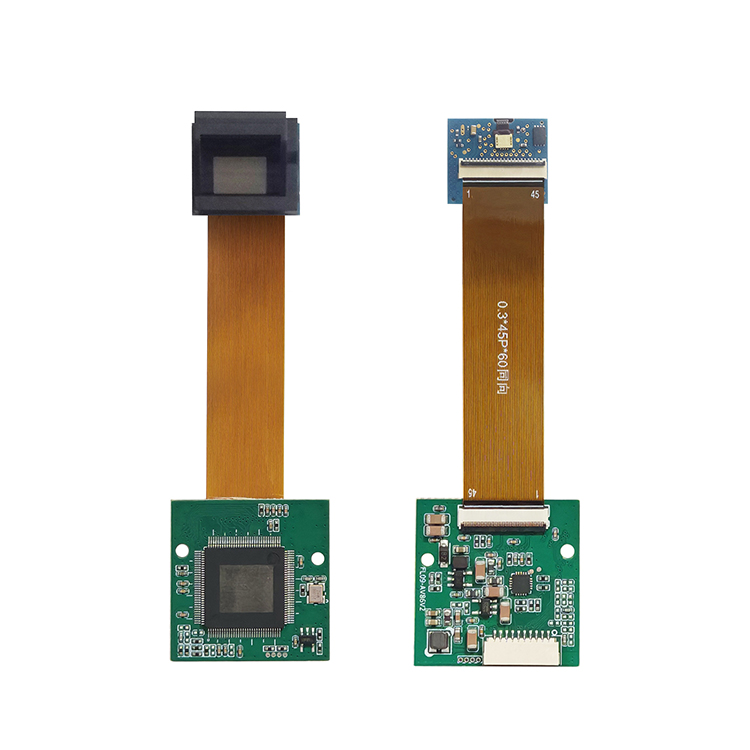

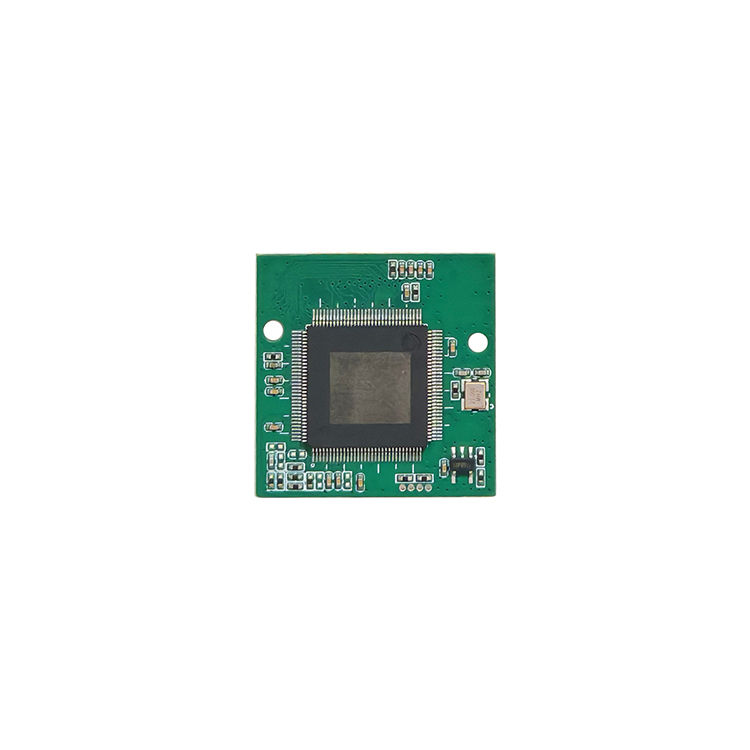

Dual Driver Board Options: Flexible drive system supporting both HDMI and CVBS signal inputs for quick system integration.

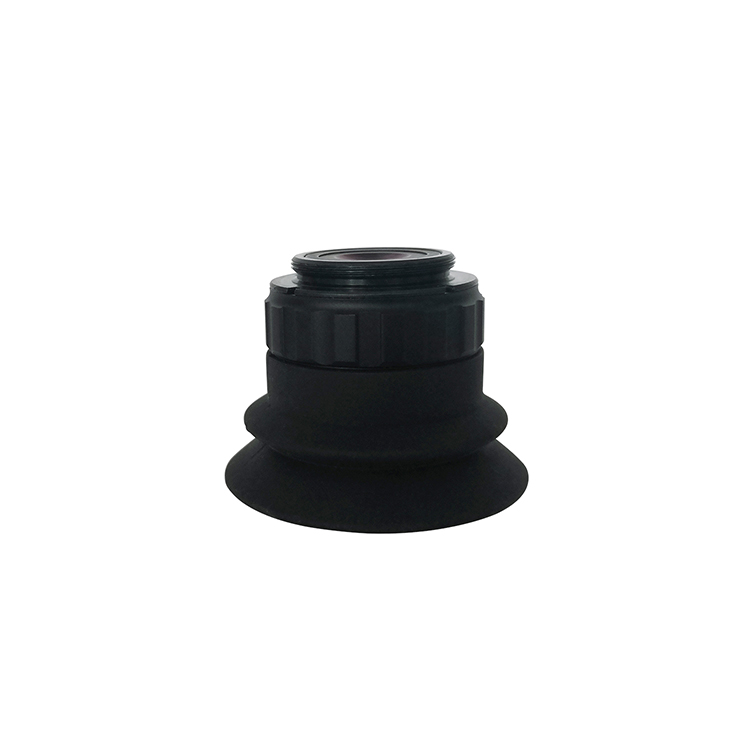

Integrated Optical Lens: Optional high-precision magnifying optical lens designed for customized magnification and comfortable eye-relief viewing.
Compact & Low Power: Ultra-small form factor with optimized power consumption, ideal for portable and near-eye display applications.
