0.4 Inch 1280x960 Micro FLCOS Display Kit with HDMI Board & 12.5X Optical Lens

0.4 Inch 1280x960 Micro FLCOS Display Kit with HDMI Board & 12.5X Optical Lens

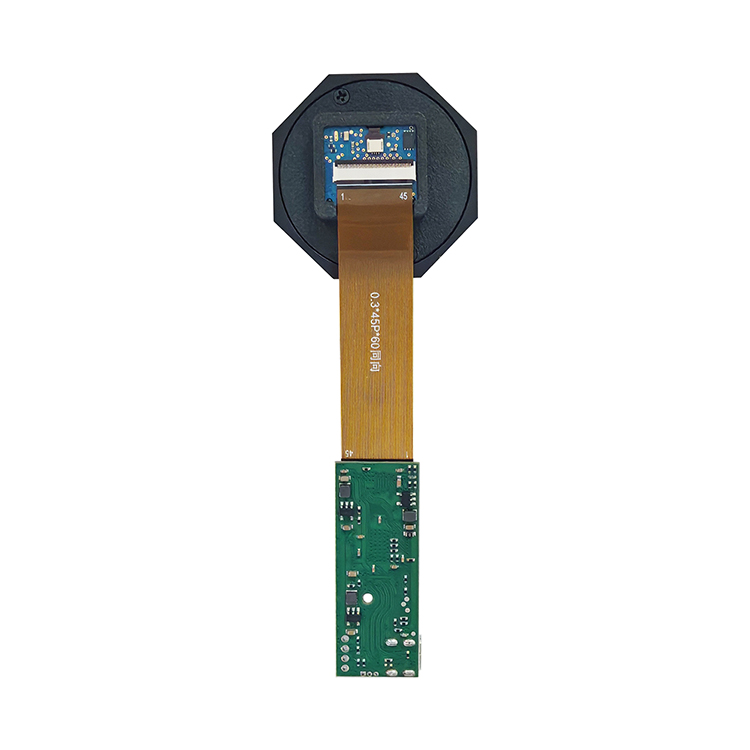

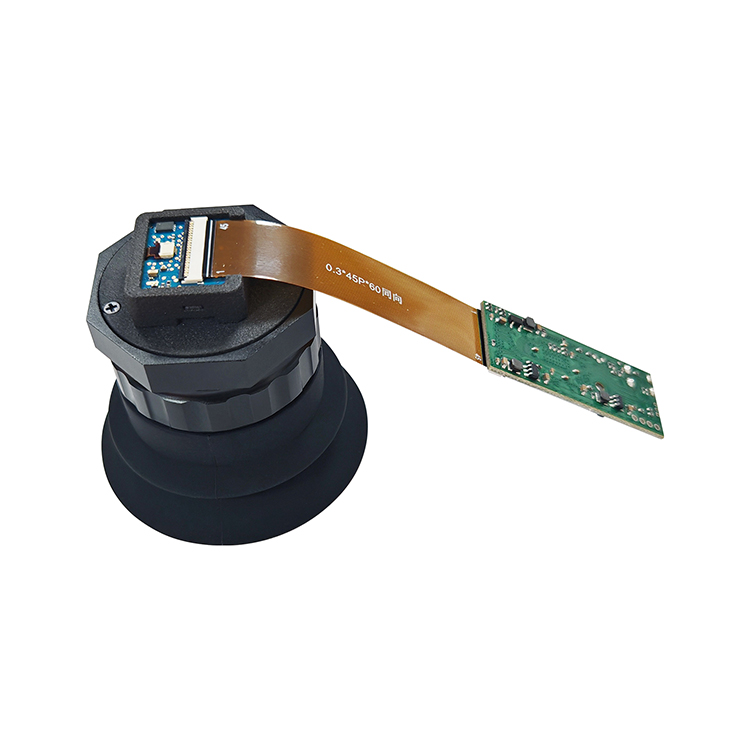

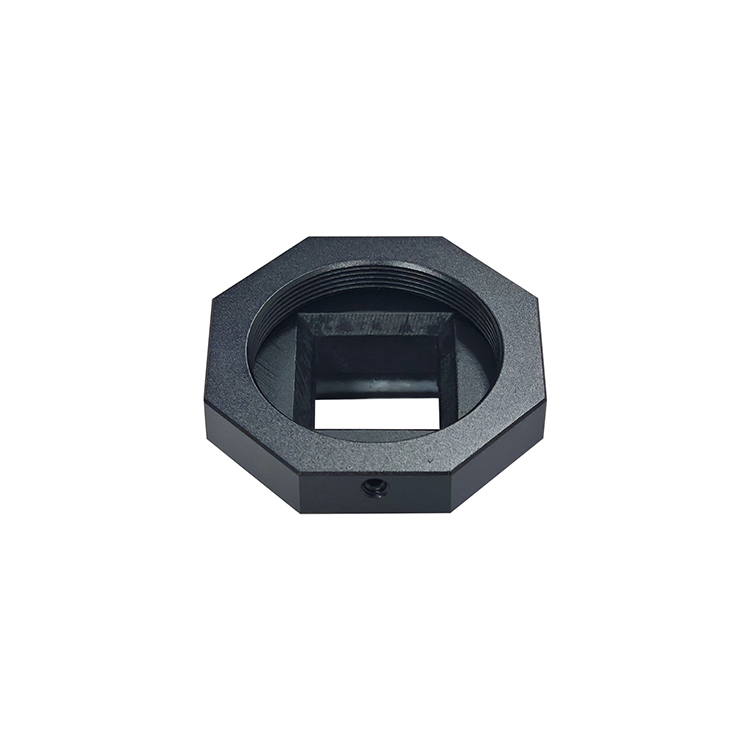

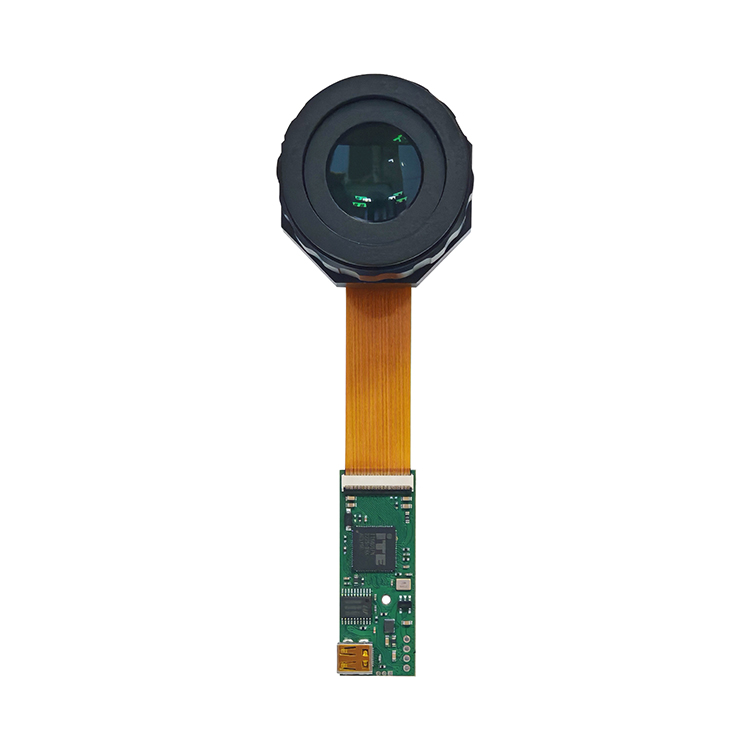

0.4 inch Micro FLCOS Display D Integrated kit
Resolution:1280x960 dots
Contrast Ratio 150:1 (Typical)
220 cd/m² (Typical, Color)
Product description: High-resolution 0.4 inch Micro FLCOS display kit (1280x960) featuring a plug-and-play HDMI driver board and a 12.5X magnifying optical prism lens. Ideal for thermal imagers, night vision, and AR/VR ap
INQUIRY

0.4-inch Micro FLCOS Display Ki 1280x960

DESCRIPTION

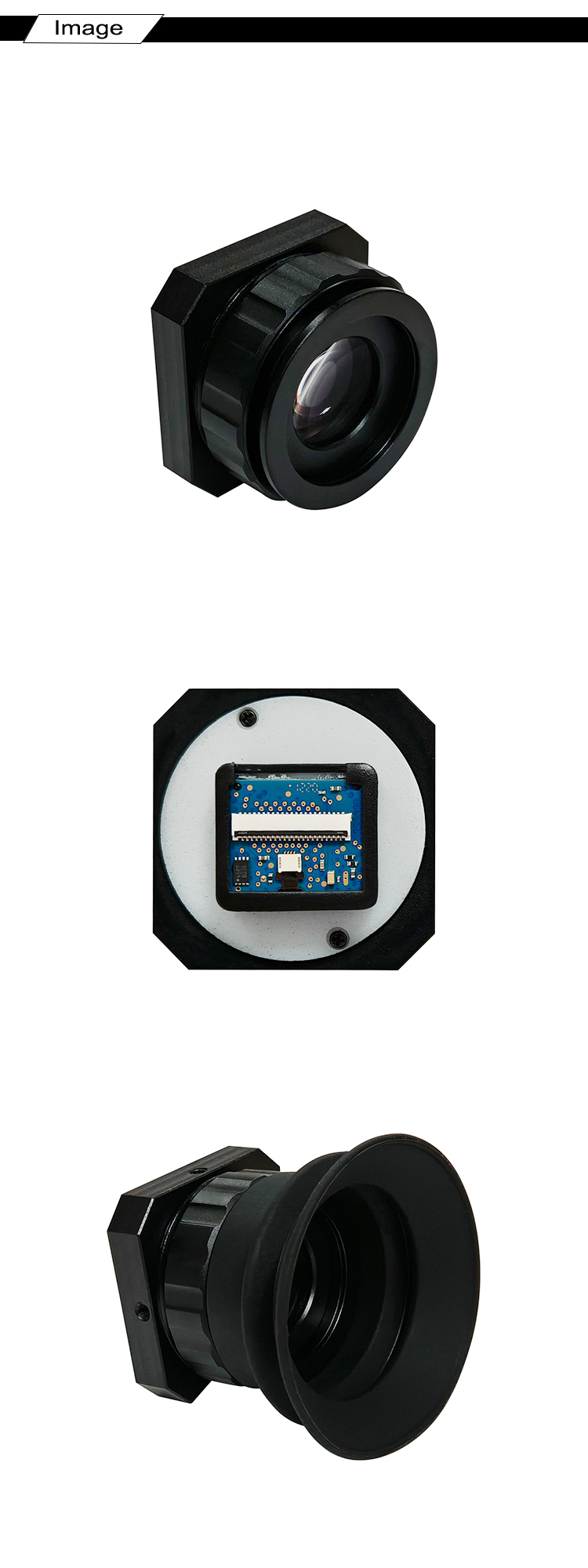

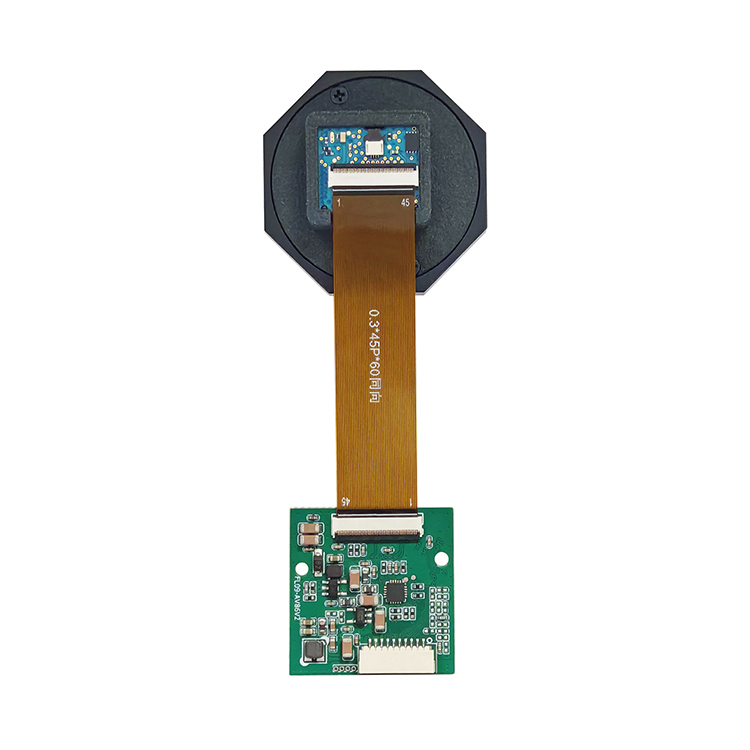

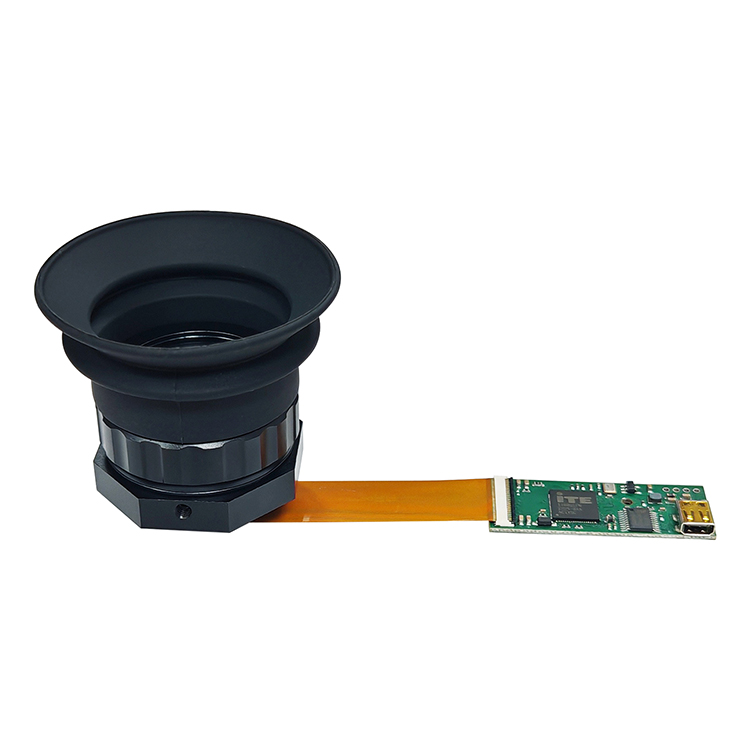

The FL09S 0.4-inch Micro FLCOS Display Kit is an all-in-one, high-performance display system engineered for optical instruments, thermal imaging, night vision devices, and smart head-mounted gear. Combining a high-definition 1280x960 FLCOS microdisplay, an easy-to-integrate HDMI driver board, and a precision 12.5X magnifying optical lens, this ready-to-use module significantly shortens your product development cycle.

Superior Optical & Display Performance Powered by Ferroelectric Liquid Crystal on CMOS (FLCOS) technology, the display features a compact 8.127 × 6.095 mm active area with fine 6.35 μm pixel pitch and up to 540Hz high refresh rates. The matched OP-FL12.5 optical prism system delivers clean visual output with an exit pupil distance of 26 mm and less than 1% distortion, ensuring accurate visual representation even in extended viewing scenarios.

Seamless Integration & Reliability Equipped with a standard plug-and-play HDMI driver board supporting RGB888 / YCbCr (4:4:4) input formats, this kit allows effortless prototyping and mass manufacturing setup. Encased in a rugged metallic structure with a wide operating temperature range, it ensures stable and durable operation in challenging tactical, outdoor, and industrial environments.

Specifications of 0.4 inch micro oled display

Category	Parameter	Specification
Display Panel	Model No.	FL09S
	Display Technology	FLCOS (Ferroelectric LC on CMOS, Reflective)
	Display Size	0.4 inches (10.16 mm Diagonal)
	Active Area	8.127 × 6.095 mm
	Resolution	1280 (RGB) × 960
	Luminance	220 cd/m² (Typical, Color)
	Contrast Ratio	150:1 (Typical)
	Pixel Pitch	6.35 μm
	Color Depth	16.78 Million Colors (8-bit)
	Refresh Rate	60Hz / 540Hz (NTSC), 50Hz / 450Hz (PAL)
Optical Lens	Lens Model	OP-FL12.5
	Magnification	12.5X
	Focal Length	20 mm
	Entrance Pupil Diameter	6 mm
	Exit Pupil Distance	26 mm
	Optical Distortion	< 1%
	Diopter Adjustment	-500 to +400 (Diopter)
	Lens Construction	Metallic + Glass
	Mount	M29 * 0.75
	Focus / Iris Operation	Manual Focus / Fixed Iris
	Lens Weight	55 g
	Lens Outer Dimension	Φ 38.5 × 41 mm
System & Driver	Interface Board	HDMI Board (Plug-and-Play)
	Input Format	RGB888 / YCbCr (4:4:4)
	Display Operating Temp.	-10°C to 70°C
	Lens Operating Temp.	-20°C to 80°C

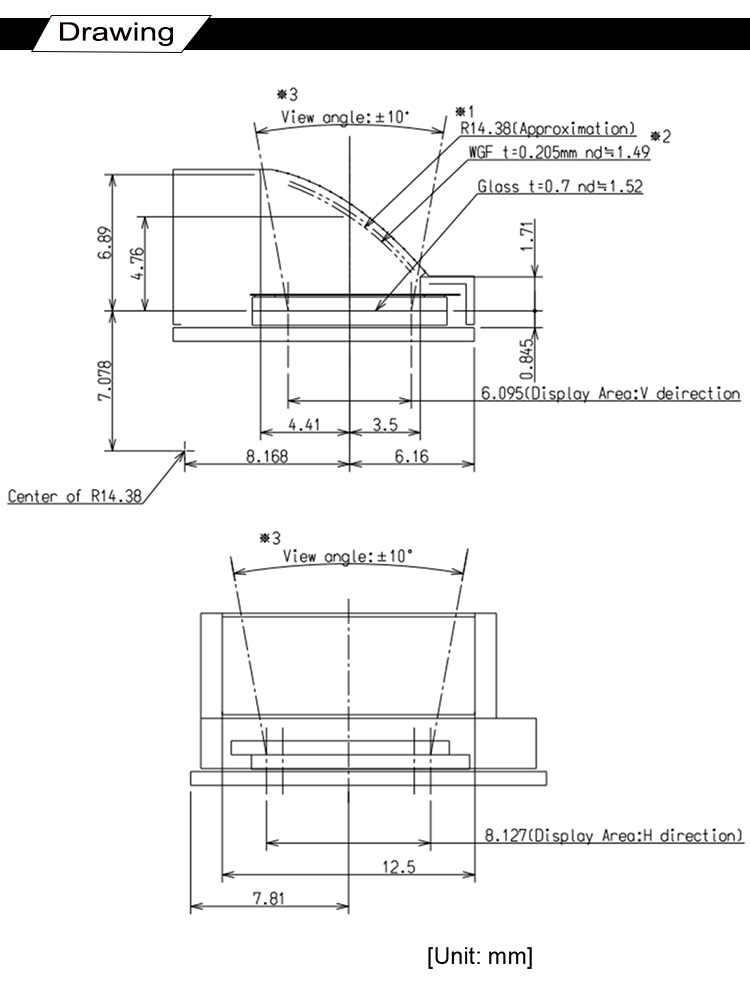

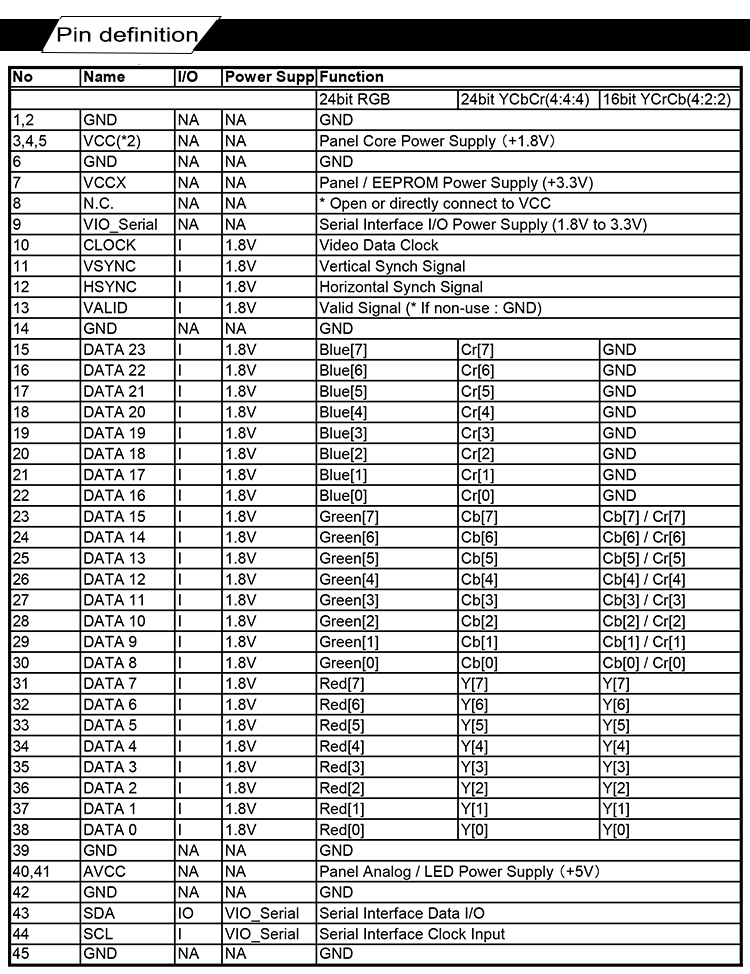

DRAWING &Pindefinition

Key Features

All-in-One Optical Integration: Pre-assembled Micro OLED panel, magnifying optical prism lens, and driver board to accelerate your product development cycle.
Versatile Signal Driver Board: Optional HDMI Board or CVBS Board for seamless integration with diverse video input sources.
4 Color & Luminance Options:
- Full Color RGB: 500 cd/m² (Ideal for vibrant AR/VR optics)
- Monochrome White: 500 cd/m²
- Monochrome Green: 10,000 cd/m² (Ultra-high brightness for outdoor/tactical optics)
- Monochrome Red: 10,000 cd/m²
High Image Precision: 1024x 768 resolution (1040 x 784 active pixels) with dynamic contrast ratio > 10000:1 and > 90% luminance uniformity.
Low Power & Dynamic Control: Built-in PWM mode dimming, adaptive brightness, embedded temperature sensor, and I2C serial protocol.
Extreme Operating Range: Industrial-grade reliability performing from -40℃ to +65℃.
