3.97"

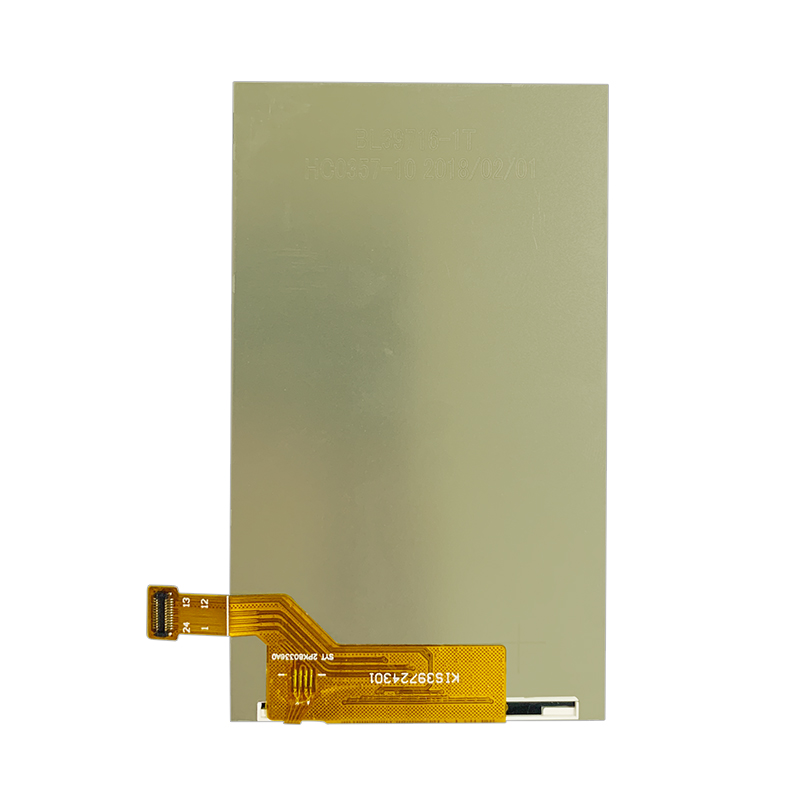

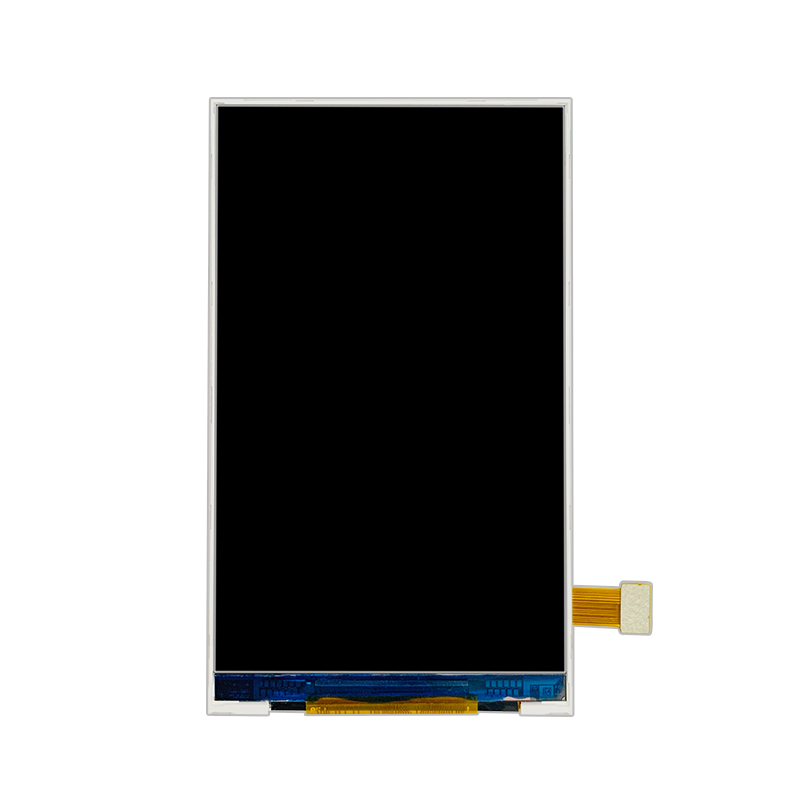

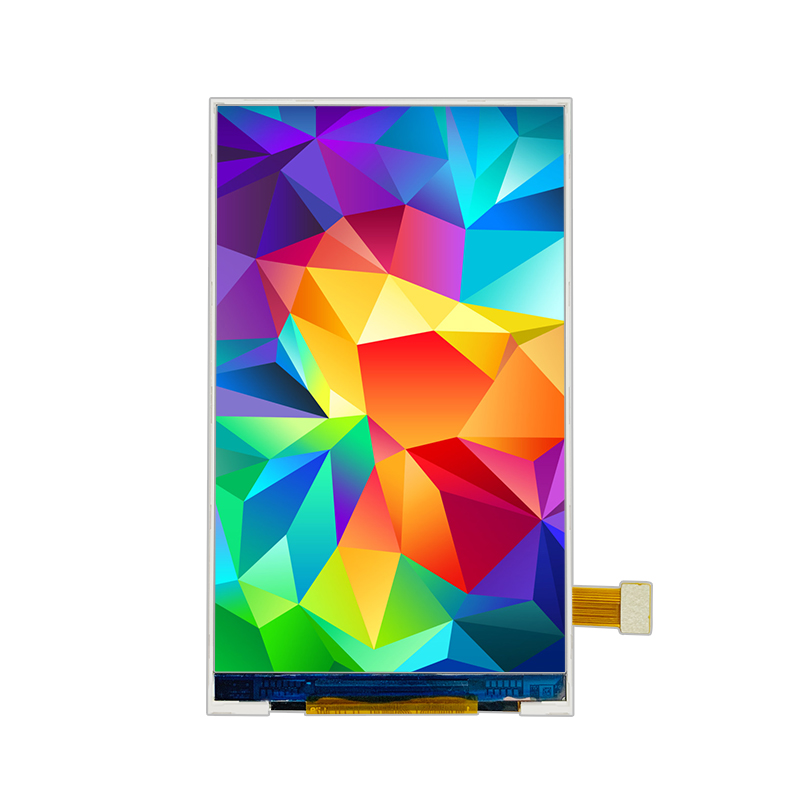

3.97 Inch Color TFT LCD Display customized 480*800 resolution tft lcd display for industrial application

3.97 Inch Color TFT LCD Display customized 480*800 resolution tft lcd display for industrial application

3.97 Inch Color TFT LCD Display customized 480*800 resolution tft lcd display for industrial application

3.97 Inch Color TFT LCD Display customized 480*800 resolution tft lcd display for industrial application

Display Mode :TFT-LCD Module
Size: 3.97
Resolution: 480*800
Interface:MIPI
Product description: Hicenda Technology Co.,ltd can supply high quality 3.4 inch small tft display for medical or industrial device.480*800 dot matrix 3.97 Inch tft lcd monitor
INQUIRY

1. Display Specifications

LCD Size: 3.97 inches
Dot Matrix Size: 480*800
Glass type:TFT—standard white
Hardware Interface: MIPI
Driver IC: ST7701S
Operating Temperature: -20 - 70
Working Power Supply: 3.0V
PIN NO: 24Pin

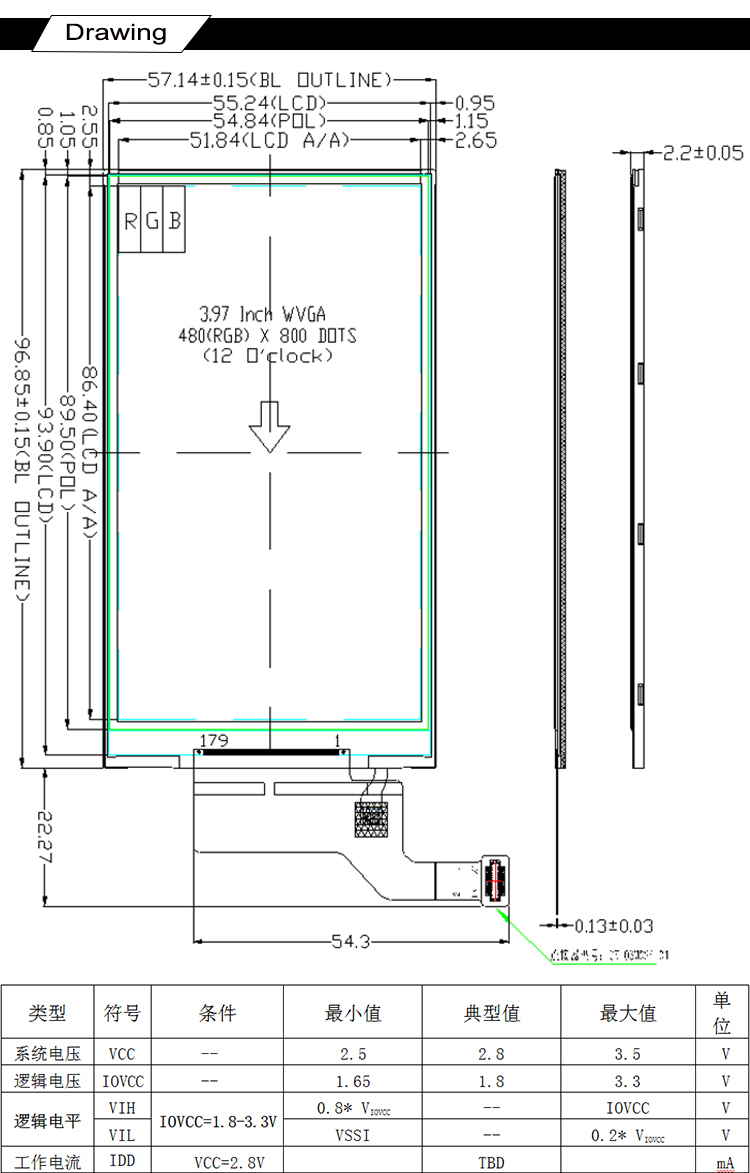

Display Area:51.84x86.4 mm
Size: 57.14(H)x96.85(V)x2.25(D)
Viewing Direction: 12 O'CLOCK

PINo Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 3.3V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
