1. Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/32 Duty
4) Wide viewing angel: >160 degree
5) Brightness: 150 cd/m2
6) Dark Room Contrast: >2000:1
7) Sleep Mode Current for VCC: 1uA

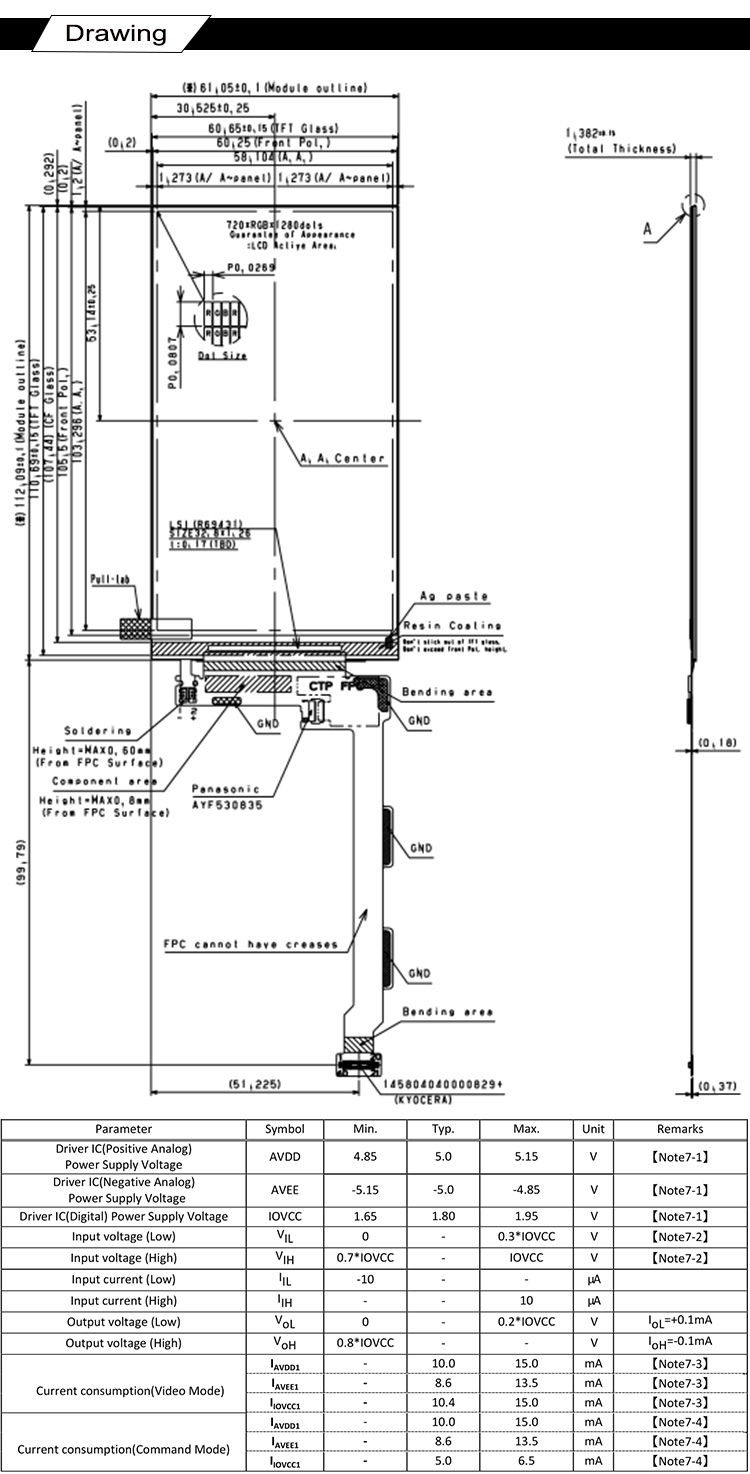

2. Mechanical Specifications
Color
White
Panel matrix
720*1280
Driver IC
R69431
Extremely thin thickness for best mechanism design
1.02 mm
High contrast
2000:1
Wide viewing angle
160°
interface
4-wire serial peripheral
Wide range of operating temperature
-40 to 70°C.
Dot Matrix
48 (W) x 88 (H)
Dot Size
0.0629(W) x 0.0867 (H)
Dot Pitch
0.128 (W) x 0.128 (H)
Aperture Rate
71
Active Area
58.104(W) x 103.296 (H)
Panel Size
61.05 (W) x 112.09 (H) x1.382(D)
Panel Thickness
1.02 ± 0.1
Module Size
15.528
Diagonal A/A size
0.5
Module Weight
0.35 ± 10%
