0.39 inch Micro OLED Display Module 1024×768 – Integrated Kit with Driver Board & Magnifying Optical Prism

0.39 inch Micro OLED Display Module 1024×768 – Integrated Kit with Driver Board & Magnifying Optical Prism

0.39 inch Micro OLED Integrated kit
Resolution:1024x768 dots
Interface: 24bitRGB、 24/16bitYCbCr、8bitMono
Brightness: 500-10000nits
Product description: 0.39" Micro OLED microdisplay (1024×768) integrated with HDMI/CVBS driver board and magnifying optical prism. RGB/White/Green/Red, up to 10000cd/m².
INQUIRY

0.39 Inch Micro OLED Display Module Kit (1024x768 Resolution, HDMI/CVBS)

DESCRIPTION

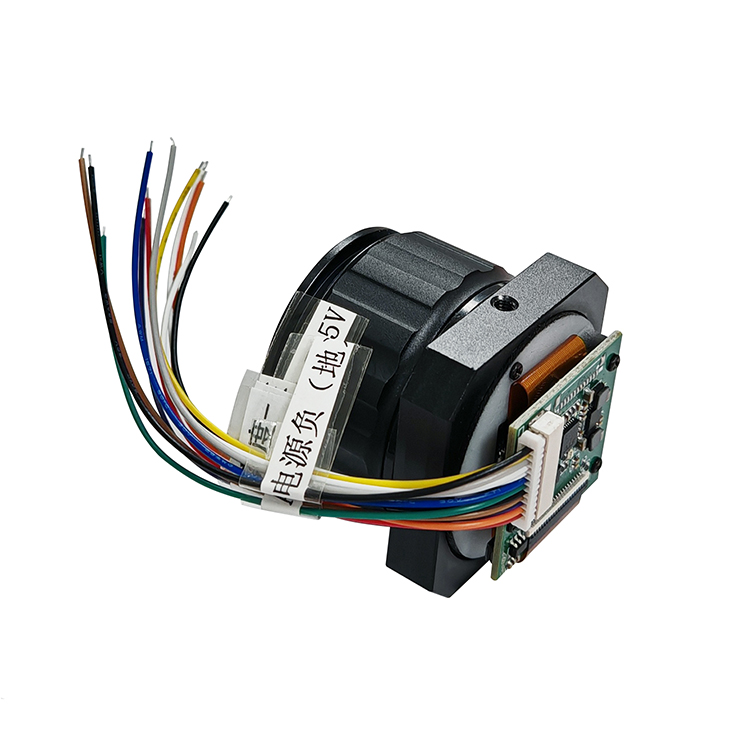

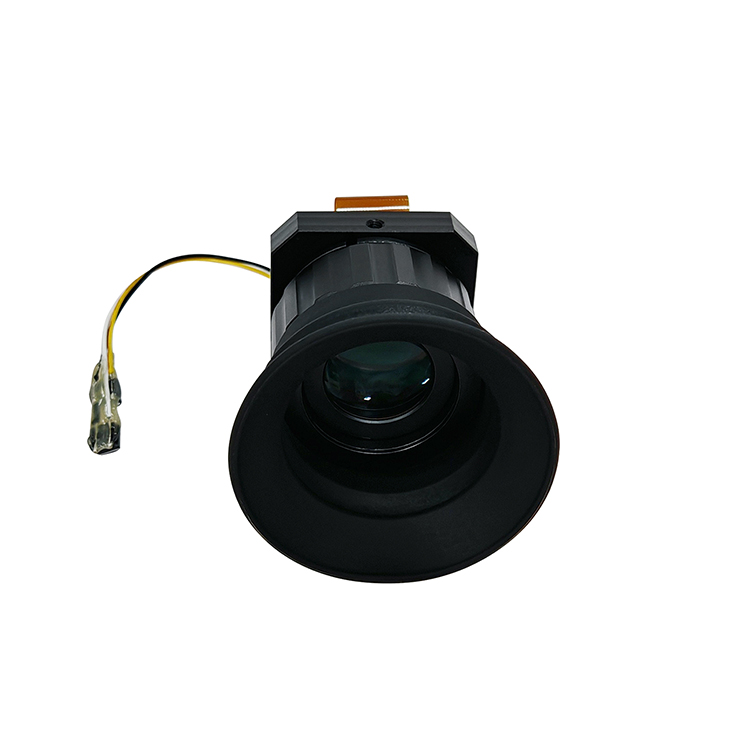

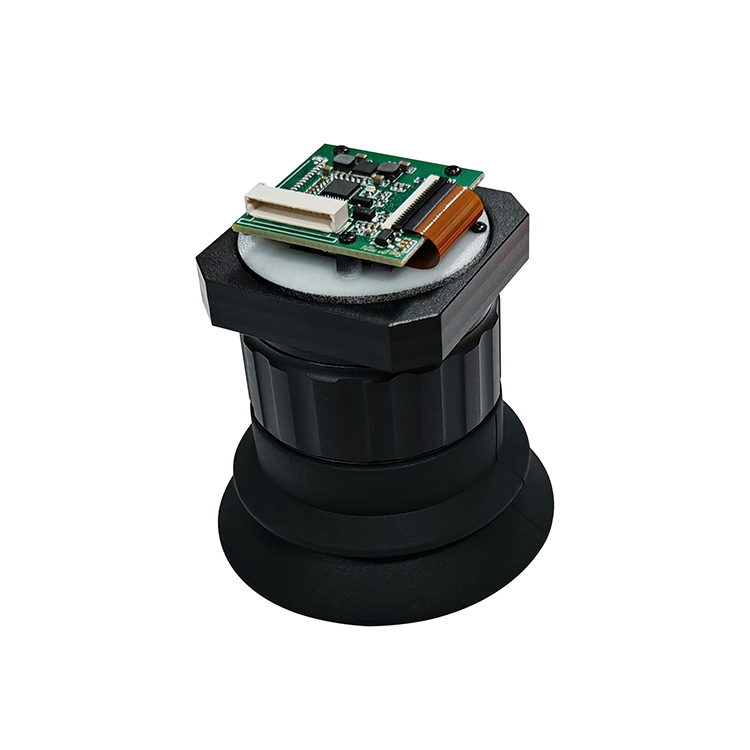

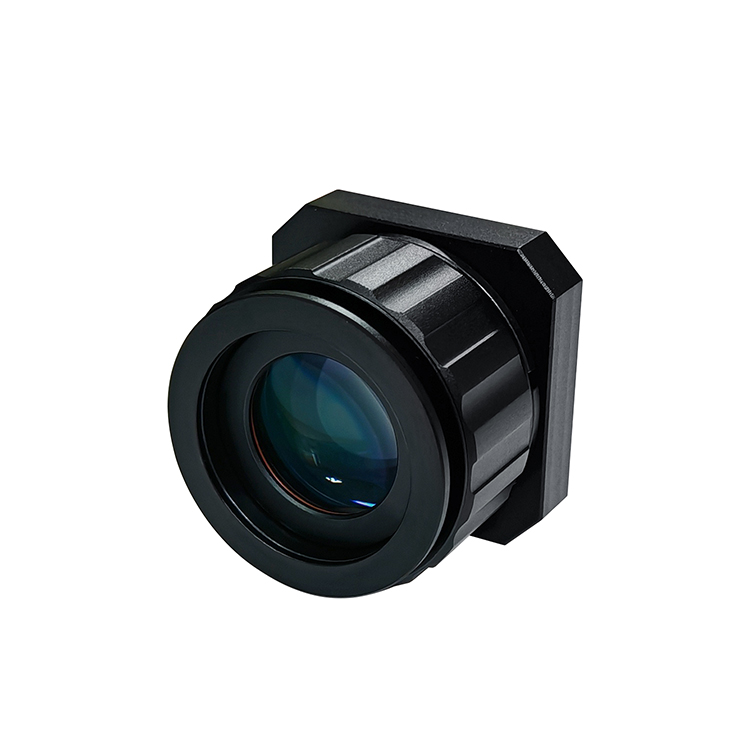

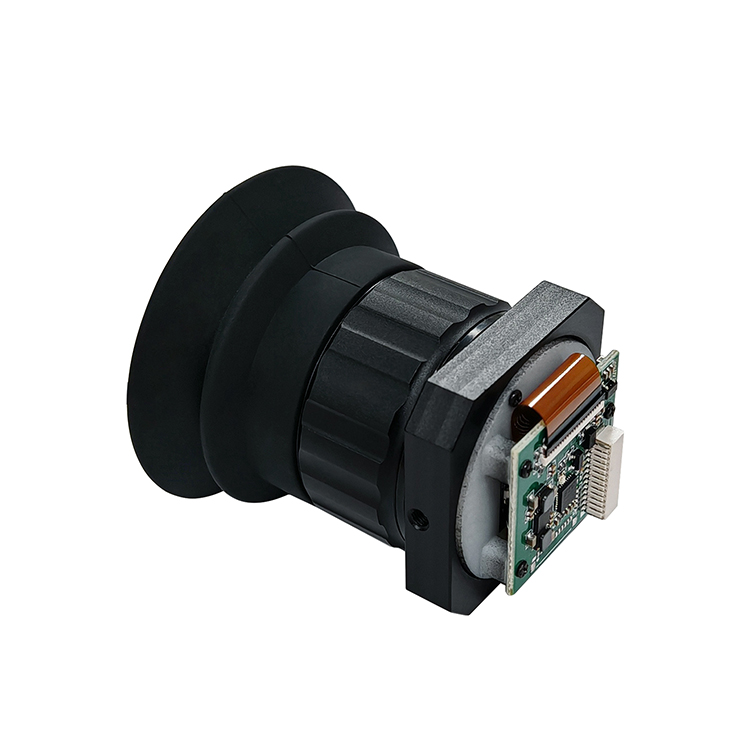

This integrated kit combines a 0.39" micro OLED display panel (1024×768 resolution) with a driver board (HDMI or CVBS option) and a magnifying optical prism, pre-assembled and ready to integrate. Designed for near-eye and viewfinder applications such as AR/VR headsets, thermal and night vision scopes, rifle scopes, medical loupes, and industrial viewfinders, the module delivers high contrast (>10000:1), wide color/brightness options, and a compact structure size of just 16.6×14.2×3.3mm.

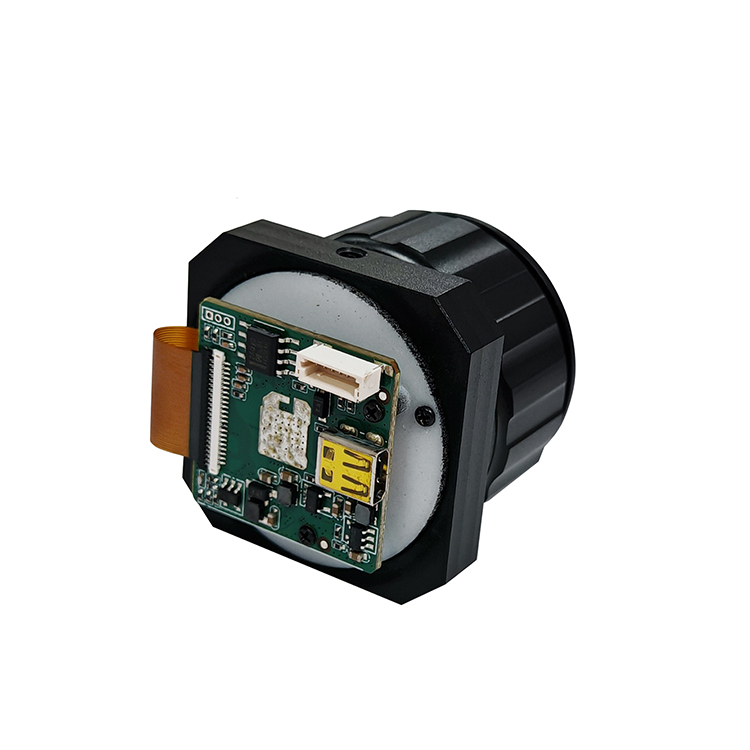

Driver Board Options: Choose between HDMI board (for standard digital video sources) or CVBS board (for analog composite video sources), depending on your host system's output interface.

Color & Brightness Options:

RGB (C) – 500 cd/m² – full color display
Monochrome White (W) – 500 cd/m² – general purpose, low power
Monochrome Green (G) – 10000 cd/m² – high brightness, ideal for outdoor/night vision use
Monochrome Red (R) – 10000 cd/m² – preserves night vision adaptation, common in tactical/military optics

Specifications of 0.39 inch micro oled display

Item	Color (C)	Monochrome White (W)	Monochrome Green (G)	Monochrome Red （R）
Type	Color (C)	Monochrome White (W)	Monochrome Green (G)	Monochrome Red （R）
Resolution	1024×768 （Active Pixel: 1040×784）
Pixel Size①	7.8μm×7.8μm
Pixel Array	RGB Vertical Stripe
View Area	8.1325mm×6.1779mm （0.393"Diagonal）
Structure Size	16.6mm×14.2mm×3.3mm
Power Supply	Digit Core　DC 1.8V@Max15mA
Power Supply	OLED Array　DC 5.0V@ Max150mA
Gray Level	Lv.256
Video Interface	24bitRGB、 24/16bitYCbCr 、 8bitMono
Refresh Rate	25Hz~120Hz
Net Weight	1g
Operating Temperature	- 40°C ～ +65°C
Storage Temperature	-55°C to +90°C
Contrast	>10000:1
Luminance Uniformity	>90%
Typical Luminance(cd/m²)②	500cd/m²	500cd/m²	10000cd/m²	10000cd/m²
Chromaticity Coordinate	CIE-x: 0.31±0.05	CIE-x: 0.31±0.05	CIE-x: 0.21±0.05	CIE-x: 0.63±0.05
	CIE-y: 0.33±0.05	CIE-y: 0.33±0.05	CIE-y: 0.70±0.05	CIE-y: 0.33±0.05
Life Time	20000H@200cd/m²	20000H@500cd/m²	20000H@10000cd/m²	20000H@10000cd/m²

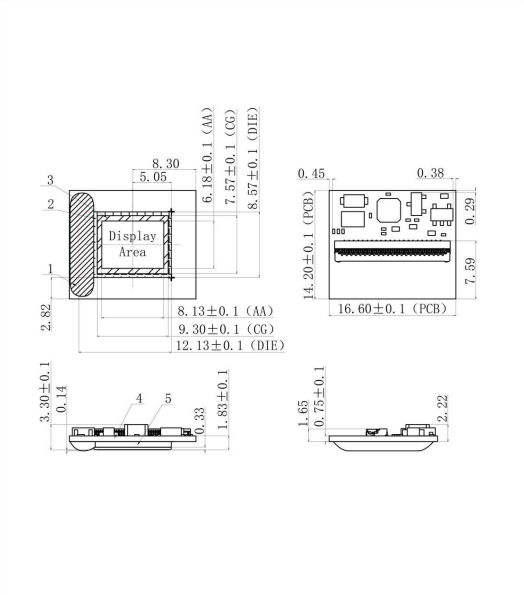

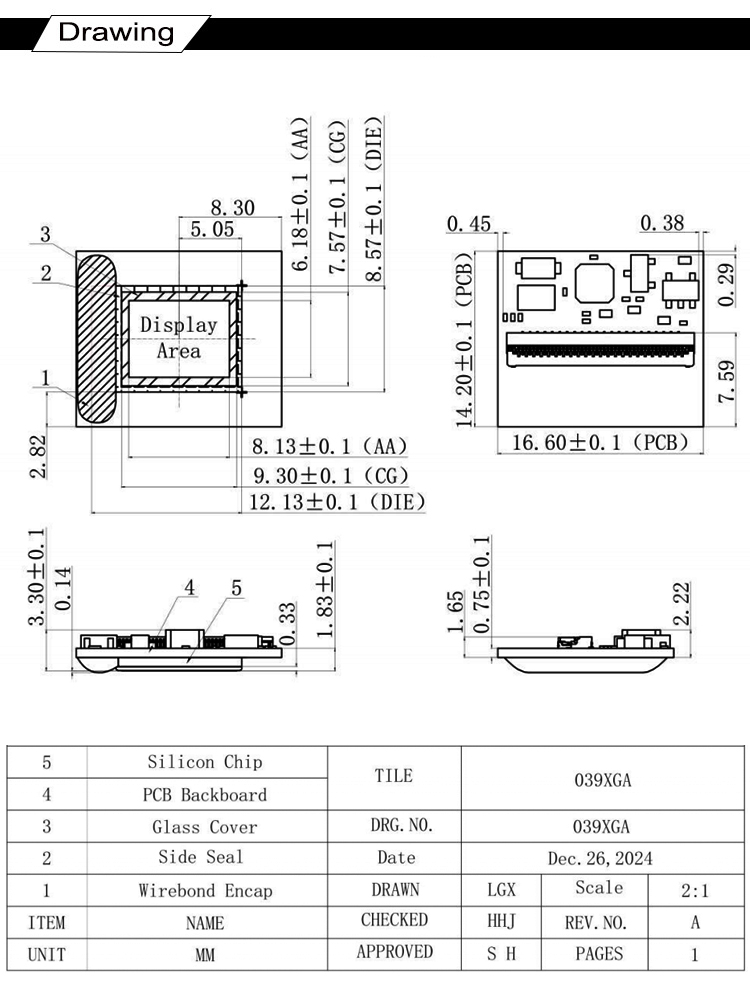

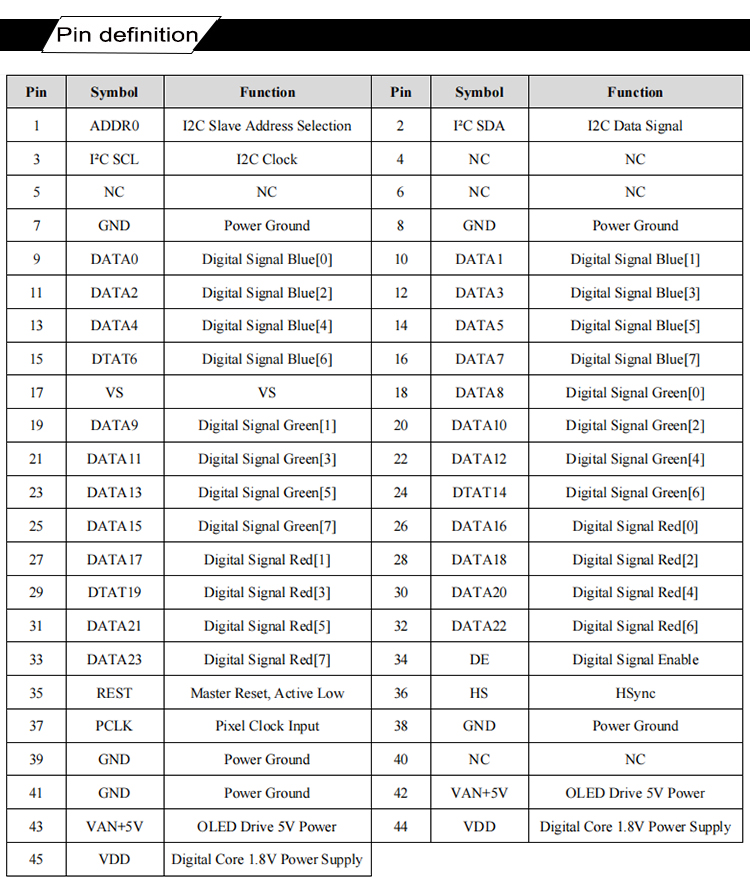

DRAWING &Pindefinition

Key Features

All-in-One Optical Integration: Pre-assembled Micro OLED panel, magnifying optical prism lens, and driver board to accelerate your product development cycle.
Versatile Signal Driver Board: Optional HDMI Board or CVBS Board for seamless integration with diverse video input sources.
4 Color & Luminance Options:
- Full Color RGB: 500 cd/m² (Ideal for vibrant AR/VR optics)
- Monochrome White: 500 cd/m²
- Monochrome Green: 10,000 cd/m² (Ultra-high brightness for outdoor/tactical optics)
- Monochrome Red: 10,000 cd/m²
High Image Precision: 1024x 768 resolution (1040 x 784 active pixels) with dynamic contrast ratio > 10000:1 and > 90% luminance uniformity.
Low Power & Dynamic Control: Built-in PWM mode dimming, adaptive brightness, embedded temperature sensor, and I2C serial protocol.
Extreme Operating Range: Industrial-grade reliability performing from -40℃ to +65℃.
