DESCRIPTION

HICENDA 1.47 inch TFT color display module features a 172(H)RGB x 320(V) resolution driven by the ST7789V3 IC, supporting a 4-line SPI interface and displaying up to 262K colors. With a typical brightness of 600cd/m² and an all-view-angle optimized panel, it delivers crisp, vivid images from virtually any viewing direction. Measuring just 19.39(H) x 36.28(V) x 1.46(D)mm and weighing only 2.7g, this ultra-thin, lightweight module is ideal for wearables, smartwatches, handheld instruments, and space-constrained IoT devices. Backlit by 3 parallel-driven white LEDs, it operates reliably across a wide temperature range (-20℃ to +70℃) and is suitable for both consumer and light industrial applications. Custom sizes, interfaces, and touch panel integration are available — OEM/ODM welcome.

GENERAL SPECIFICATION

Parameter	Specification
LCD Size	1.47 Inch
Display Type	TFT LCD
Display Mode	Normally Black
Resolution	172(H) × 320(V) RGB
Driver IC	ST7789V3
Interface	4-Line SPI
Display Colors	262K
Brightness	600 cd/m² (Typical)
Viewing Angle	IPS, All Viewing Direction
Active Area	17.3892 × 32.352 mm
Module Size	19.39 × 36.28 × 1.46 mm
Pixel Pitch	0.0337 × 0.1011 mm
Backlight	3 White LEDs
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Weight	Approx. 2.7 g

Key Features of 1.47 inch TFT LCD display module

Compact 1.47 Inch TFT LCD Module

This 1.47 inch TFT LCD display features a compact design with a module size of only 19.39 × 36.28 × 1.46 mm, making it ideal for handheld devices, smart home products, portable instruments, and other embedded applications where installation space is limited.

Sharp 172×320 Resolution with 262K Colors

The display offers a 172 × 320 RGB resolution and supports 262K colors, delivering clear graphics, smooth text, and vibrant images for modern user interfaces.

ST7789V3 Driver with 4-Line SPI Interface

Powered by the ST7789V3 driver IC, this module uses a 4-line SPI interface for simple integration with MCUs and embedded systems, helping reduce development time while ensuring reliable display performance.

High Brightness and Wide Viewing Angle

With a typical brightness of 600 cd/m² and IPS all viewing angle technology, the display provides excellent readability and consistent color performance from virtually any viewing direction.

Reliable for Industrial Applications

Designed to operate from -20°C to +70°C with a storage temperature range of -30°C to +80°C, this TFT LCD module is well suited for industrial equipment, medical devices, IoT products, and consumer electronics requiring stable performance in demanding environments.

OEM & Customization Support

We provide OEM and customization services, including touch panel integration, cover glass, FPC modification, interface customization, optical bonding, and brightness adjustment to meet specific project requirements.

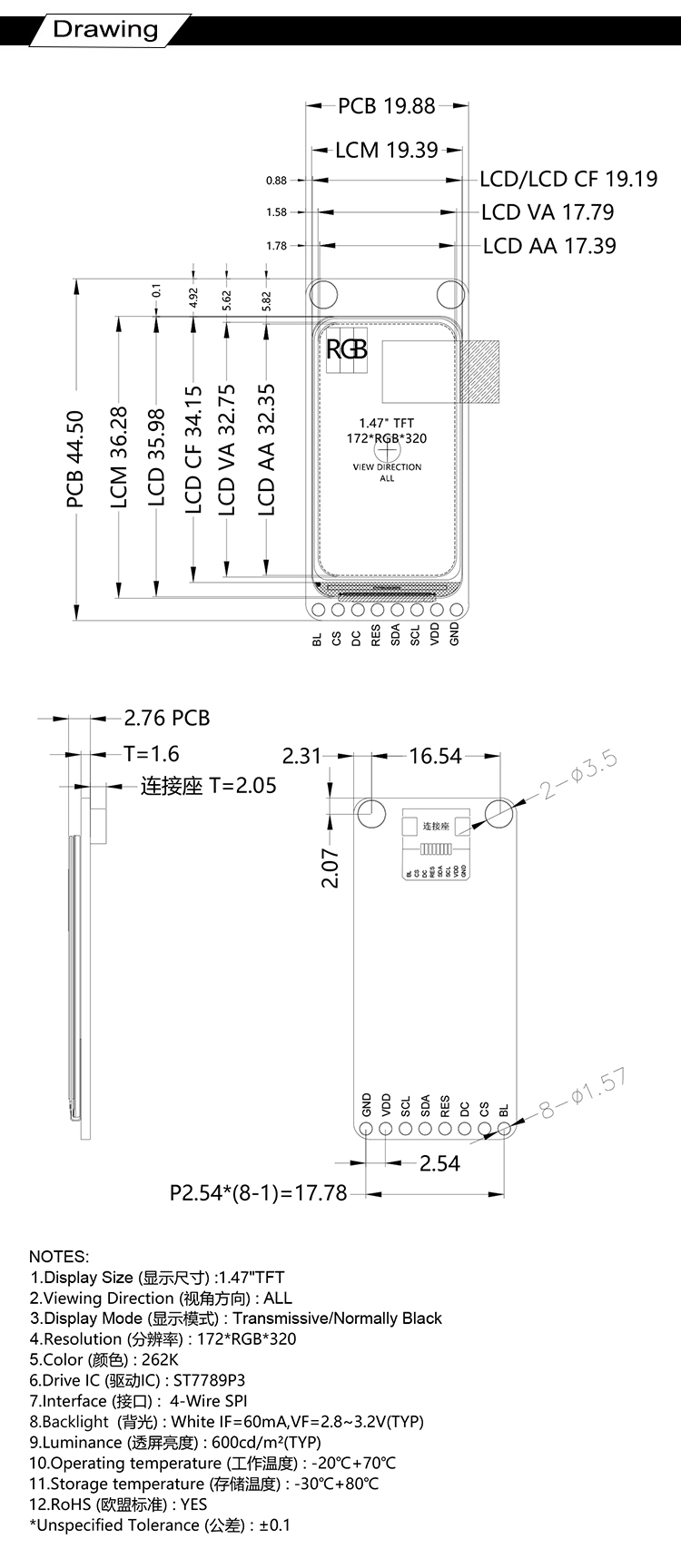

DRAWING

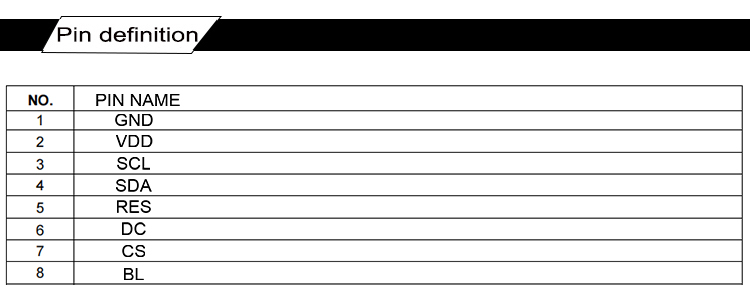

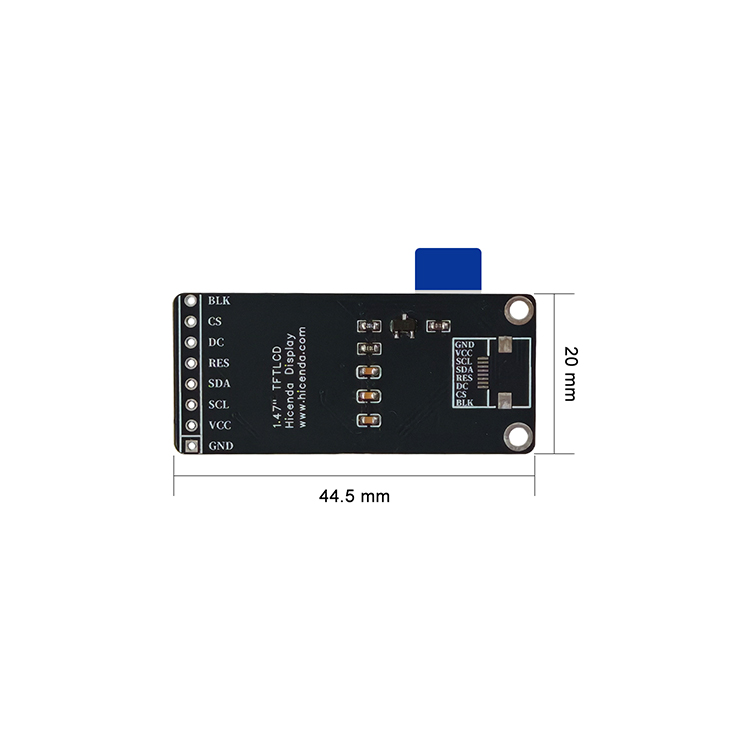

INTERFACE PIN FUNCTION
