0.39 inch microoled display optical prism module 1027x768 for thermal imagering

DESCRIPTION

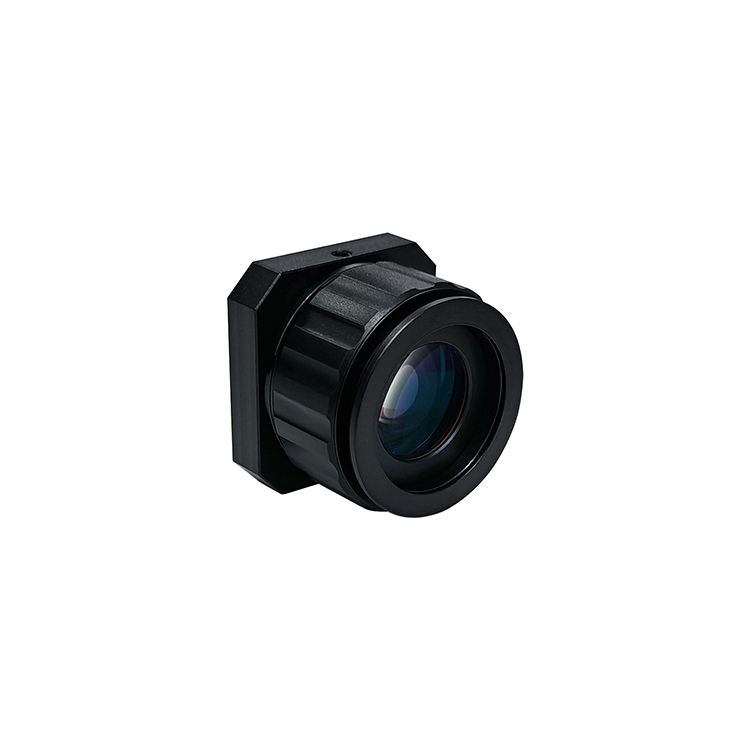

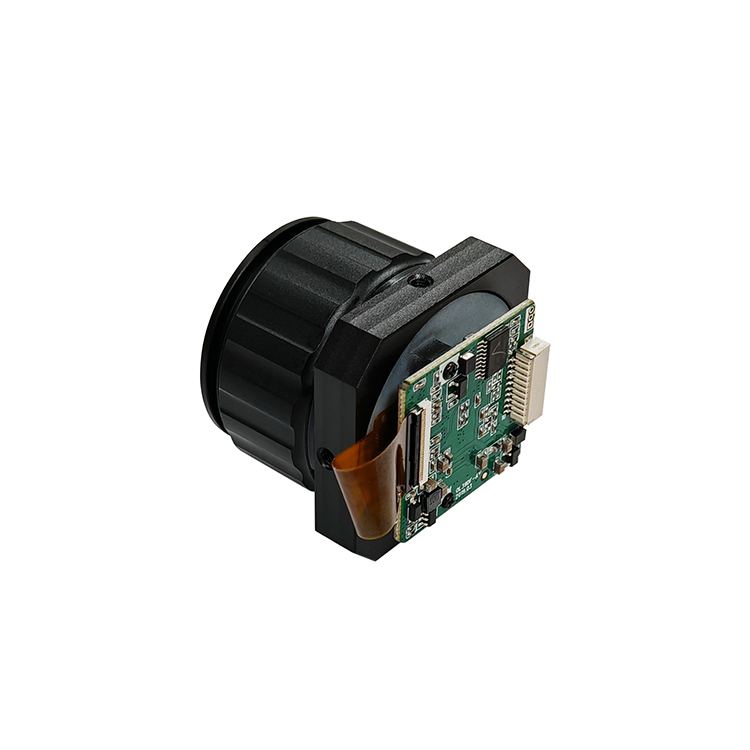

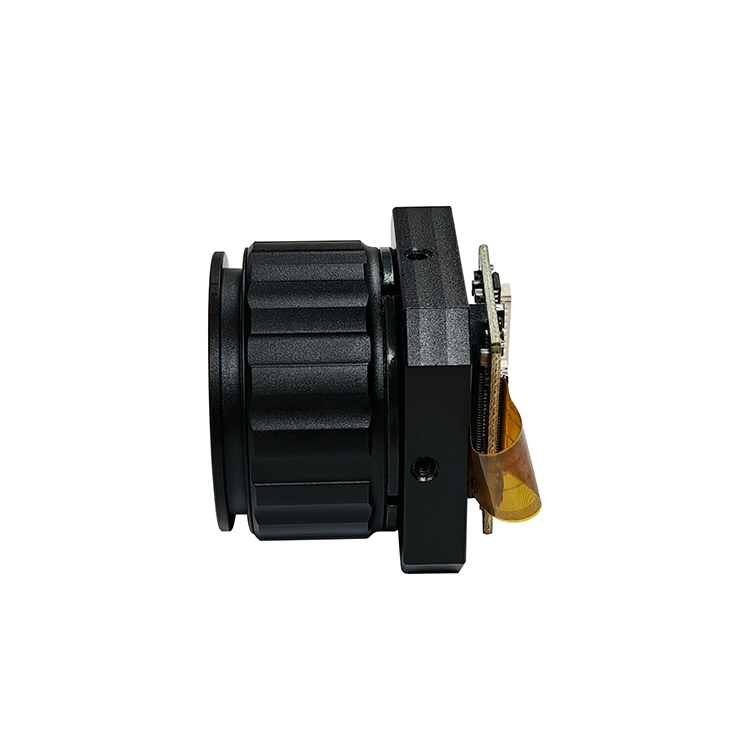

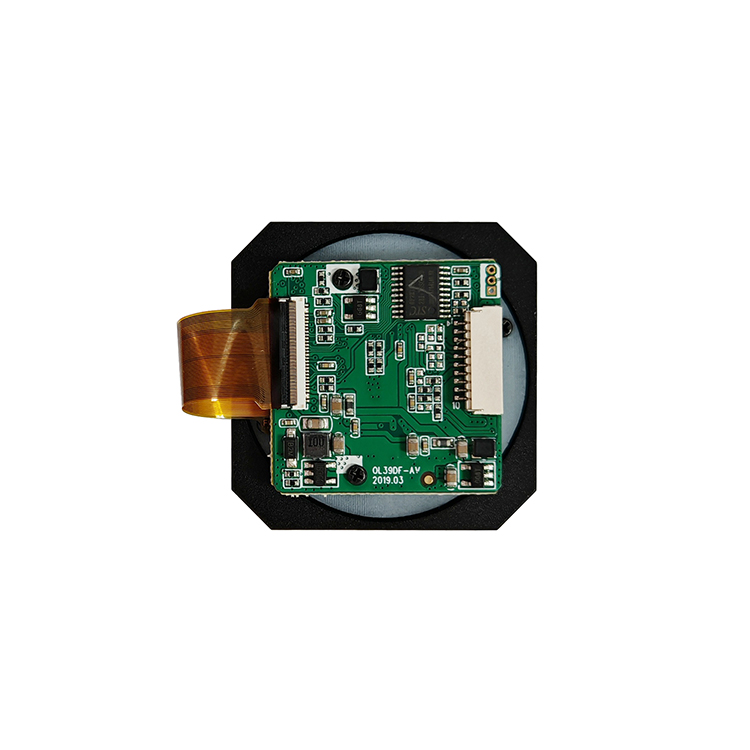

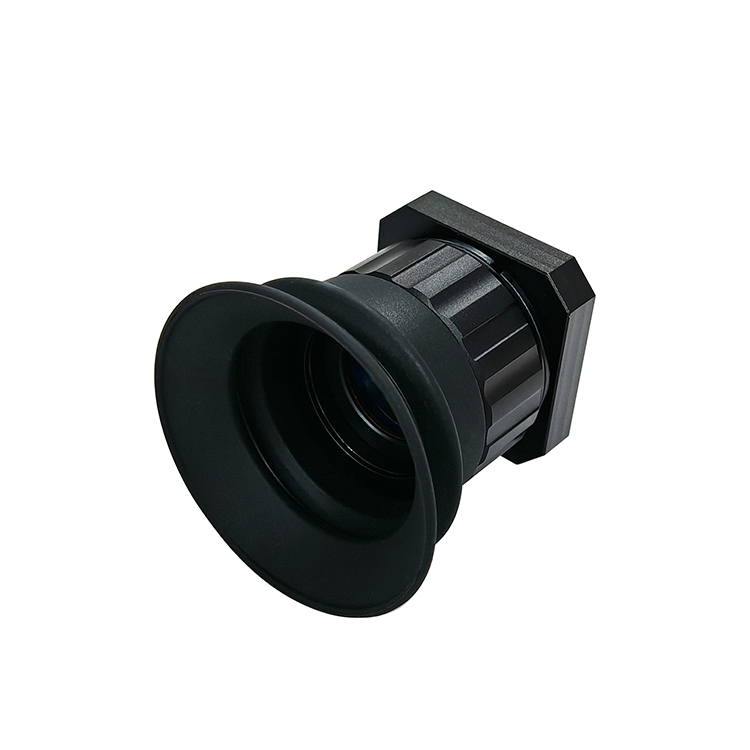

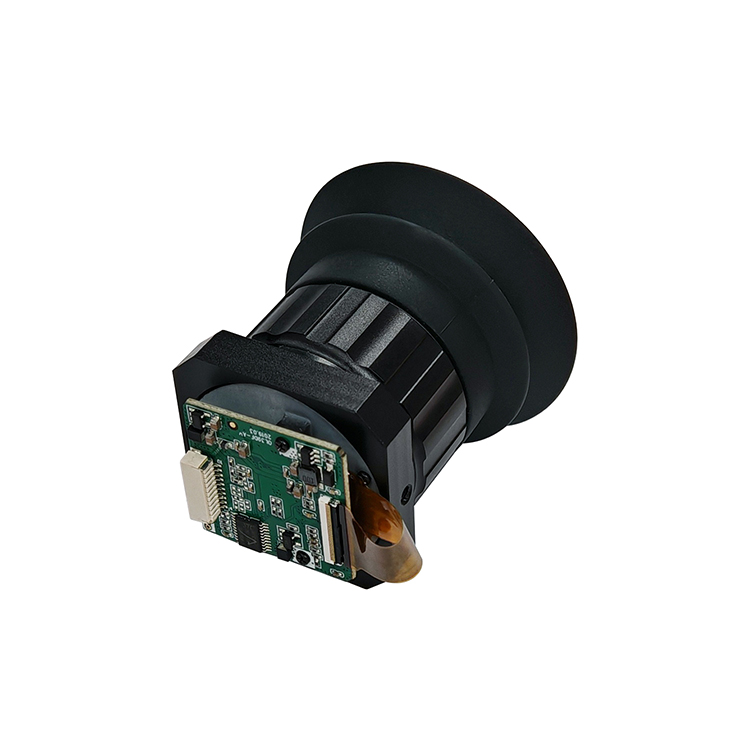

This micro oled display Integrated kit consists of sony 0.39 inch micro oled display,15X magnifiering optical priam, and CVBS display driver board, all components well assembled and can be directly used into devices;

this micro oled display module Integrated is with a low power consumption and high resolution 1024x768 abd high brightness of 1000nits ; based on a single-crystal silicon backplane. The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption.

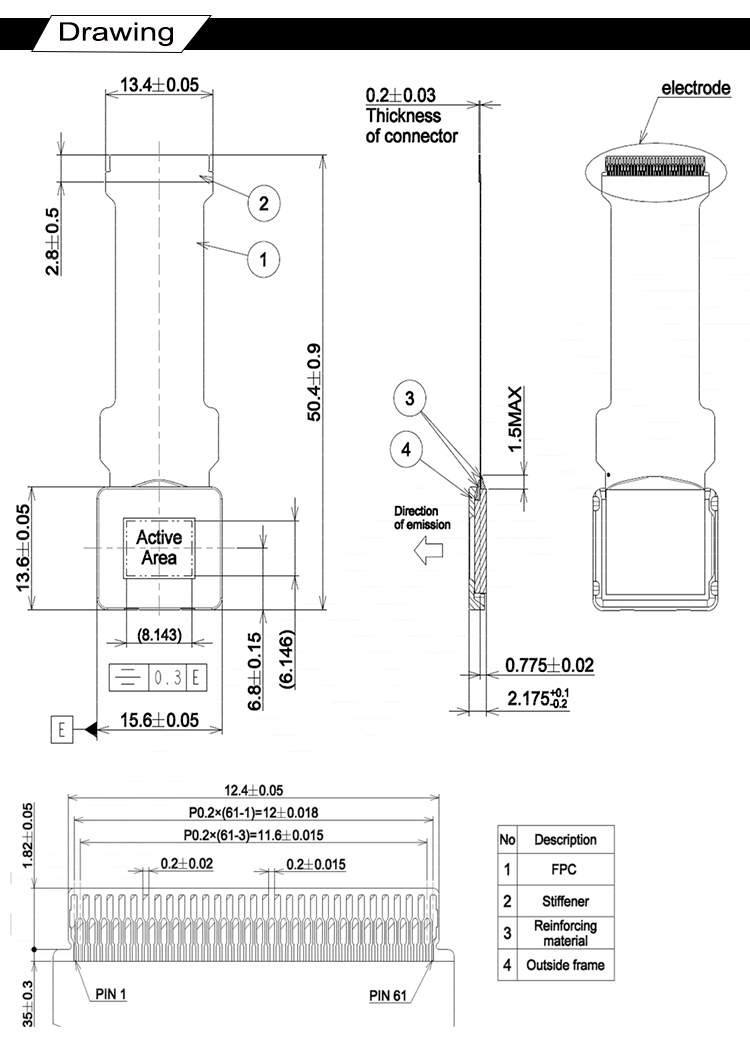

DRAWING

SPECIFICATIONS

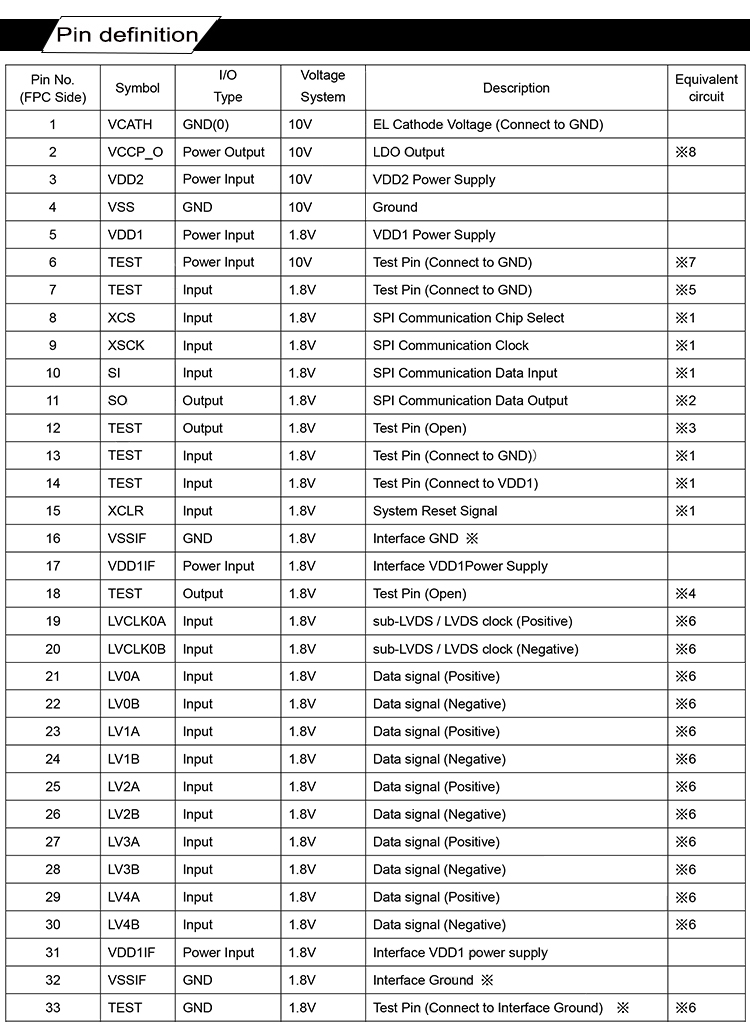

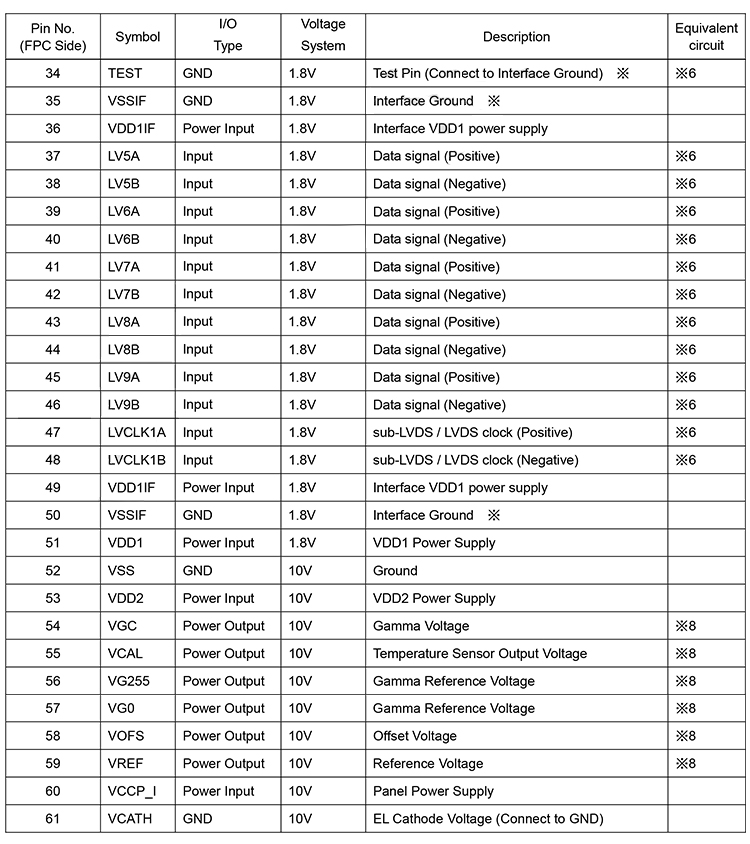

Interface Pin Function

General Specification

Electrical Characteristics
