Cover Glasses in TFT LCD Displays for Medical Devices

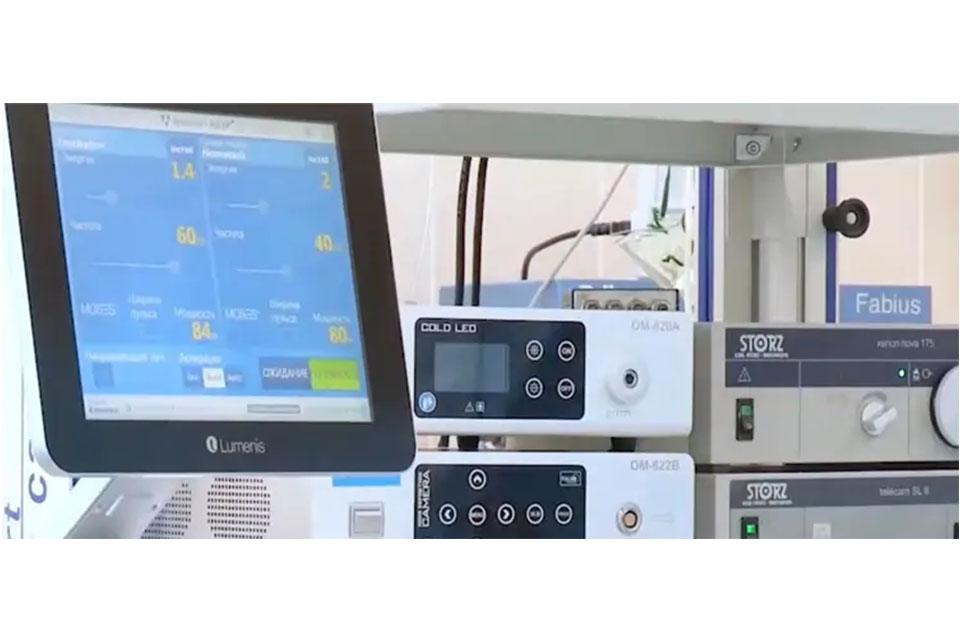

In the rapidly advancing field of medical devices, TFT LCD displays have become a pivotal element for patient care, diagnostic imaging, and user interface systems. A key aspect of these displays is the cover glass, which not only protects the underlying electronics but also ensures durability, optical clarity, and functionality under demanding conditions. The selection of appropriate materials and customization options for cover glasses in medical TFT LCD applications is critical to achieving the required performance standards.

This article provides a detailed overview of the material options, surface treatments, and customization capabilities for cover glasses used in TFT LCD displays, focusing specifically on medical device applications. The following discusses the key parameters such as material choices, glass thickness, surface treatment methods, impact resistance, and optical transmittance. It also explores various customization options, including antibacterial treatments, UV-resistance, and tamper-proof characteristics that ensure long-term reliability and optimal performance.

Material Options for Medical TFT LCD Cover Glasses

Cover glasses play a crucial role in ensuring the durability and longevity of TFT LCD displays in medical devices. Different materials offer varying levels of performance in terms of scratch resistance, impact resistance, and optical clarity. The most commonly used materials for cover glasses in medical devices include:

Gorilla® Glass

Gorilla® Glass is a premium, chemically strengthened glass known for its exceptional durability and high resistance to scratches and impacts. Its superior mechanical properties make it a preferred choice for devices that are exposed to harsh conditions or frequent handling.

AGC Dragontrail Glass

AGC Dragontrail Glass is another high-performance option, offering excellent scratch resistance and durability. It is widely used in applications that require thin yet resilient glass solutions. It also boasts a high optical transmittance, making it suitable for medical devices that rely on clear, bright displays.

Panda Glass

Panda Glass is a high-strength aluminosilicate glass, offering excellent resistance to scratches and environmental wear. It is typically used in applications where high durability and optical transparency are essential, including medical monitoring systems.

Aluminosilicate Glass

Aluminosilicate Glass provides a balance between strength, optical clarity, and ease of processing. It is commonly chosen for medical devices that require reliable protection against environmental factors while maintaining high-quality visuals.

Soda Lime Glass

Soda Lime Glass is the most commonly used glass type in general applications. Though less resistant than other options, it offers cost-effective solutions for medical devices where extreme durability is not a priority but optical clarity is still critical.

Acrylic (PMMA) and Polycarbonate (PC)

Both Acrylic (PMMA) and Polycarbonate (PC) are plastic alternatives to traditional glass. These materials are lightweight, impact-resistant, and can be easily molded into custom shapes. While they may not offer the same optical clarity or scratch resistance as glass, they provide flexibility and are suitable for specific medical device applications.



Glass Thickness and Surface Treatment for Medical Displays

Glass Thickness Range

Cover glasses for TFT LCDs in medical devices typically range in thickness from 1.8mm to 15mm, depending on the specific durability requirements and application. Thicker glasses are generally chosen for high-impact scenarios or environments with increased exposure to physical stress.

Surface Treatments

Surface treatments are an essential aspect of cover glasses, ensuring that they are both functional and maintainable. Key surface treatment options include:

Anti-Glare (AG): This treatment reduces reflections and enhances visibility in bright light conditions, ensuring that medical professionals can read the display clearly without distraction.

Anti-Fingerprint (AF): An anti-fingerprint coating ensures that the glass remains clean and clear during frequent handling, reducing smudges that could affect both display visibility and hygiene.

Anti-Reflective (AR): This coating minimizes surface reflections and enhances the overall clarity and sharpness of the display. It is particularly beneficial for environments with variable lighting conditions, such as operating rooms or diagnostic labs.



Durability and Optical Properties

Impact Resistance: IK10 Rating

The cover glass for TFT LCDs used in medical devices must withstand frequent use and the potential for impact. An IK10 rating ensures that the glass can resist impact damage from objects up to 5 joules in force. This level of impact resistance is crucial for medical environments, where the glass must endure accidental drops or impacts without compromising display integrity.

Optical Transmittance: 90%

A high optical transmittance rate is critical for maintaining the clarity and brightness of the display. For medical devices, a transmittance rate of 90% or higher is standard, ensuring that images on the TFT LCD are sharp, vibrant, and easy to read. This is especially important in diagnostic imaging and patient monitoring systems, where precise visual clarity can be critical to patient care.



Customization and Additional Features

Antibacterial Treatment

In healthcare environments, hygiene is of paramount importance. Many cover glasses for medical devices feature an antibacterial treatment to reduce the growth of harmful microbes. This treatment ensures that the device's surface remains hygienic, minimizing the risk of infection transmission between medical staff and patients.

UV Resistance

For outdoor medical applications or devices exposed to prolonged sunlight, UV resistance is essential. Medical cover glasses can be specially treated to prevent discoloration, peeling, or degradation when exposed to UV rays. This ensures that the cover glass maintains its appearance and functionality even in challenging environments.

Technical Specification Overview

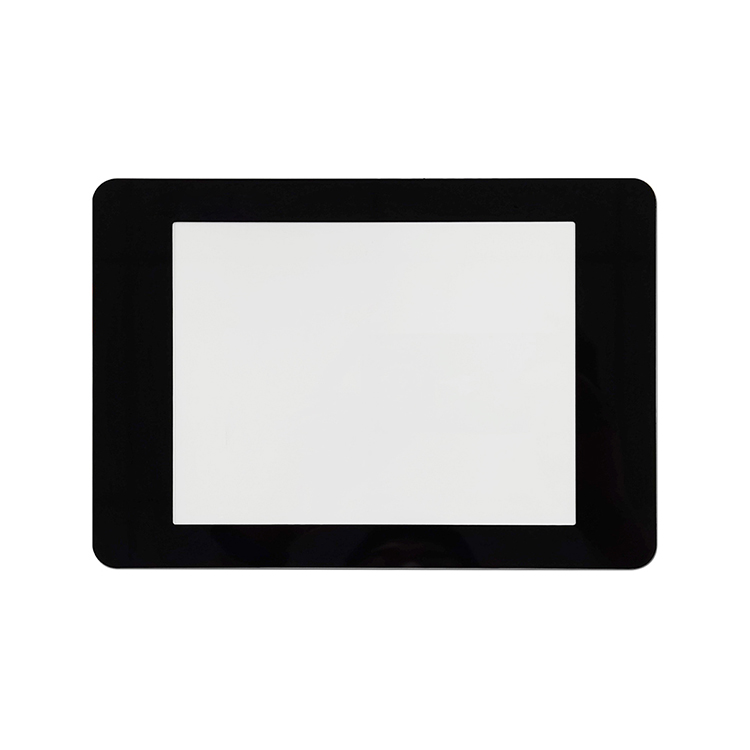

Feature Description Material Options Gorilla® Glass, AGC Dragontrail Glass, Panda Glass, Aluminosilicate Glass, Soda Lime Glass, Acrylic (PMMA), Polycarbonate (PC) Glass Thickness 1.8mm to 15mm Surface Treatments Anti-Glare (AG), Anti-Fingerprint (AF), Anti-Reflective (AR) IK Level (Impact Resistance) IK10 Impact Resistance Optical Transmittance 90% Silkscreen Printing One-color black printing Tempering Chemical tempering Antibacterial Treatment Available UV Resistance UV-resistant for outdoor use Customization Available

Conclusion

The selection of cover glasses for TFT LCD displays in medical devices requires careful consideration of material properties, durability, surface treatments, and customization options. With advancements in glass technologies such as Gorilla® Glass and AGC Dragontrail Glass, medical devices can benefit from highly durable, scratch-resistant, and optically clear displays. Coupled with surface treatments like anti-glare and anti-fingerprint coatings, these cover glasses offer a comprehensive solution for medical professionals and patients alike. Customization options such as antibacterial treatments and UV resistance further enhance the longevity and reliability of these devices, ensuring that they continue to perform optimally in demanding medical settings.
