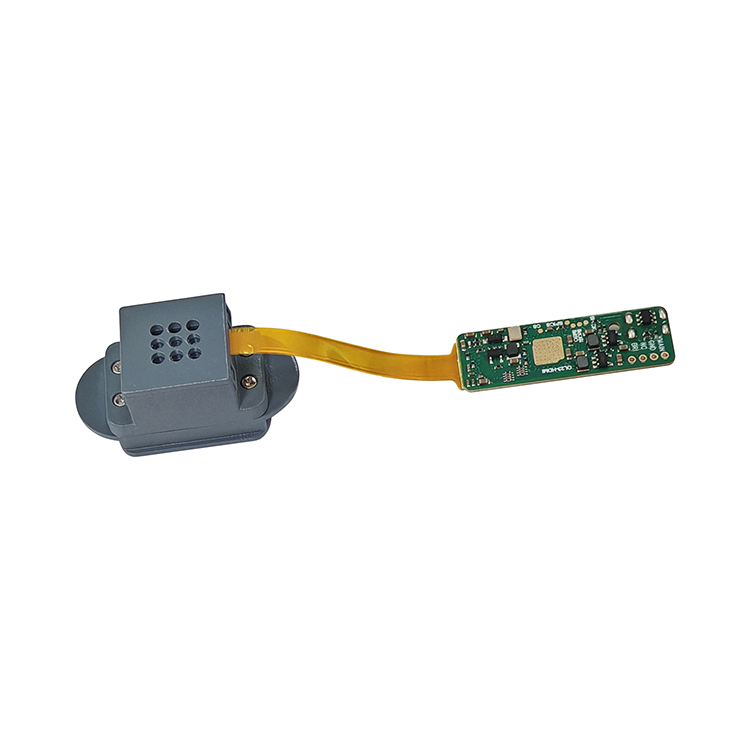

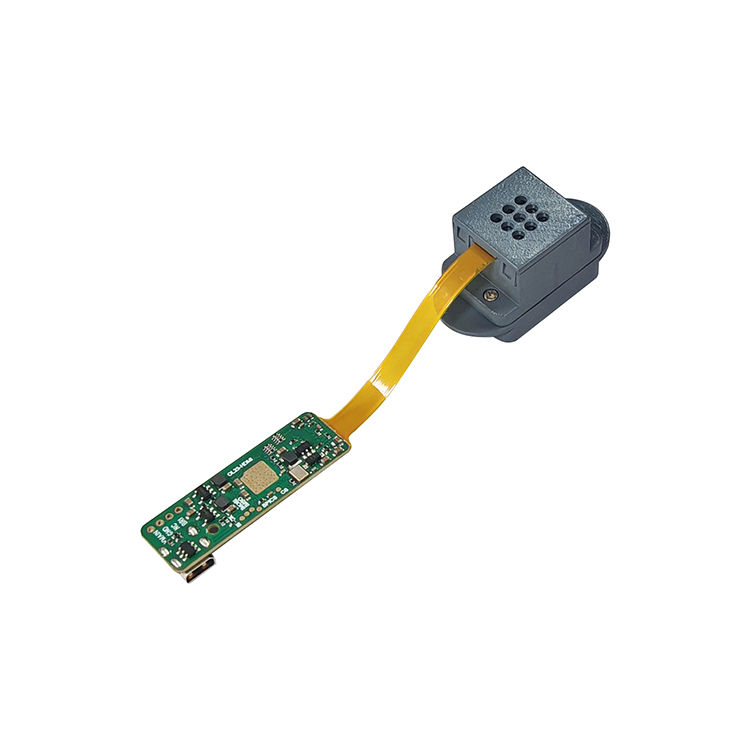

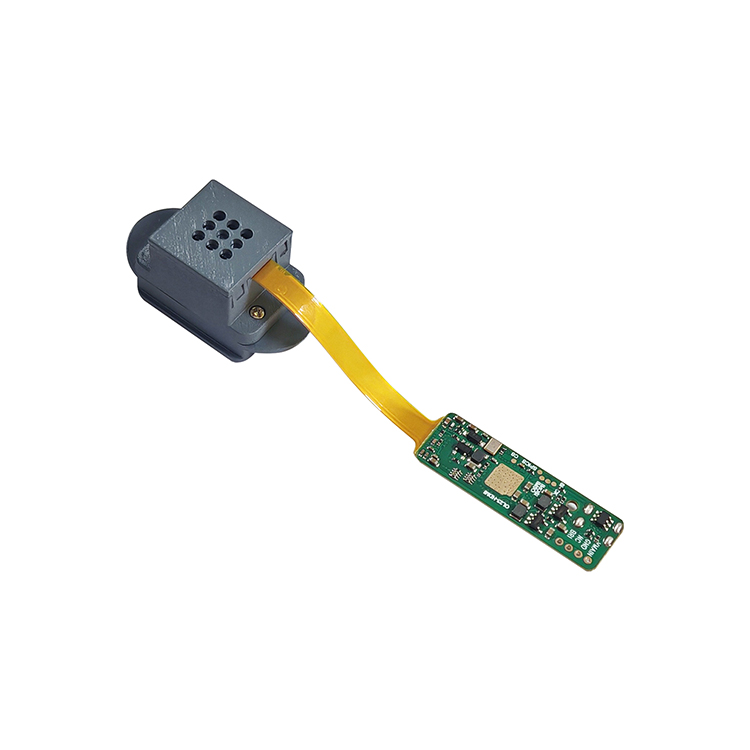

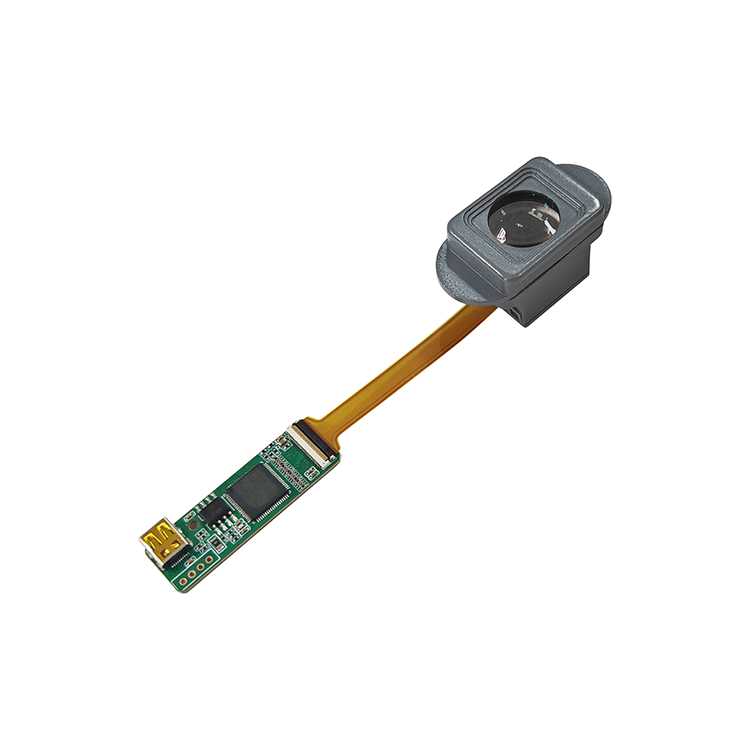

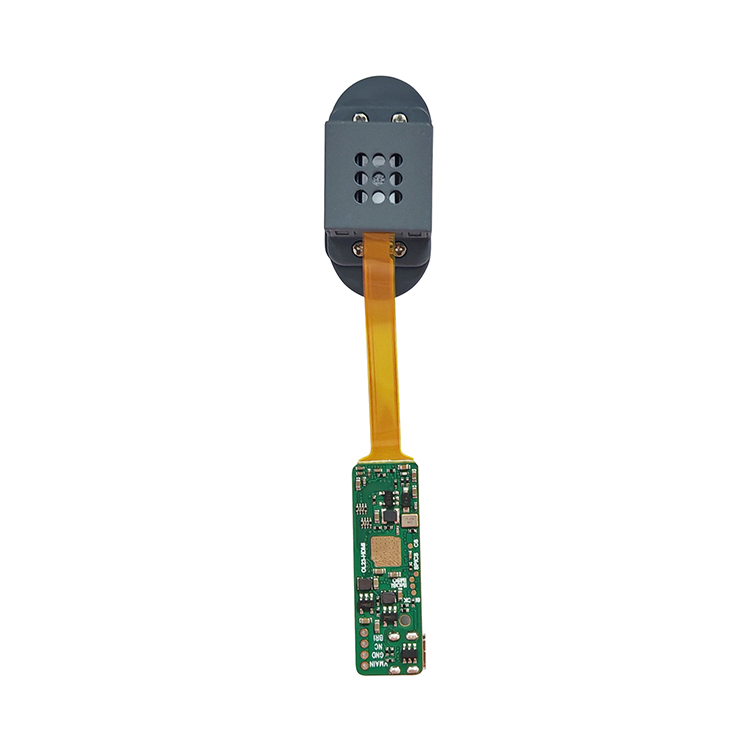

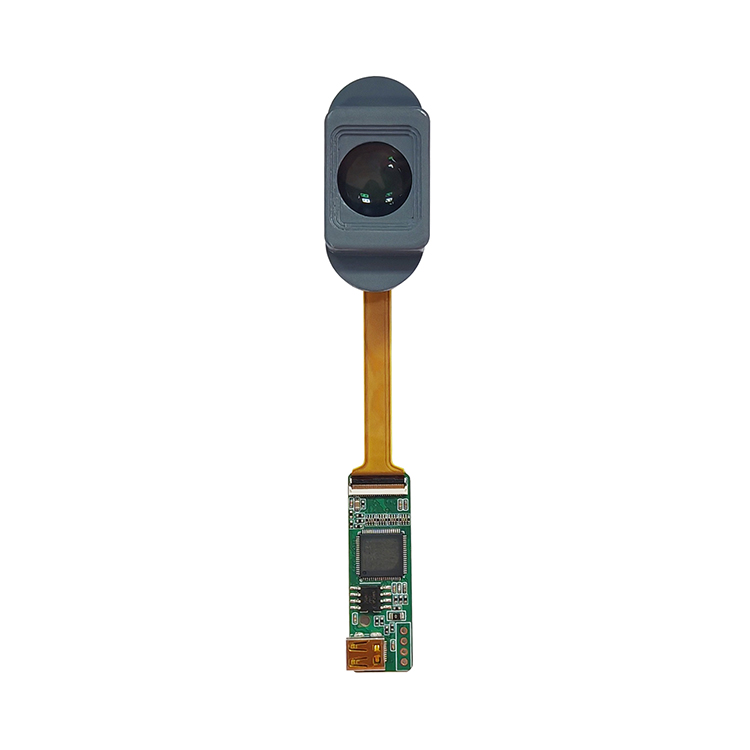

0.23 Inch Micro OLED Near-Eye Display Modules for AR/VR

0.23 Inch Micro OLED Near-Eye Display Modules for AR/VR

Size: 0.23 inch
Driver Board: CVBS/HDMI Board
Resolution: 0.23 inch AMOLED Microdisplay, 640(RGB)X400
Luminance:2000 cd/m2
Product description: 0.23 Inch Micro OLED Near-Eye Display Modules for AR/VR
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

The LE23 0.23-inch Micro OLED Near-Eye Display Module is a cutting-edge solution designed for high-performance Augmented Reality (AR) and Virtual Reality (VR) applications. Featuring a resolution of 640×400, this compact and lightweight module offers stunning image quality, exceptional contrast, and impressive brightness. With a display size of just 0.23 inches and an array of advanced features, including a high contrast ratio, wide operating temperature range, and low power consumption, the LE23 module is poised to redefine immersive experiences in wearable devices such as AR glasses, VR headsets, and other cutting-edge technologies.

Key Specifications of the LE23 Micro OLED Display Module

The LE23 Micro OLED display module provides impressive technical specifications, ensuring that it excels in various AR and VR use cases. Below is a breakdown of the core features that make this module a standout solution.

GENERAL SPECIFICATION

Feature	Specification
Model No.	LE23
Display Size	0.23 inches
Display Type	Color
Resolution	640 (×3) × 400
Luminance	2000 cd/m²
Refresh Rate	60 Hz
Panel Size	15.6 × 13.6 × 0.2 mm
Active Area	8.143 × 6.146 mm
Board	CVBS/HDMI
PIN	61P
Input Interface	Parallel RGB 24-bit, YCbCr 24-bit, YCbCr 16-bit
Contrast Ratio	> 10,000:1
Luminance Uniformity	> 90%
Operating Temperature	-40°C to +65°C
Storage Temperature	-55°C to +90°C

Optical Module Parameters

The optical characteristics of the LE23 module are critical to its ability to deliver clear, vibrant images for AR/VR applications. Key parameters related to its optical design include the field of view (FOV), exit pupil distance, and other critical factors that contribute to overall visual performance.

Feature	Specification
Field of View (FOV)	26º

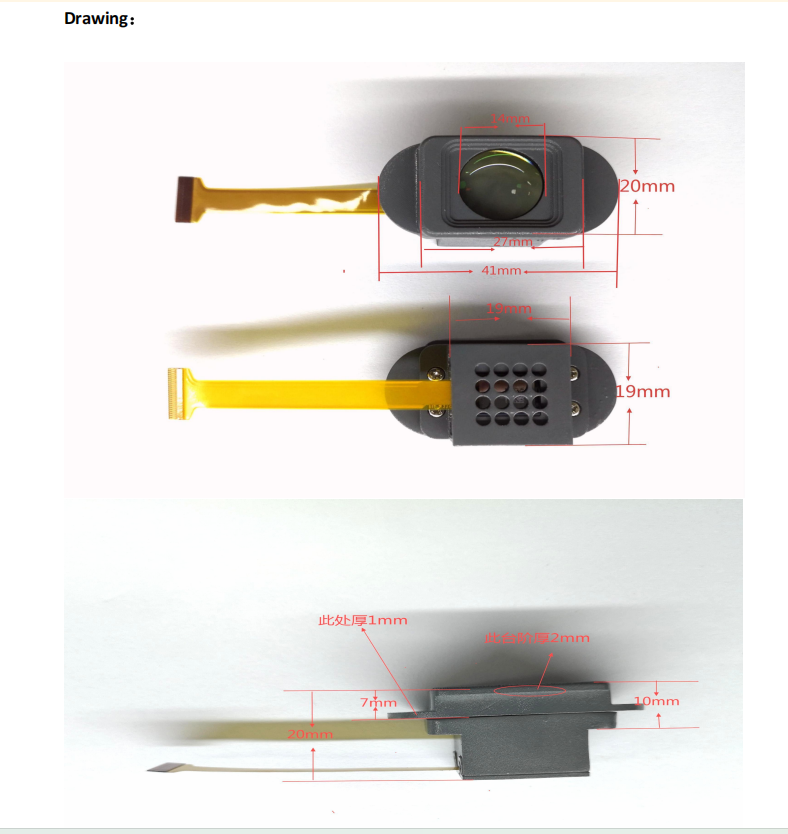

Module Dimensions (L × W × T)	41 mm × 19 mm × 20 mm
Exit Pupil Distance	> 19 mm
Exit Pupil Diameter	8 mm
Weight	14.6 g
Material	Glass cylinder optics + 3D-printed plastic shell

Benefits of the LE23 Micro OLED Display Module

Superior Visual Quality

The LE23 Micro OLED display module offers outstanding visual quality that is ideal for both AR and VR environments. Its 640×400 resolution ensures sharp, detailed images, and its high contrast ratio of over 10,000:1 allows for deeper blacks and brighter whites, contributing to a more realistic and immersive experience. Additionally, the module’s 2000 cd/m² typical luminance ensures excellent visibility even in bright environments, making it versatile for various lighting conditions.

Compact and Lightweight Design

One of the key advantages of the LE23 module is its compact and lightweight design. With a display size of just 0.23 inches and a weight of only 14.6 grams, it is ideal for integration into small, portable devices. Whether used in AR glasses, smart eyewear, or VR headsets, the LE23’s light weight ensures comfort for extended wear, a crucial factor in enhancing user experience in immersive technologies.

Durability and Wide Operating Range

The LE23 module is designed to function within a wide operating temperature range of -40°C to +65°C, making it suitable for diverse environments. This wide temperature tolerance ensures that the module remains operational under varying conditions, from cold storage to high-temperature industrial or outdoor applications. Furthermore, the module is built with robust materials, including a glass cylinder optic and a 3D-printed plastic shell, ensuring durability and resistance to wear and tear over time.

Optimal Optical Design for Immersive Experiences

The optical design of the LE23 module plays a critical role in achieving high-quality visuals at the near-eye level. The 26º field of view (FOV) provides a comfortable and immersive visual experience without causing eye strain. Additionally, the module’s exit pupil distance of over 19 mm and exit pupil diameter of 8 mm ensure that users of varying eye distances can enjoy a clear, distortion-free image.

Applications of the LE23 Micro OLED Display Module

The LE23 0.23-inch Micro OLED Near-Eye Display Module is versatile and well-suited for a variety of cutting-edge applications, particularly in AR and VR devices, where high-resolution displays are essential for creating lifelike, immersive environments.

Augmented Reality (AR) Glasses

The LE23 module's high contrast ratio, compact size, and impressive luminance make it an ideal solution for AR glasses. With a 26º FOV, it can seamlessly integrate into AR systems, providing users with vibrant overlays and information on their real-world surroundings. The small size of the module also makes it ideal for creating lightweight, wearable devices that do not compromise on visual performance.

Virtual Reality (VR) Systems

For VR systems, the LE23 module delivers crystal-clear visuals with minimal latency, making it ideal for immersive virtual environments. Its 60 Hz refresh rate, combined with the high resolution, ensures smooth motion and reduces the risk of motion sickness during extended VR sessions. The high brightness and contrast ratio also contribute to the overall realism of the virtual world.

Wearable Technology and Smart Devices

In addition to AR and VR headsets, the LE23 display module is also ideal for integration into smart glasses, heads-up displays, and other wearable technologies. Its small footprint, high performance, and durability make it an excellent choice for a wide range of wearable devices designed for both consumer and professional applications.
