0.23 inch Micro Near-Eye Display Modules 640x400

0.23 inch Micro Near-Eye Display Modules 640x400

Size: 0.23 inch
Driver Board: CVBS/HDMI Board
Resolution: 0.23 inch AMOLED Microdisplay, 640(RGB)X400
Luminance:2000 cd/m2
Product description: 0.23 inch Micro Near-Eye Display Modules 640x400
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

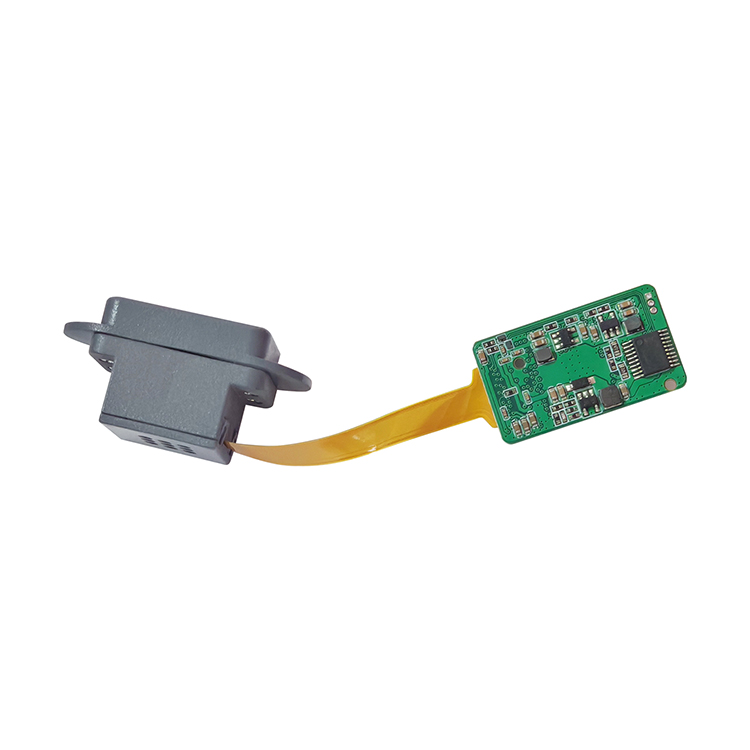

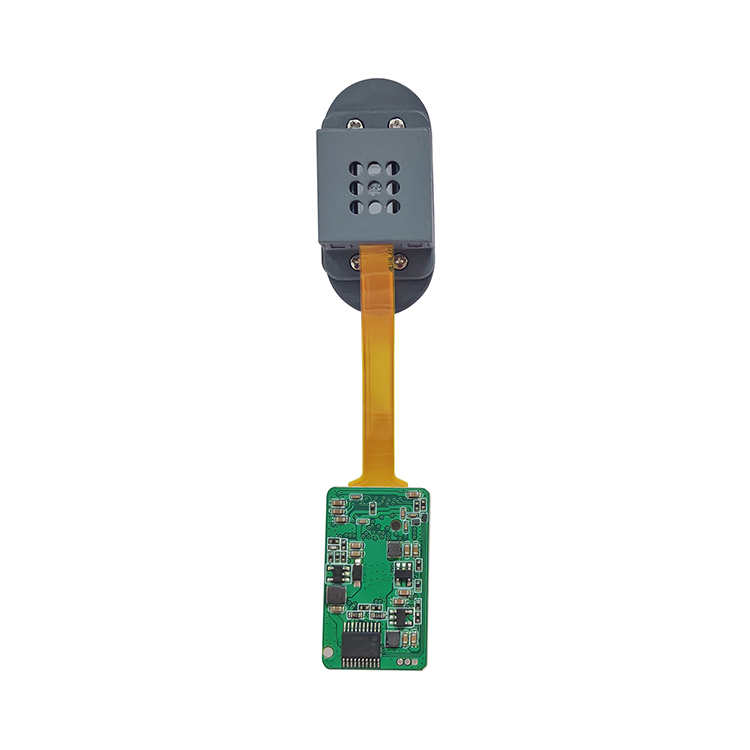

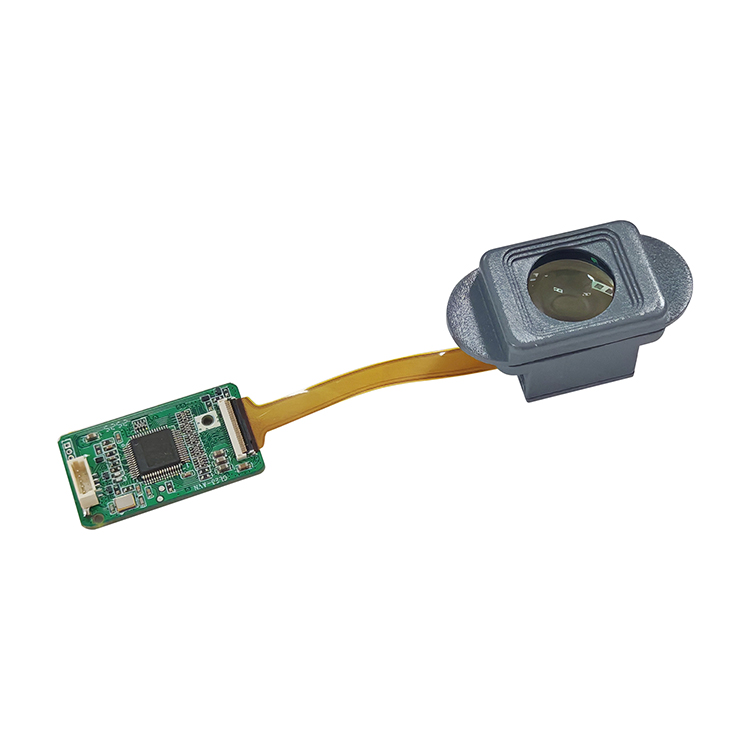

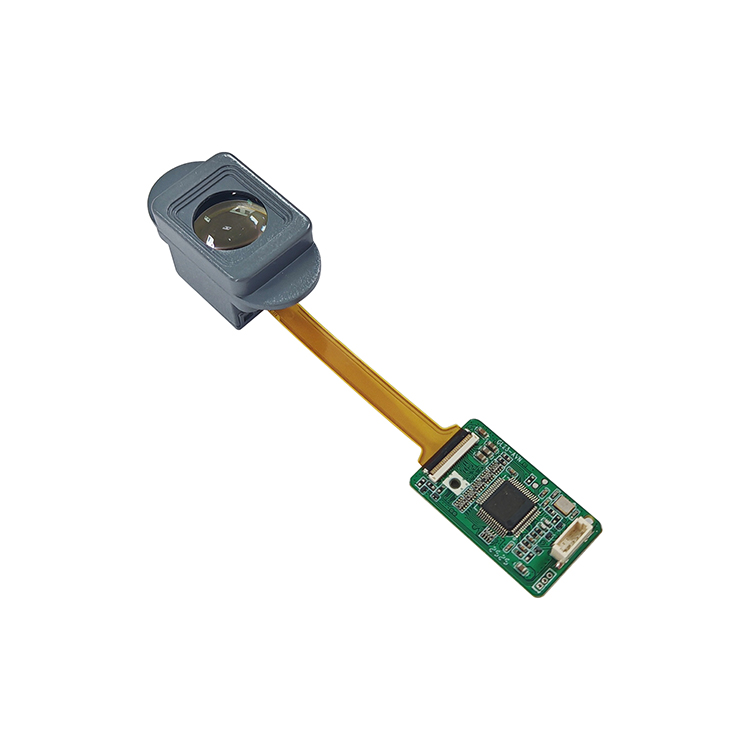

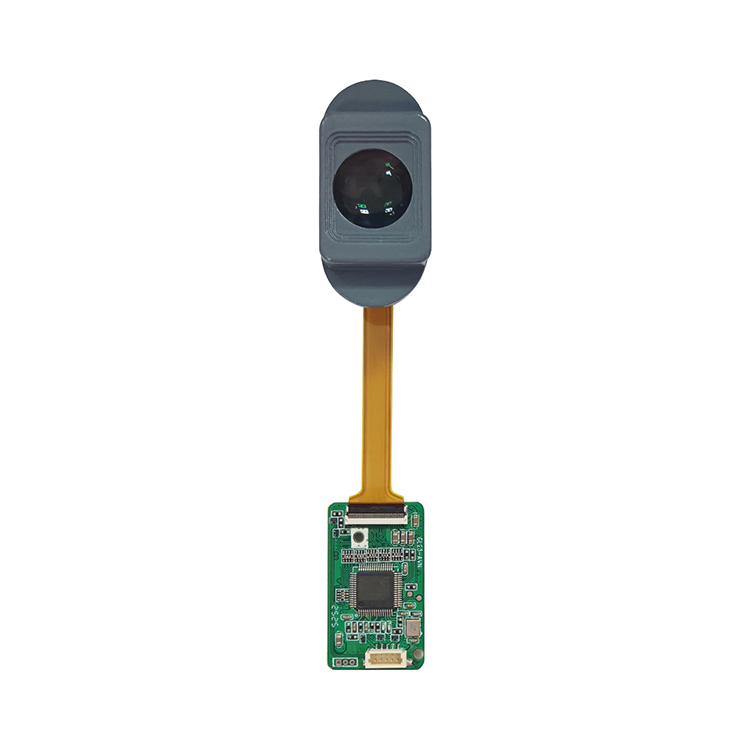

The LE23 is a new technological miniature near-eye display optical module, consisting of an OLED display, optical lenses
(glass cylindrical optics), and a driver circuit board. It is primarily used for virtual near-eye displays, helmet-mounted
displays, and see-through augmented reality displays, and features a small size, low power consumption, and high
brightness. The display screen uses a SONY 0.23-inch ECX336B, with a maximum brightness of up to 2000 cd/m2

(Applications: View finders, head mounted displays, very small monitors, etc.)

GENERAL SPECIFICATION

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HGECX336AF
Diagonal Screen size:	0.23 Inch
Interface:	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input
Number of Pixels:	640 (RGB) × 400
Panel Size:	15.6 x 13.6 x 0.2 (mm)
Active Area:	8.143x 6.146 (mm)
Weight:	TBD
Operating Temperature:	-10~70°

Optical module parameters：

FOV：26º
Dimension：41mm(L)×19(W)×20(T)
Exit pupil distance：>19mm
Exit pupil diameter : 8mm
Weight：14.6g
Material ：Glass cylinder Optics + 3D-printed plastic shell
