Please kindly contact us for full data sheet of the display.

DESCRIPTION

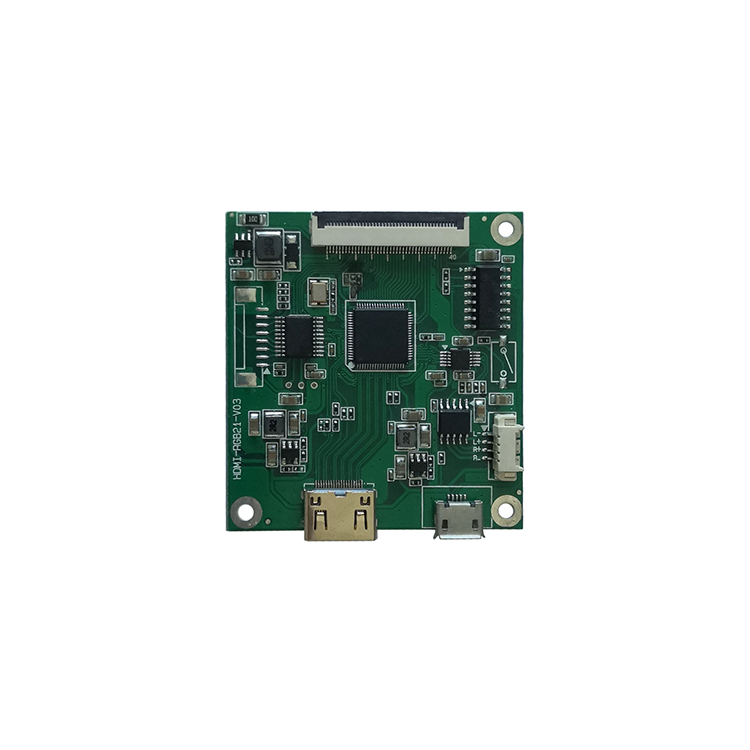

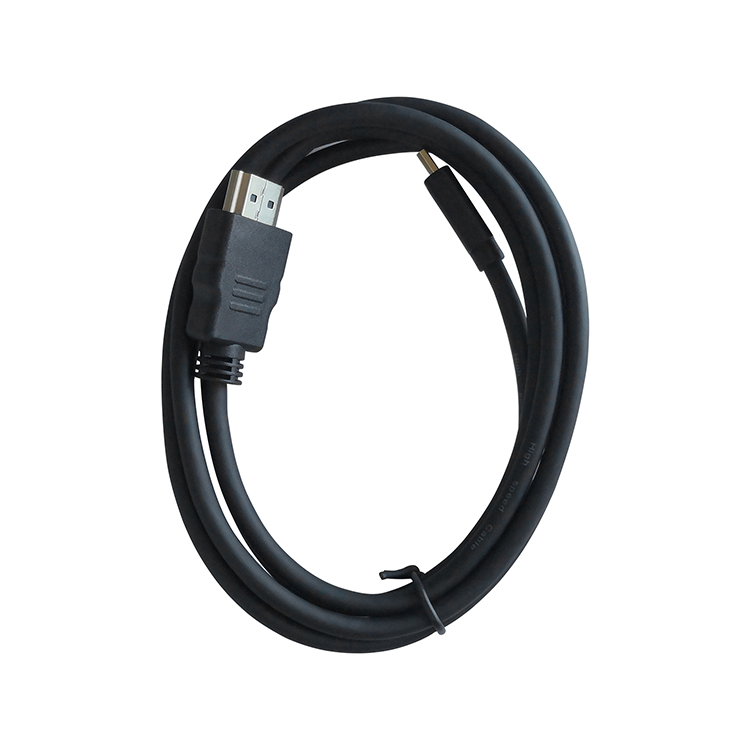

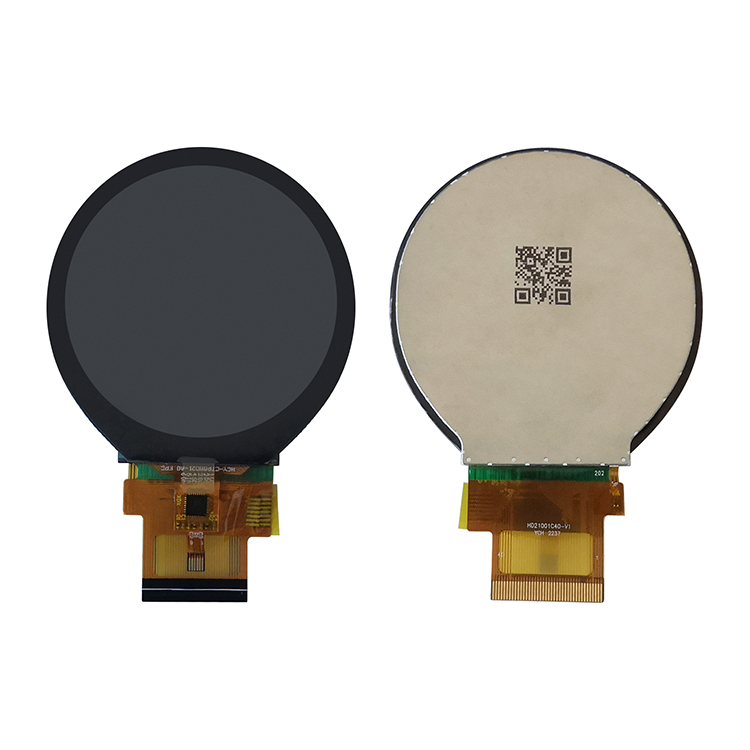

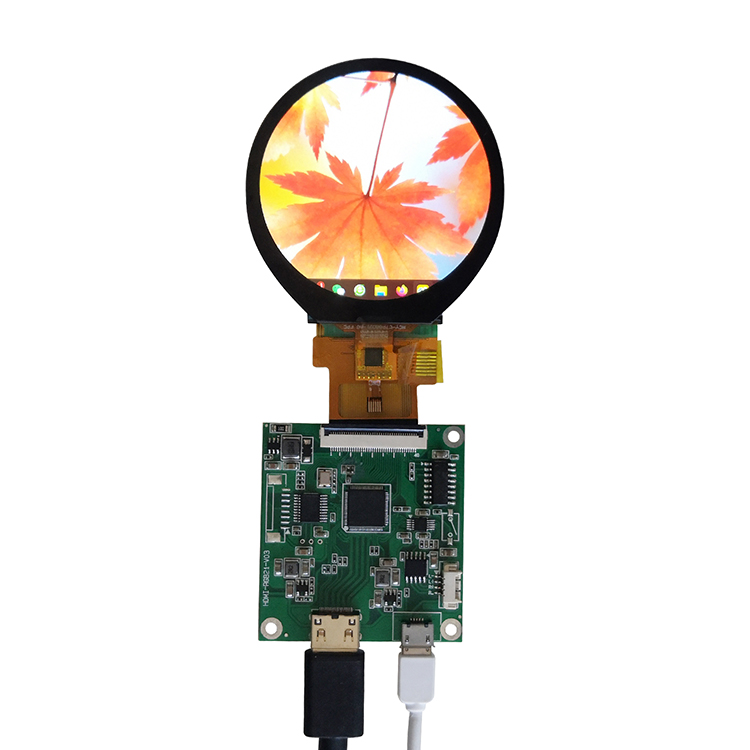

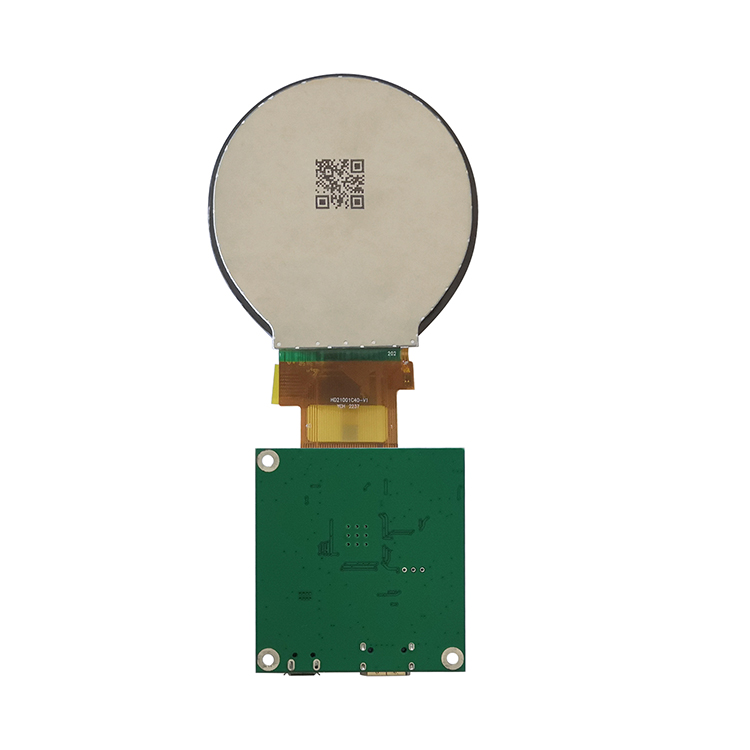

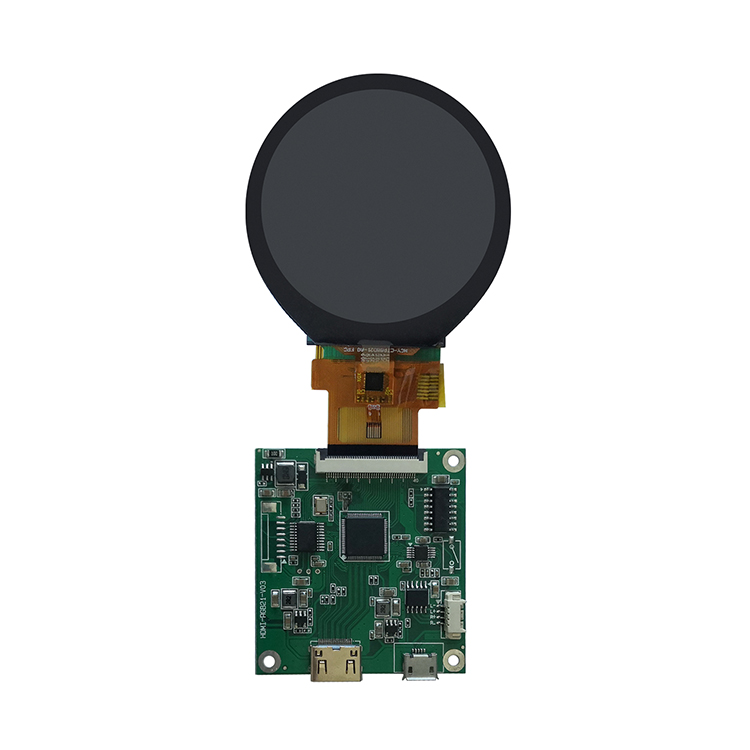

Hicenda HT021WVC02-B1323A is a small round 480x480 resolution 2.1 inch colorful IPS tft lcd screen panel with ST7701S driver ic and capacitive touch panel,wide view angle,optional HDMI Driver Controller Board with Mini HDMI Cable superior display quality ,It can be used in smart watch or any circle display application.It's 3SPI+18RGB interface with optional FPC with zif connector is easily to assemble or remove.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	color active matrix
Model Number:	HT021WVC02-B1323A
Diagonal Screen size:	2.1 inch
Interface:	3SPI+18RGB
Number of color:	262K
Number of Pixels:	480(RGB)×480
Panel Size:	56.18*59.71*2.3 mm
Driver IC:	ST7701S
Active Area:	53.28*53.28 mm
Pixel Pitch:	39.6 (H) x 118.8(V) um
Viewing Direction:	All View
Weight:	TBD
Operating Temperature:	-20~70°

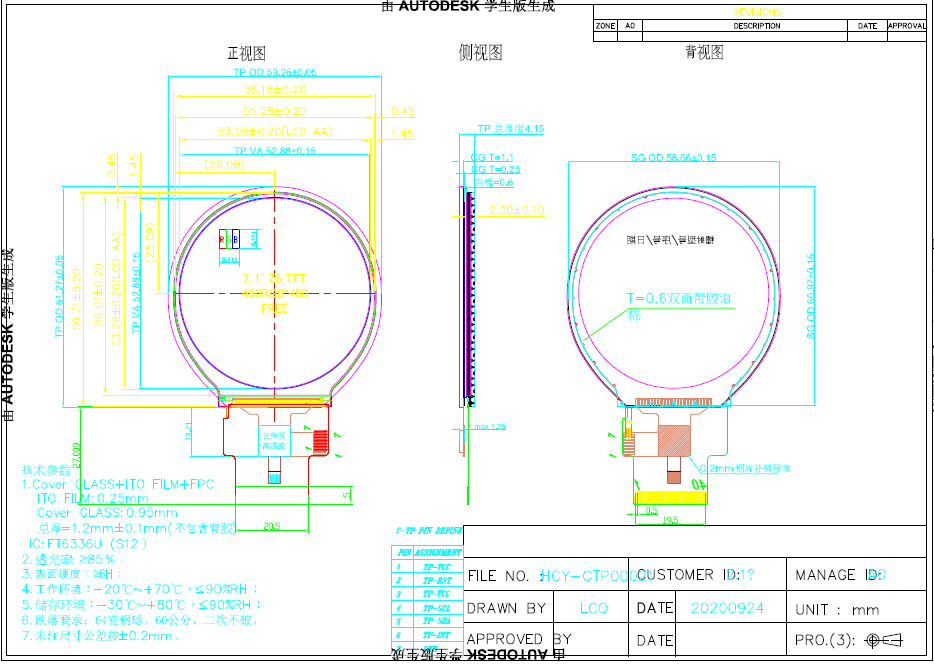

DRAWING

INTERFACE PIN FUNCTION
