Description:

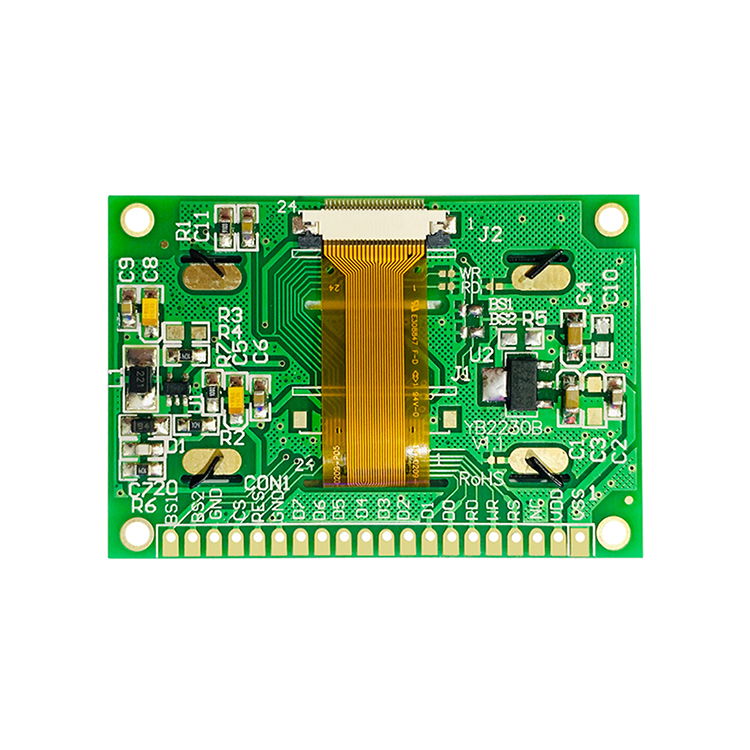

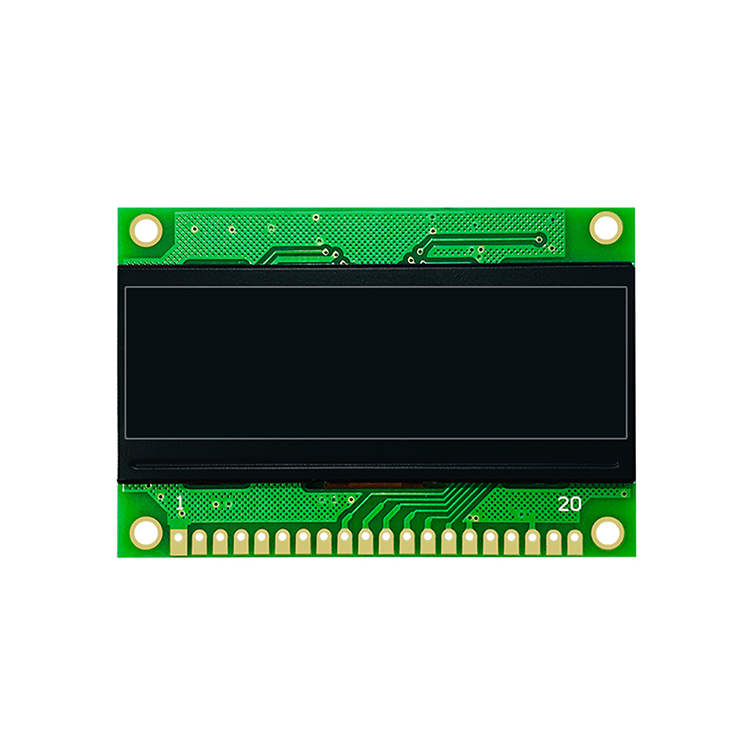

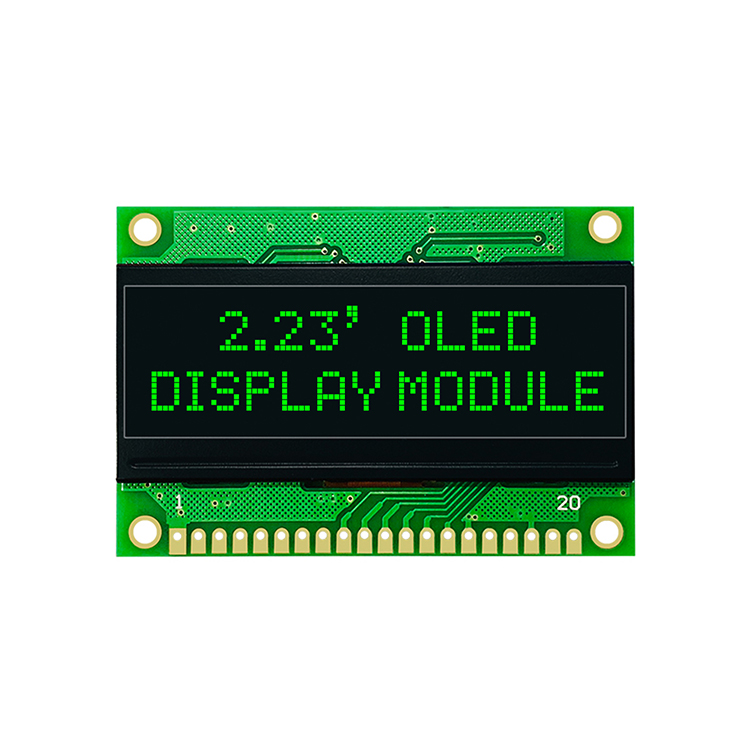

The 2.23-inch OLED display module described here is a compact monochrome graphic display featuring a 128×32 dot matrix, driven by the SSD1305 controller. It supports multiple communication interfaces, including 8-bit 68XX/80XX parallel, 4-wire SPI, and I²C, offering flexibility for embedded system integration. With a passive matrix design, wide viewing direction, and robust operating temperature range, this module is well-suited for industrial and consumer electronic applications requiring stable and efficient visual output.

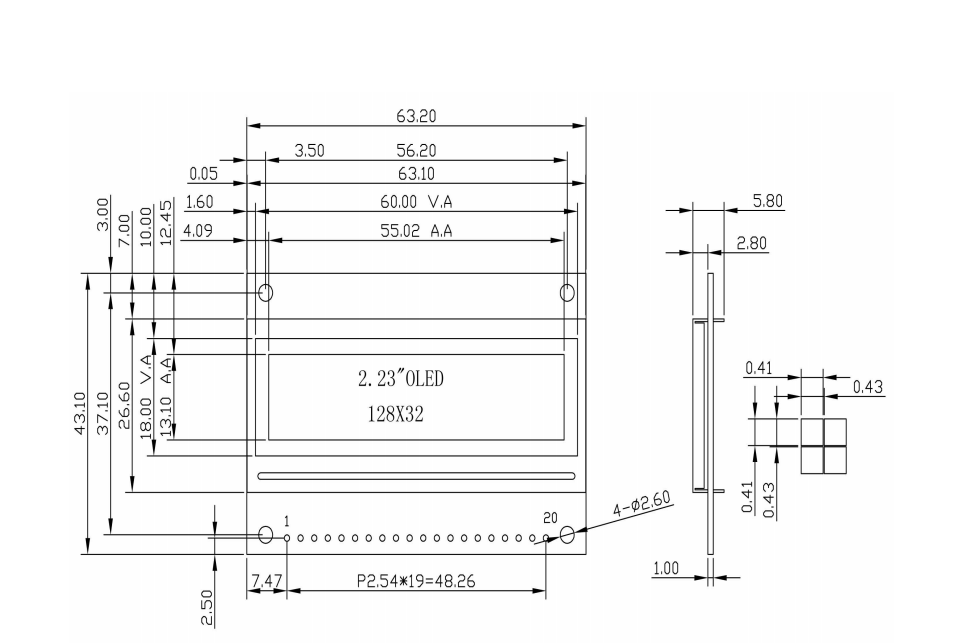

Mechanical Specifications

Technical Overview of the 2.23-Inch OLED Display Module

The module adopts a passive matrix OLED (PMOLED) structure, which ensures low power consumption while maintaining sufficient brightness for small-format displays. Its 128×32 resolution is optimized for text and simple graphical interfaces, making it particularly effective in control panels, instrumentation, and portable devices.

The SSD1305 driver IC integrates display RAM, oscillator, and contrast control, enabling streamlined system design. Its compatibility with multiple interface protocols allows engineers to select the most suitable communication method depending on system architecture and pin resource constraints.

Structural and Optical Characteristics

The display features a compact mechanical design with a viewing area of 60×18 mm, ensuring clear readability within a limited space envelope. The pixel size of 0.39×0.39 mm, combined with a pitch of 0.43×0.43 mm, provides balanced luminance uniformity and sharp edge definition.

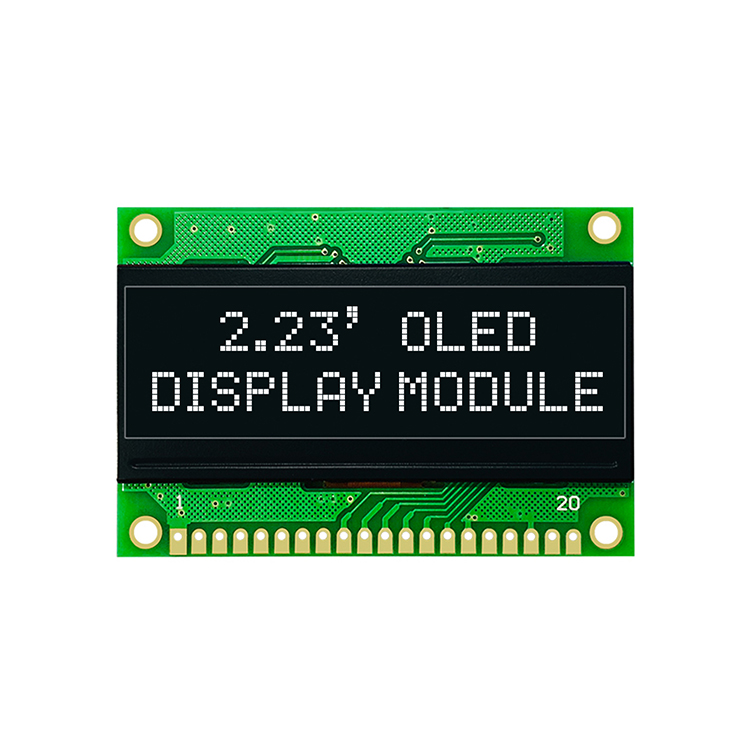

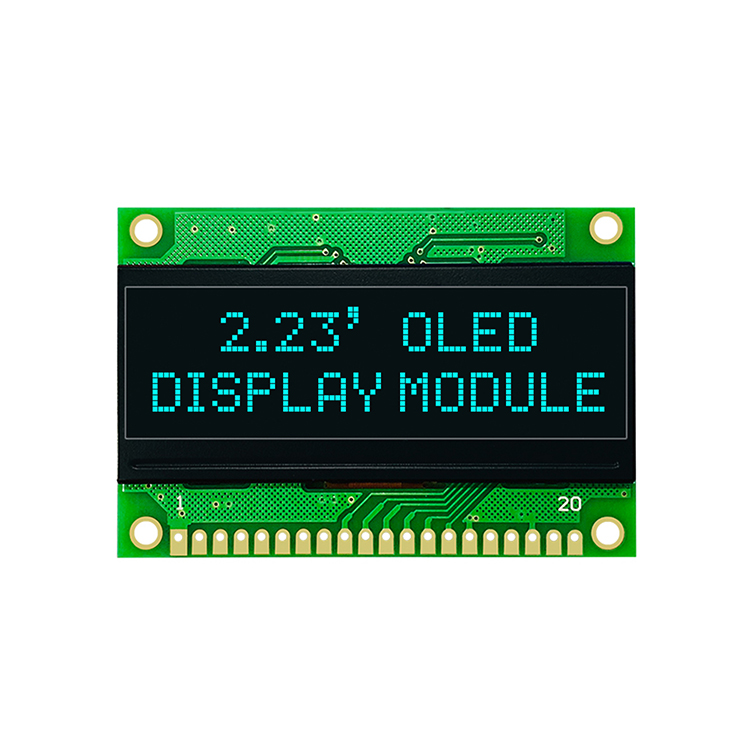

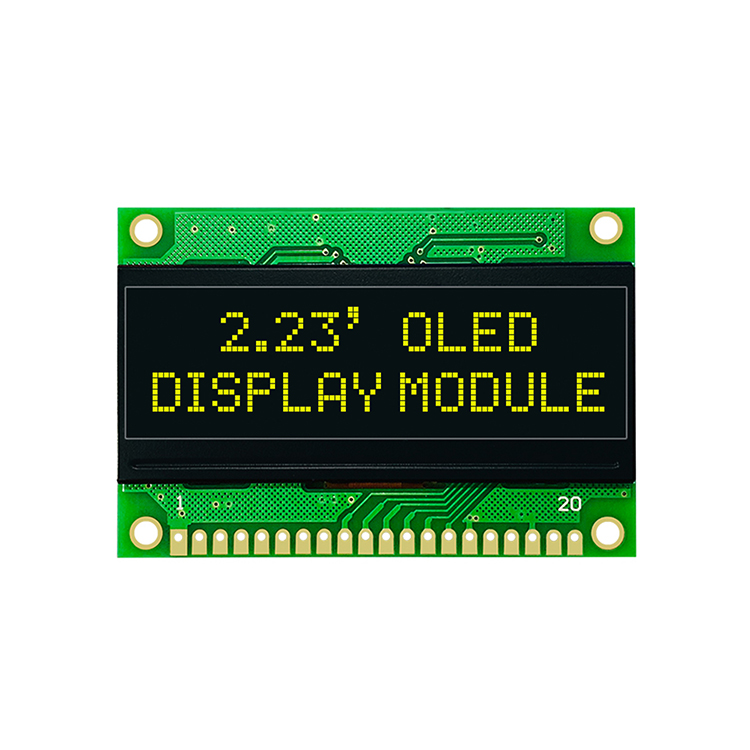

Available in monochrome color options such as yellow, white, and green, the module delivers consistent visual performance under various ambient lighting conditions. The wide viewing angle characteristic of OLED technology further enhances usability across different installation orientations.

Interface Flexibility and System Integration

One of the defining advantages of this module lies in its versatile interface support. The SSD1305 controller accommodates:

· 8-bit 68XX/80XX parallel interface for high-speed data transfer in performance-sensitive systems

· 4-wire SPI interface for reduced pin count and simplified wiring

· I²C interface for minimal hardware resource utilization in compact designs

This flexibility allows seamless integration into a wide range of microcontroller platforms, from simple embedded systems to more complex control units.

Electrical and Environmental Reliability

Designed for demanding environments, the module operates reliably within a temperature range of -40°C to 80°C, with storage tolerance extending to -40°C to 85°C. This makes it suitable for industrial control equipment, outdoor instrumentation, and automotive-related applications.

The 1/64 duty driving scheme ensures stable multiplexing performance while maintaining uniform brightness across the display panel.

Mechanical Dimensions and Design Considerations

The overall dimensions of 63.2 × 43.1 × 5.8 mm provide a compact yet practical form factor for integration into space-constrained devices. The 20-pin configuration simplifies PCB layout while maintaining sufficient connectivity for all supported interfaces.

Careful consideration of mounting structure and connector alignment can further enhance the module’s reliability in long-term operation.

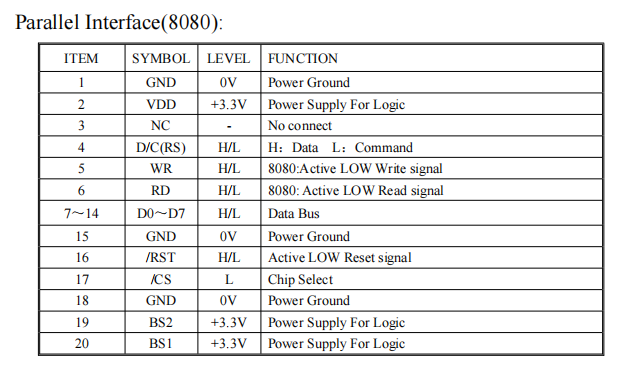

Pin Definition:

Application Scenarios and Practical Value
