Description:

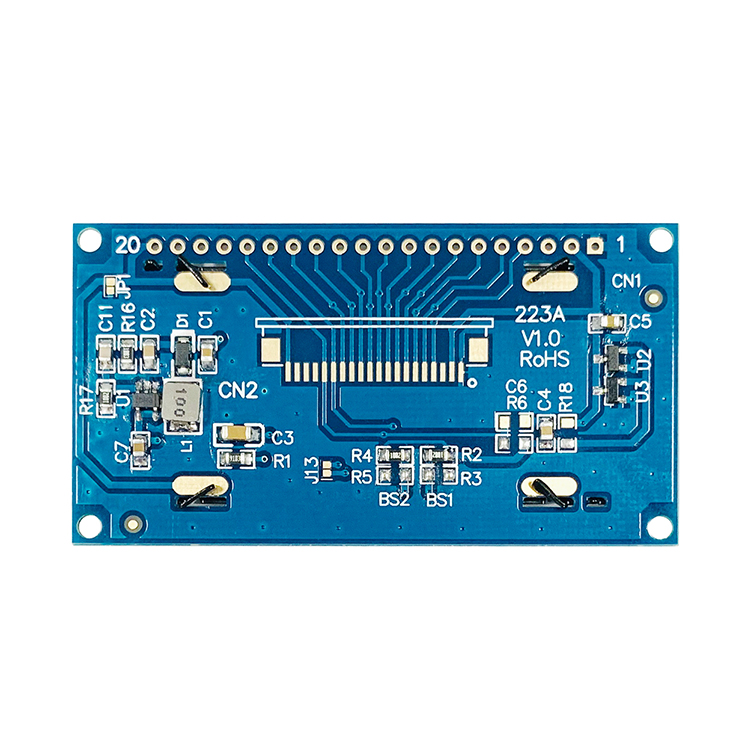

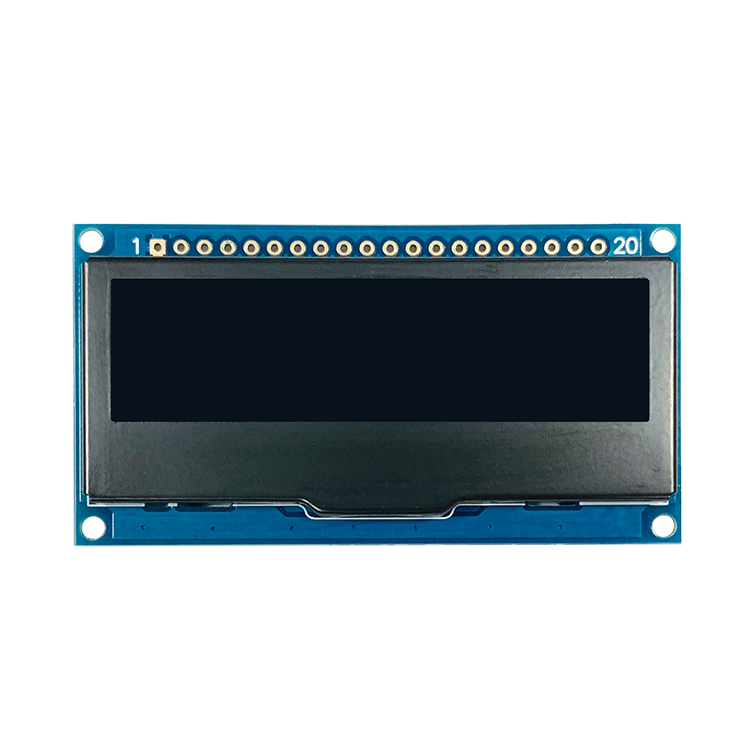

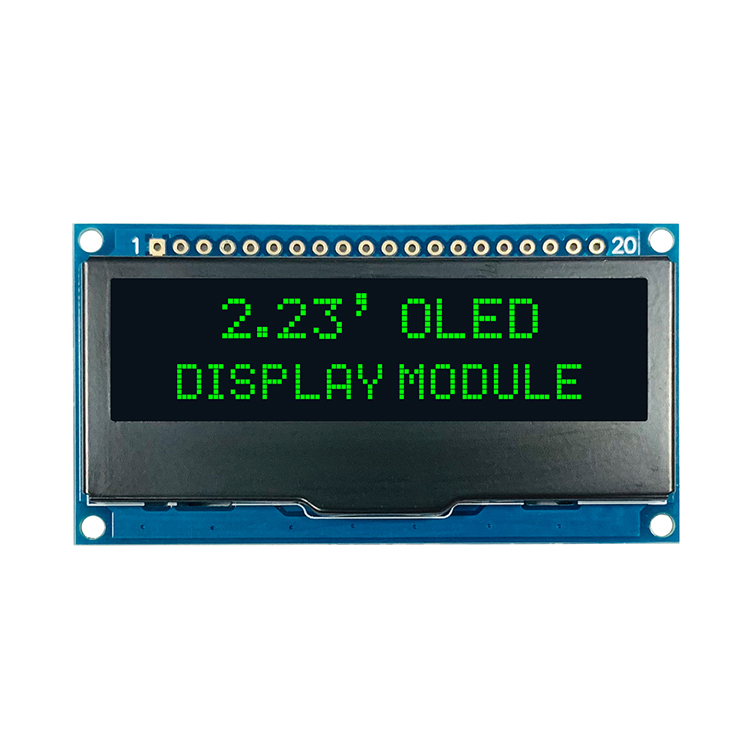

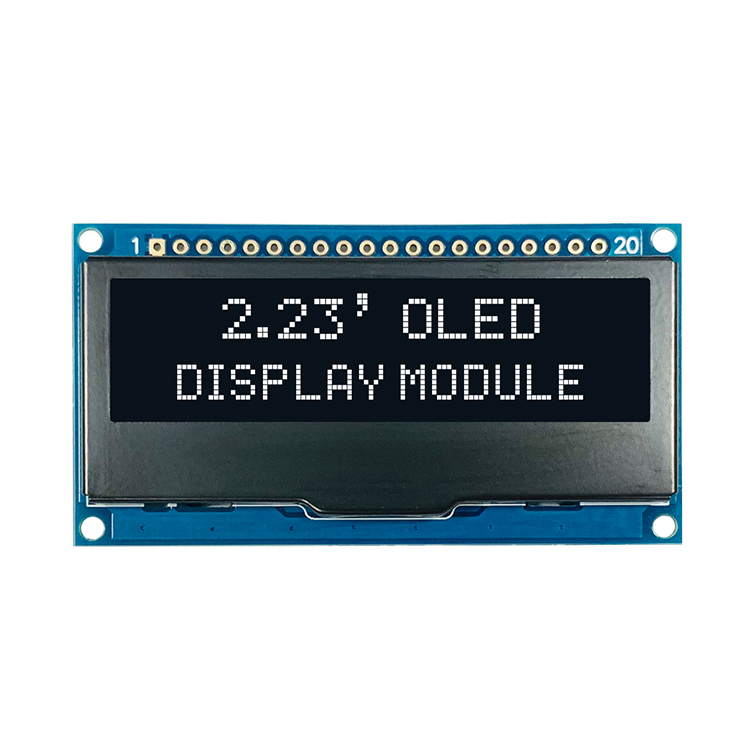

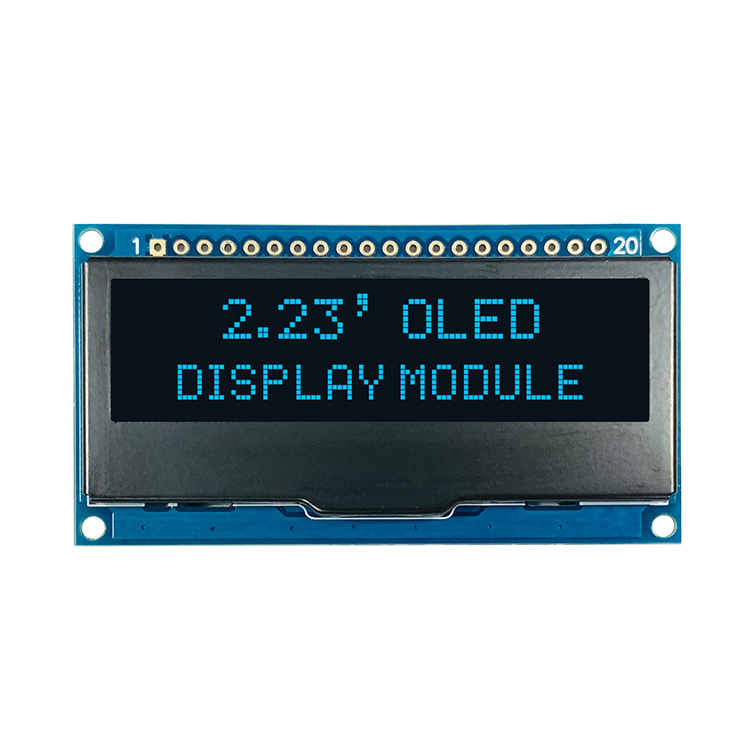

The 2.23-inch OLED display module described here adopts a 128×32 dot matrix architecture driven by SSD1305 or SSD1309 controllers, supporting Parallel, SPI, and IIC interfaces through a 20-pin configuration. Designed as a passive matrix display, it offers monochrome output in multiple color options (white, blue, yellow/green), with a wide viewing angle and robust environmental tolerance ranging from -40℃ to 80℃ in operation. Its compact mechanical outline (66.5 × 35.0 × 8.8 mm) and finely defined pixel structure ensure suitability for embedded systems requiring stable and efficient visual output.

Mechanical Specifications

Structural Characteristics and Display Architecture

Passive Matrix OLED Configuration

This module utilizes a passive matrix OLED (PMOLED) structure, which is particularly advantageous in applications requiring low power consumption and simplified driving schemes. The 1/64 duty driving method ensures balanced luminance across the panel while maintaining electrical efficiency.

Resolution and Optical Performance

With a resolution of 128×32 pixels distributed over a 2.23-inch diagonal, the display achieves a clear and concise presentation of graphical and textual information. The pixel size of 0.41 × 0.39 mm and pitch of 0.43 × 0.41 mm provide adequate sharpness for compact interfaces, while the effective display area of 55.02 × 13.1 mm ensures efficient utilization of the panel space.

Interface Flexibility and Driver Integration

Multi-Interface Compatibility

One of the notable strengths of this module lies in its support for multiple communication protocols, including Parallel, SPI, and IIC interfaces. This flexibility allows seamless integration with a wide range of microcontrollers and embedded platforms, reducing design constraints in system development.

SSD1305 / SSD1309 Driver IC

The integration of SSD1305 or SSD1309 driver ICs ensures stable display control, offering built-in functions such as contrast adjustment, display RAM management, and multiplex driving. These controllers are well-regarded for their reliability and ease of configuration, contributing to shorter development cycles.

Mechanical Design and Environmental Adaptability

Compact Form Factor

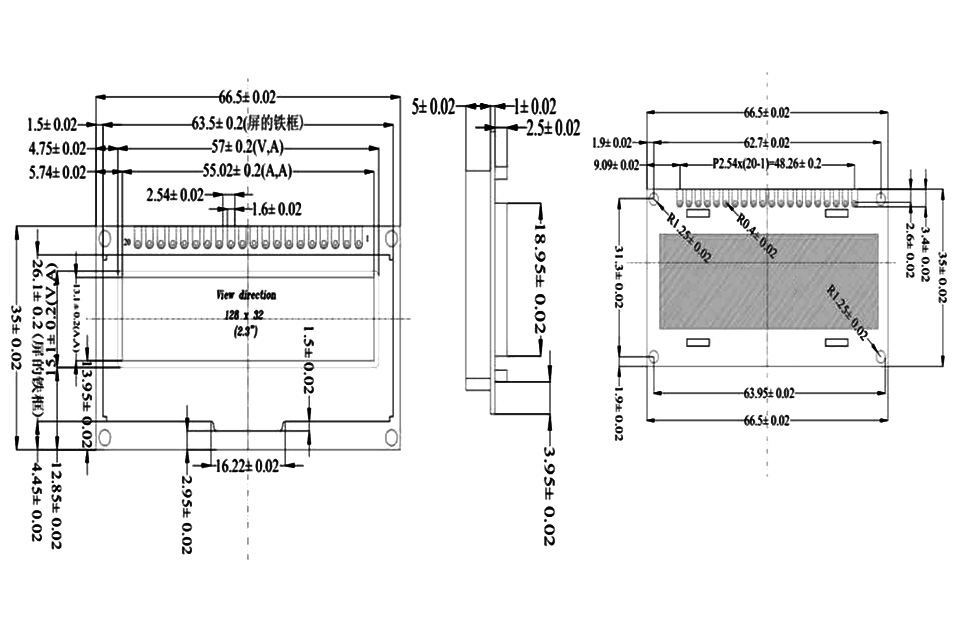

The module’s outline dimensions of 66.5 mm in length, 35.0 mm in width, and a maximum height of 8.8 mm make it suitable for space-constrained designs. The 20-pin interface layout further simplifies PCB integration and connection reliability.

Wide Operating Temperature Range

Engineered for demanding environments, the module operates reliably within a temperature range of -40℃ to 80℃ and can be stored between -40℃ and 85℃. This makes it applicable in industrial control systems, outdoor instrumentation, and automotive auxiliary displays.

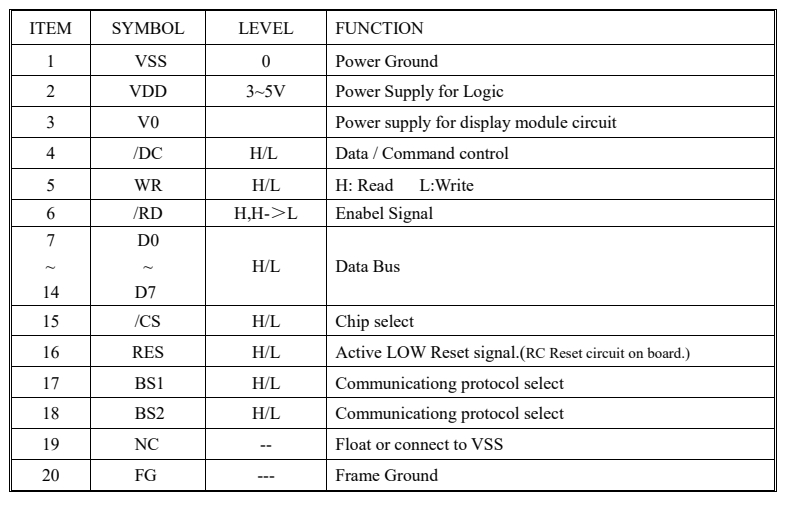

Definition:

Application Perspectives

Embedded Systems and Instrumentation

Owing to its compact size and versatile interface options, this OLED module is particularly suitable for embedded control panels, handheld devices, and measurement instruments where clear, low-power displays are essential.

Industrial and Consumer Electronics

The module’s durability and stable optical performance also make it a practical choice for industrial equipment, smart home interfaces, and consumer electronic products requiring reliable monochrome display solutions.

Conclusion

The 2.23-inch 128×32 OLED display module, driven by SSD1305/SSD1309 and equipped with multi-interface support, represents a balanced solution between performance, flexibility, and mechanical efficiency. Its mature design and adaptable characteristics allow it to meet the diverse requirements of modern electronic systems while maintaining consistent visual quality and operational stability.
