2.23"

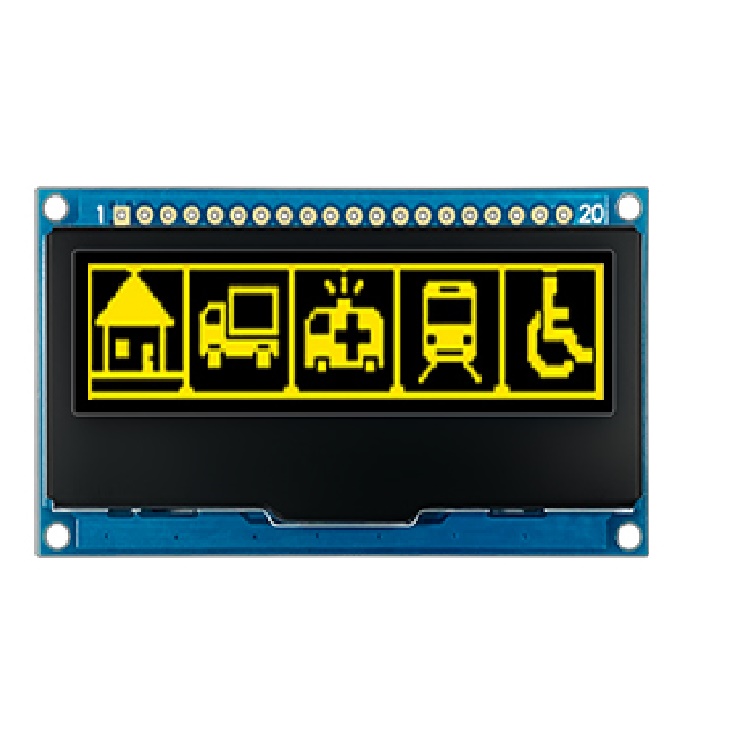

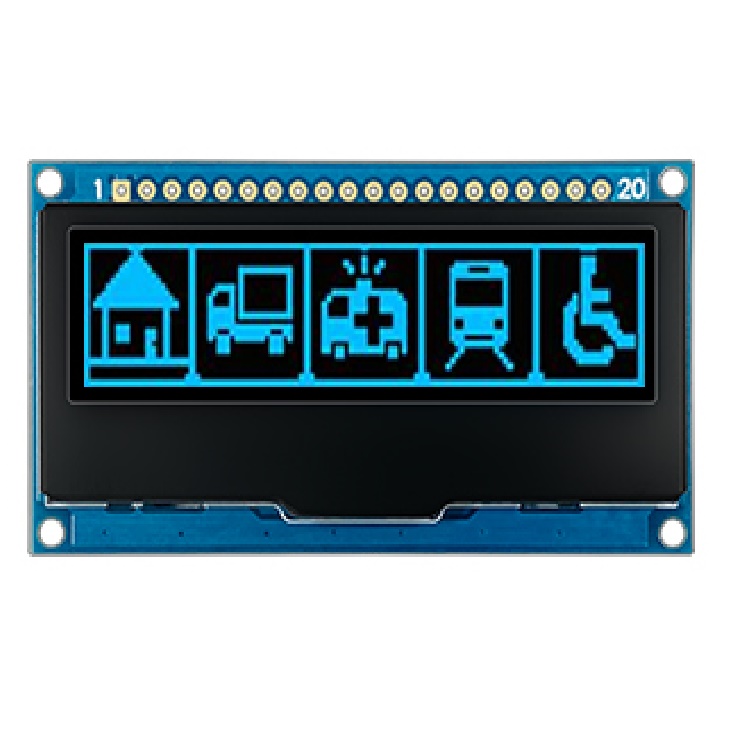

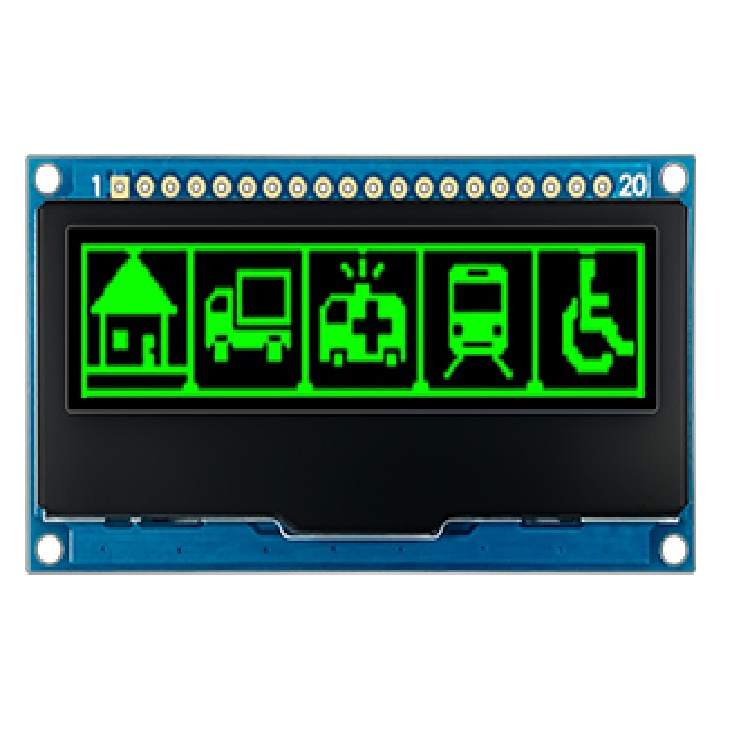

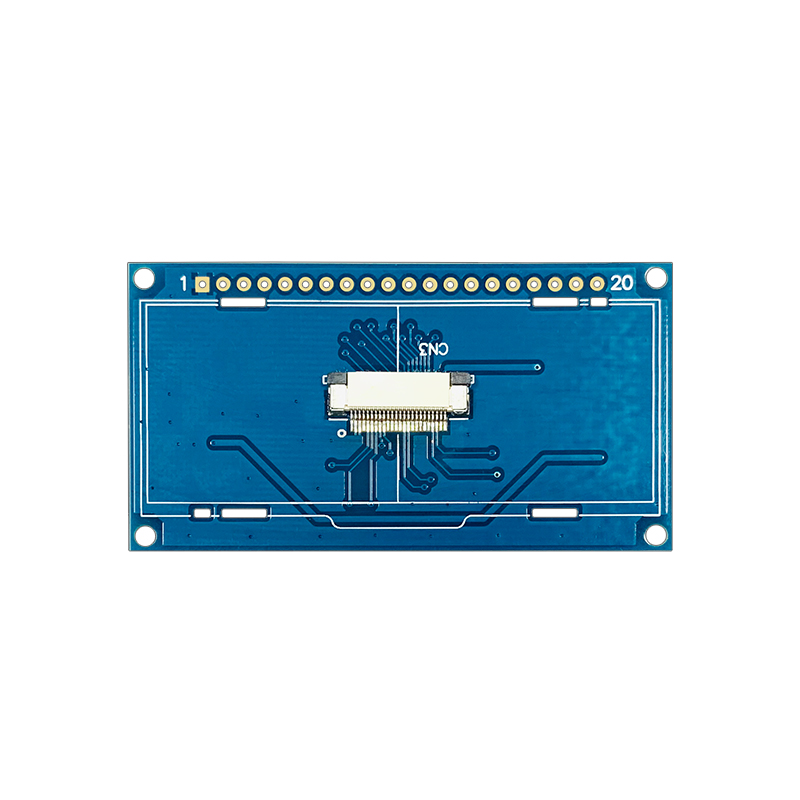

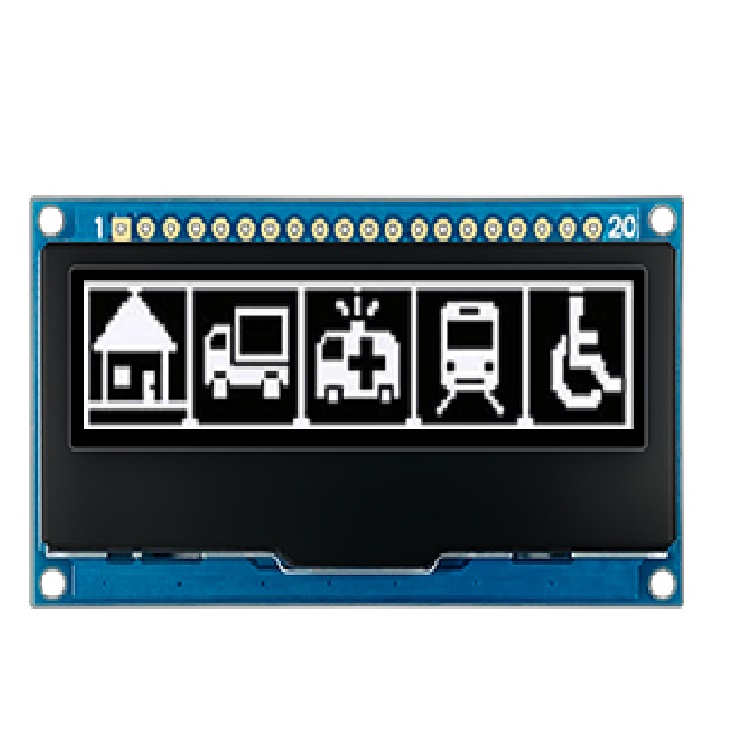

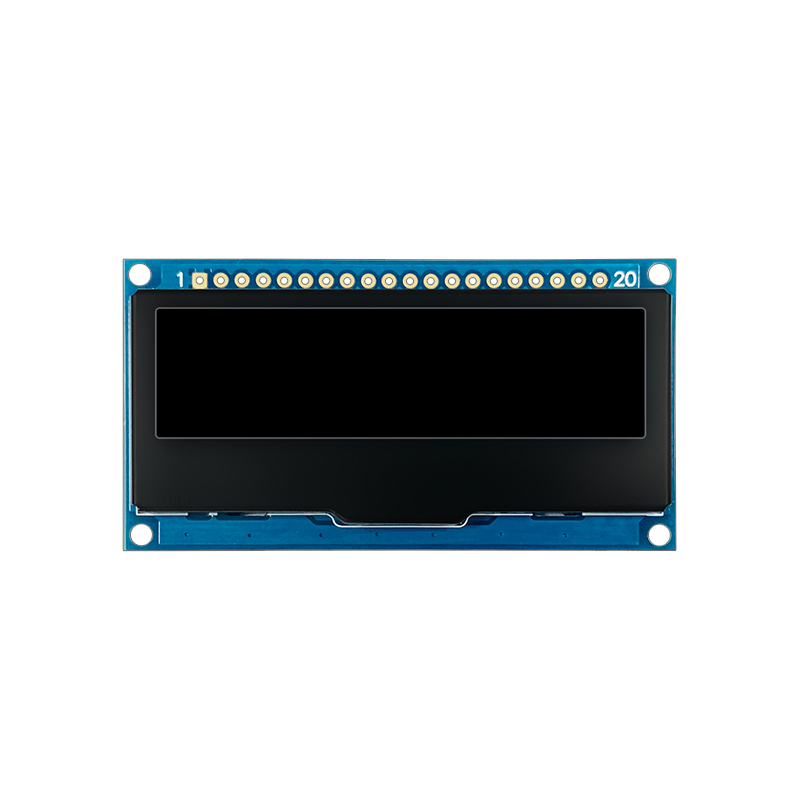

2.23 inch 128*32 OLED Display Module I2C SPI 20 pin interface SSD1305 Driver Chip

2.23 inch 128*32 OLED Display Module I2C SPI 20 pin interface SSD1305 Driver Chip

2.23 inch 128*32 OLED Display Module I2C SPI 20 pin interface SSD1305 Driver Chip

2.23 inch 128*32 OLED Display Module I2C SPI 20 pin interface SSD1305 Driver Chip

2.23 inch 128*32 OLED Display Module I2C SPI 20 pin interface SSD1305 Driver Chip

2.23 inch 128*32 OLED Display Module I2C SPI 20 pin interface SSD1305 Driver Chip

2.23 inch 128*32 OLED Display Module I2C SPI 20 pin interface SSD1305 Driver Chip

Price: $10.59-$15.59
Size:2.23
Resolution: 128*32
Interface: I2C SPI
Product description: Hicenda Technology Co., Ltd can supply 2.23 inch oled display module white,blue,green or yellow color with 7 pin SPI/I2C interface for medical or industrial device.
INQUIRY

1. Display Specifications

LCD Size: 2.23 inches
Dot Matrix Size: 128*32
LCD Color: White/Blue/Green/Yellow
Hardware Interface: I2C/SPI interface
Driver IC: SSD1305
Operating Temperature: -40~85°
Working Power Supply: 3.3V
PIN : 20 Pin
Viewing Direction: Full viewing angle

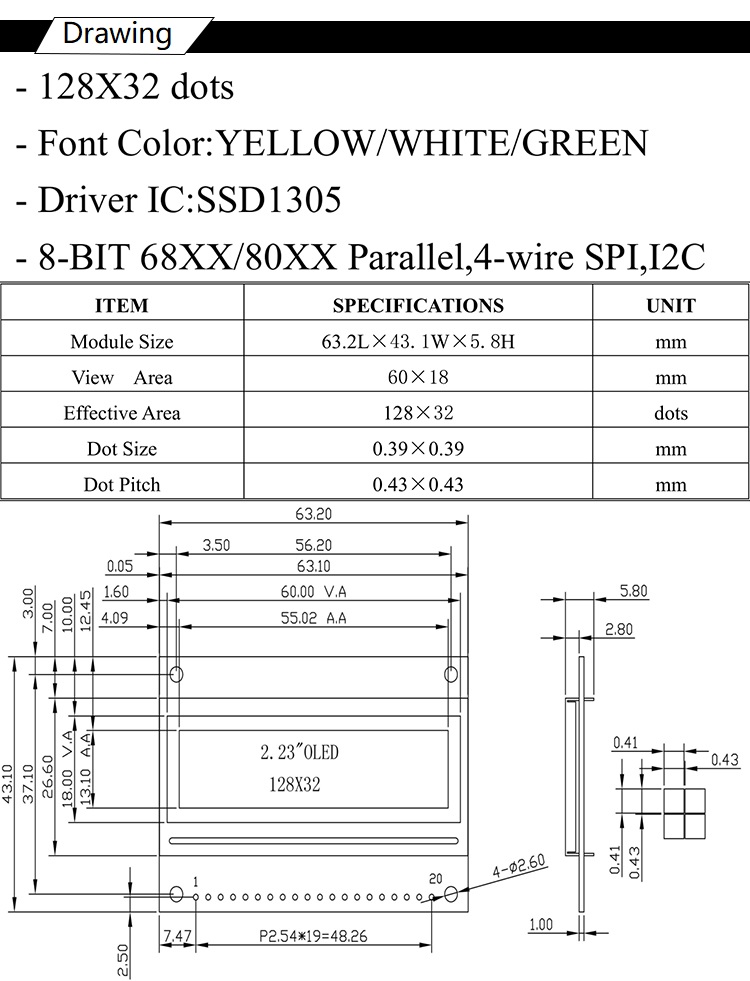

2. Mechanical Specifications

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HG-0223-12832M01/SSD1305
Diagonal Screen size:	2.23 inch
Interface:	Parallel, 20-wire SPI, I2C
Drive Duty:	1/32 Duty
Number of Pixels:	128 x 32
Panel Size:	63.2(W)x43.1(H)x5.8Max(T)
Driver IC:	SSD1305
Active Area:	55.02(W)x13.1(H)
Pixel Pitch:	0.43(W)x0.41(H)
Pixel Size:	0.41(W)x0.39(H)
Weight:	TBD
Operating Temperature:	-40~85°
