Please kindly contact us for full data sheet of the display.
DESCRIPTION

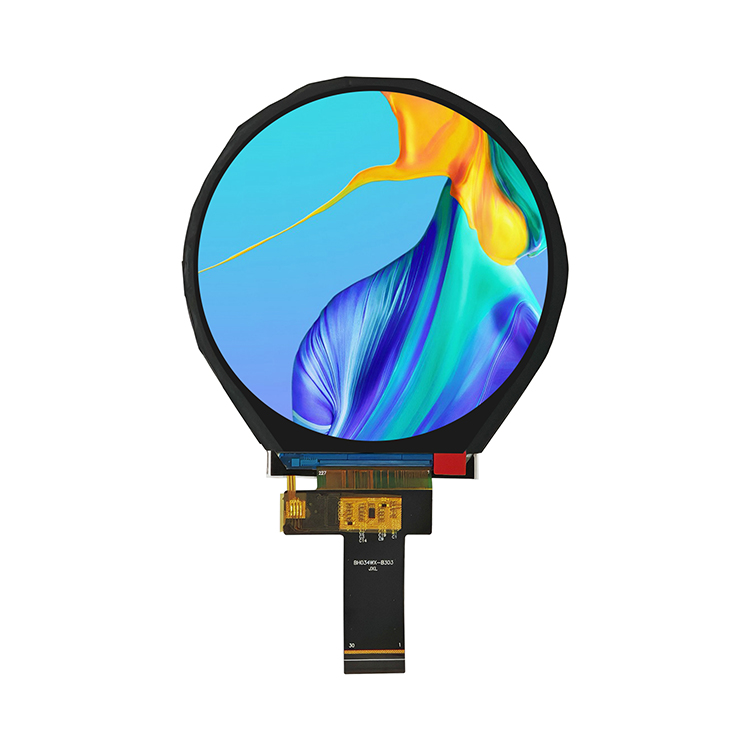

Hicenda HT034WX-B303-002 is a 3.4-inch circular TFT LCD display module featuring a high-resolution 800×800 pixel matrix and MIPI interface. This transmissive a-Si TFT display adopts IPS technology, ensuring consistent image clarity across wide viewing angles. Designed without touch panel support (TSP), it delivers a normally black display mode and operates within a robust temperature range. With 16.7M color depth, monochrome display options, and compact integration features, it offers a compelling solution for next-generation circular interface devices.
GENERAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Model No | HT034WX-B303-002 |
| Display Size | 3.4 inch (round) |
| Resolution | 800 × 800 pixels |
| Display Type | Transmissive TFT |
| Technology Type | a-Si (Amorphous Silicon) |
| Viewing Direction | IPS (All View) |
| Display Mode | Normally Black |
| Color Depth | 16.7M Colors |
| Pixel Configuration | RGB Vertical Stripe |
| Driver IC | JD9365 |
| Interface | MIPI (30 Pins) |
| Active Area | 87.6 mm × 87.6 mm |
| Outline Dimension | 96.6 mm × 99.05 mm × 3.0 mm |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| LED Backlight | 12 LEDs |
| Display Color | Monochrome (White/Yellow) |
| TSP (Touch Panel) | Without TSP |
| Drive Duty | 1/64 Duty |
| Connection Type | Connector |

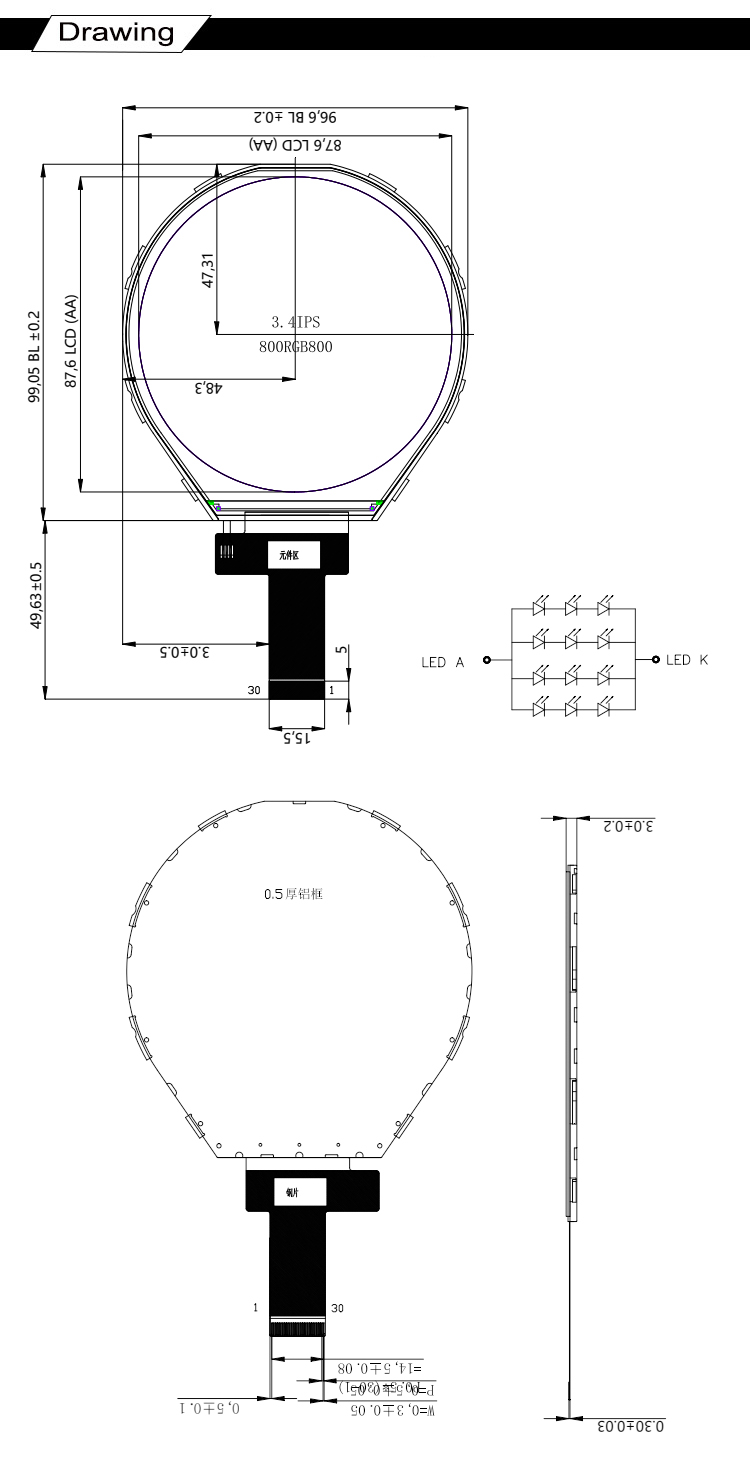

DRAWING

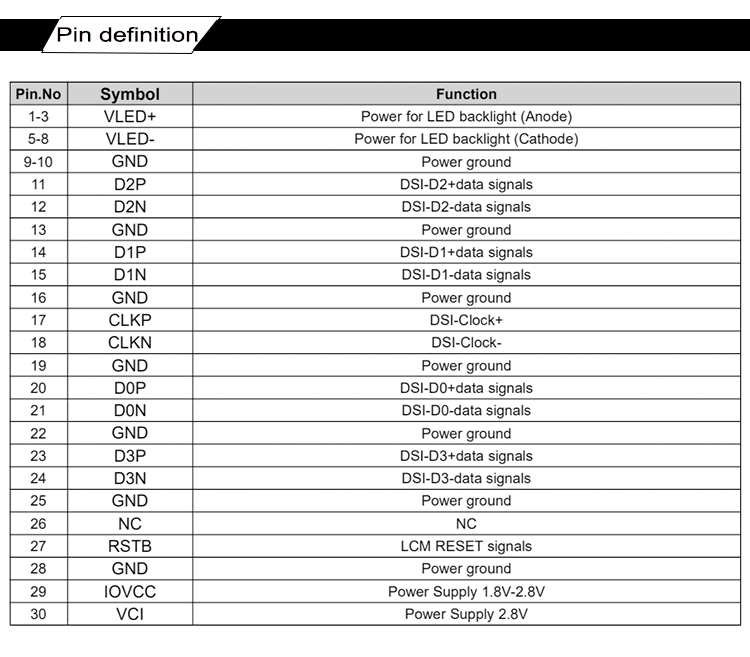

INTERFACE PIN FUNCTION
