Circular TFT Display

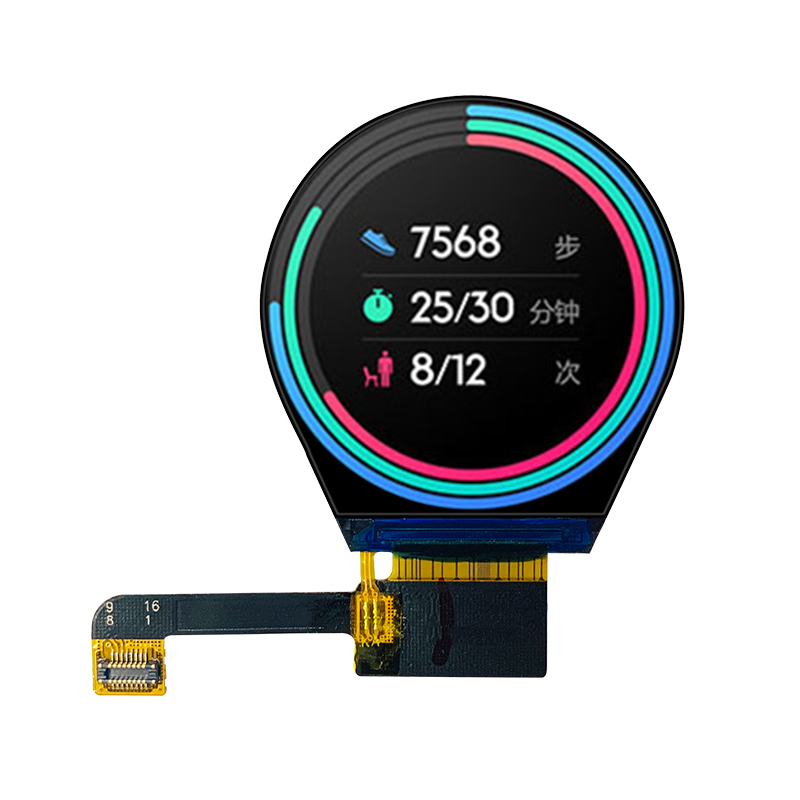

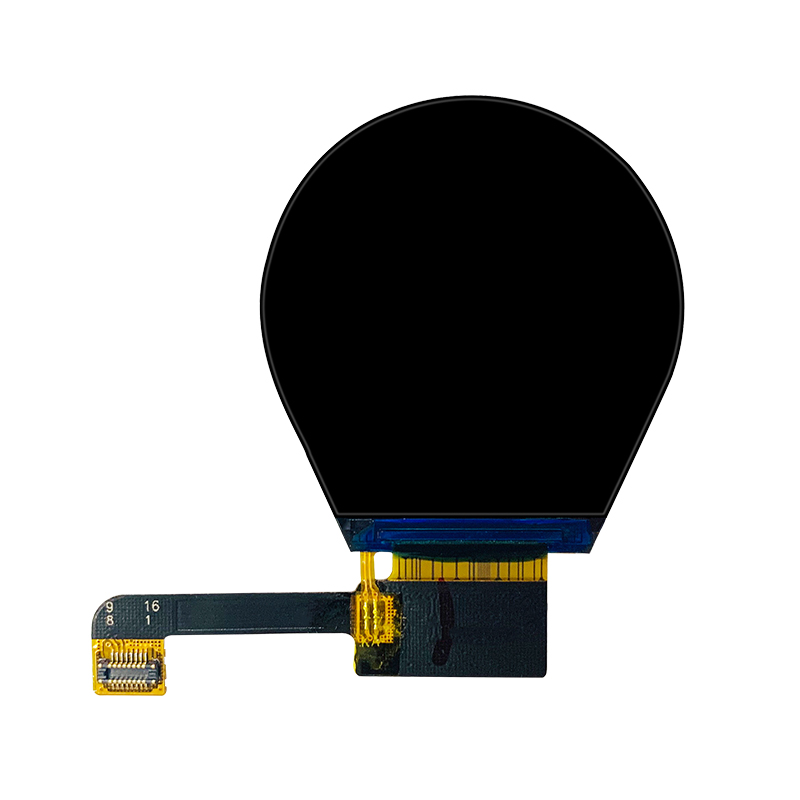

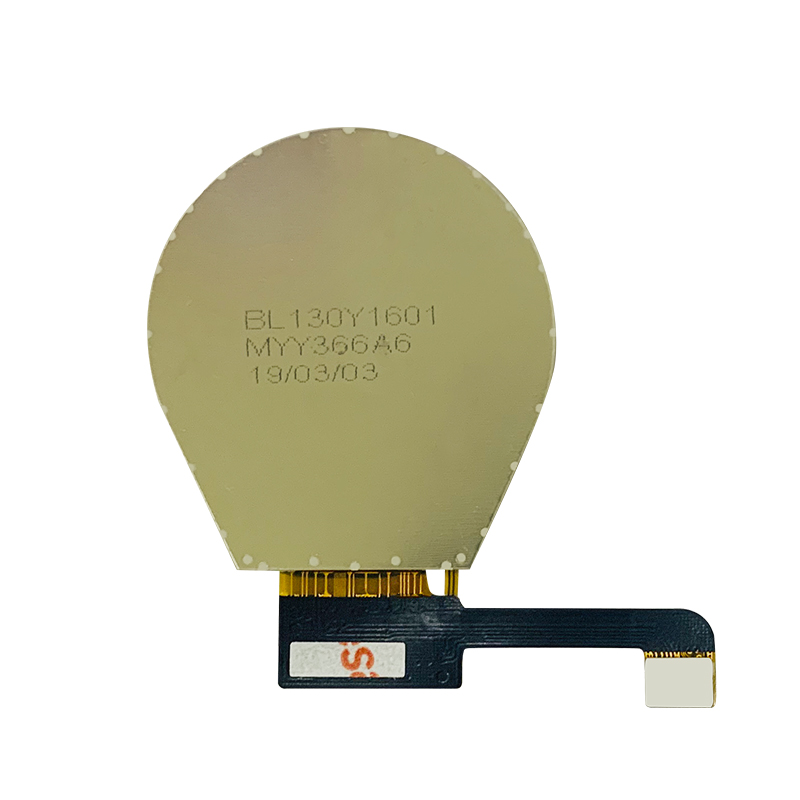

Round 1.3 inch lcd tft display circle 240*240 high revolution SPI interface ST7789 Driver ic - 副本

Round 1.3 inch lcd tft display circle 240*240 high revolution SPI interface ST7789 Driver ic - 副本

Round 1.3 inch lcd tft display circle 240*240 high revolution SPI interface ST7789 Driver ic - 副本

Round 1.3 inch lcd tft display circle 240*240 high revolution SPI interface ST7789 Driver ic - 副本

LCD Type: 1.3'' Normally Black
Size: 1.3
Resolution: 240*240
Interface: 3-wire 9-bit serial port
Product description: Hicenda Technology Co.,ltd can supply high quality 1.3 inch small tft display for consumer electronics,1.3 inch lcd tft display round with 3-wire 9-bit serial port
INQUIRY

1. Display Specifications

LCD Size: 1.3 inches
Dot Matrix Size: 240*240
Backlight Type : 2 LED Serial
Hardware Interface: SPI interface
Driver IC: ST7789V
Operating Temperature: -20 - 70
Working Power Supply: 3.3V

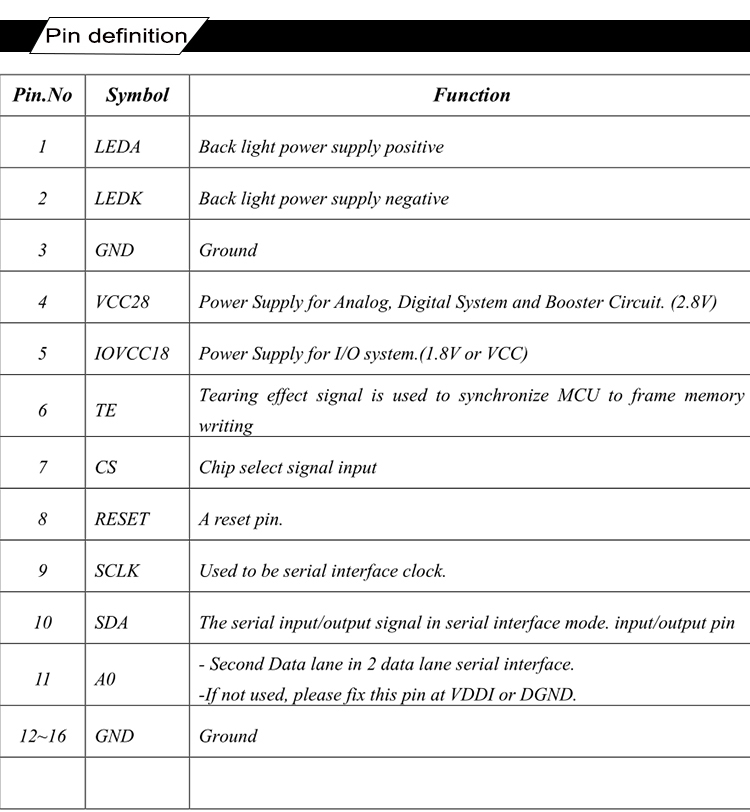

PIN NO: 16Pin
Display Area: 32.4*32.4mm
Size: 35.5*38.23*1.5mm

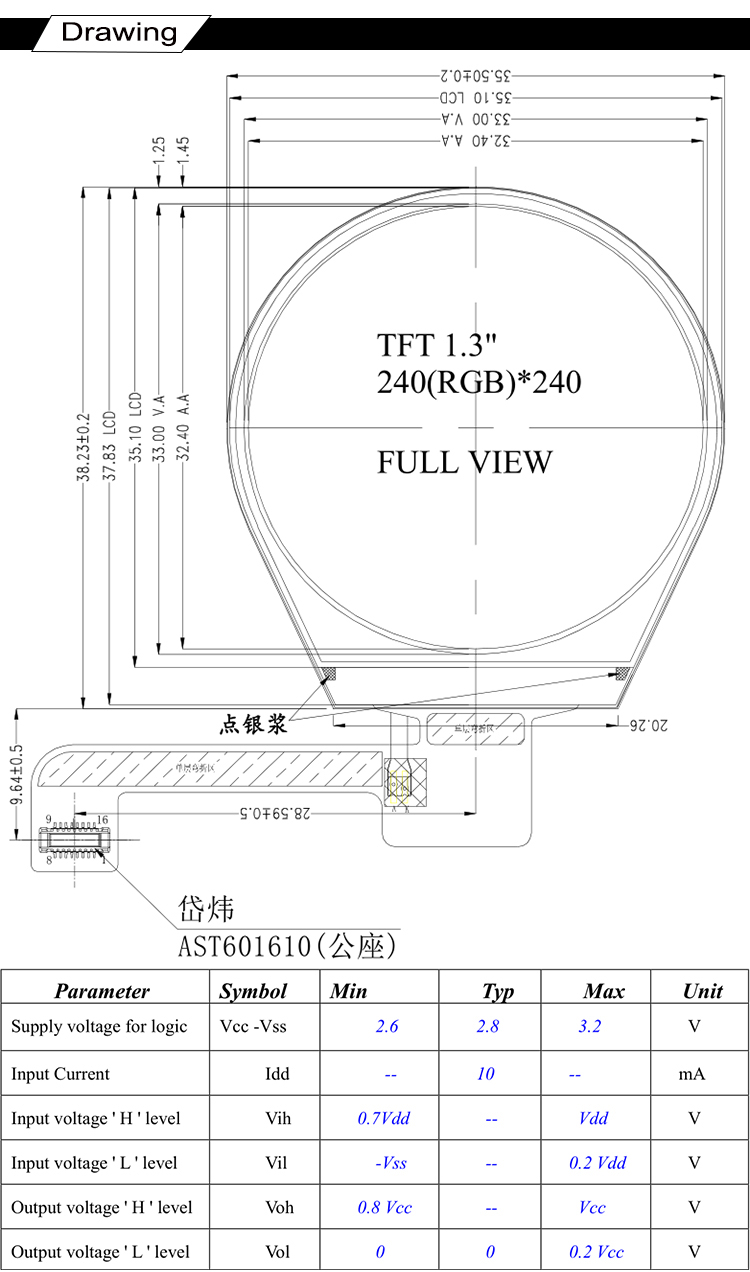

2. Mechanical Specifications

Product Name	1.3 Inch TFT Mini LCD Screen Color LCD Dispaly
Active Area (WxH)	32.4(H) x 32.4V)
Display Outline Size	35.5(H) x 38.23(V) x 1.5(D)
Resolution	240RGBx240DOTS
Polarizer Mode	RGB Stripe
Backlight	2 LED Serial
Interface Type	3-line 9bit serial OR 2 data lane serial
Technology Type	a-Si TFT active matrix
Controller / Driver	ST7789V
