DESCRIPTION

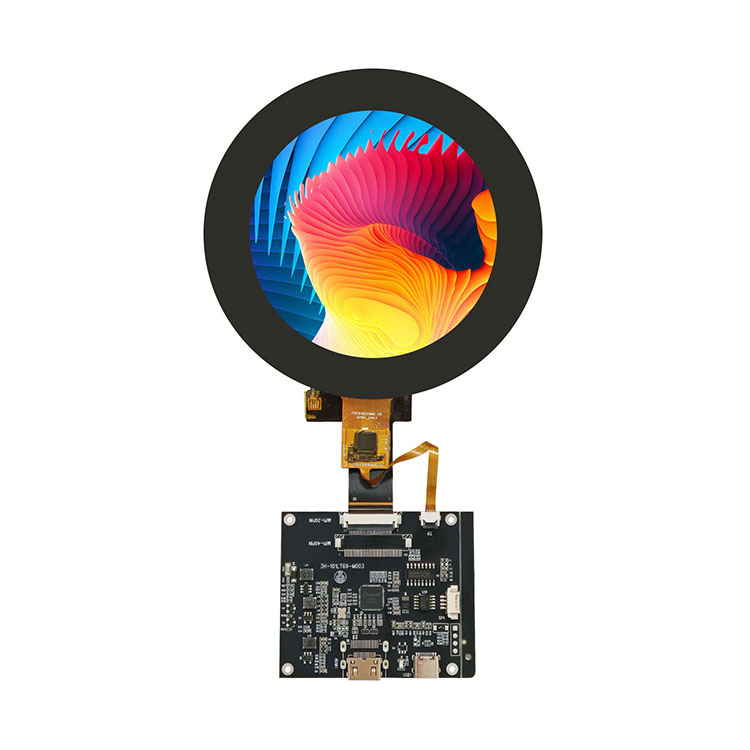

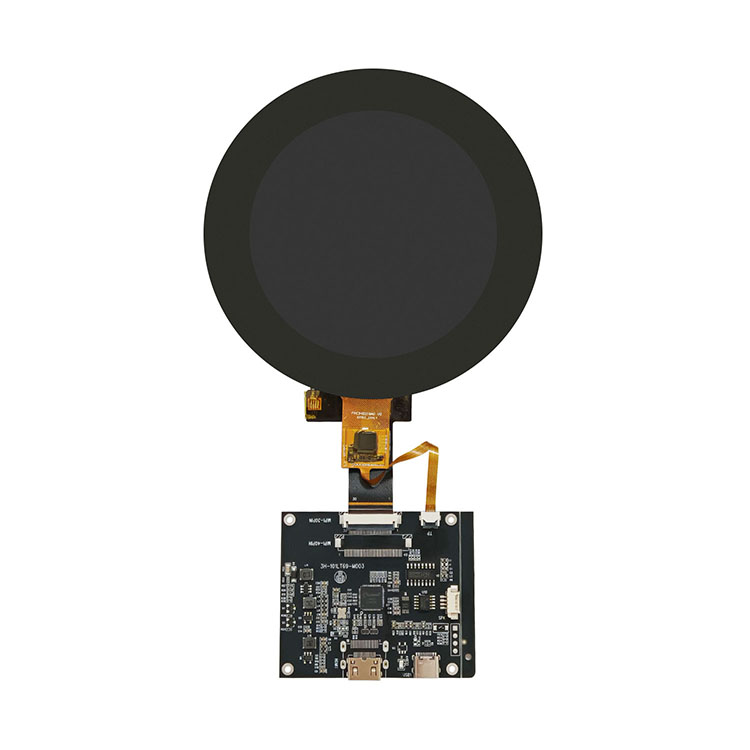

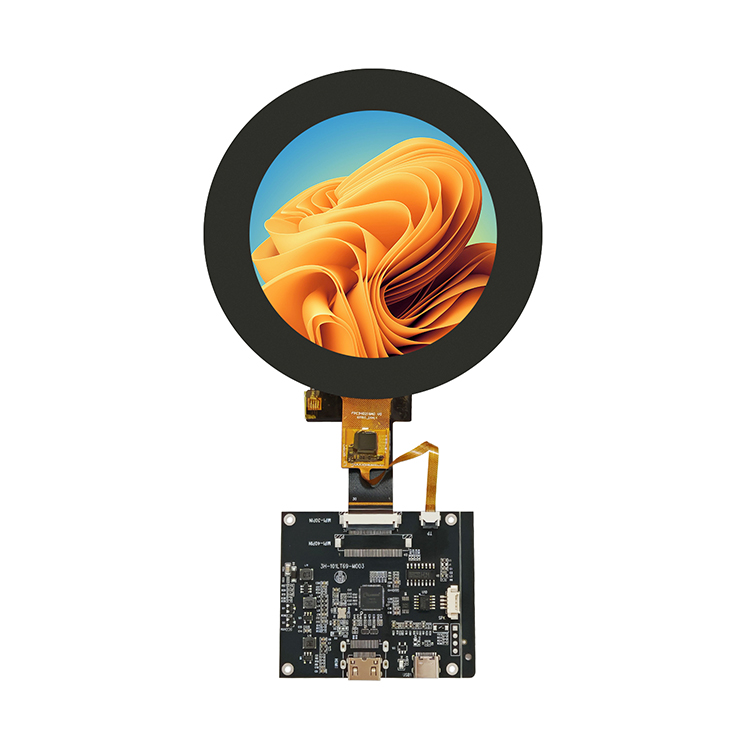

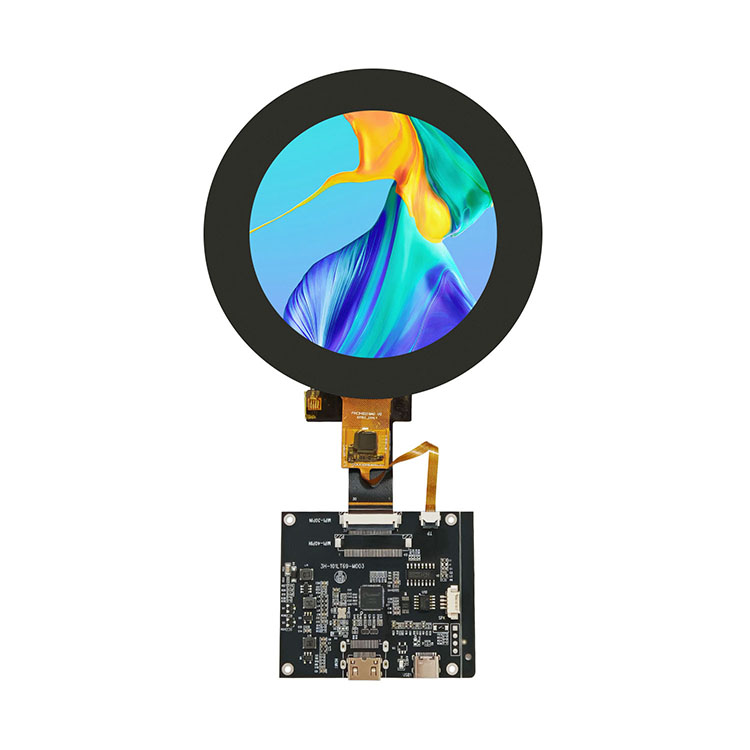

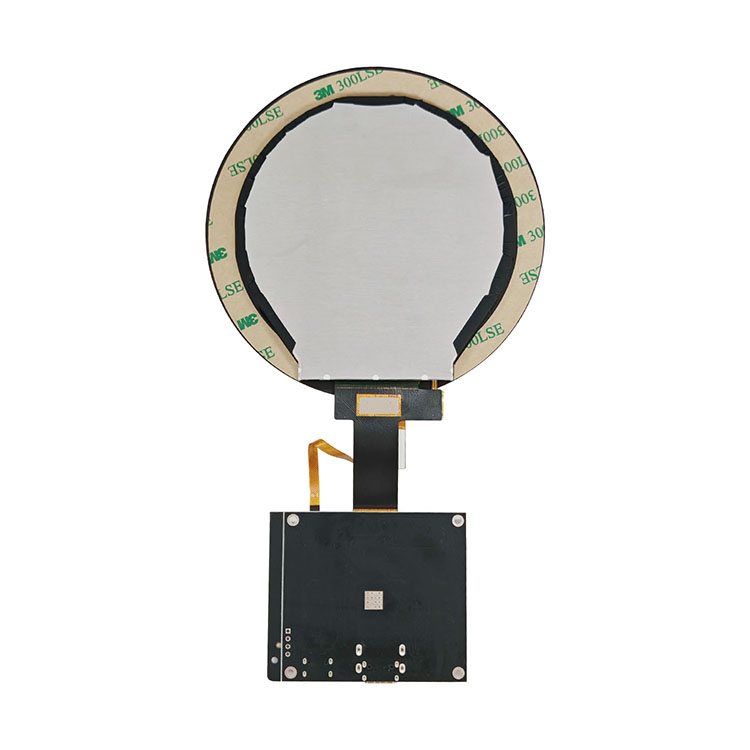

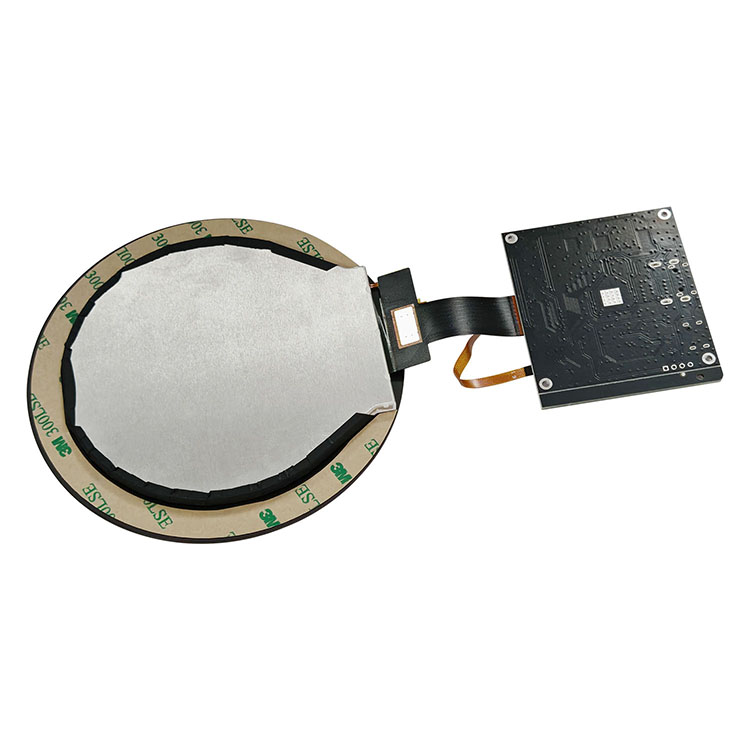

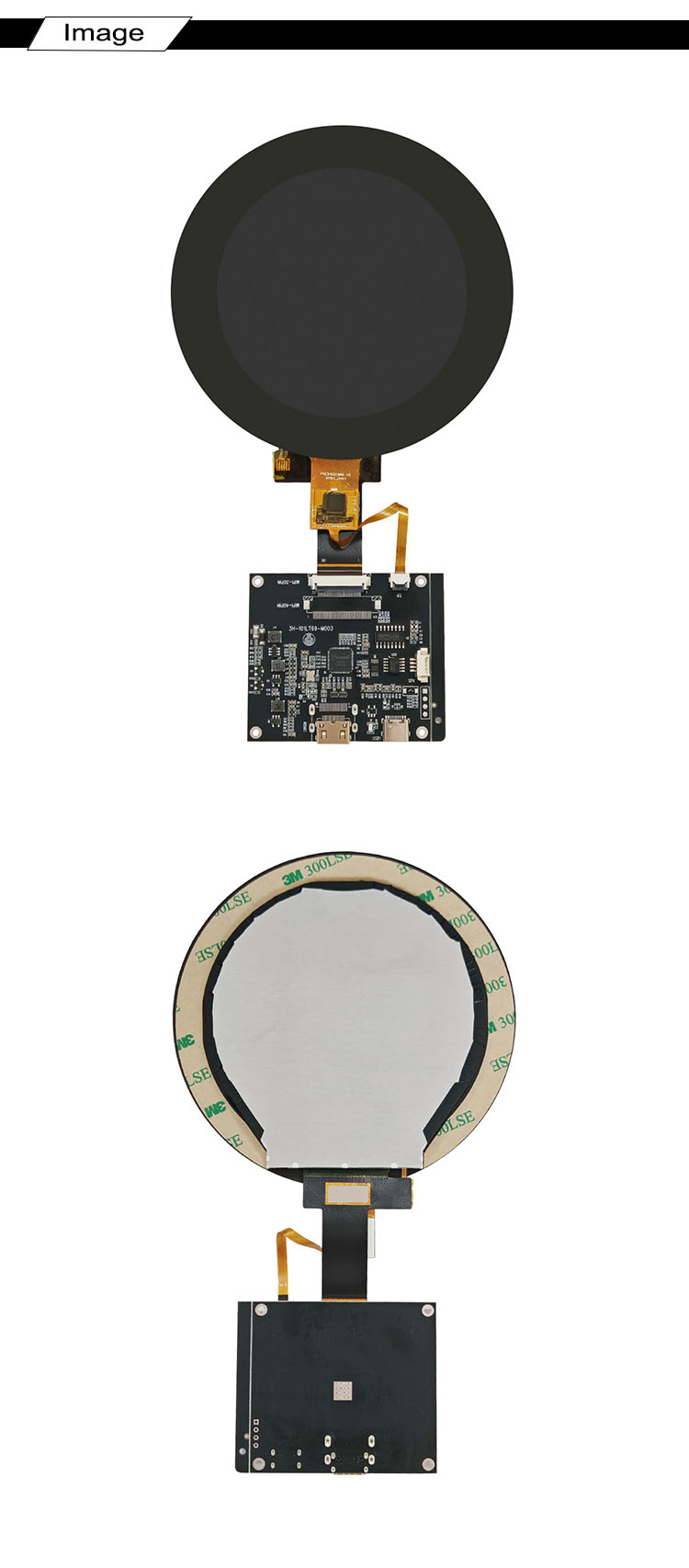

Hicenda HT034WX-B303-1006A-TB16 is a 3.4-inch circular TFT LCD module (Model No: HT034WX-B303-002) with an 800×800 resolution, transmissive a-Si technology, and PCAP touch integration. It features a 16.7M color depth, IPS viewing angle, MIPI interface, and operates within a temperature range of -20°C to +70°C. The module uses a JD9365 driver IC, includes a 10-LED backlight, and supports a normally black display mode.
GENERAL SPECIFICATION
| Parameter | Specification |
|---|---|
| Model Number | HT034WX-B303-1006A-TB16 |
| Display Size | 3.4 inch |
| Resolution | 800 x 800 pixels |
| Display Type | Transmissive TFT (a-Si) |
| Touch Panel | Capacitive (PCAP) |
| Viewing Direction | IPS (All angles) |
| Outline Dimensions | 118.84 x 118.84 x 5.63 mm |
| Active Area | 87.6 x 87.6 mm |
| Pixel Configuration | RGB Vertical Stripe |
| Color Depth | 16.7 million colors |
| Driver IC | JD9365 |
| Interface | MIPI |
| Display Mode | Normally Black |
| Pin Count | 30 |
| LED Count | 10 LEDs |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Connector Type |
Standard Connector |

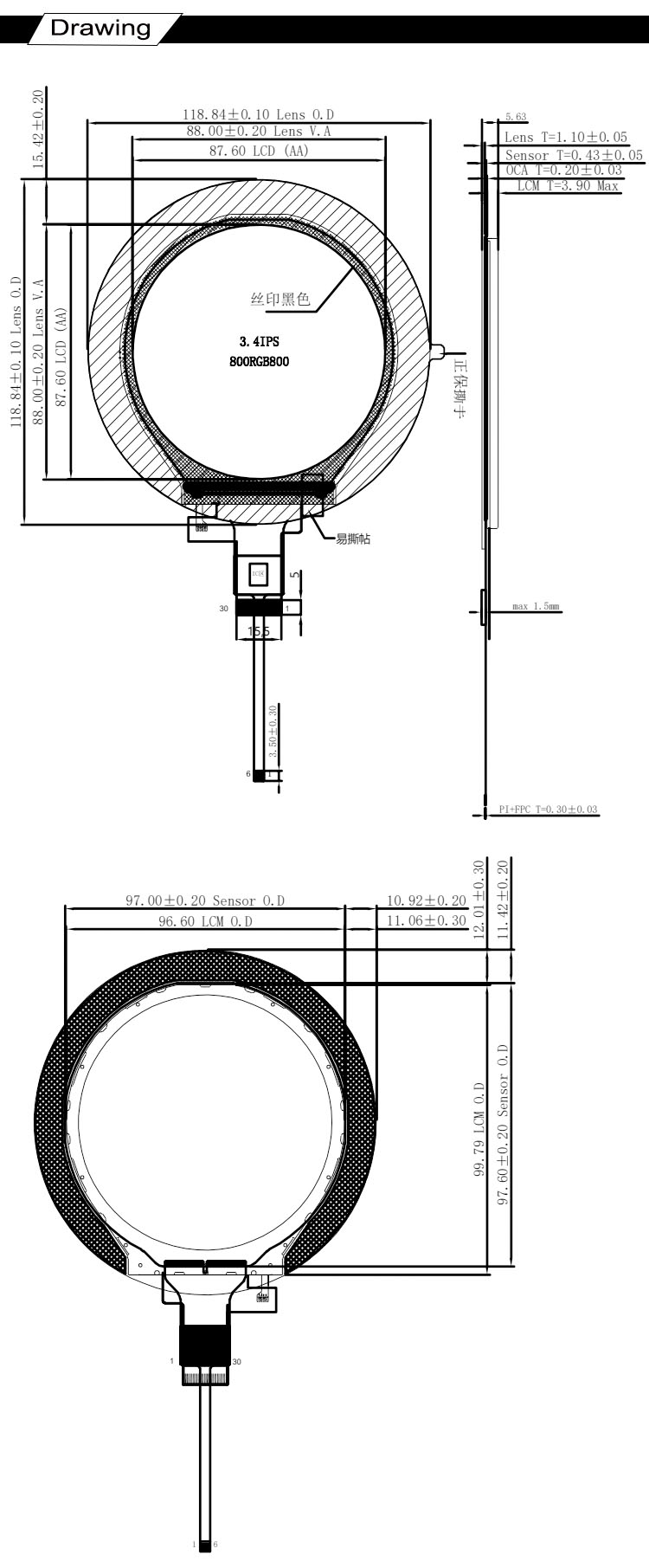

DRAWING

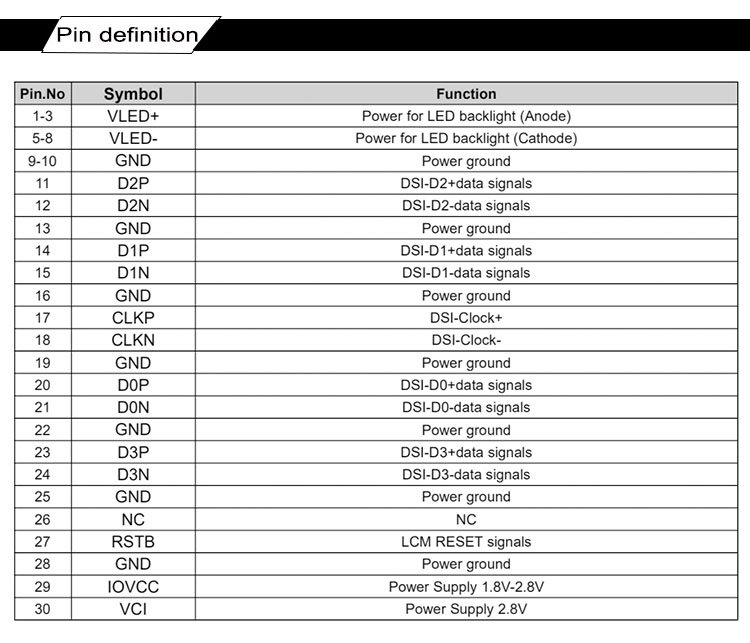

INTERFACE PIN FUNCTION
