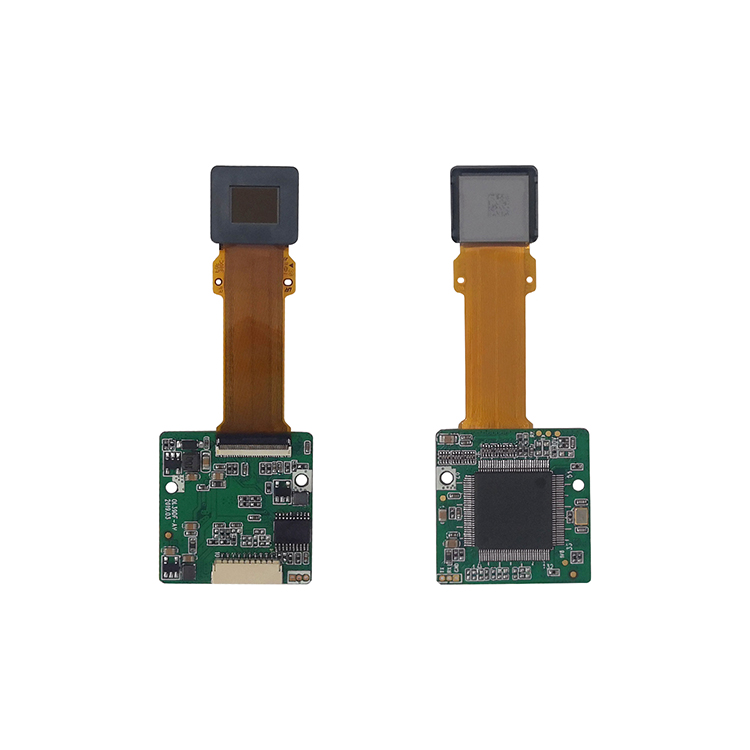

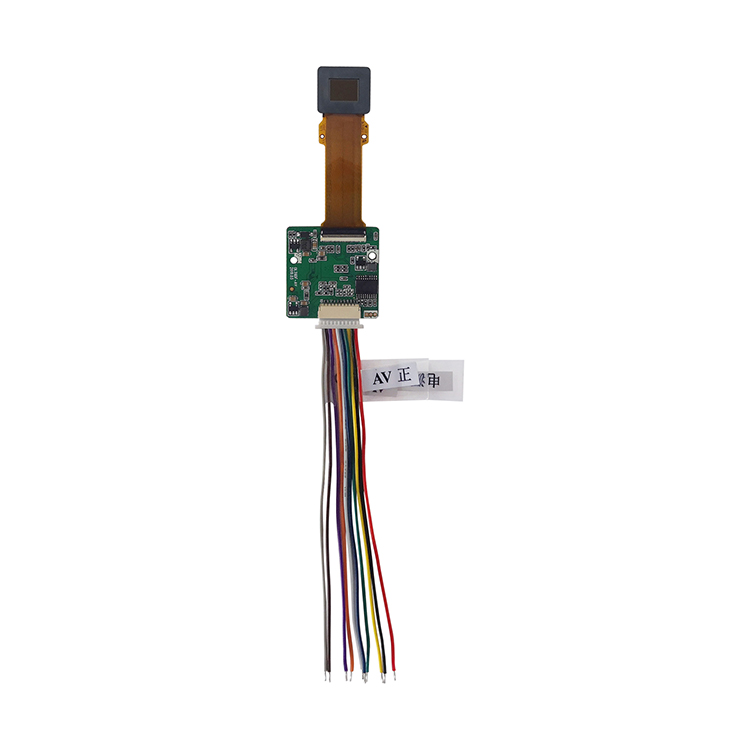

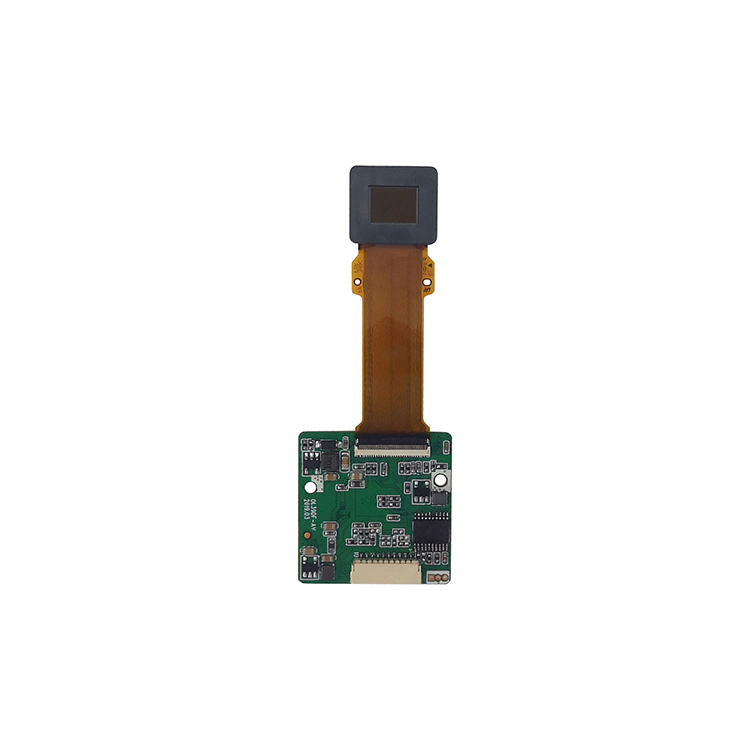

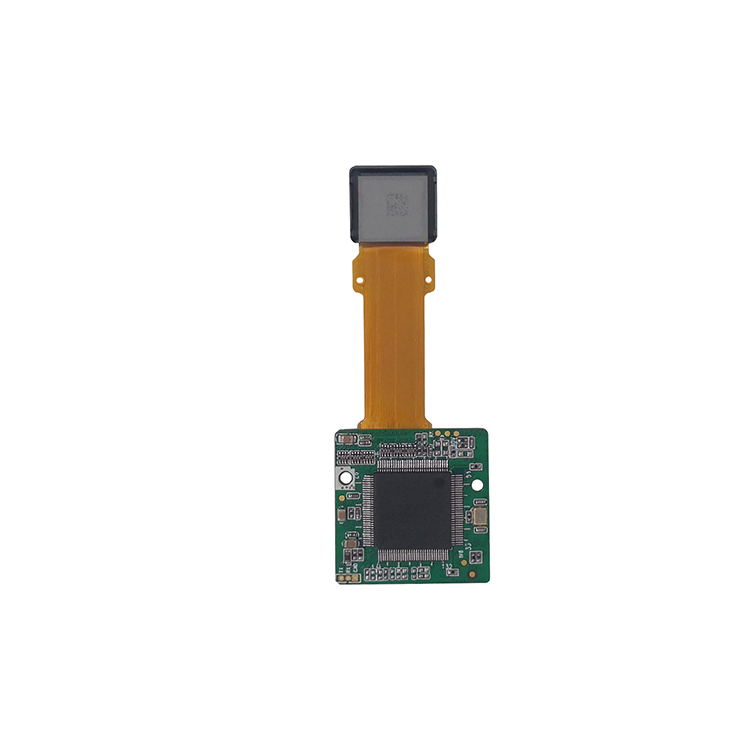

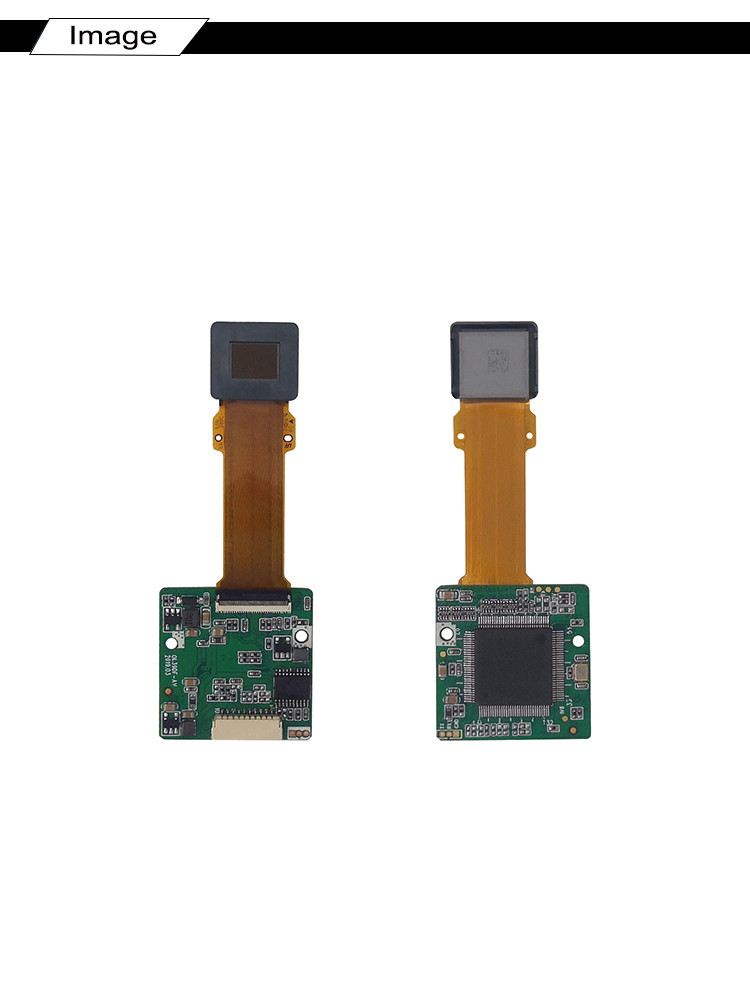

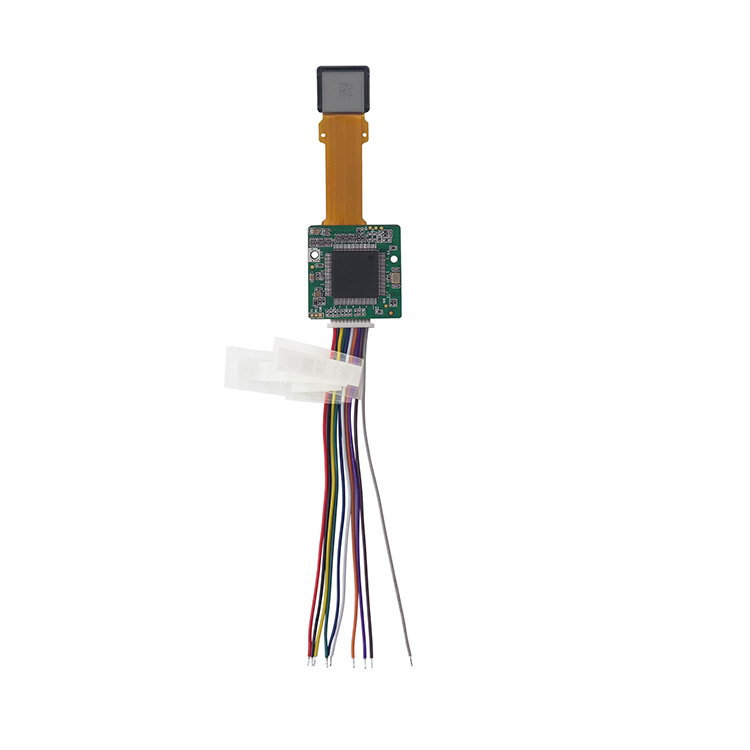

OLED Microdisplay 0.39 inch 1024(RGB)X768 with CVBS Board

OLED Microdisplay 0.39 inch 1024(RGB)X768 with CVBS Board

OLED Microdisplay 0.39 inch 1024(RGB)X768 with CVBS Board

OLED Microdisplay 0.39 inch 1024(RGB)X768 with CVBS Board

OLED Microdisplay 0.39 inch 1024(RGB)X768 with CVBS Board

OLED Microdisplay 0.39 inch 1024(RGB)X768 with CVBS Board

OLED Microdisplay 0.39 inch 1024(RGB)X768 with CVBS Board

Size: 0.39" AMOLED
Driver Board: CVBS Board
Resolution:1024(RGB)X768
Luminance:1000 cd/m2
Product description: OLED Microdisplay 0.39 inch 1024(RGB)X768 with CVBS Board
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

OL39CF is a 1.0 cm (0.39inch) diagonal, 1024(RGB) × 768 dots active matrix color OLED (Organic Light EmittingDisplay) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, andachieves smaller size, light in weight and high resolution. .

(Potential applications: Head mounted displays, View finders, Small monitors etc.)

GENERAL SPECIFICATION

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	OL39CF
Diagonal Screen size:	0.39 Inch
Max Luminance:	1000 cd/m²
Number of Pixels:	1024x768
Power consumption (Drive board+display):	13.8 x 48.086 x 2.15 (mm)
Contrast ratio:	100000:1
Weight:	TBD
Operating Temperature:	-10~70°

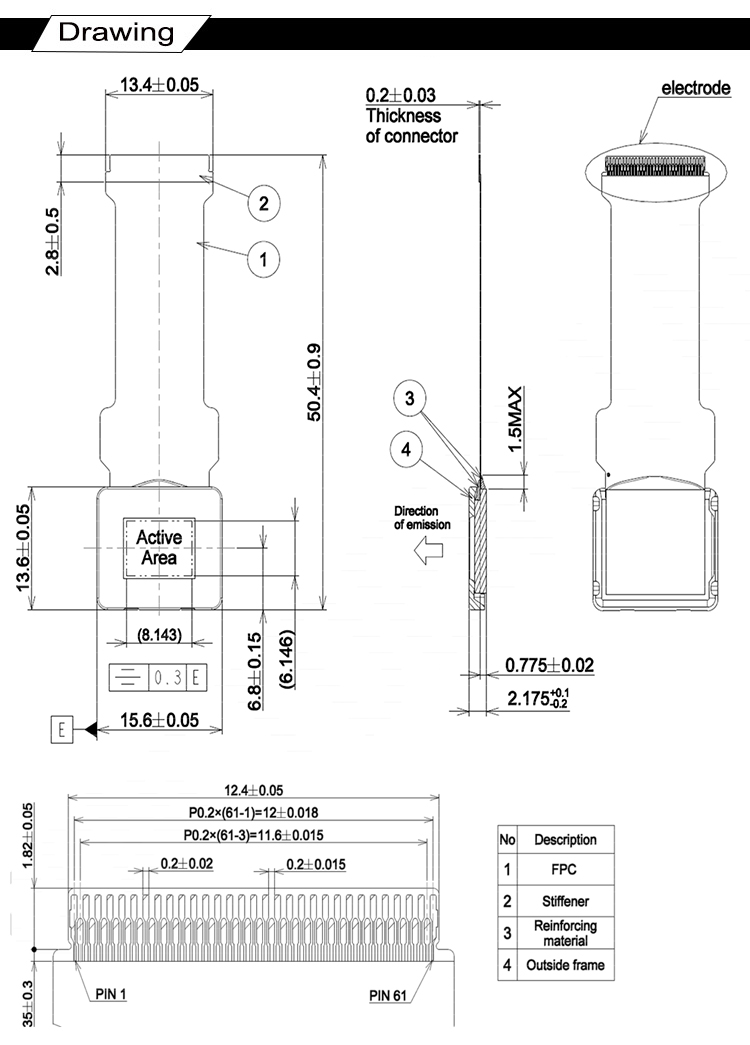

DRAWING

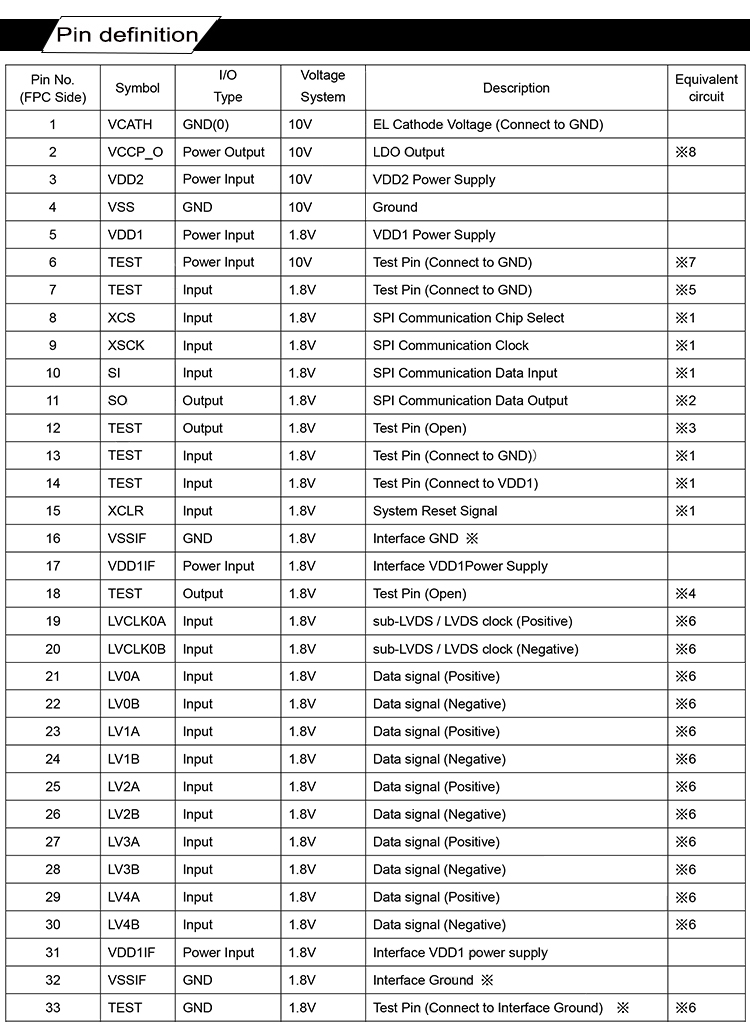

INTERFACE PIN FUNCTION
