0.71" Birdbath optics Binocular AR Glasses 1920*1080 50° FOV Optical Module

Display Size:0.71
Resolution:1920 (RGB)×1080
Interface: LVDS
FOV:50°
Product description: 0.71" Birdbath optics Binocular AR Glasses 1920*1080 50° FOV Optical Module
INQUIRY

0.71" Birdbath optics Binocular AR Glasses 1920*1080 50° FOV Optical Module

DESCRIPTION

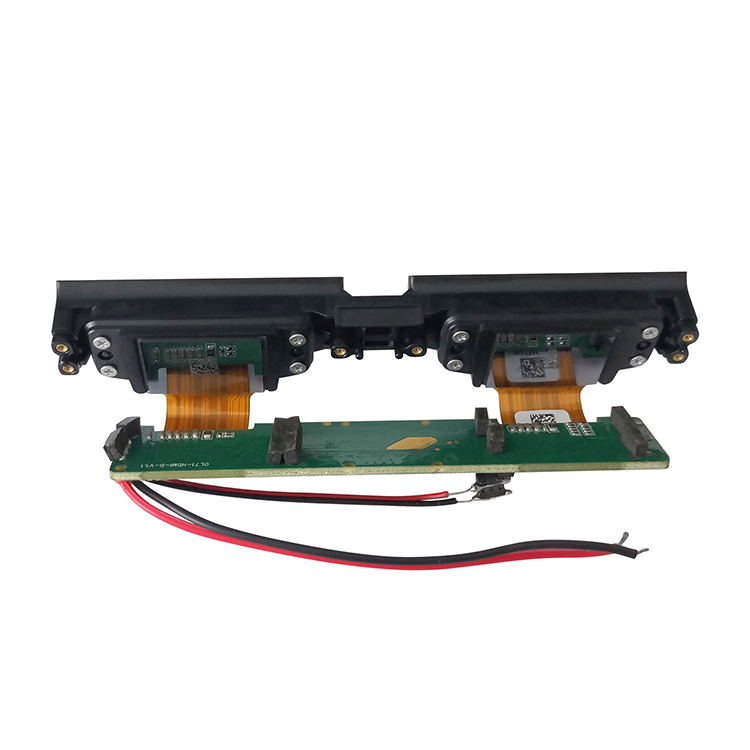

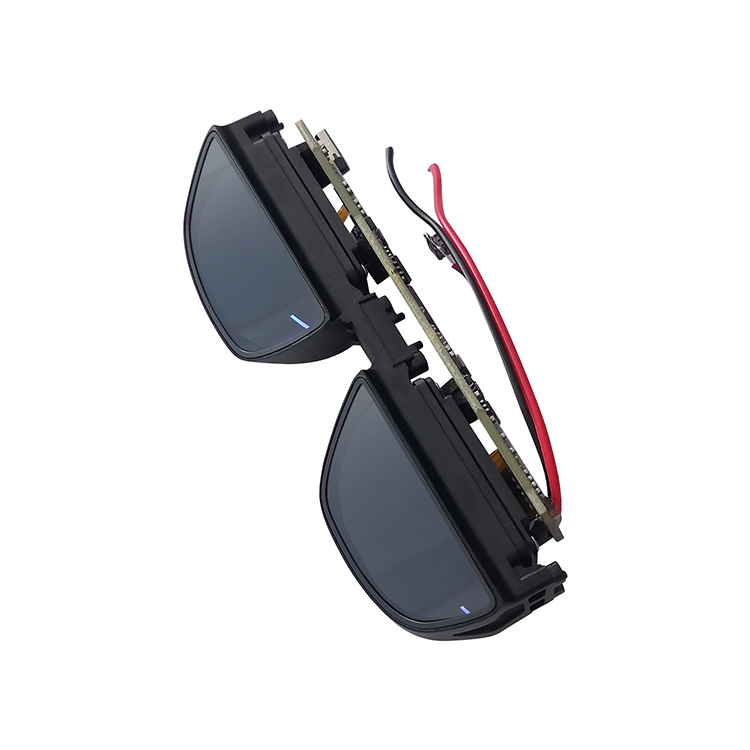

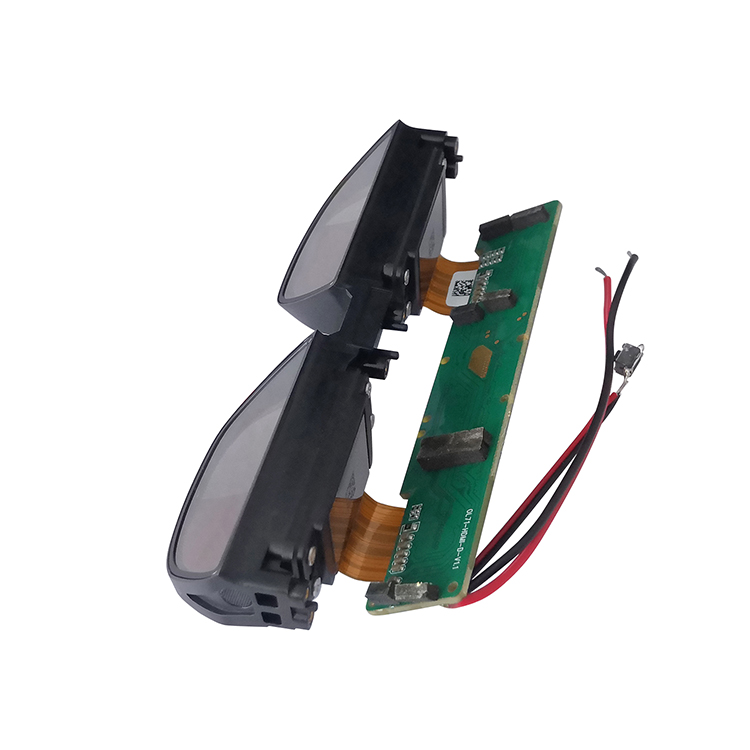

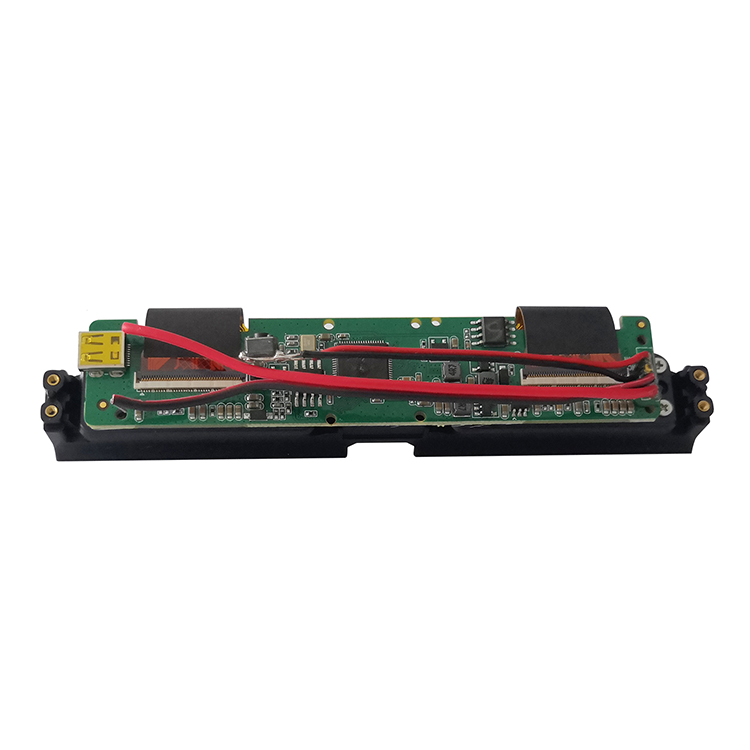

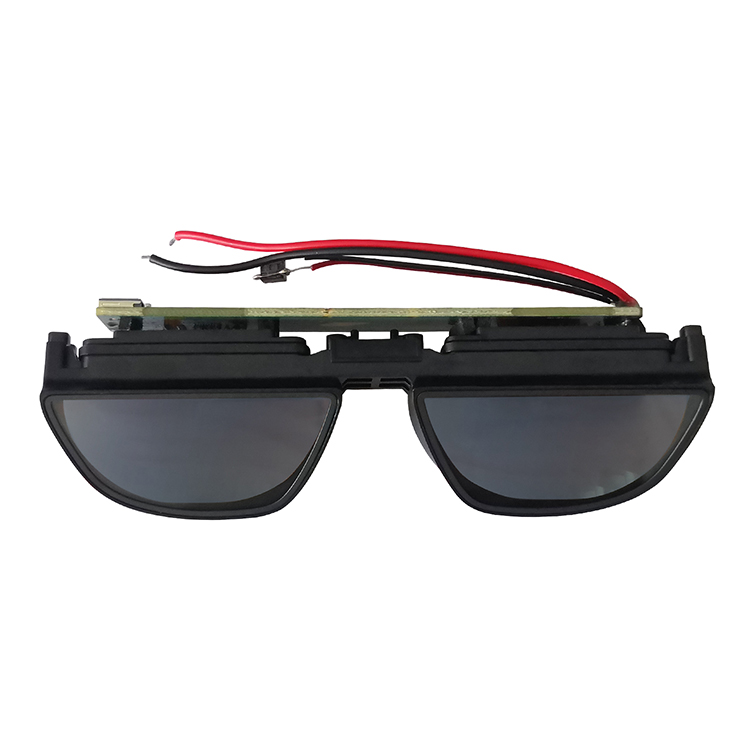

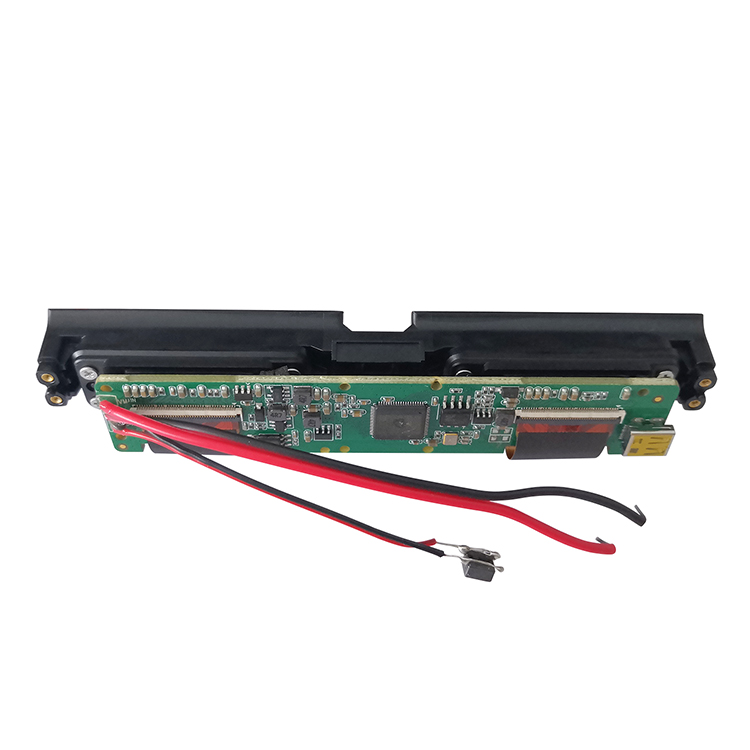

This Birdbath optics Modue is a binocular optical module called “BB”（Birdbath）for AR/VR, which is mainly composed of display, optical lens and connector. The display panel is 0.71 inch micro-OLED 1920x1080 (sony ECX335SN)

SPECIFICATION

FOV:50°

Display panel:0.71 inch Micro-OLED

Technology:Birdbath

Resolution:1920x1080

Interface:LVDS

Luminance: Max 3000 cd/m2

Uniformity:100000:1

Power consumption:820mW@1500nits/1280mW@3000nits

Frame rate:60Hz

Micro Display | Sony Micro OLED, 335SN

Eye box @ Eye relief:8*8mm@14mm

TV distortion:≤0.7%

MTF:MTF≥0.23@2PPL

Monocular Weight:23.2g

Light efficiency:~20% (Adjustable value)

Transmissivity:~20% (Adjustable value)

IPD: (63mm) (Recommended value)
