0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR

0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR

0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR

0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR

0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR

0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR

0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR

0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR

0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR

Size: 0.71" AMOLED

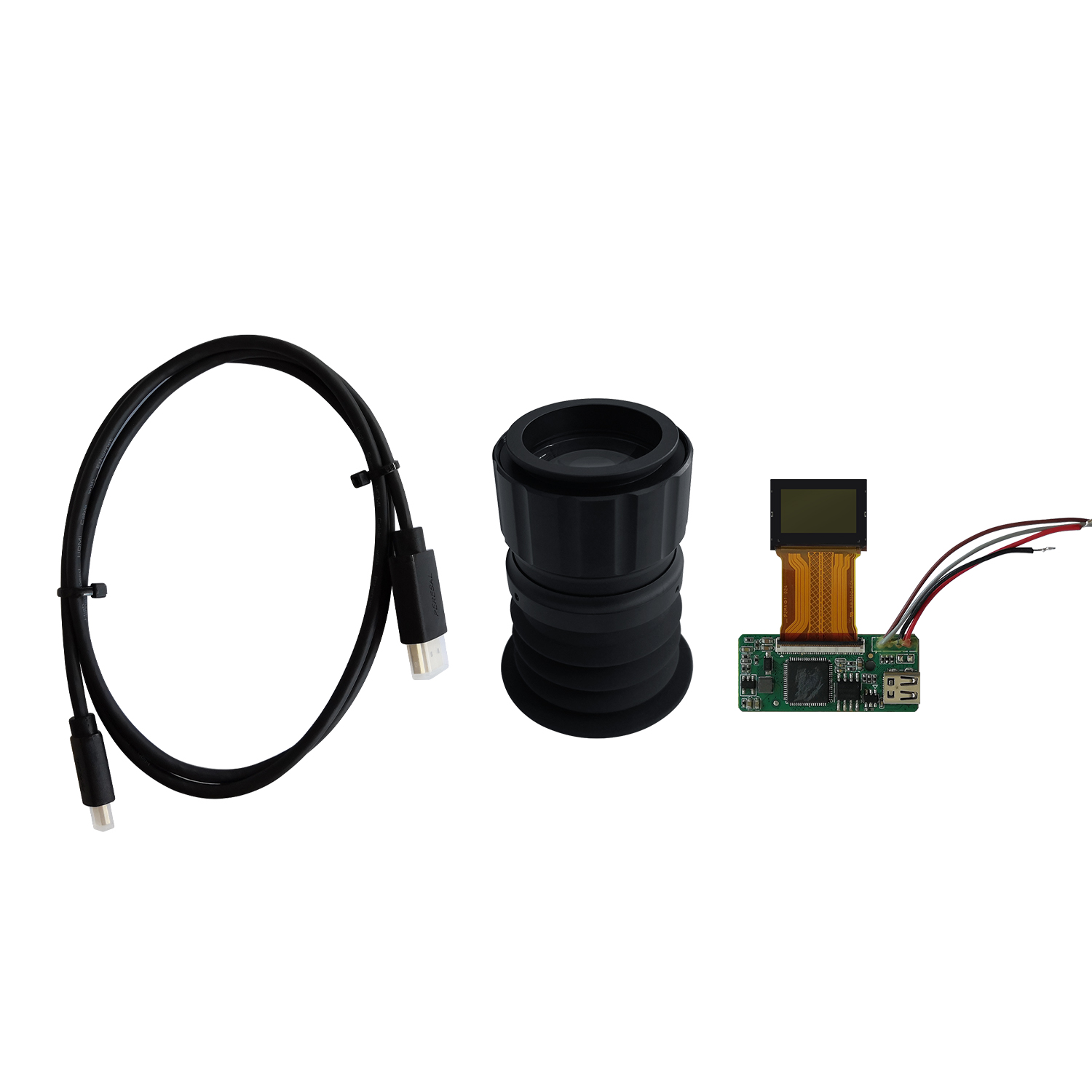

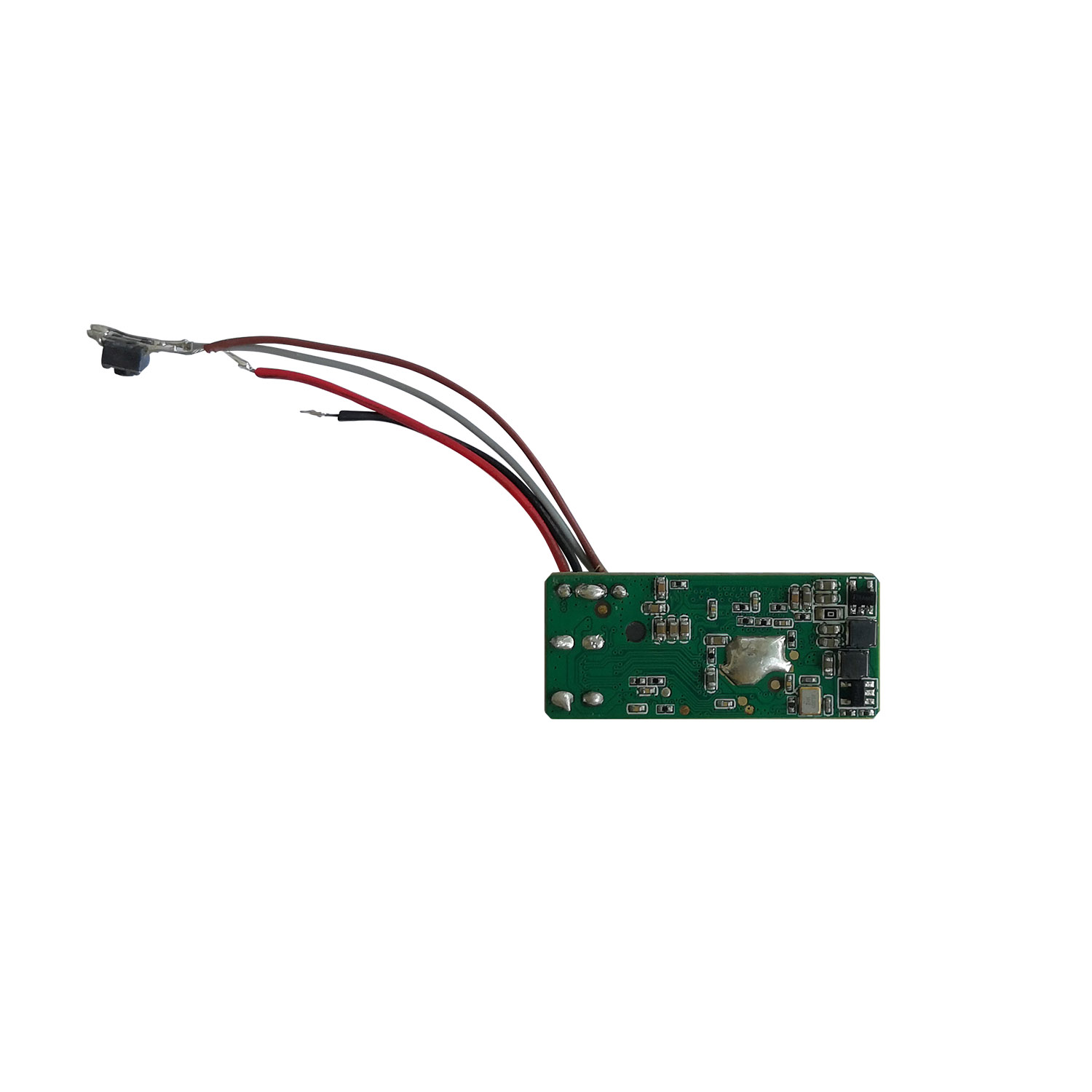

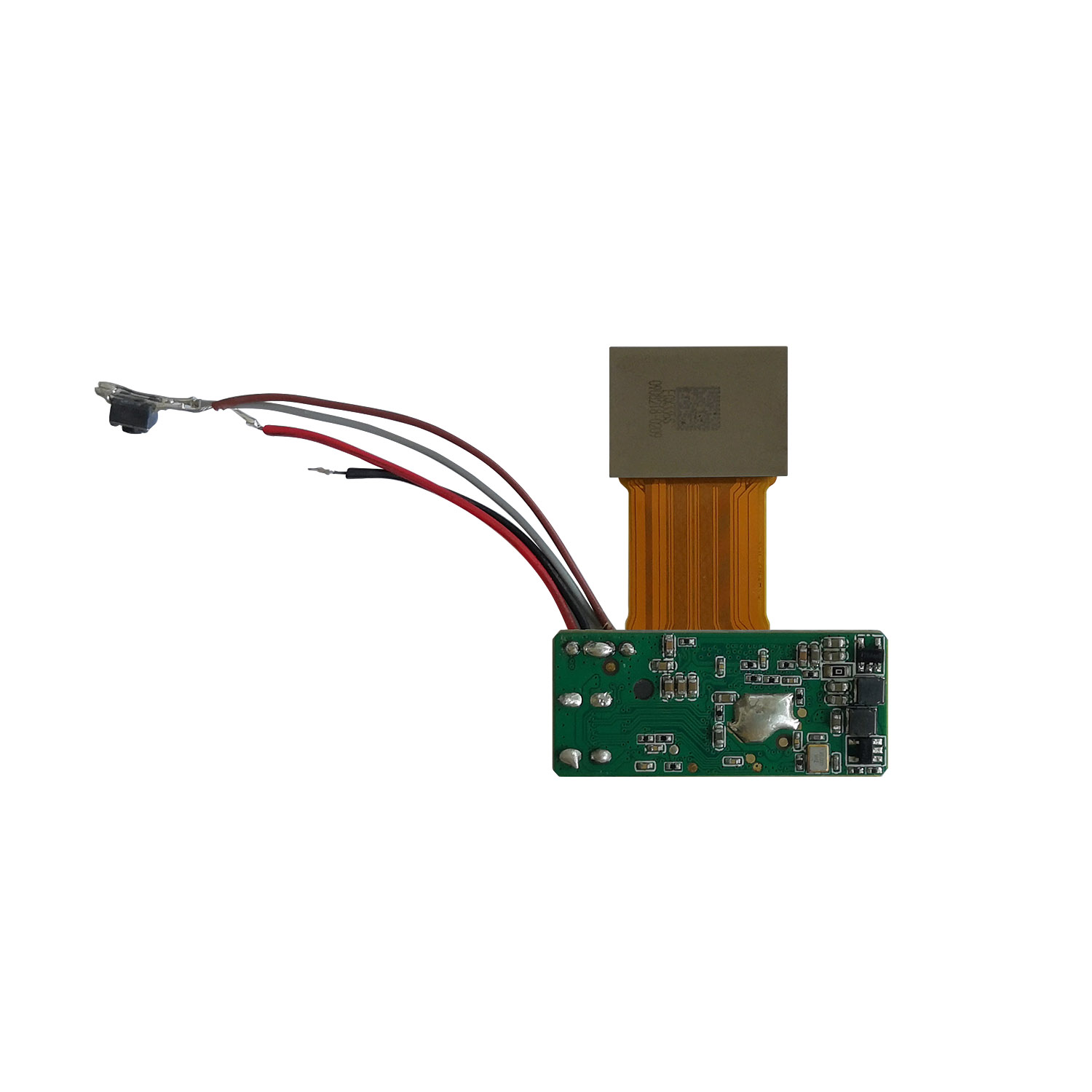

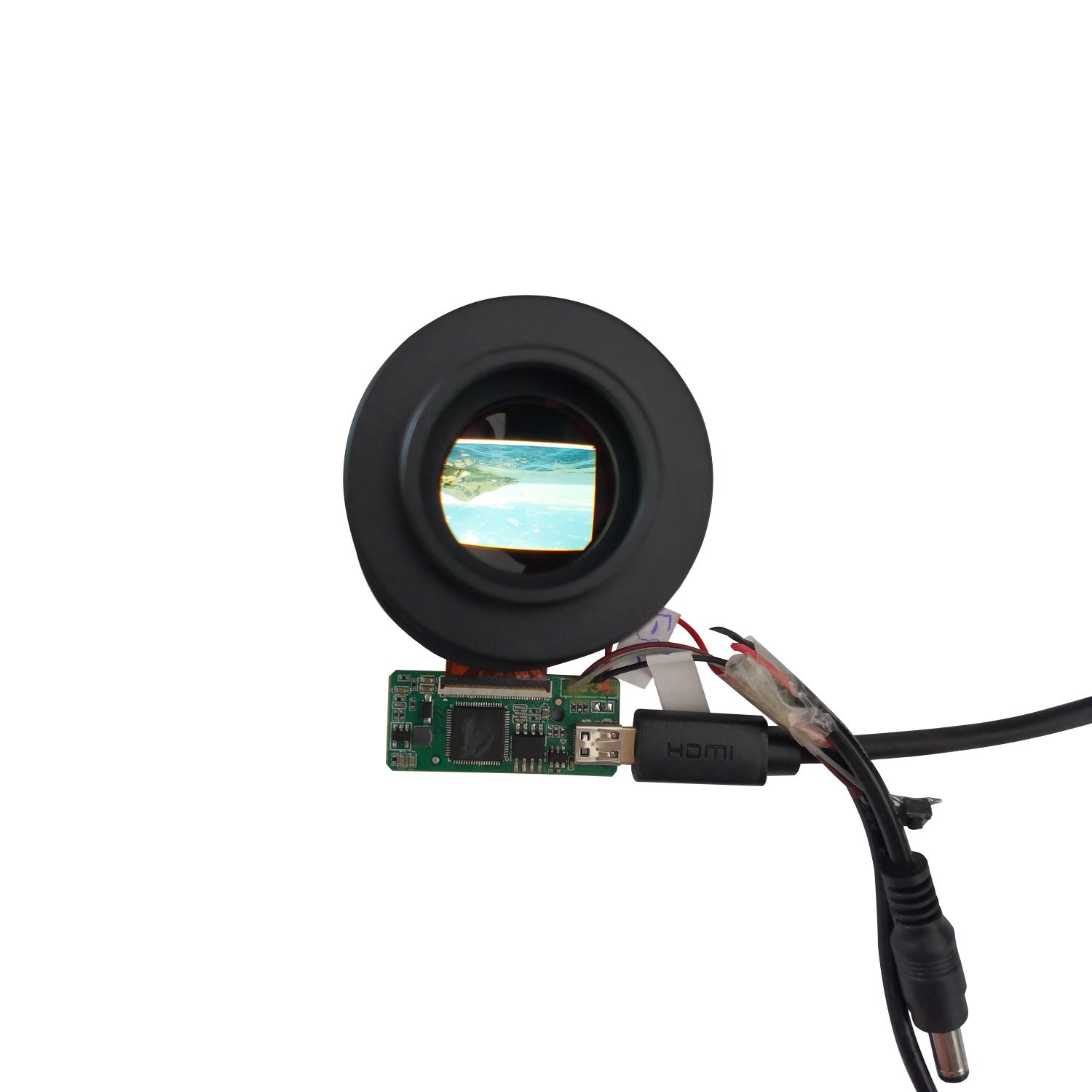

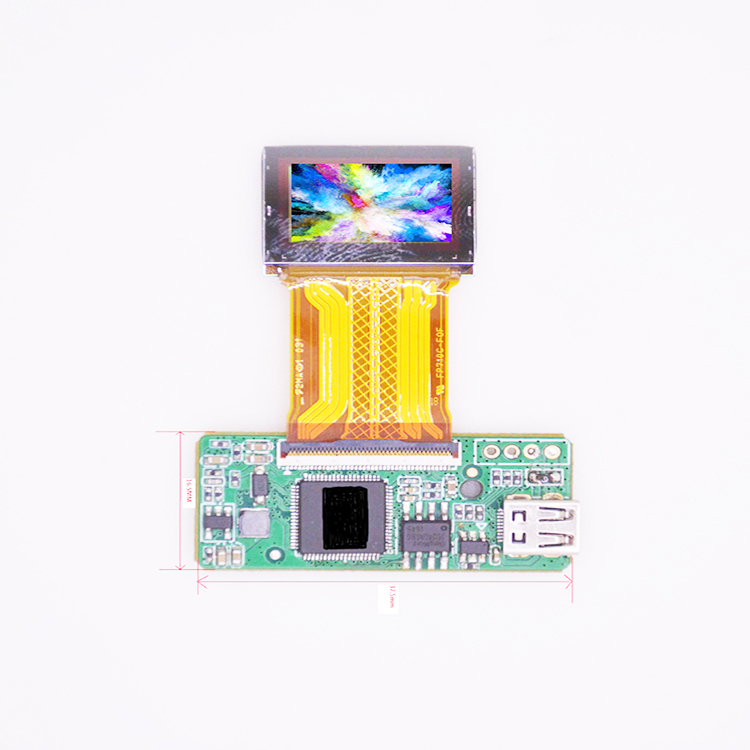

Driver Board: HDMI/CVBS Board
Resolution: 1920(RGB)X1080
Luminance:3000 cd/m2
Product description: 0.71 inch AMOLED Micro display, 1920(RGB)X1080,AR/VR
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

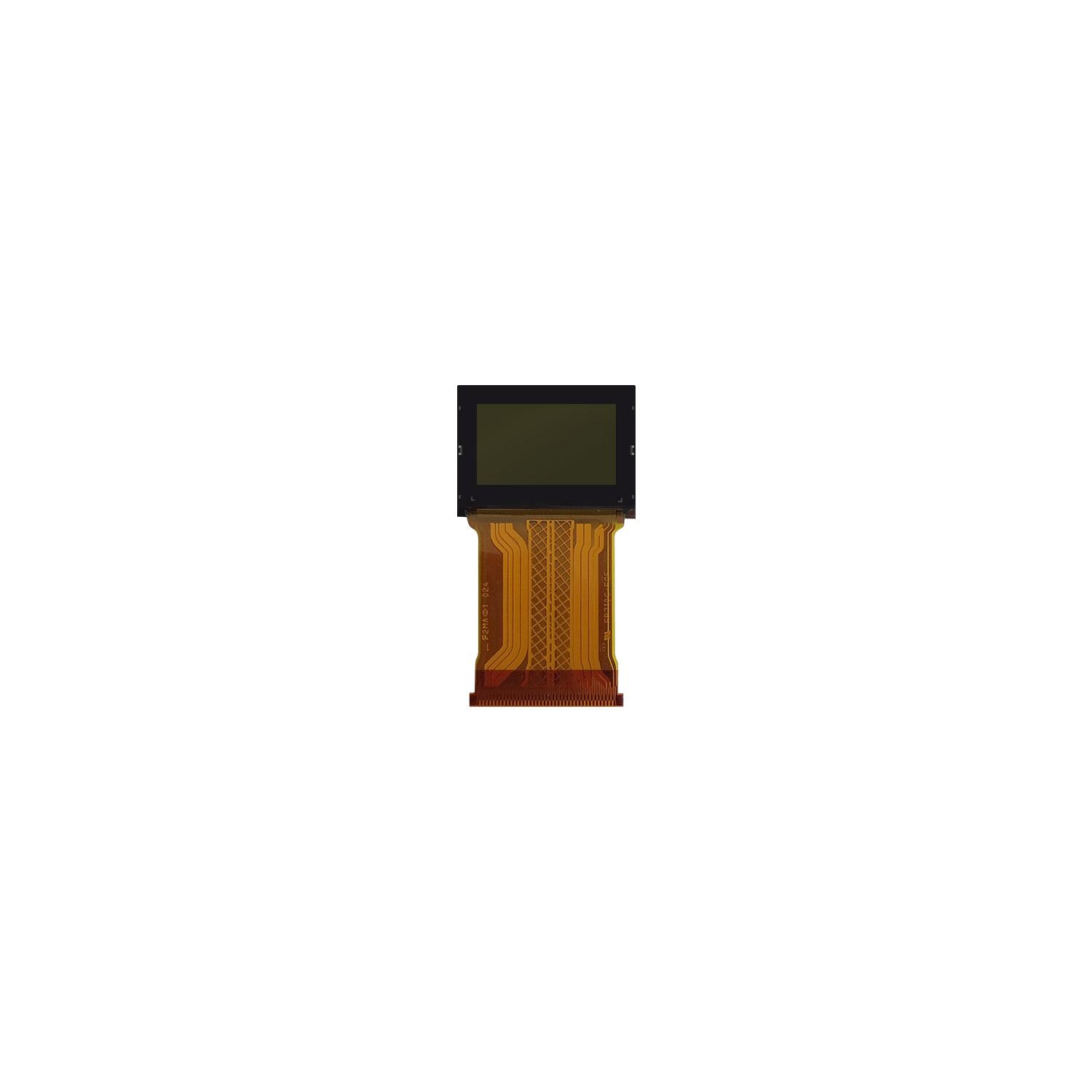

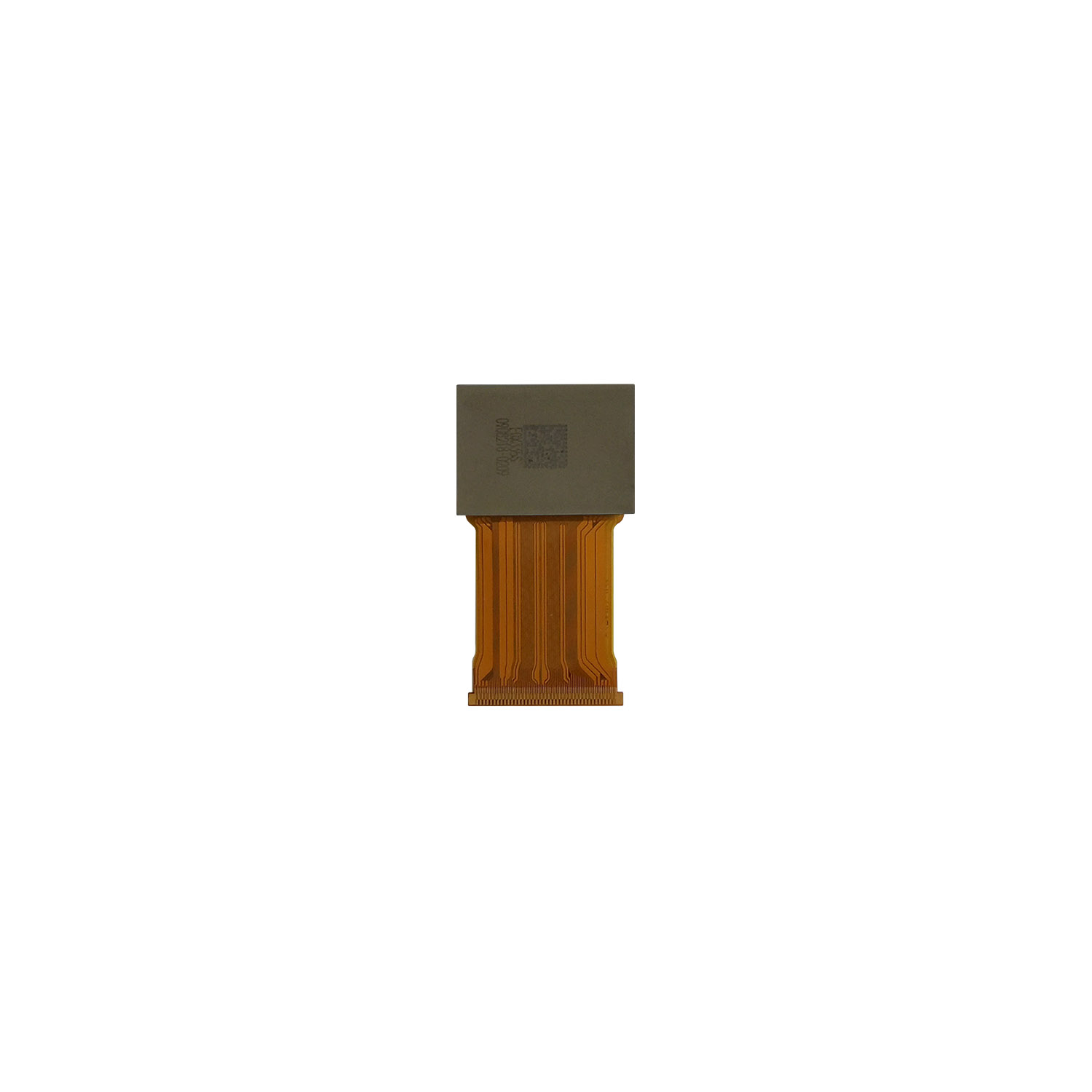

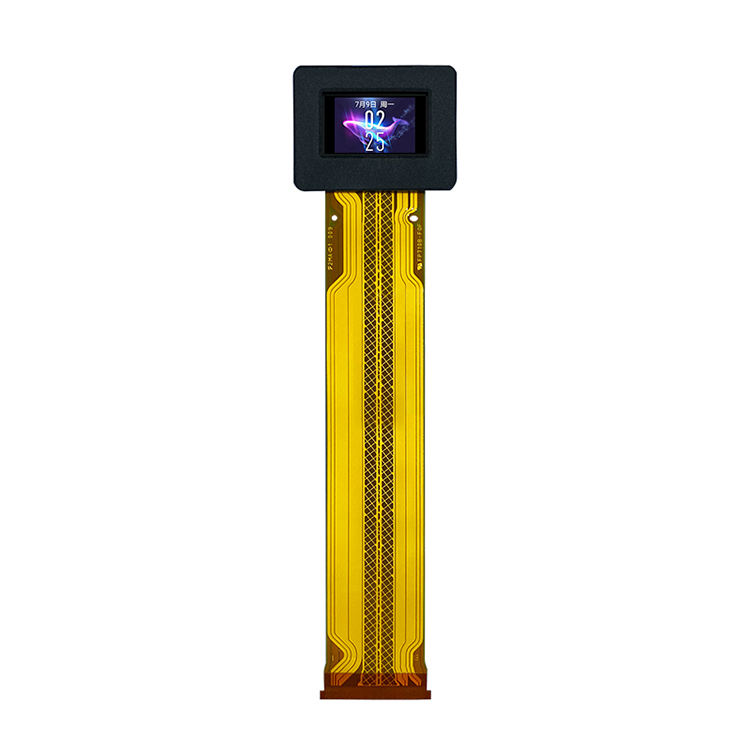

ECX335SN is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting
Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and
achieves smaller size, light in weight and high resolution. .
(Potential applications: Head mounted displays, View finders, Small monitors etc.)

GENERAL SPECIFICATION

Panel Size	0.71"	Panel Type	Si-Base AMOLED , OLED
Resolution	1920(RGB)×1080, FHD, 3078PPI	Pixel Format	RGB Delta
Display Area	15.8(W)×8.99(H) mm	Outline Dim.	24.24(W)×15.62(H) ×1.54(D) mm
Brightness	3000 cd/m² (Typ.)	Contrast Ratio	10000:1 (Min.) (TM)
Viewing Angle	/	Display Mode	/
Best View on	Symmetry	Response Time	/
Display Colors	16.7M 97% sRGB	Lamp Type	self
Frequency	60Hz	Touch Screen	Without
Panel Weight	/	Application	VR AR
Signal Interface	LVDS , 81 pins FPC
Input Voltage	1.8/10V (Typ.)(VDD1/VDD2)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

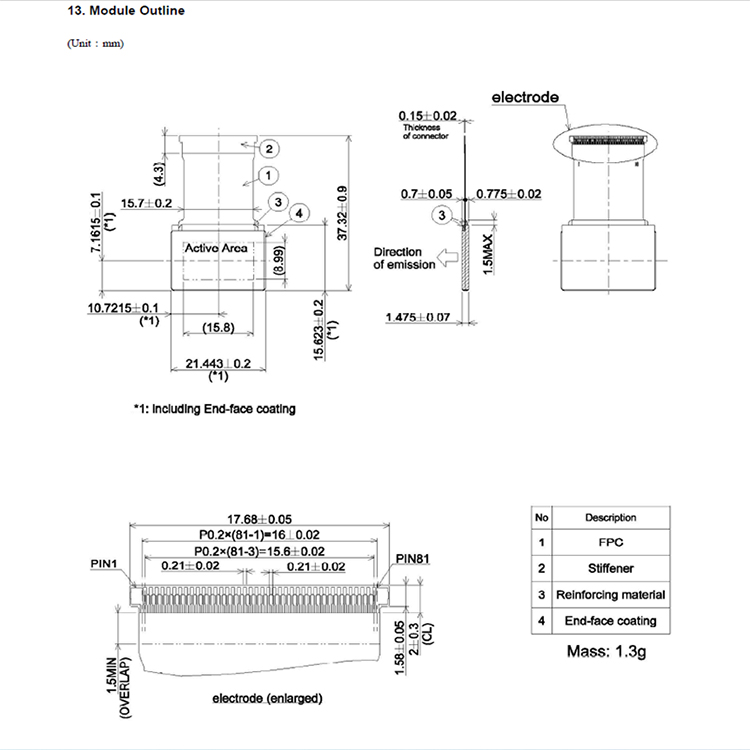

DRAWING

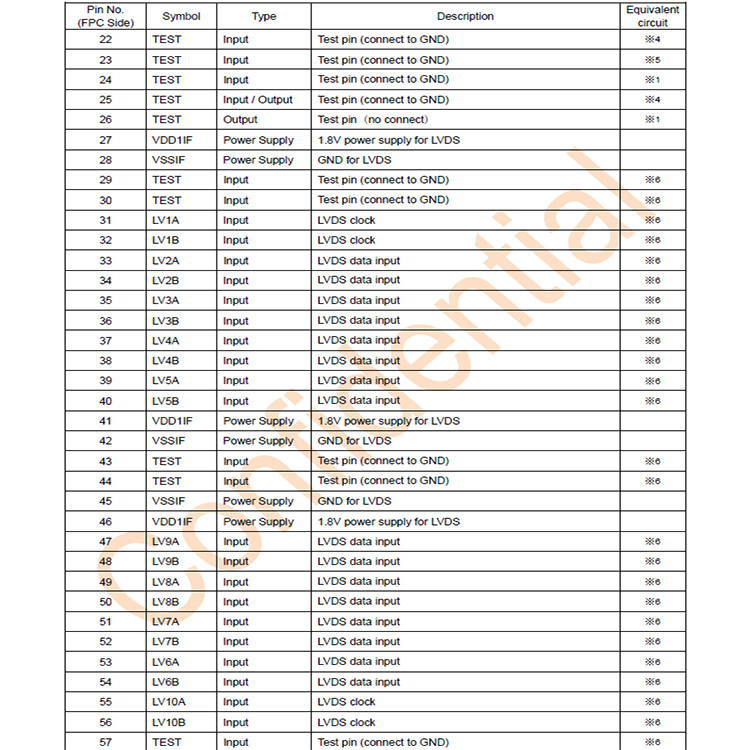

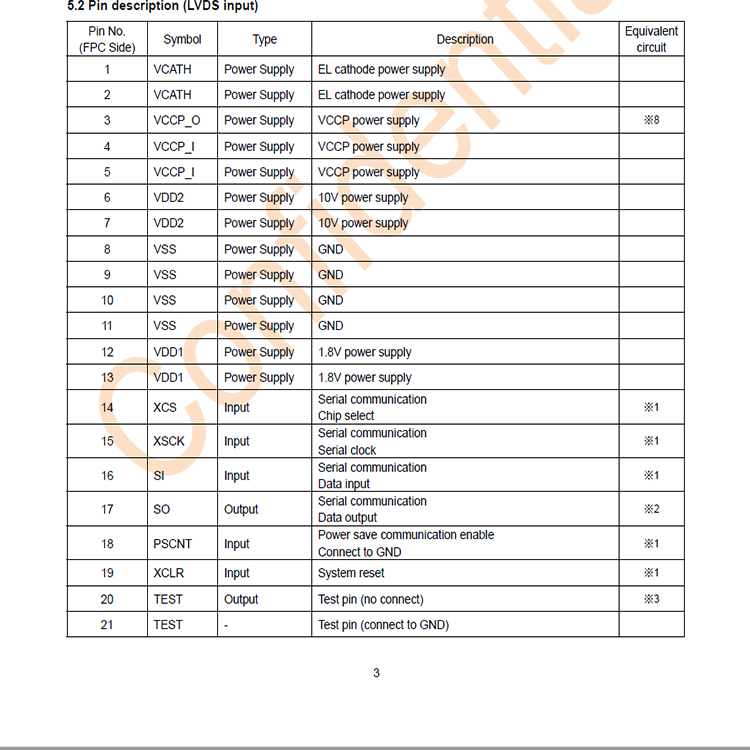

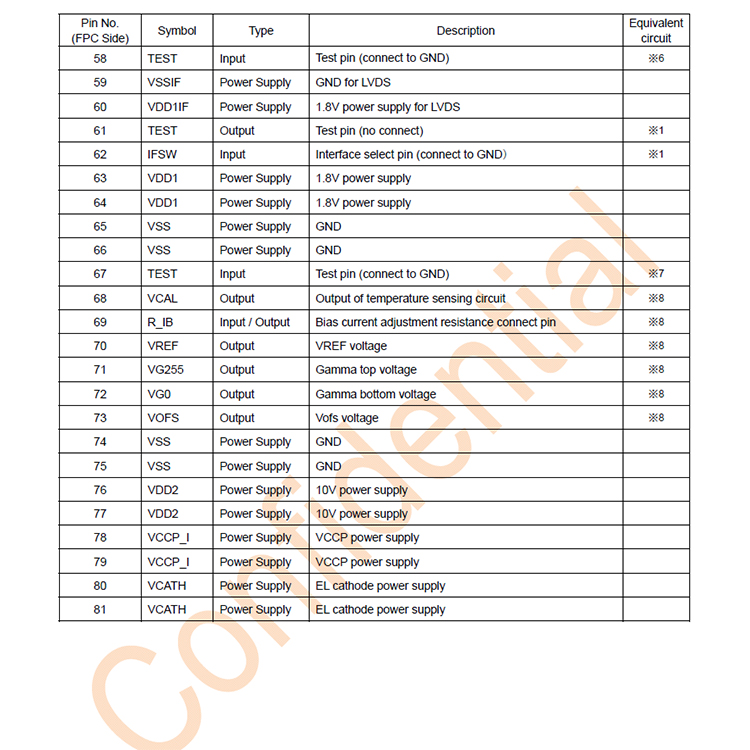

INTERFACE PIN FUNCTION
