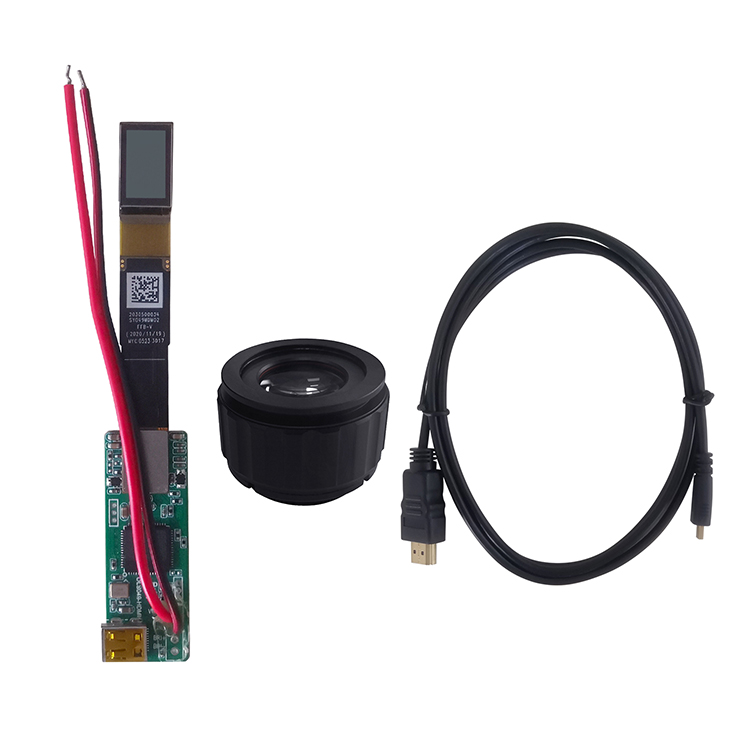

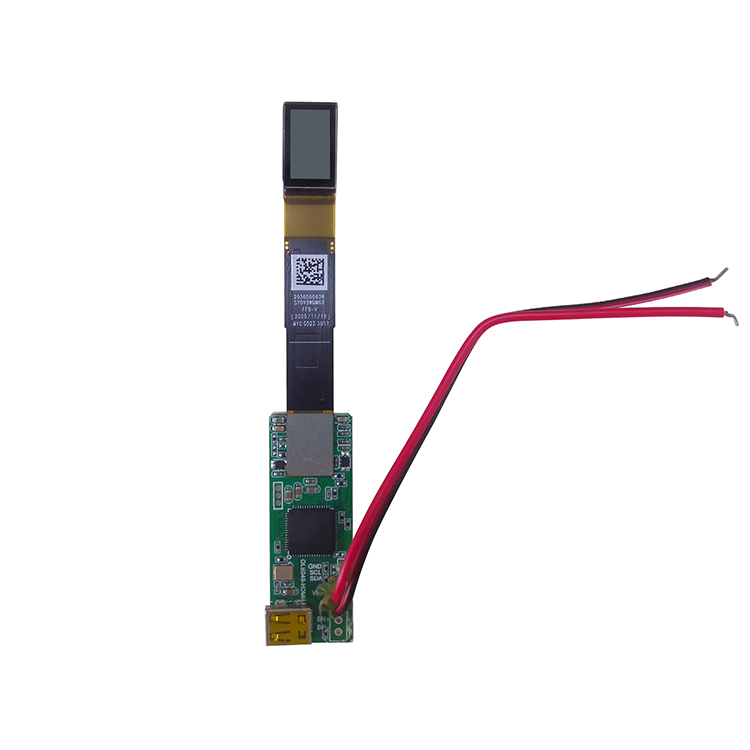

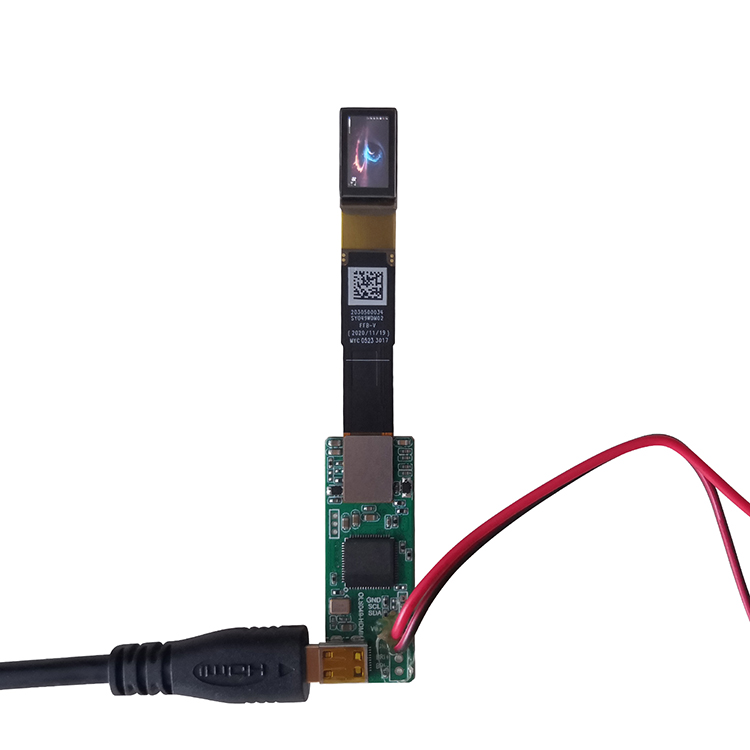

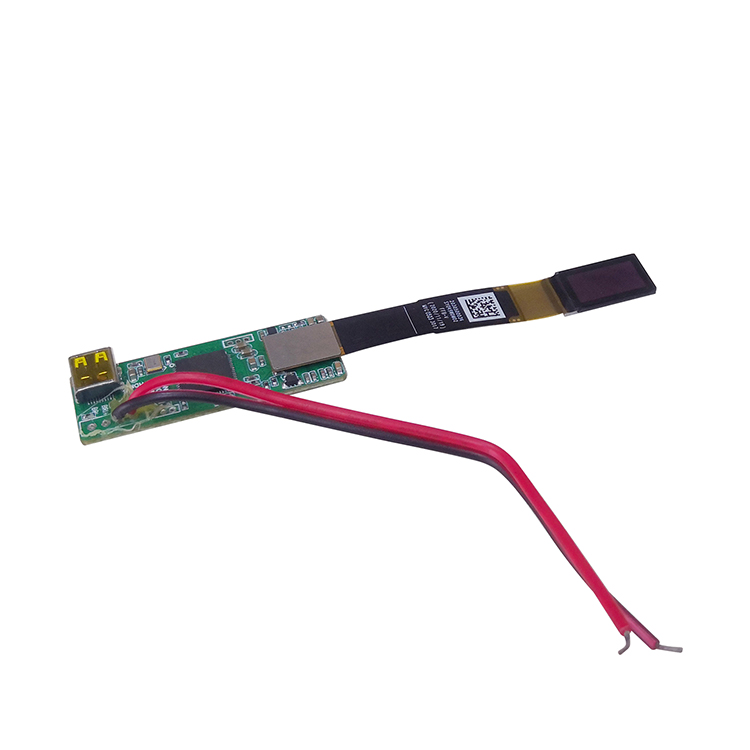

0.49 inch Micro OLED Display 1920X1080 MIPI 1800cd/m² for AR VR

  • Size: 0.49 inch
  • Driver Board: HDMI
  • Resolution:1920x1080
  • Luminance:1800nits

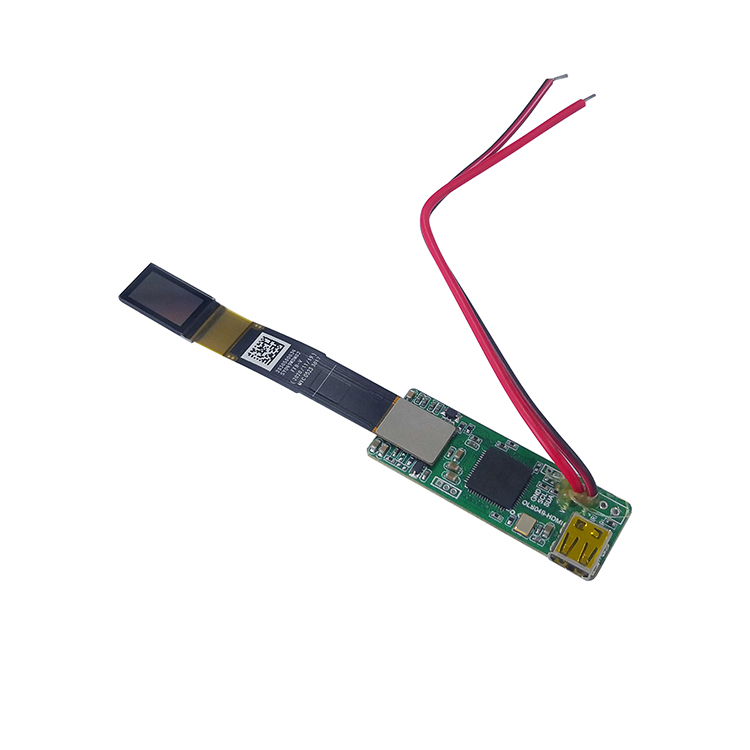

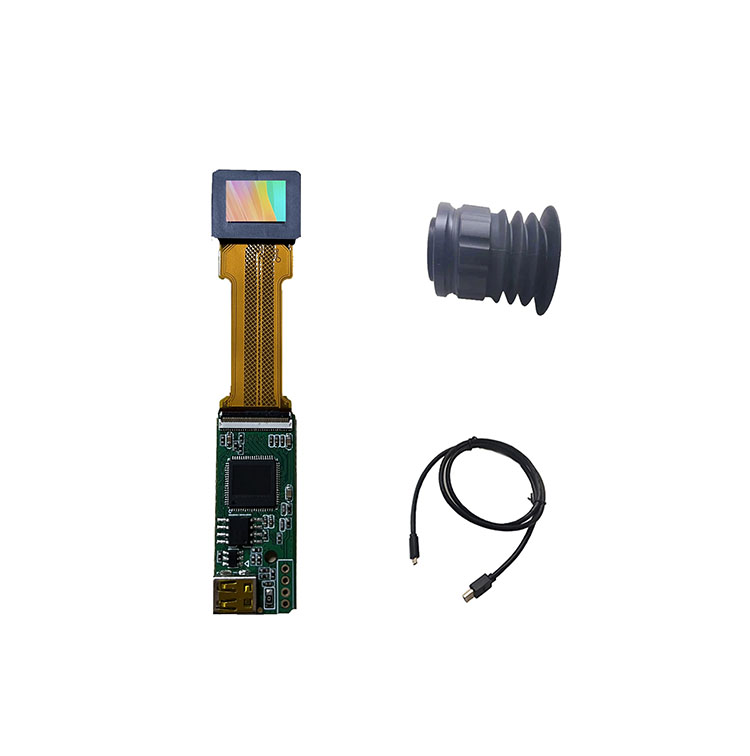

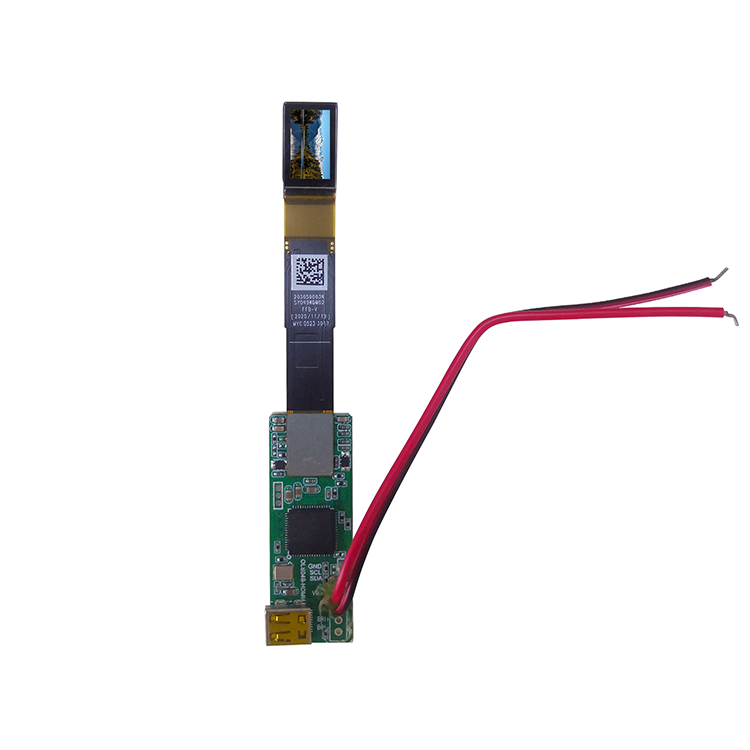

  • Product description: This 0.49 inch micro oled display, with FHD 1920x1080 high resolution and high brightness 1800nits, with HDMI driver board, used for AR VR devices.
  • INQUIRY


Micro OLED 0.49 inch FHD 1920x1080 High resolution 90HZ Micro display for VR headset



Please kindly contact us for full data sheet of the display.



DESCRIPTION


This Micro OLED display is a 0.49 inch diagonal, 1920(RGB)× 1080 high resolution and 1800nits high luminance , based on single-crystal silicon transistors technology, This 0.49 inch micro display integrates panel driver and logic driver, makes smaller size, lighter weight, lower power consumption and high Contrast Ratio. which is ideal to be used for many applications such as :

Applications: Augmented Reality, View finders, Head mounted displays, etc.




GENERAL SPECIFICATION


Product model:
HA049WDM02
Size: 0.49 inches
Appearance size (mm)
10.783mm x 6.065mm / 0.49'' diagonal
Interface
MIPI
Resolution: 1920 * 1080
Brightness:
1800cd/m² typical
Working temperature: -20 ~ 70 ° C
Storage temperature: -40 ~ 80 ° C

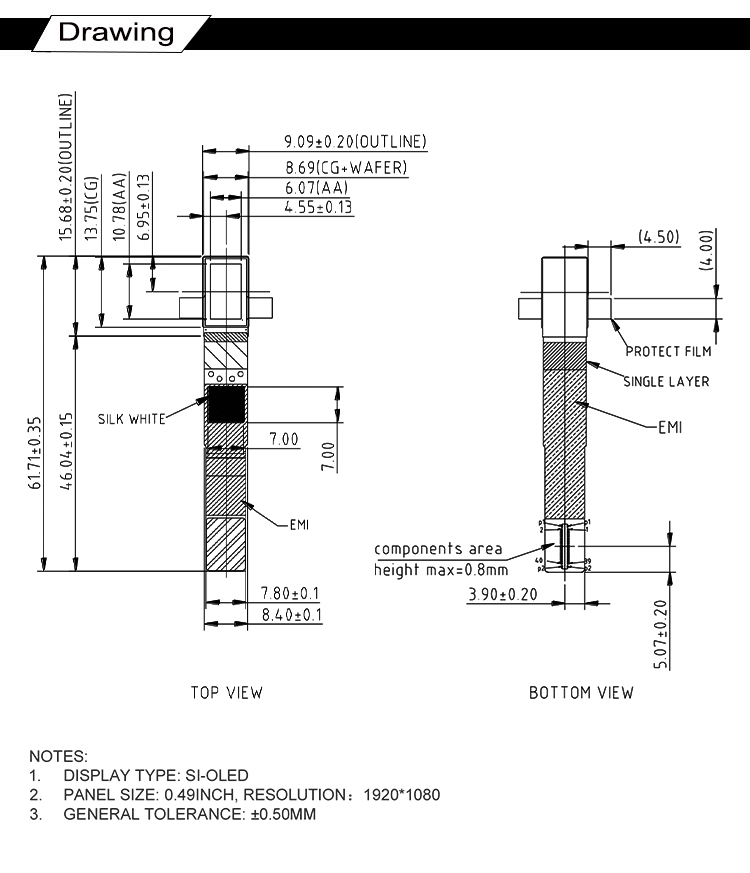

DRAWING

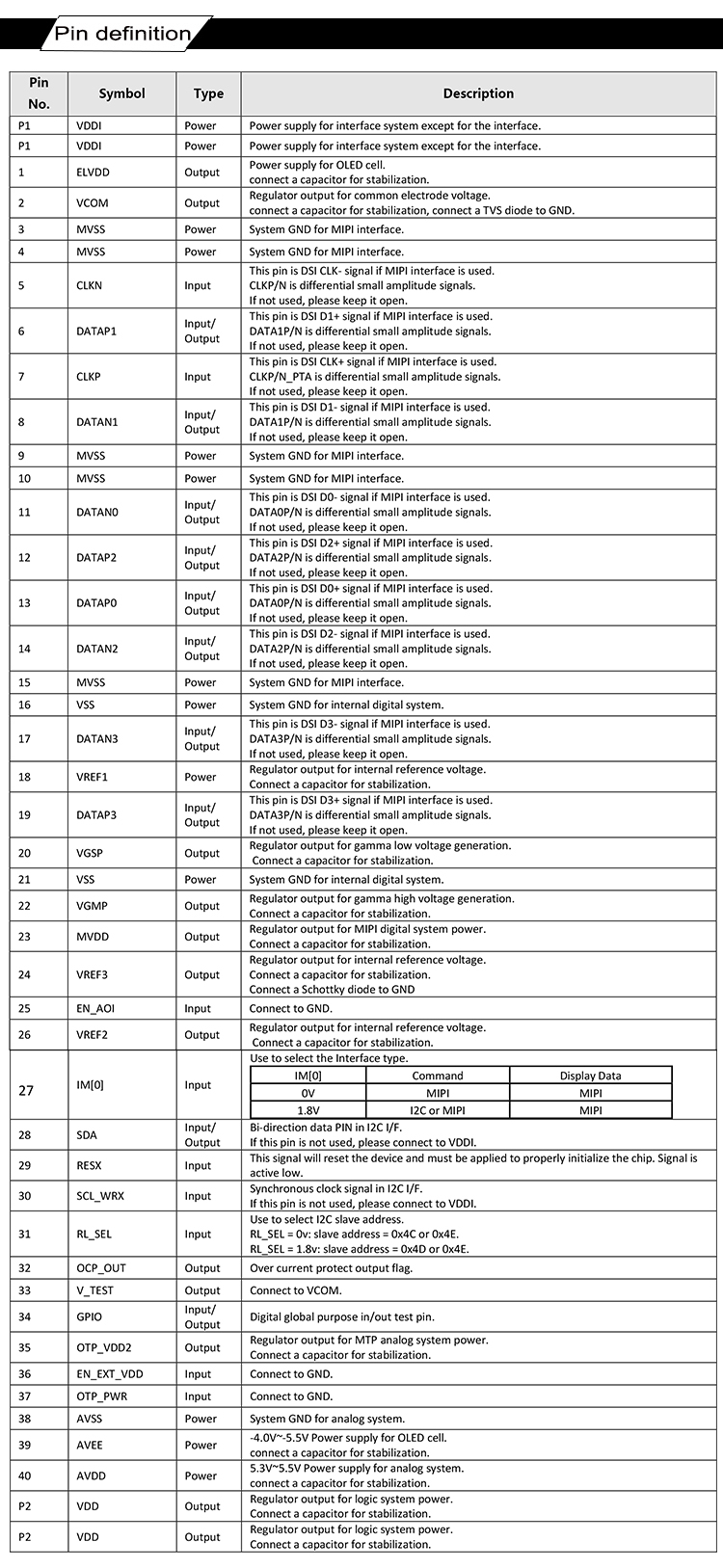

INTERFACE PIN FUNCTION



PREVIOUS：0.71" Birdbath optics Binocular AR Glasses 1920*1080 50° FOV Optical Module NEXT：0.6 inch Micro OLED display 800X600 SVGA for Military field
