Birdbath Optics Binocular AR Glasses 1920x1080 50° FOV Optical Lens Module

Birdbath Optics Binocular AR Glasses 1920x1080 50° FOV Optical Lens Module

Birdbath Optics Binocular AR Glasses 1920x1080 50° FOV Optical Lens Module

Birdbath Optics Binocular AR Glasses 1920x1080 50° FOV Optical Lens Module

Birdbath Optics Binocular AR Glasses 1920x1080 50° FOV Optical Lens Module

Birdbath Optics Binocular AR Glasses 1920x1080 50° FOV Optical Lens Module

Birdbath Optics Binocular AR Glasses 1920x1080 50° FOV Optical Lens Module

Display Size:0.71
Resolution:1920 (RGB)×1080
Interface: LVDS
Pin:81Pins
Product description: Binocular AR Glasses with Birdbath Optics for Micro oled display
INQUIRY

Binocular AR VR Glasses Birdbath (BB Optics) optical Lens module for 0.71 inch Micro oled display 1920x1080

DESCRIPTION

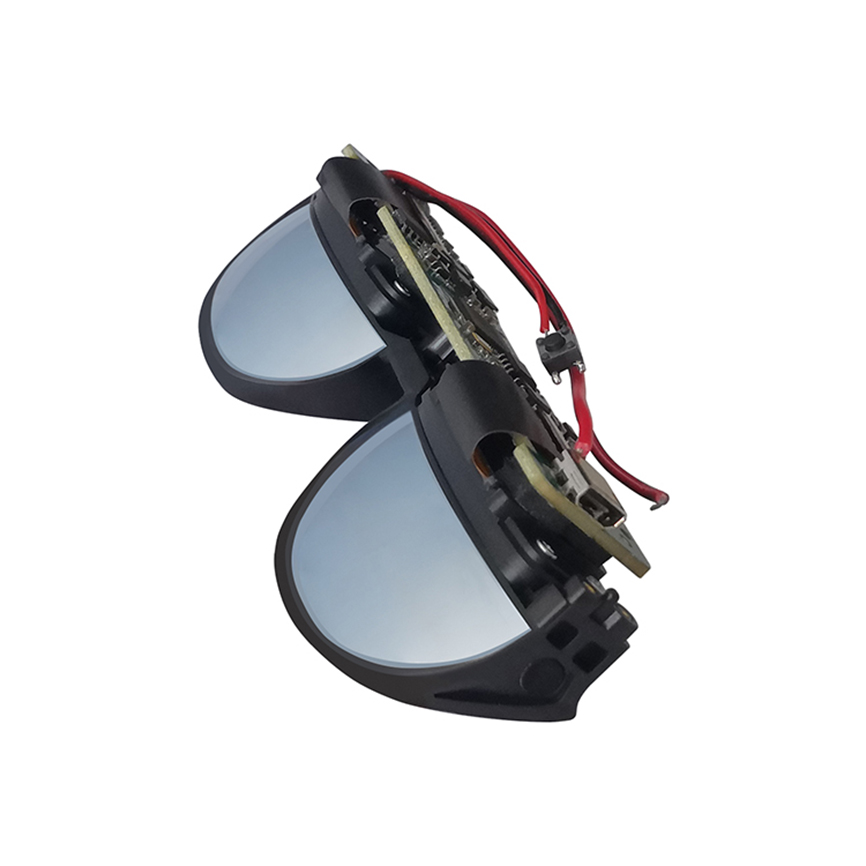

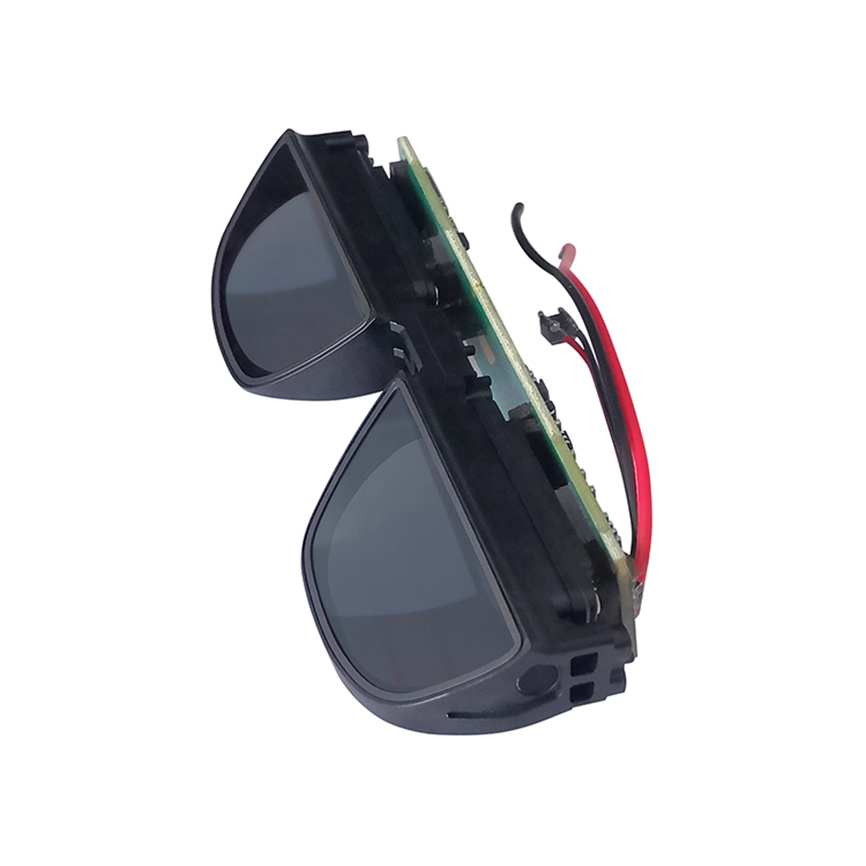

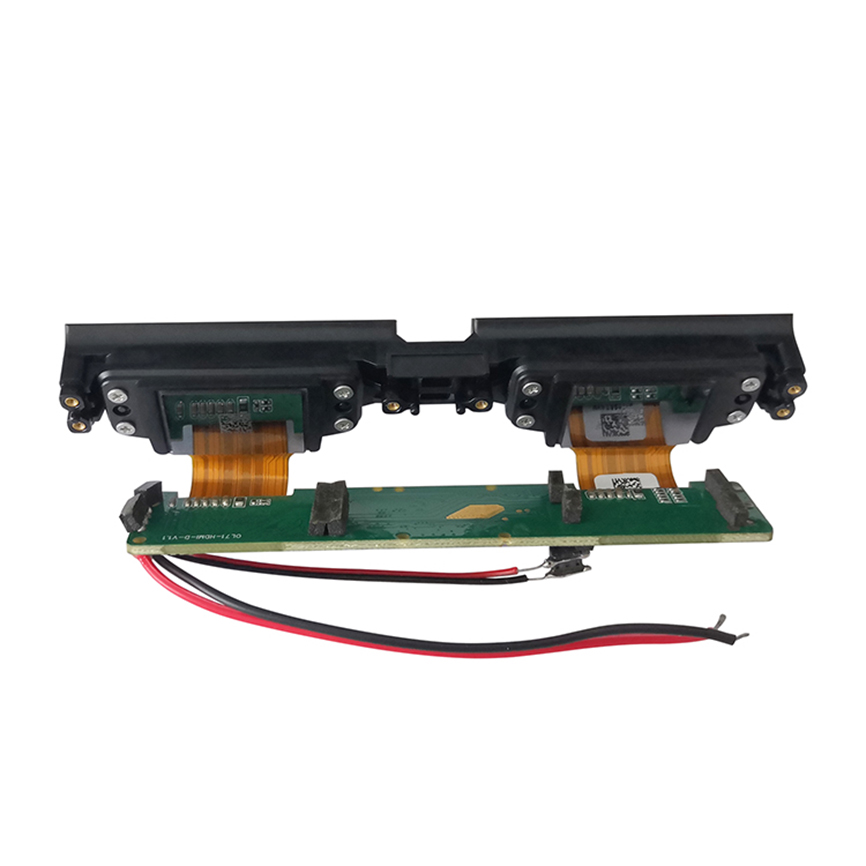

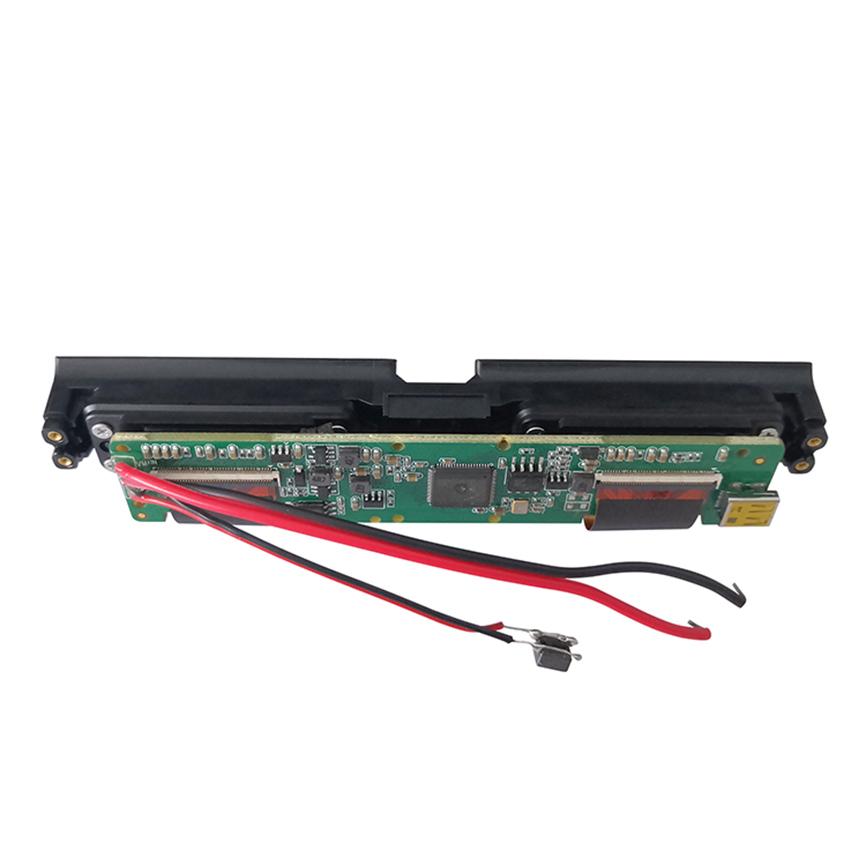

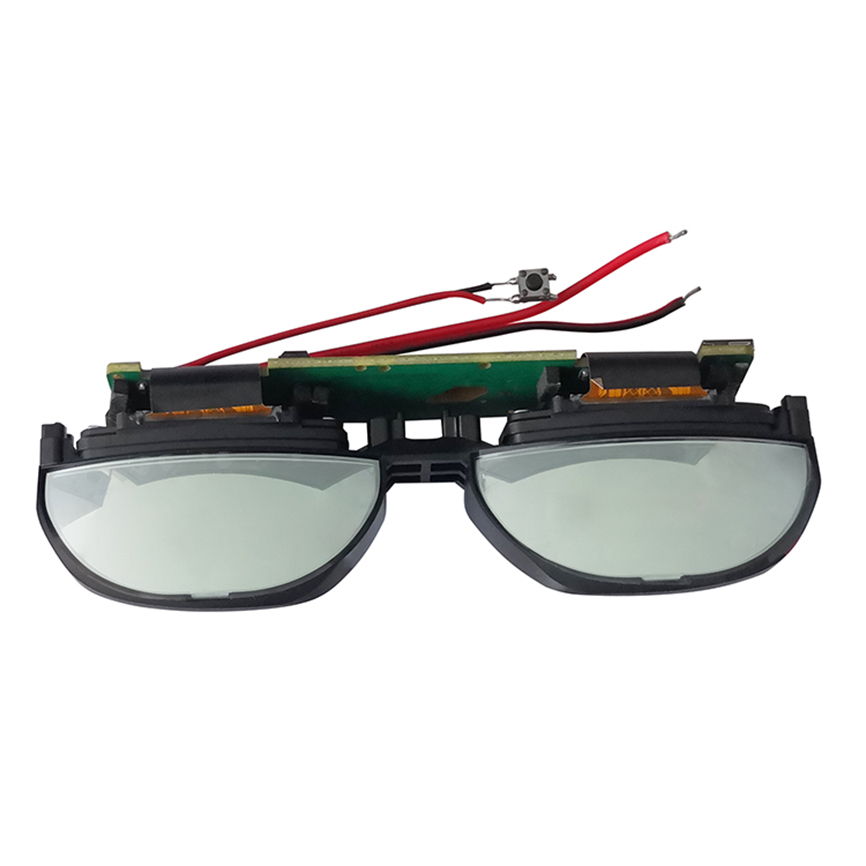

this Optics Module is a binocular optical Glasses with Birdbath optics, which is mainly composed of 0.71" Micro OLED Display (Sony Micro OLED, 335SN), optical lens, Dual HDMI Driver Board and connector.

SPECIFICATION:

FOV:50°

Display panel:0.71 inch Micro-OLED

Technology:Birdbath

Resolution:1920x1080

Interface:LVDS

Luminance: Max 3000 cd/m2

Uniformity:100000:1

Power consumption:820mW@1500nits/1280mW@3000nits

Frame rate:60Hz

Micro Display | Sony Micro OLED, 335SN

Eye box @ Eye relief:8*8mm@14mm

TV distortion:≤0.7%

MTF:MTF≥0.23@2PPL

Monocular Weight:23.2g

Light efficiency:~20% (Adjustable value)

Transmissivity:~20% (Adjustable value)

IPD: (63mm) (Recommended value)
