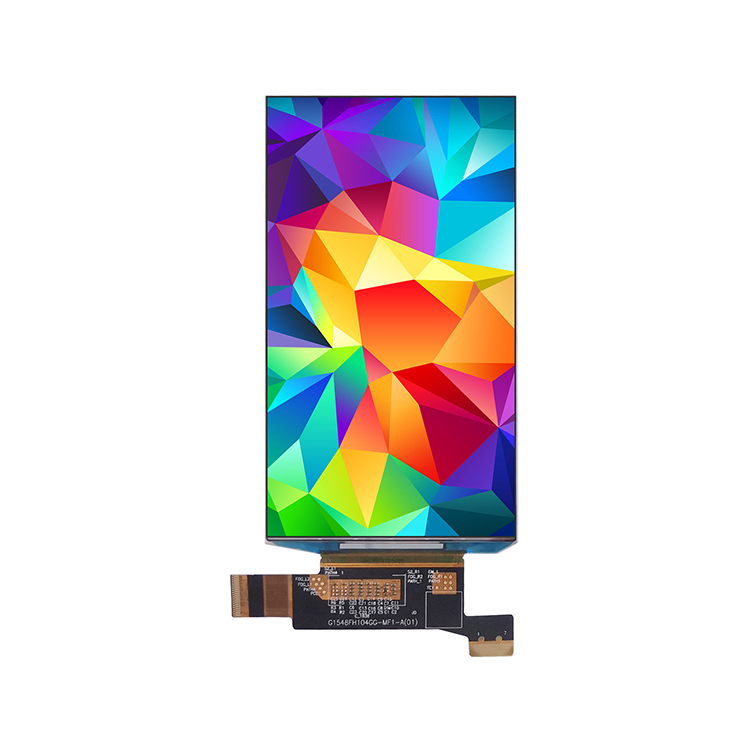

1080P 5.48 inch amoled Display 1920x1080
DESCRIPTION
This AMOLED Display is a 5.48 inch 5.5 inch OLED display with high resolution of 1920x1080 pixels, this AM-OLED display with RM69071 driver ic communicates via MIPI parallel interface,MIPI interface is an exceptional display solution for applications that require sharp and vivid visuals,due to its advanced AMOLED technology, this high brightness AMOLED display offers excellent contrast and color accuracy, making it perfect for applications like virtual and augmented reality devices. Its compact size and high resolution make it an excellent choice for products with limited space, and the MIPI interface ensures seamless and reliable connectivity with your system.
GENERAL SPECIFICATION
| Display Type: | amoled display |
| Display Mode: | Initiative Matrix |
| Model Number: |
HG548FH107GG |
| Diagonal Screen size: | 5.48 inch |
| Interface: |
MIPI 4LANE |
| Storage Temperature |
-40℃~+80℃ |
| Number of Pixels: |
1080xRGBx1920 |
| Panel Size: |
70.356(W)x127.344(H)x0.643(D) |
| Driver IC: |
CH13721B |
| Active Area: |
68.256(W)x121.344(H) |
| Pixel Pitch: |
0.17 x 0.17(mm) |
| Operating Voltage |
2.8V~3.2V |
|
Weight: |
1.54 (g) |
|
Operating Temperature: |
-20℃~+70℃ |

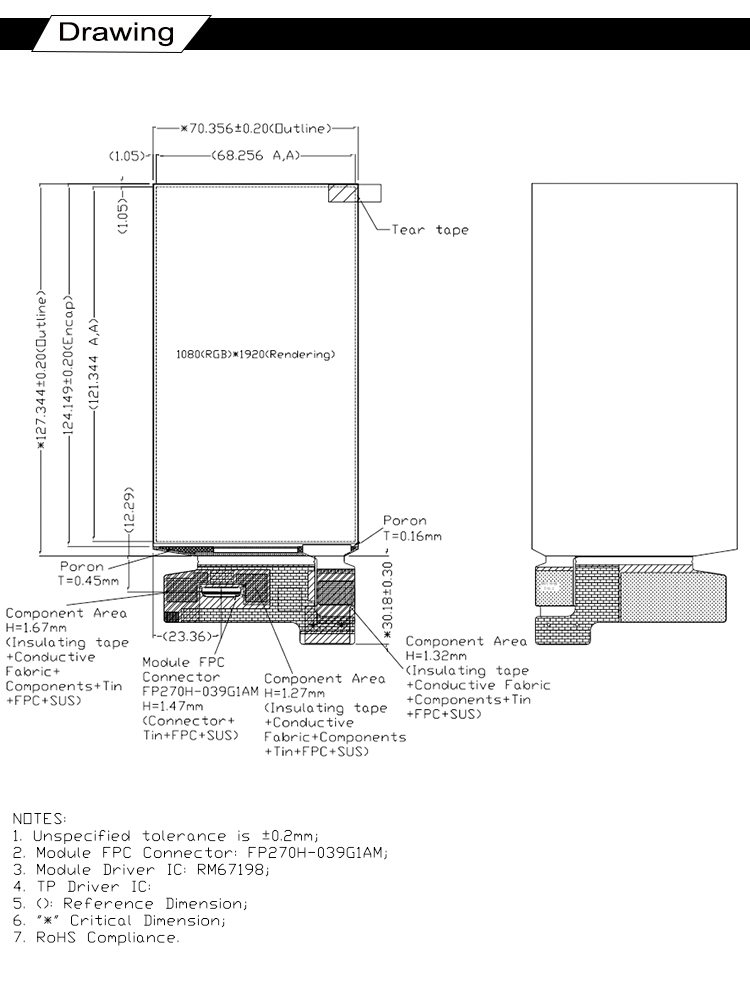

DRAWING

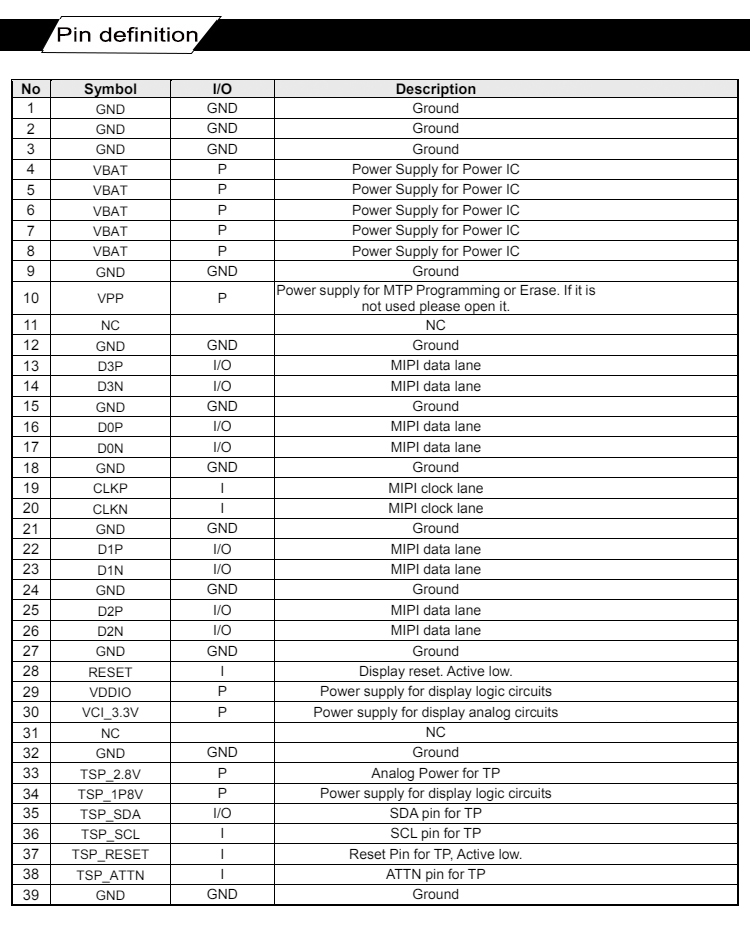

Pin Definition
