DESCRIPTION

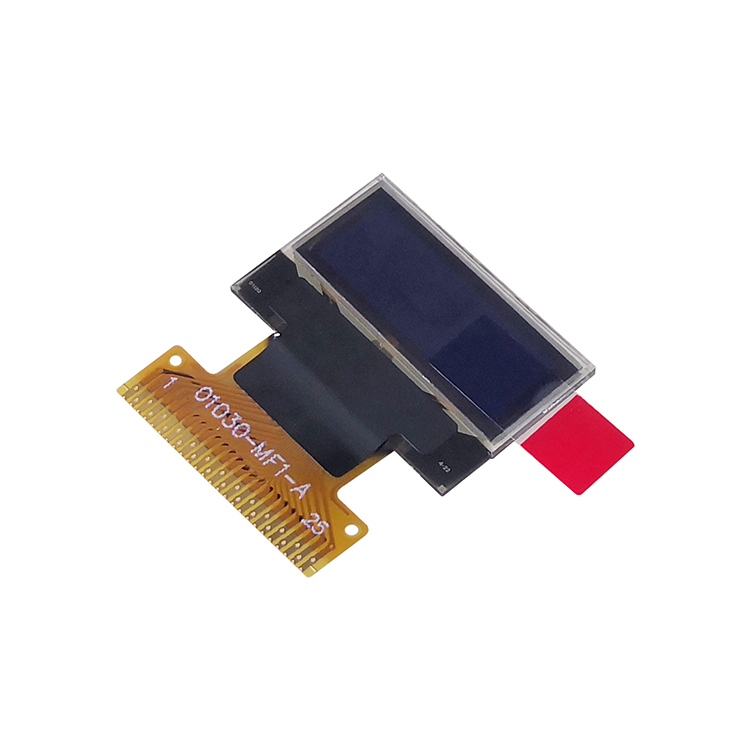

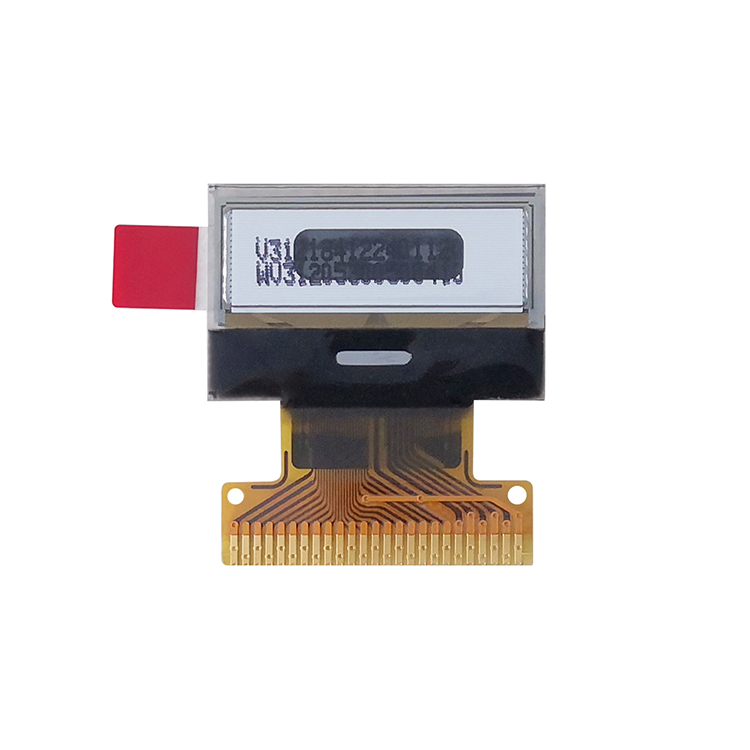

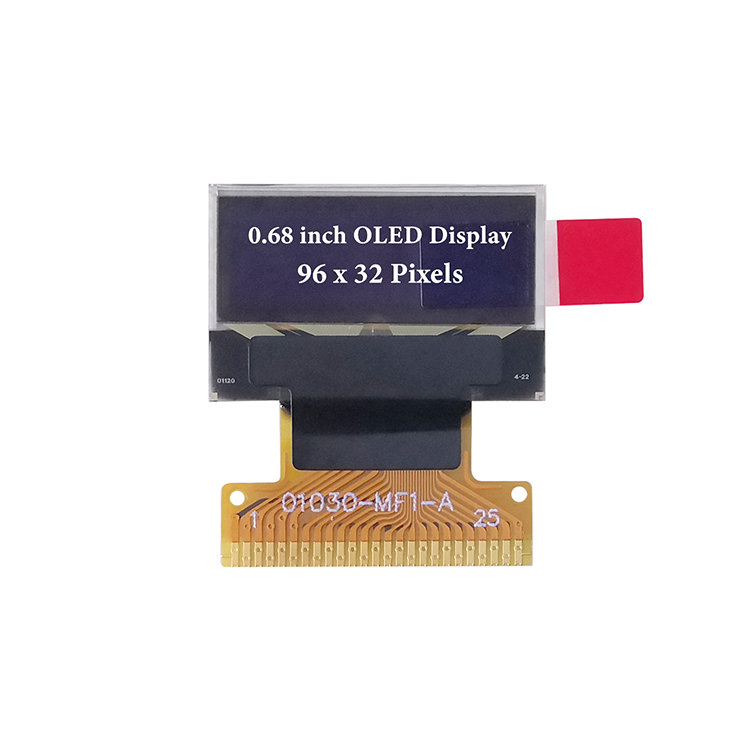

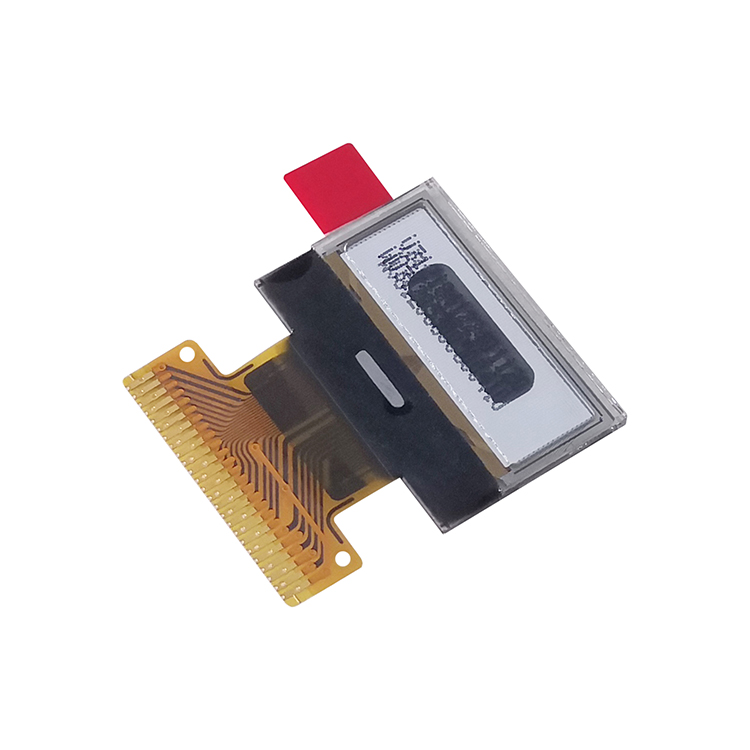

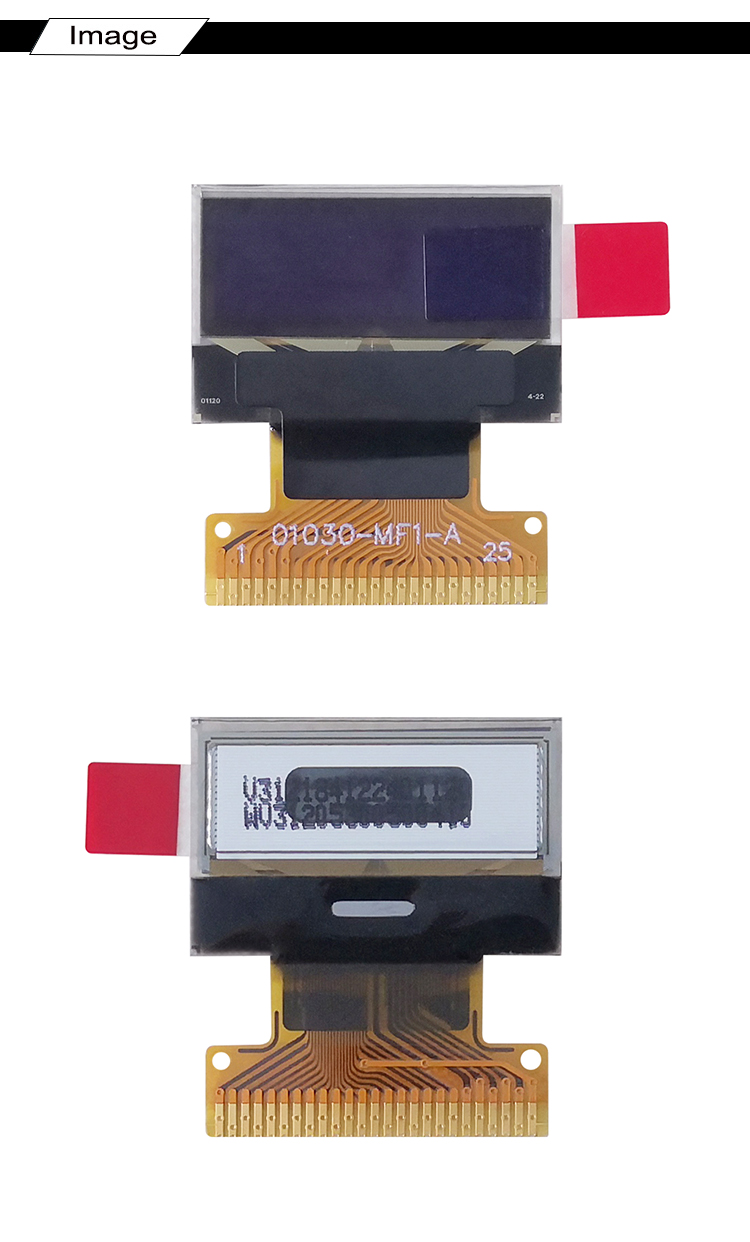

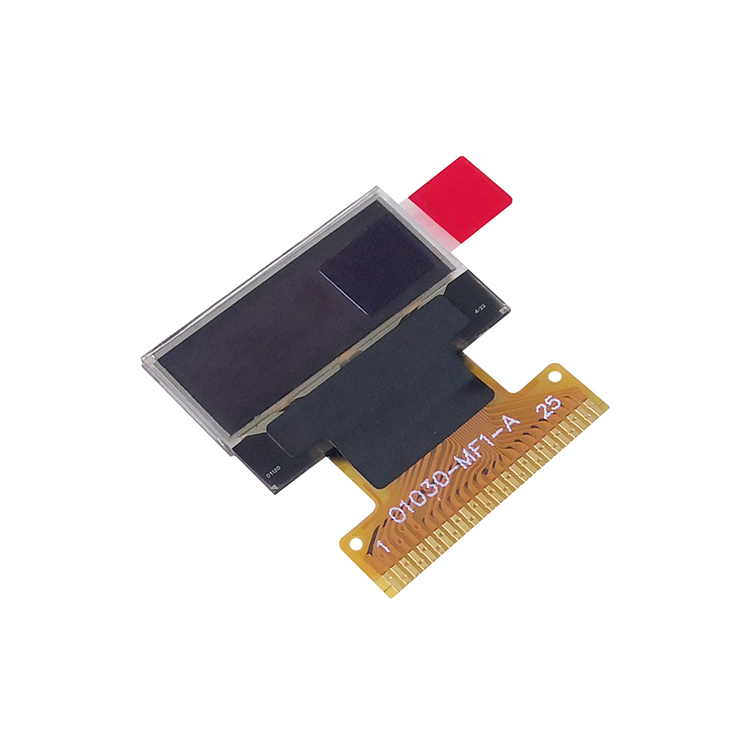

HICENDA OLED VGM096032A2W01 is a monochrome OLED display module with 96×32 dot matrix. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle,wide temperature range, and low power consumption.
GENERAL SPECIFICATION
| Display Type: | oled display |
| Display Mode: | Passive Matrix |
| Model Number: |
VGM096032A2W01 |
| Diagonal Screen size: | 0.68 inch |
| Interface: |
8-bit 6800/8-bit 8080/I2C/4-wire SPI |
| Drive Duty: |
1/32 Duty |
| Number of Pixels: |
96X32 |
| Panel Size: |
19.8(W)×12.8(H)×1.05(T)(mm) |
| Driver IC: |
SH1106G |
| Active Area: |
16.30 × 5.42 (mm) |
| Pixel Pitch: |
0.17 x 0.17(mm) |
| Pixel Size: |
0.15(W)×0.15 (H) (mm) |
|
Weight: |
1.54 (g) |
|
Operating Temperature: |
-40℃ to 70℃ |

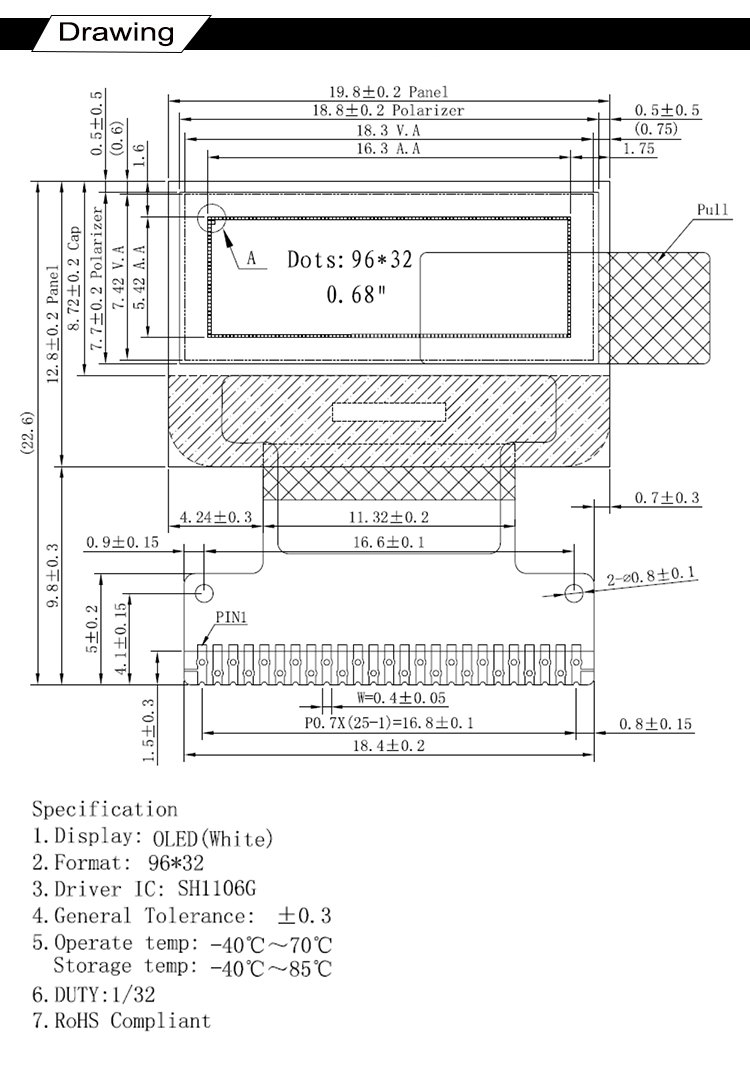

DRAWING

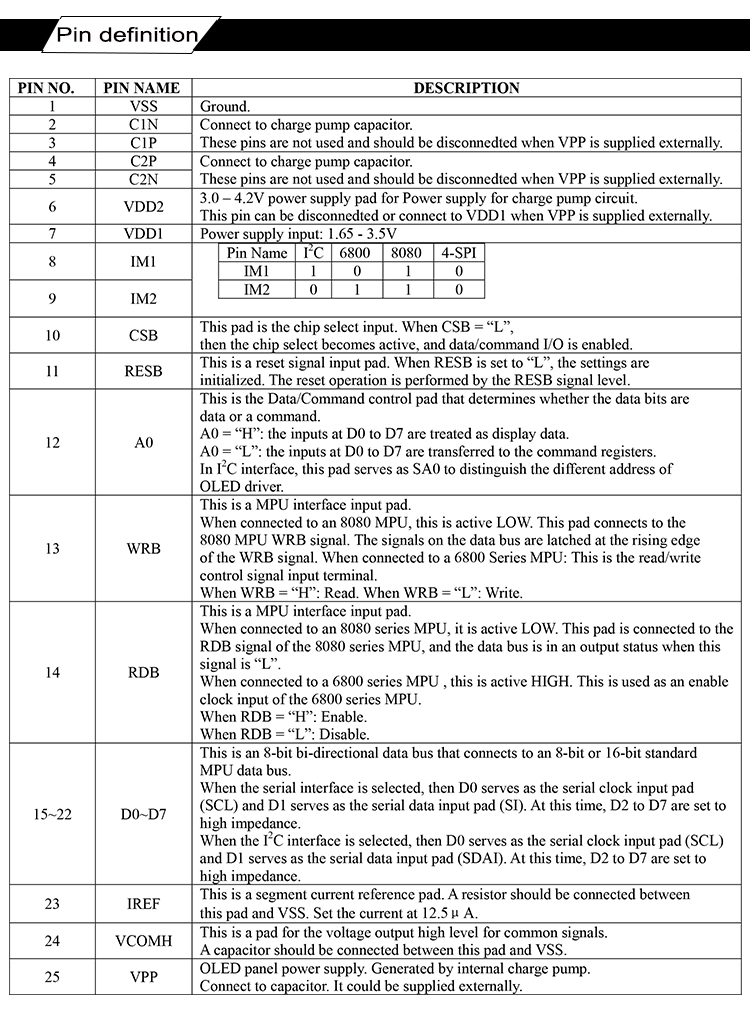

INTERFACE PIN FUNCTION
