0.38"

0.38 inch micro flcos display Birdbath binocular optical module for ar glasses

0.38 inch micro flcos display Birdbath binocular optical module for ar glasses

0.38 inch micro flcos display Birdbath binocular optical module for ar glasses

0.38 inch micro flcos display Birdbath binocular optical module for ar glasses

0.38 inch micro flcos display Birdbath binocular optical module for ar glasses

0.38 inch micro flcos display Birdbath binocular optical module for ar glasses

0.38 inch micro flcos display Birdbath binocular optical module for ar glasses

Display Size:0.38
Resolution:1280 (RGB)×720
Interface:YCbCr(4:2:2)-parallel (16 data, Hd, Vd,Clock)
Luminance:200 cd/m2 Min
Product description: 0.38 inch micro flcos display Birdbath binocular optical module for ar glasses
INQUIRY

0.38 inch micro flcos display Birdbath binocular optical module for ar glasses

DESCRIPTION

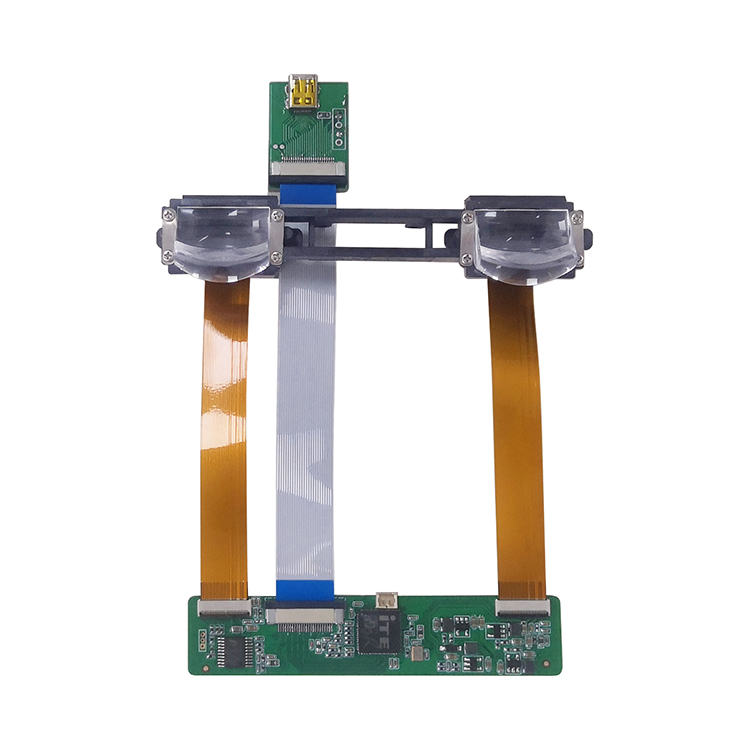

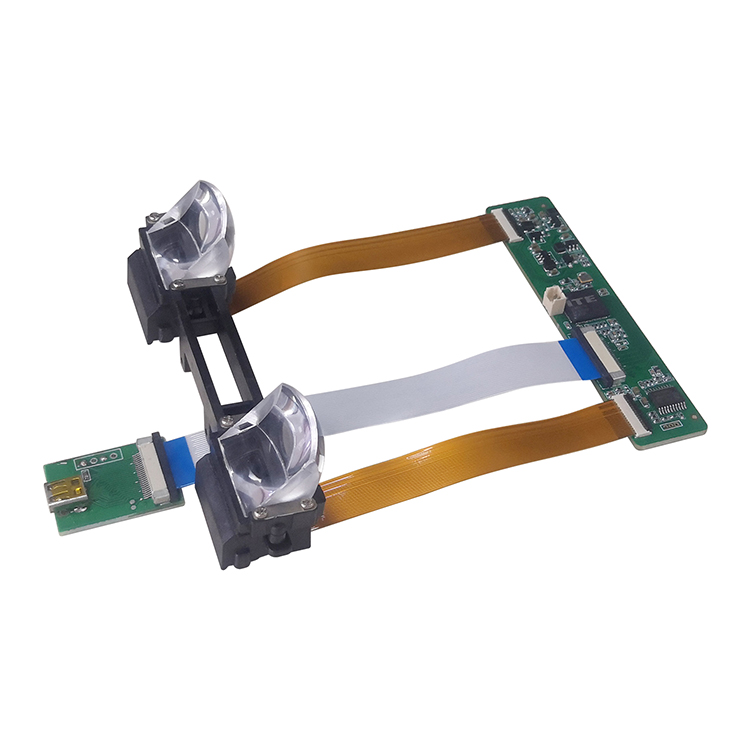

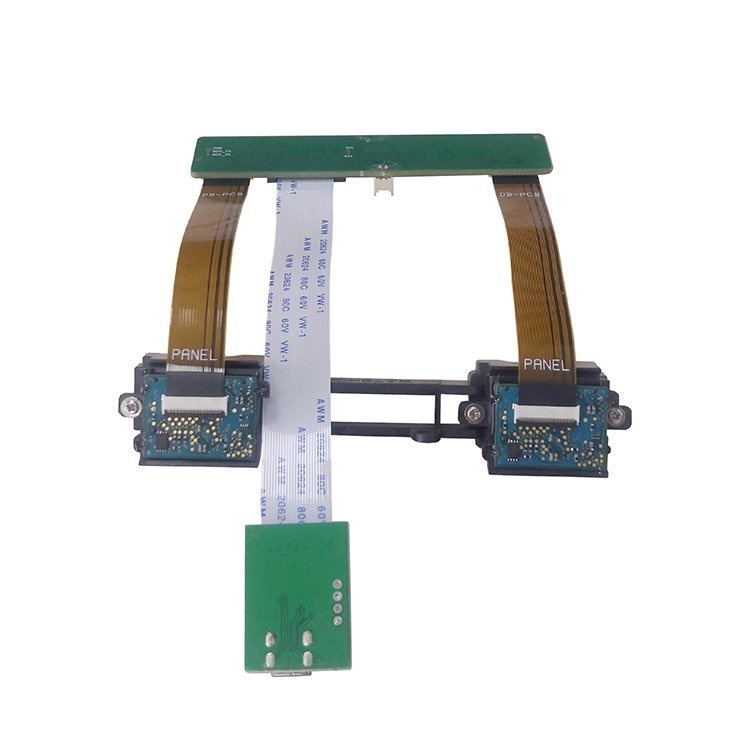

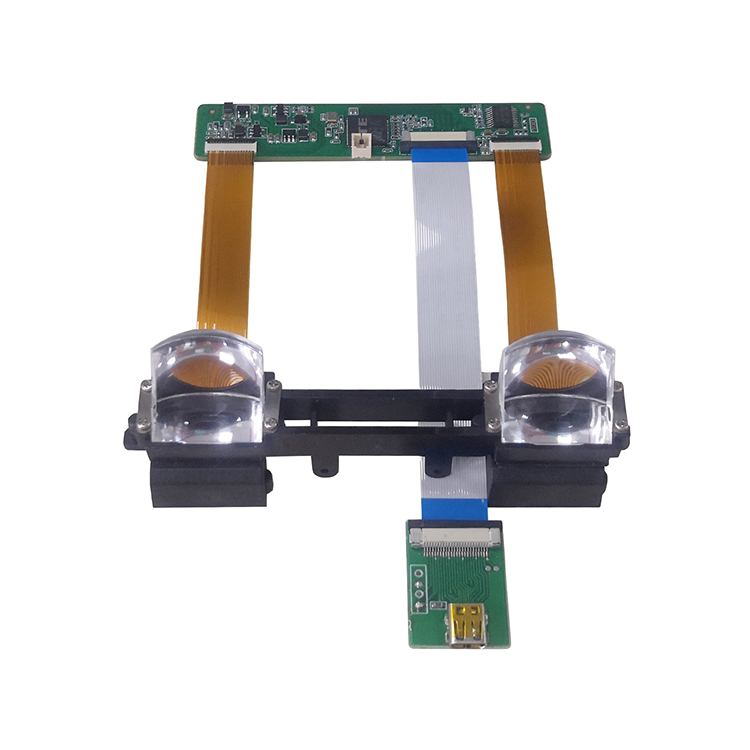

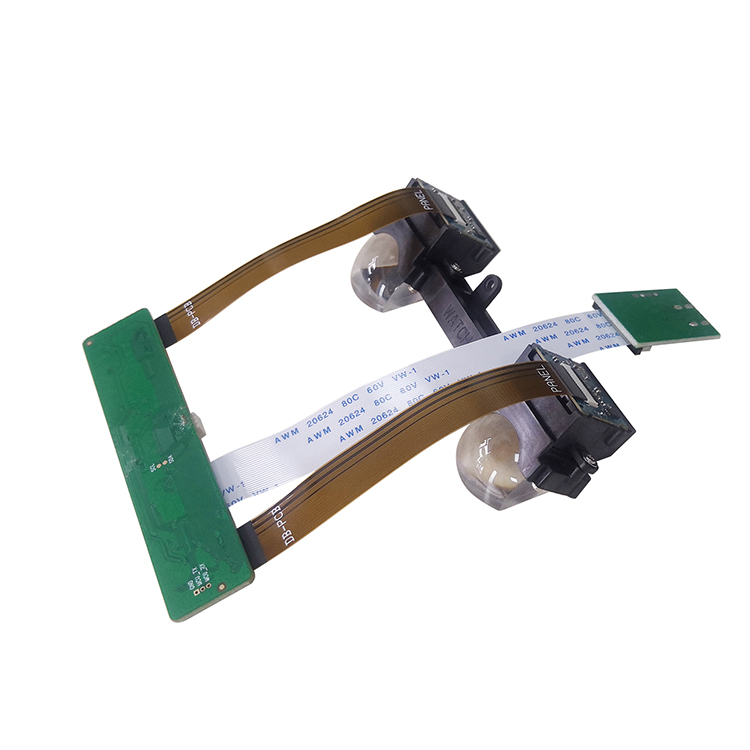

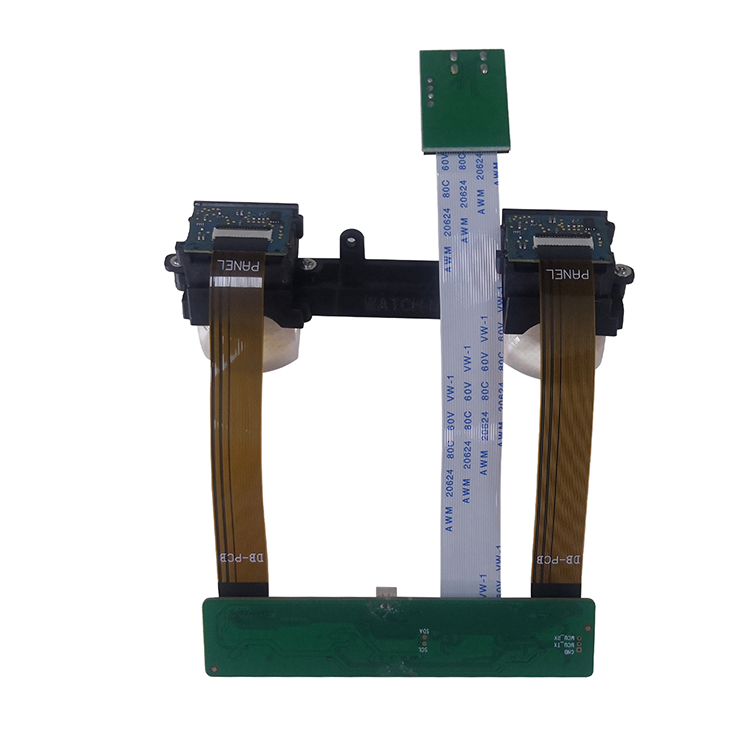

The Optics Module is a binocular optical Glasses with Birdbath optics, which is mainly composed of 0.38" Micro FLCOS Display Module, optical lens, Dual HDMI Driver Board and connector.

SPECIFICATION

Display Type:	flcos display
Display Mode:	Field sequential color
Model Number:	flcos038
Diagonal Screen size:	0.38 Inch
Interface	YCbCr(4:2:2)-parallel (16 data, Hd, Vd,Clock)
Number of Pixels:	1280(RGB)X720
Panel Size:	9.693mm (0.38'')(mm)
Active Area:	8.448 x 4.752mm (mm)
Weight:	TBD
Operating Temperature:	-10~70°
