2.08"

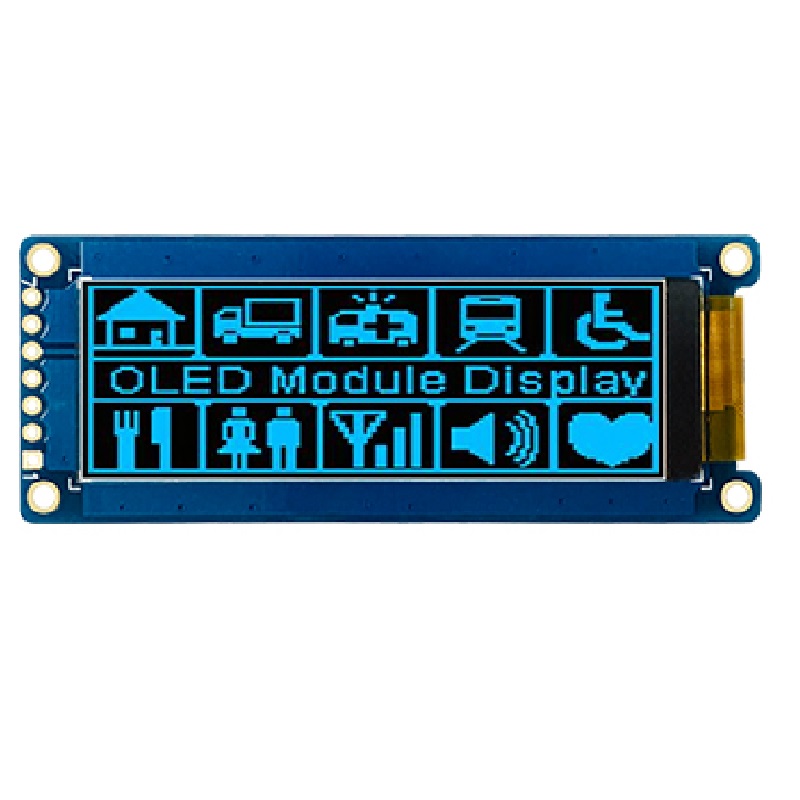

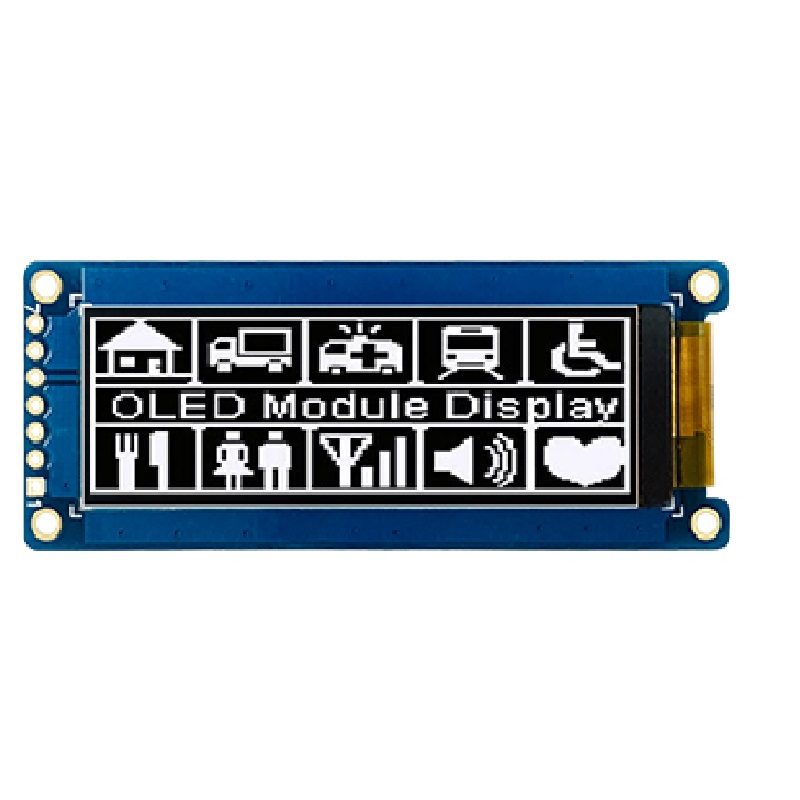

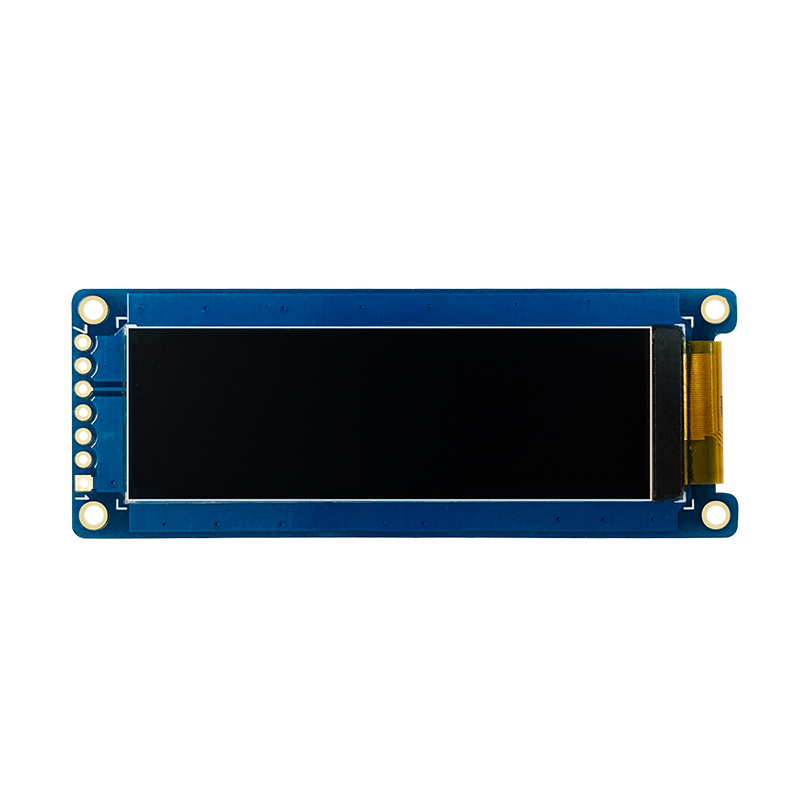

2.08 inch 256*64 OLED Display Module I2C SPI 7 pin interface SH1122 Driver Chip

2.08 inch 256*64 OLED Display Module I2C SPI 7 pin interface SH1122 Driver Chip

2.08 inch 256*64 OLED Display Module I2C SPI 7 pin interface SH1122 Driver Chip

2.08 inch 256*64 OLED Display Module I2C SPI 7 pin interface SH1122 Driver Chip

2.08 inch 256*64 OLED Display Module I2C SPI 7 pin interface SH1122 Driver Chip

2.08 inch 256*64 OLED Display Module I2C SPI 7 pin interface SH1122 Driver Chip

Price: $13.59-$16.59
Size:2.08
Resolution: 256*64
Interface: I2C SPI
Product description: Hicenda Technology Co., Ltd can supply 2.08 inch oled display module white or blue or yellow color with 7 pin SPI/I2C interface for medical or industrial device.
INQUIRY

1. Display Specifications

LCD Size: 2.08 inches
Dot Matrix Size: 256*64
LCD Color: White/Blue
Hardware Interface: I2C/SPI interface
Driver IC: SH1122
Operating Temperature: -30 - 80
Working Power Supply: 3.3V

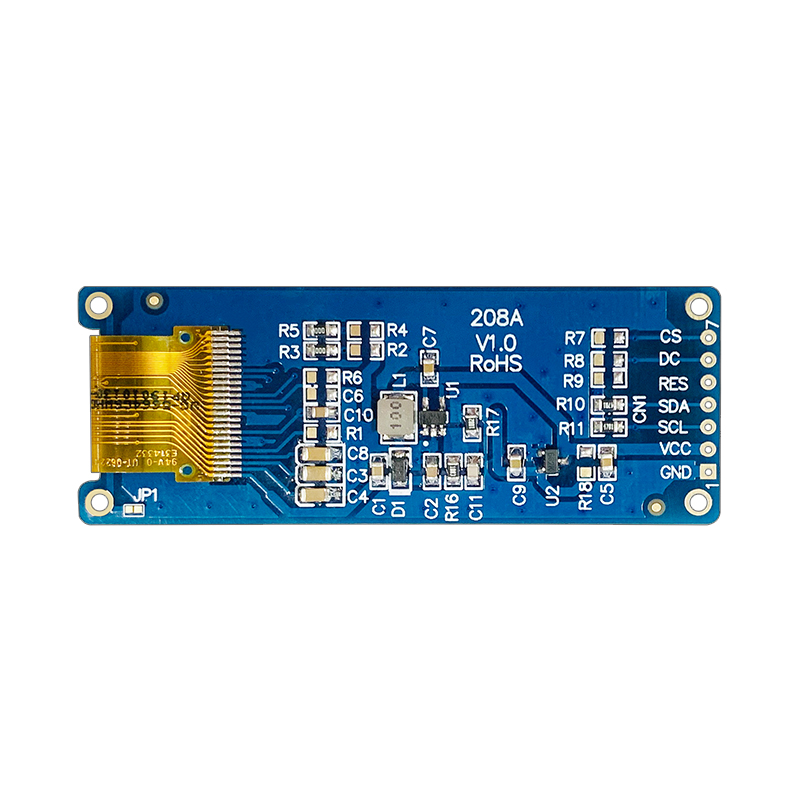

PIN : 7Pin
Viewing Direction: Full viewing angle

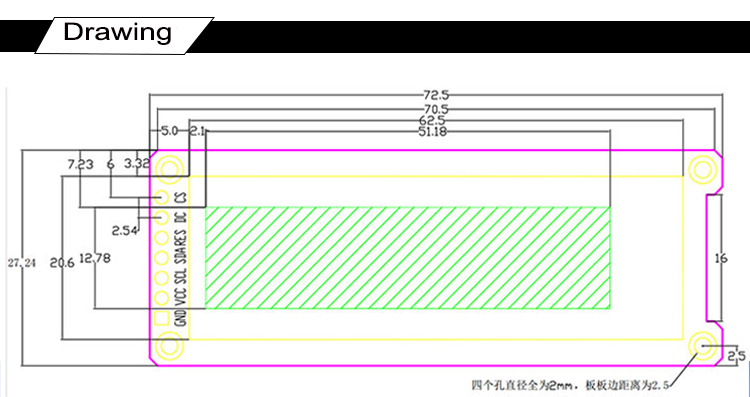

2. Mechanical Specifications

Diagonal Screen Size	2.08inch
Color	Mono(White/Blue)
Model number	HG-208-25664m01
Resolutions	256x64
Outline dimension	72.5x27.24x5.9mm
Active area	51.18×12.78mm
Pixel pitch	0.20×0.20mm
Pixel size	0.18×0.18mm
Driver IC	SH1122
Voltage	3-5V
Interface	SPI
Operating temperature	-40~70℃
Storge Temperature	-40~80℃
Assemble	Soldering
Pins	7P

PREVIOUS：2.7 inch 128*64 OLED Display Module I2C SPI 20 pin interface SSD1325 Driver Chip NEXT：2.23 inch 128*32 OLED Display Module I2C SPI 20 pin interface SSD1305 Driver Chip
