Size: 0.5 AMOLED
Driver Board: HDMI/CVBS Board
Resolution: 1280(RGB)X960
Luminance:120 cd/m2-1000 cd/m2
Product description: 0.5 inch AMOLED Micro display, 1280(RGB)X960,AR Glasses/VR Headset
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

ECX337RF is a 1.3 cm (0.5inch) diagonal, 1280(RGB) × 960 dots active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .

(Potential applications: Head mounted displays, View finders, Small monitors etc.)

GENERAL SPECIFICATION

Product model:	HGECX337RF
Size:	0.5 inches
Dimensions:	10.14(H) × 7.644(V)
Appearance size (mm)	17.8(H) × 15.2(V)
Resolution:	1280 * 960
Brightness:	1000 CD /m (Max.)
Working temperature:	-10 ~ 70 ° C
Storage temperature:	-30 ~ 80 ° C

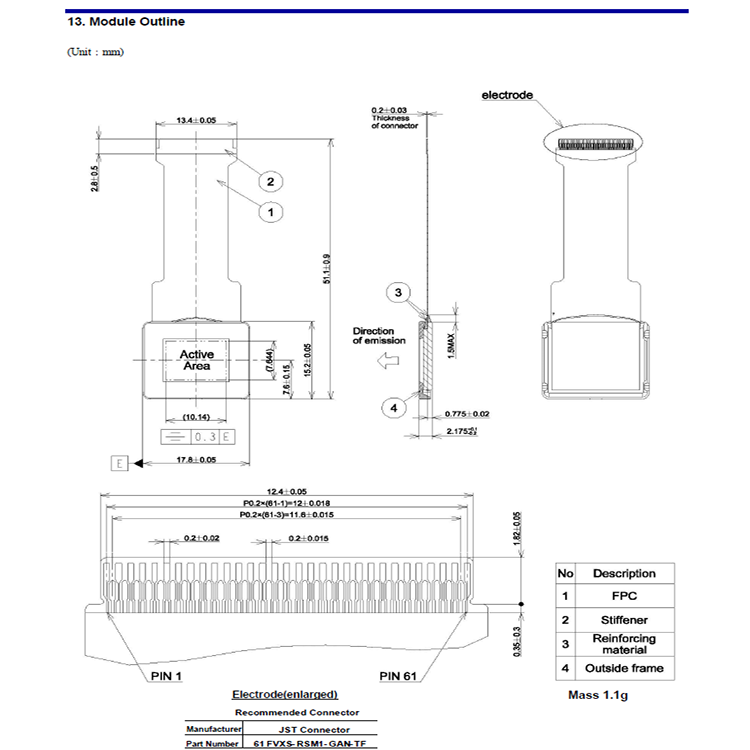

DRAWING

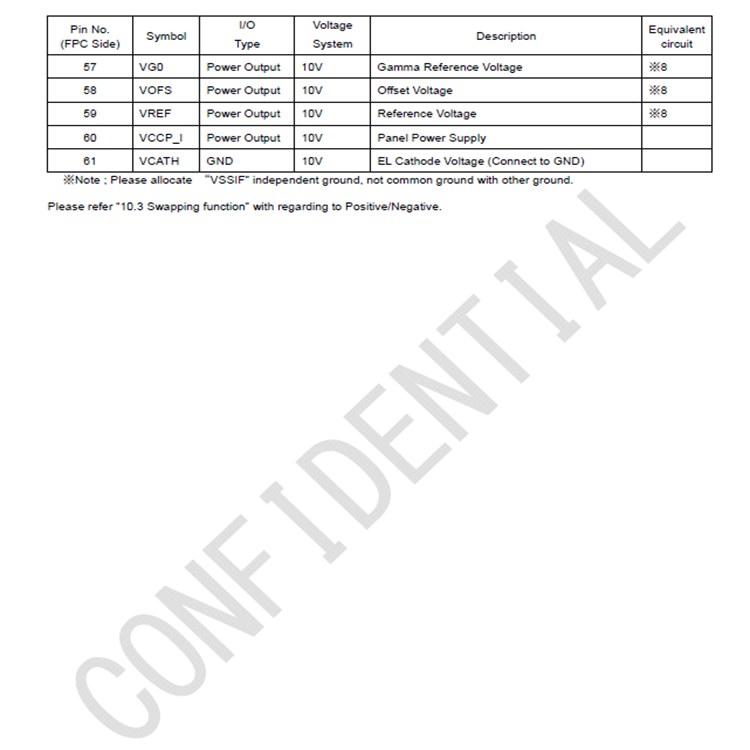

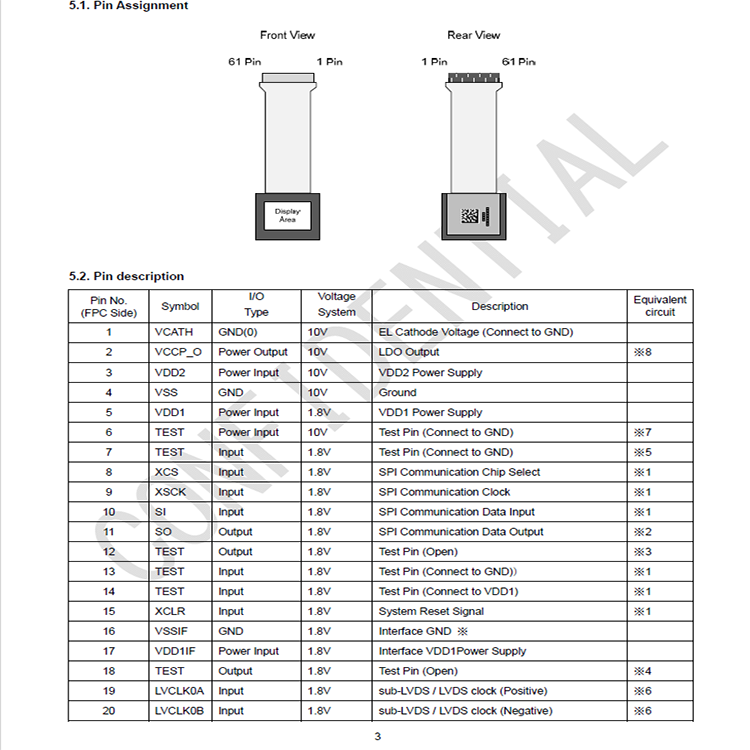

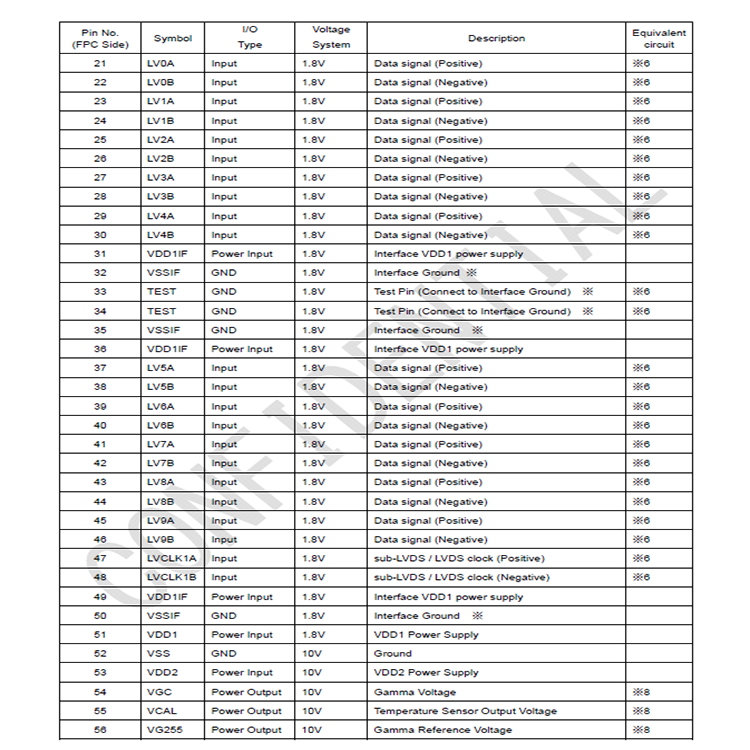

INTERFACE PIN FUNCTION
