Display Size:0.6
Resolution:800 (RGB)×600
Interface: RGB Vertical Stripe
Pin:40 Pins
Product description: 0.6 inch Micro OLED display 800X600 SVGA for Military field
INQUIRY

0.6 inch Micro OLED display 800X600 SVGA for Military field

DESCRIPTION

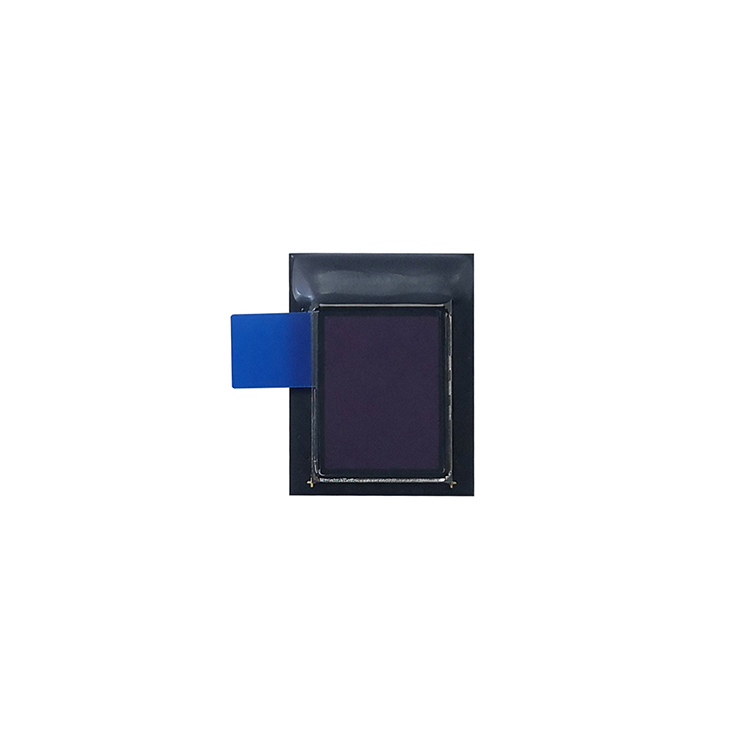

HSM060SVGA series AMOLED microdisplay fabricated by Hicenda’s proprietary top emitting and high luminance efficiency Si-Base AMOLED technology. HSM060SVGA series microdisplay includes full color, Monochrome white, Monochrome green and other specifications. With the same interface and pin definition, HSM060SVGAseries products have 12.06mm×9.06mm (0.6 inch) display area, and supported less than or equal to SVGA resolutions format. With proper optic enhancementdevices, the microdisplay can provide high quality, large virtual image.

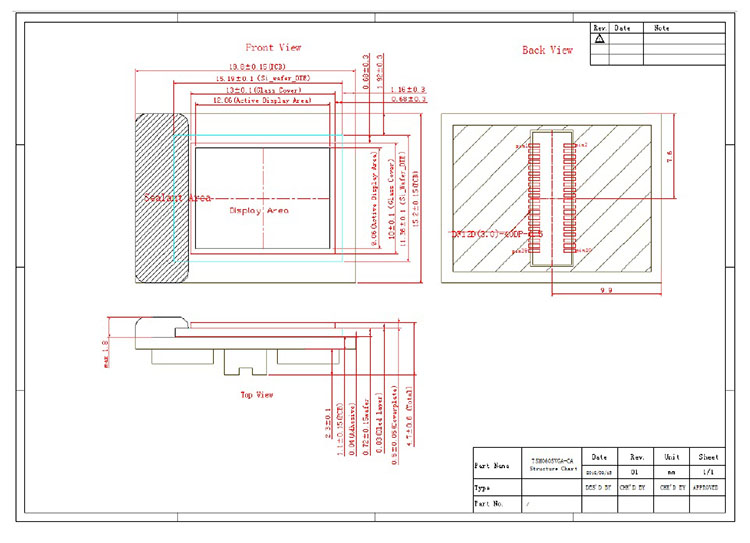

DRAWING

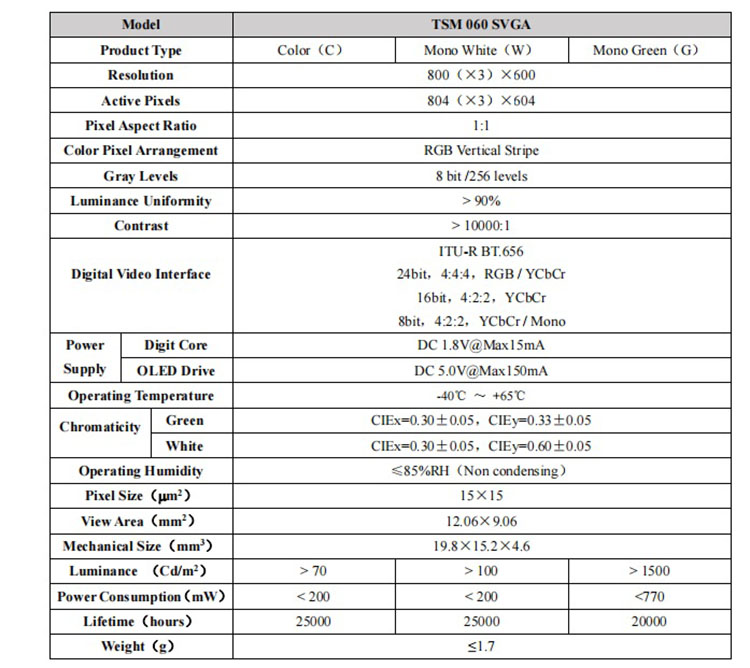

SPECIFICATIONS
