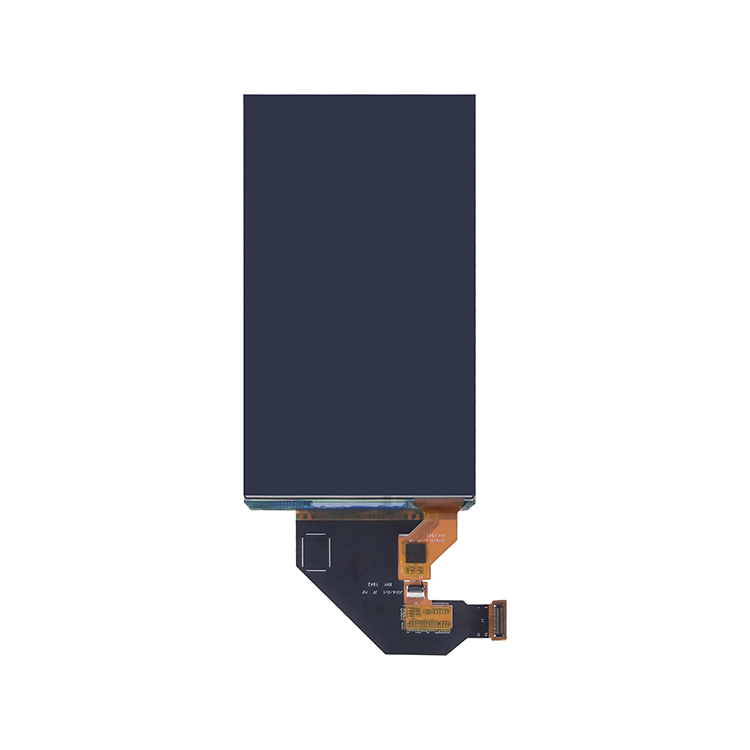

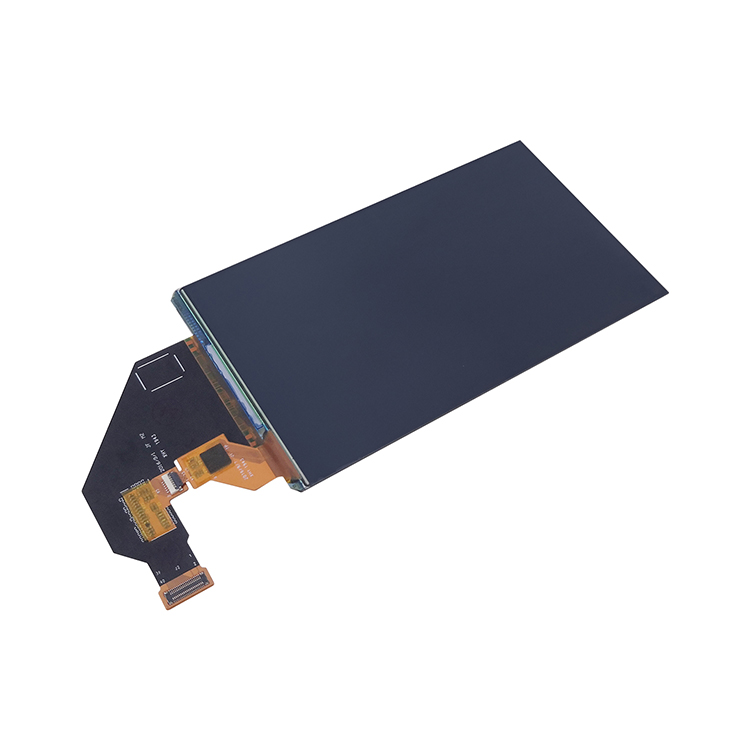

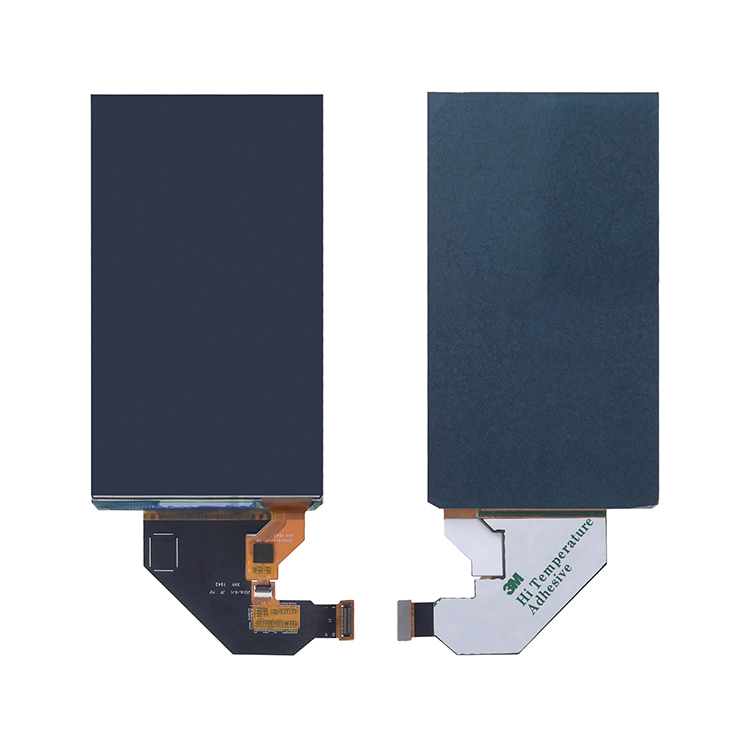

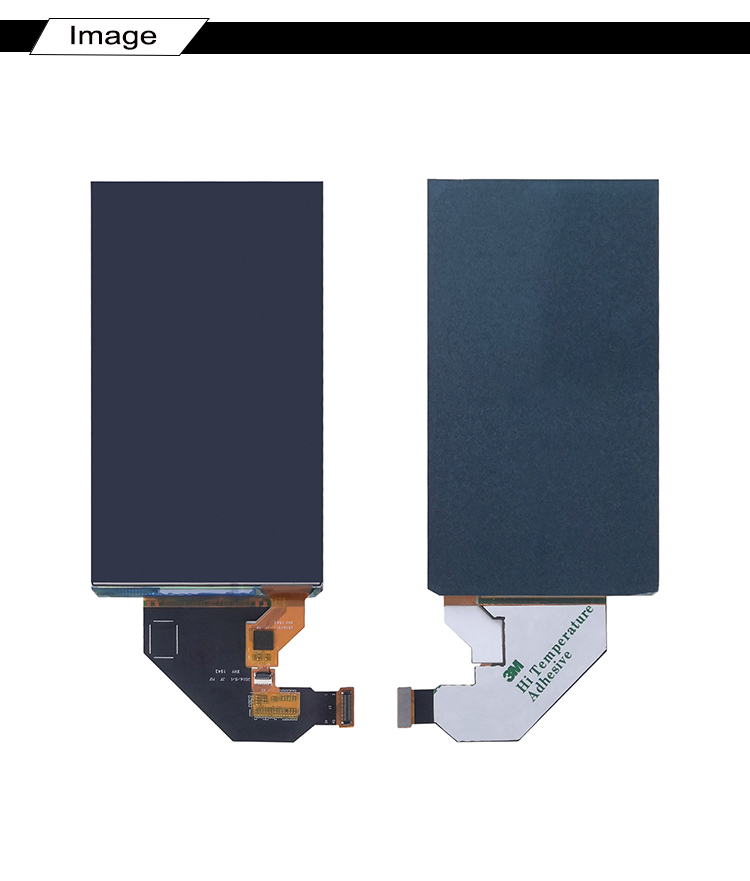

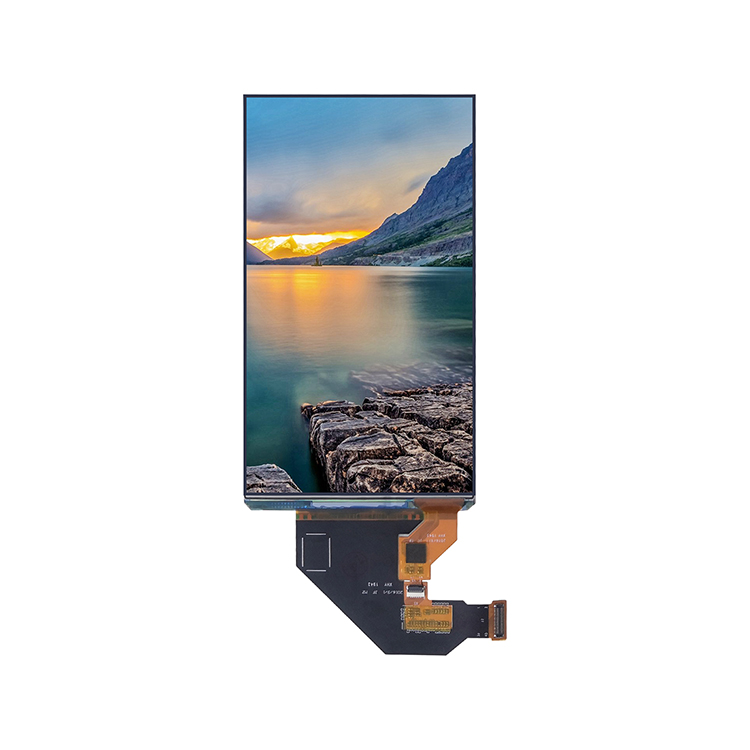

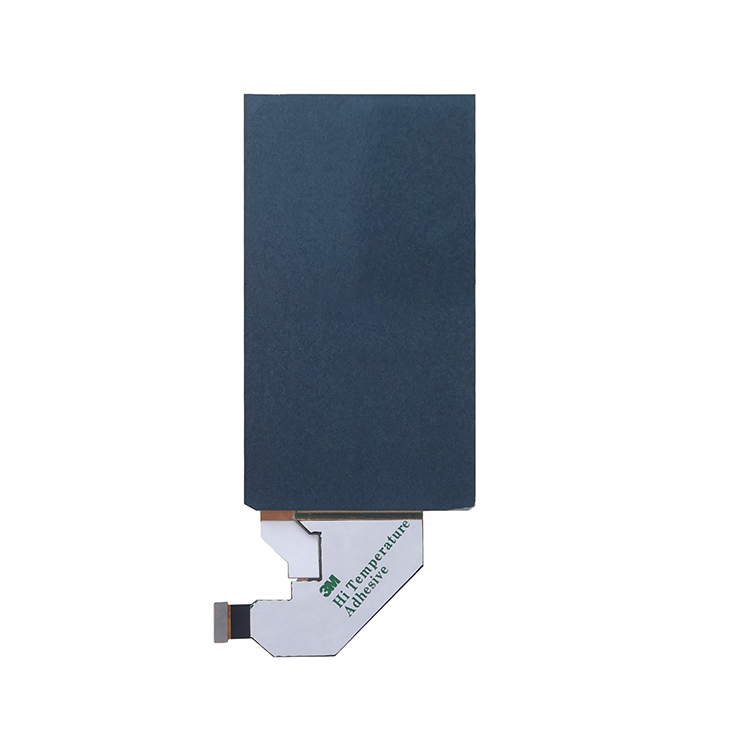

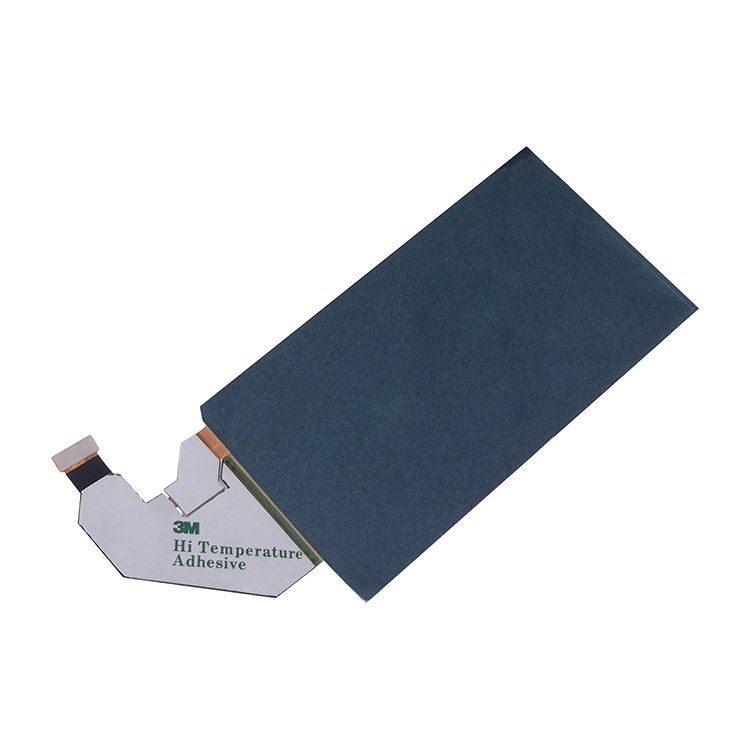

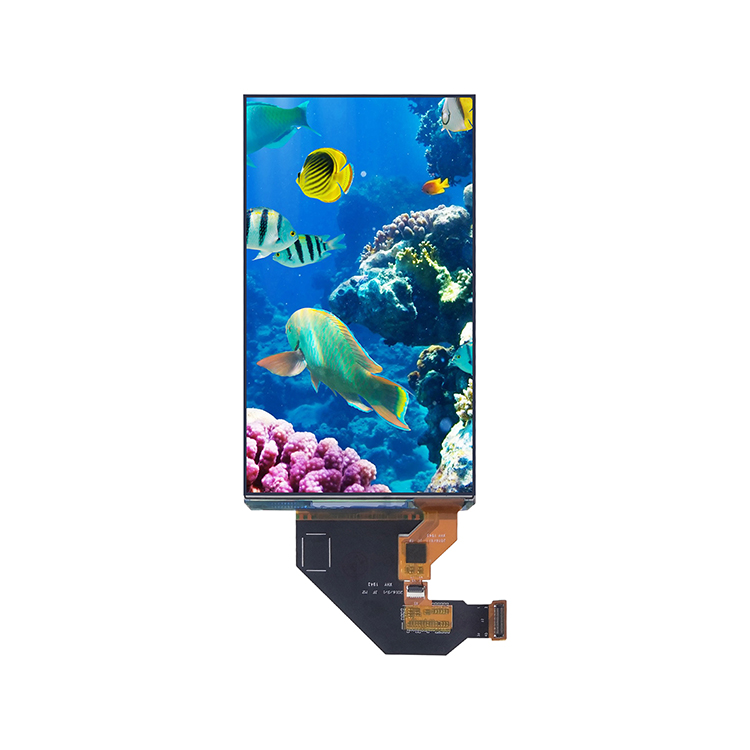

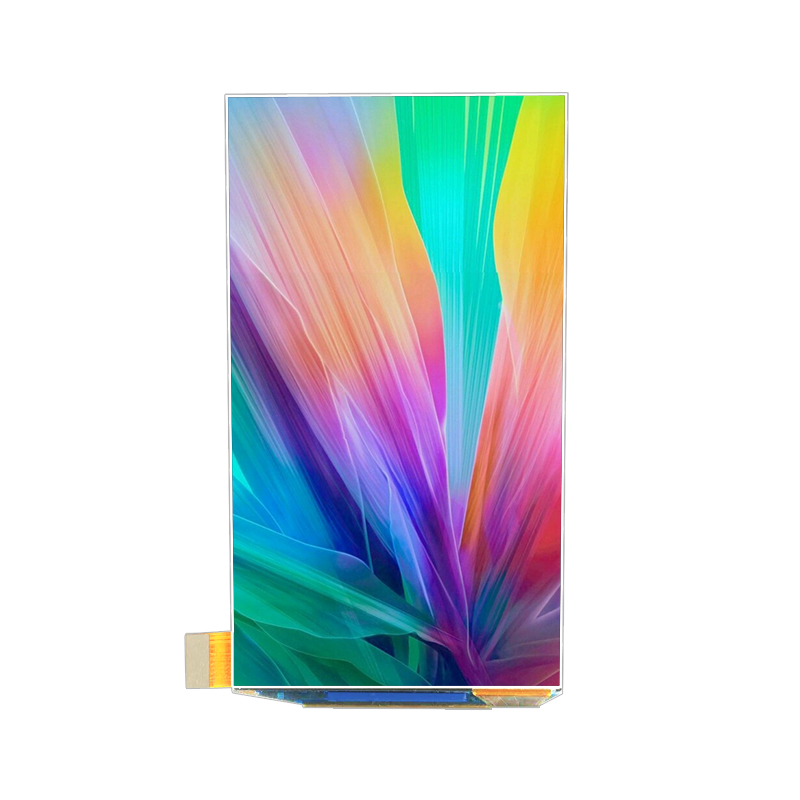

AMOLED 5.5 inch 1080x1920 OLED Display touchscreen
DESCRIPTION
This 5.5 inch OLED is 1080P high resolution AM-OLED display with 1080x1920 pixels and built in SH1386 driver ic communicates via MIPI parallel interface,MIPI interface is an exceptional display solution for applications that require sharp and vivid visuals,due to its advanced AMOLED technology, this 5.46 inch AMOLED display supplys perfect contrast and color accuracy, which makes this 1080P OLED SCREEN ideal for multiple applications like virtual and augmented reality devices. Its compact size and high resolution make it an excellent choice for products with limited space, and the MIPI interface ensures seamless and reliable connectivity with your system.
GENERAL SPECIFICATION
| Display Type: | amoled display |
| Display Mode: | Initiative Matrix |
| Model Number: |
H546DLK01.0 |
| Diagonal Screen size: | 5.5/5.46 inch |
| Interface: |
MIPI DSI – Video Mode |
| Storage Temperature |
-40℃~+80℃ |
| Number of Pixels: |
1080(W) x RGB x 1920(H)
|
| Panel Size: |
70.84 (H) × 128.01(V) × 0.759(T)
|
| Driver IC: |
RM69071
|
| Active Area: |
68.04 (H)×120.96(V) |
| Pixel Pitch: |
63 um
|
| Operating Voltage |
2.8V~3.2V |
|
Weight: |
1.54 (g) |
|
Operating Temperature: |
-20℃~+70℃ |
DRAWING

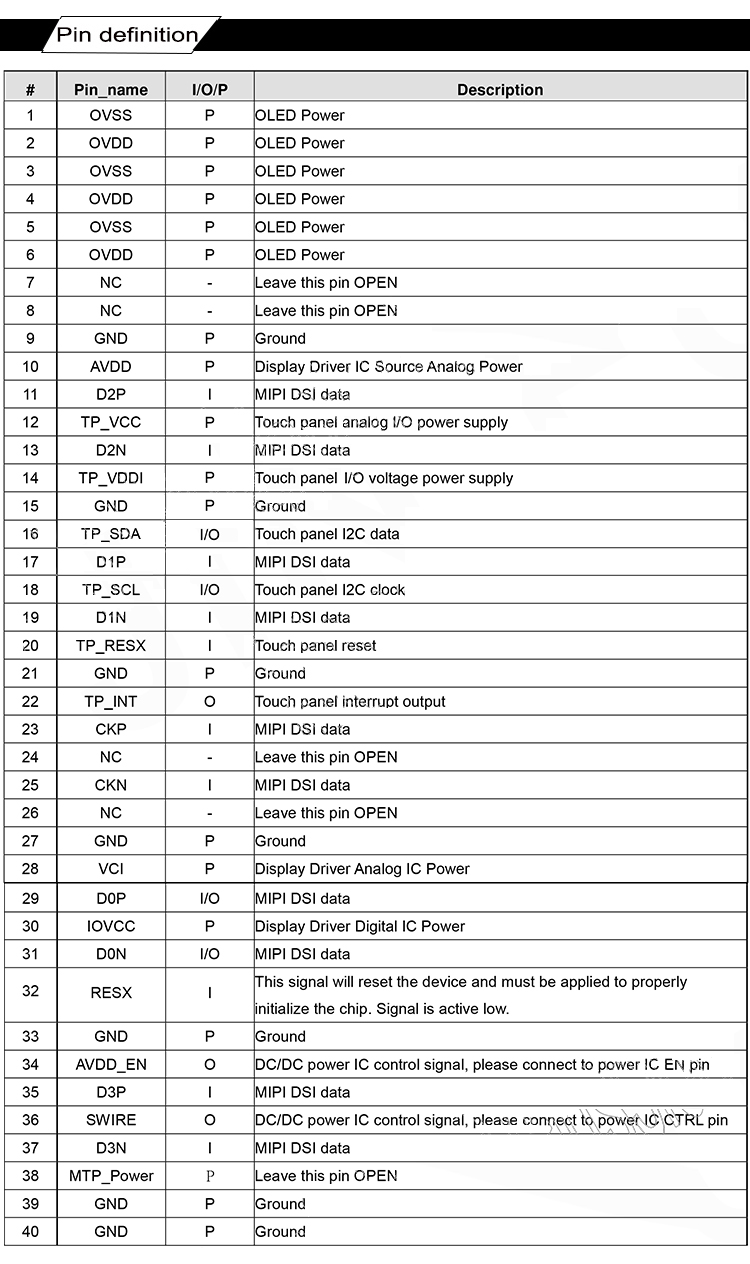

Pin Definition
