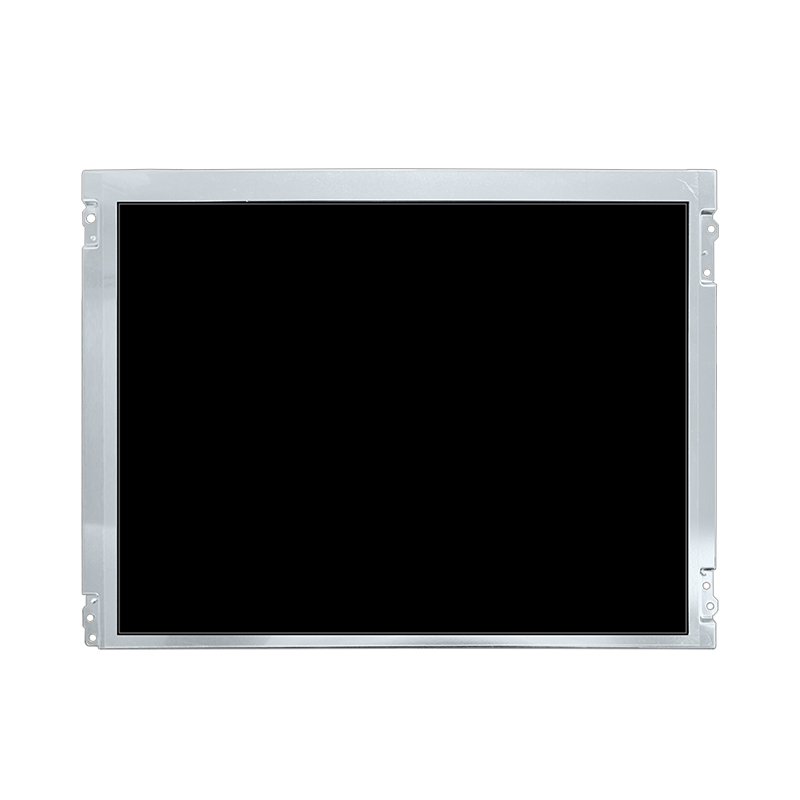

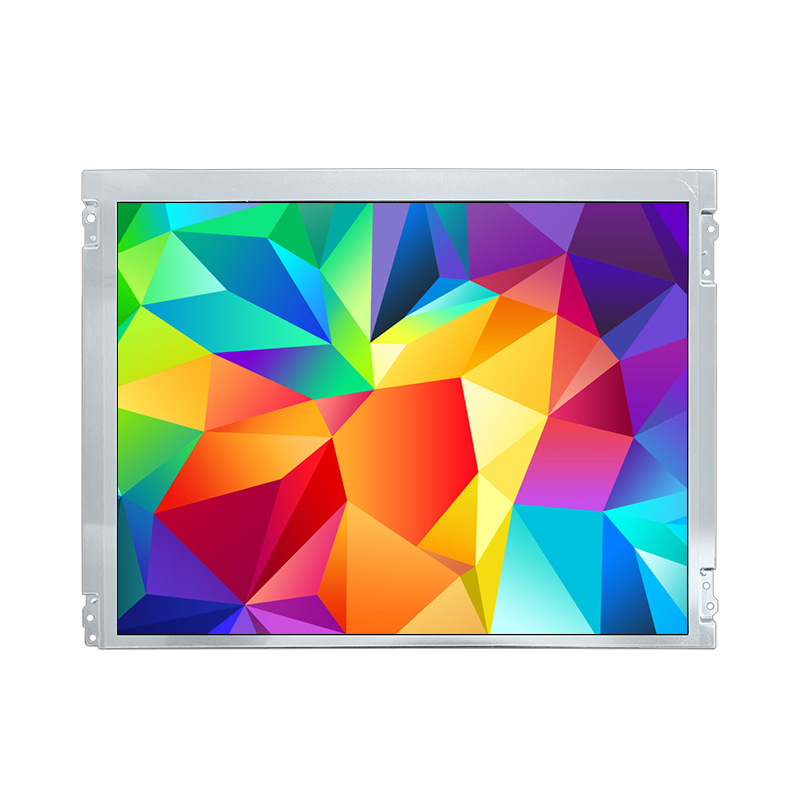

12.1 inch tft lcd panel screen display 20pin LVDS interface Active Area 245.76*184.32 for industrial

12.1 inch tft lcd panel screen display 20pin LVDS interface Active Area 245.76*184.32 for industrial

12.1 inch tft lcd panel screen display 20pin LVDS interface Active Area 245.76*184.32 for industrial

12.1 inch tft lcd panel screen display 20pin LVDS interface Active Area 245.76*184.32 for industrial

Transmissive mode:Normally White
Size: 12.1
Resolution: 800*600
Interface: LVDS
Product description: Hicenda Technology Co., Ltd can supply IPS 12.1 Inch TFT LCD Screen Display Module 800*600 IPS Full Color with 20Pin LVDS Interface White-LED Display for electronic device
INQUIRY

1. Display Specifications

LCD Size: 12.1 inches
Dot Matrix Size: 800*600
LCD Color: 16.2 M color (6bit+FRC), and 262K color selectable
Hardware Interface: LVDS interface
Driver IC: ST7789
Operating Temperature: -20 - 70
Working Power Supply: 3.3V

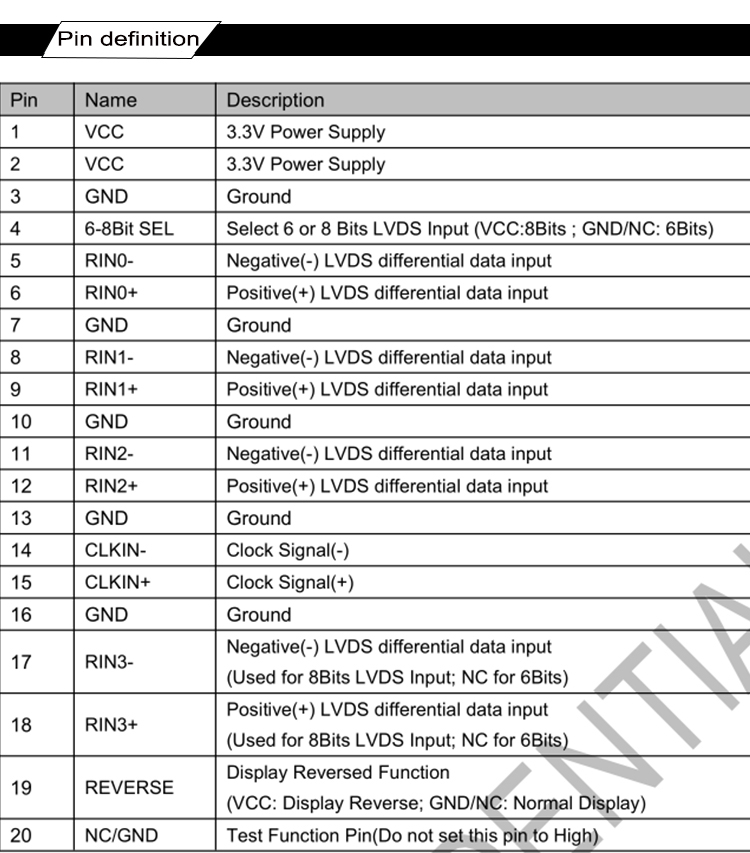

PIN NO: 20Pin
Display Area: 246*184.5mm
Size: 279*209*9mm

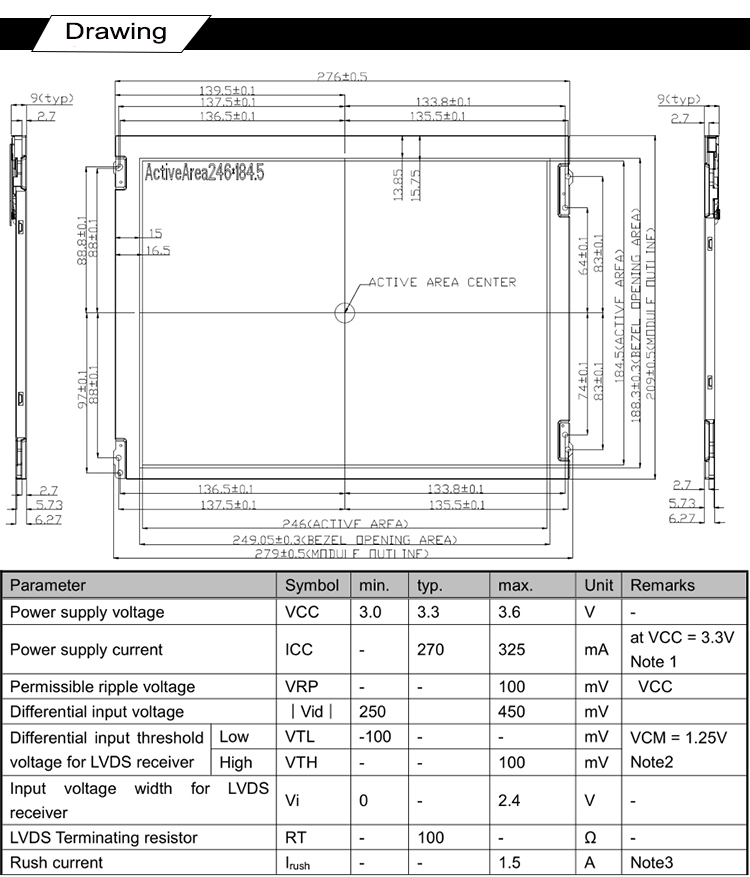

2. Mechanical Specifications

Product Name	12.1 Inch TFT Module
Active Area (WxH)	246(H) x 184.5(V)
Display Outline Size	279(H) x 209(V) x 9(D)
Resolution	600RGBx800DOTS
Polarizer Mode	RGB Stripe
Backlight	White-LED
Interface Type	lLVDS 1port
Technology Type	a-Si TFT active matrix
Controller / Driver	ST7789
