13.3"

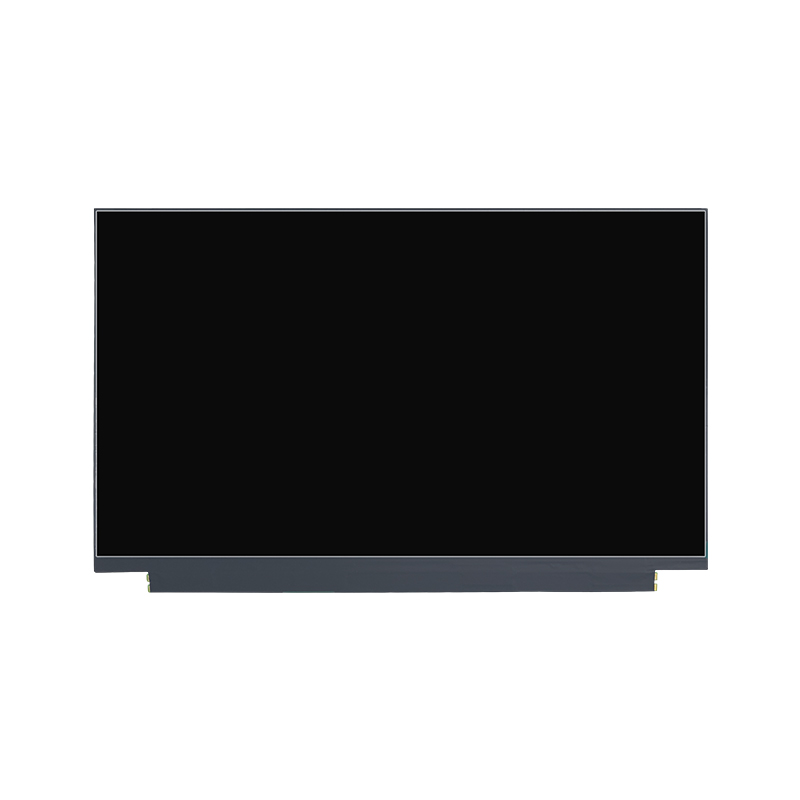

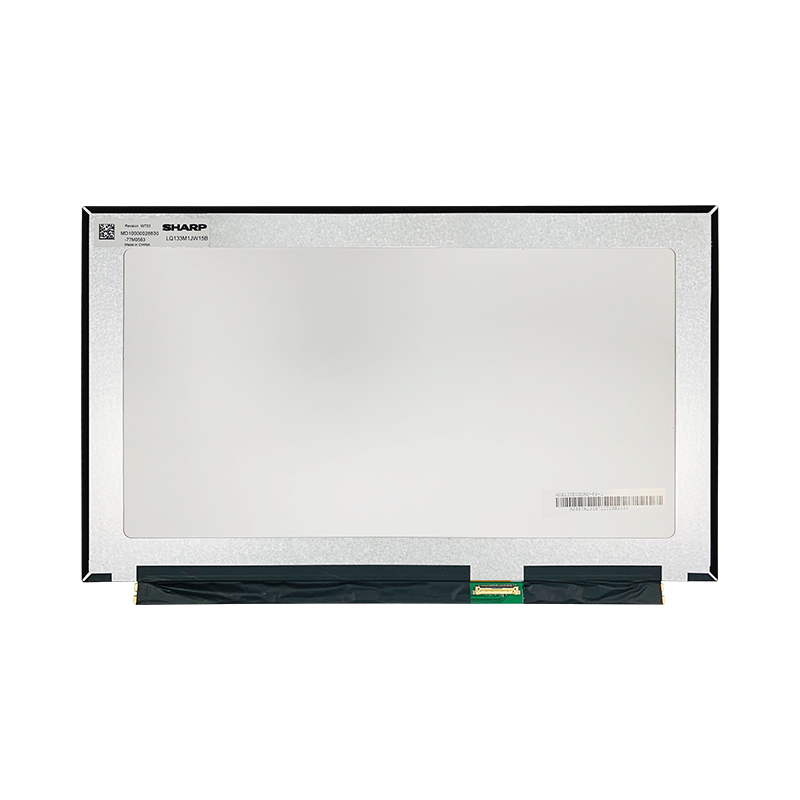

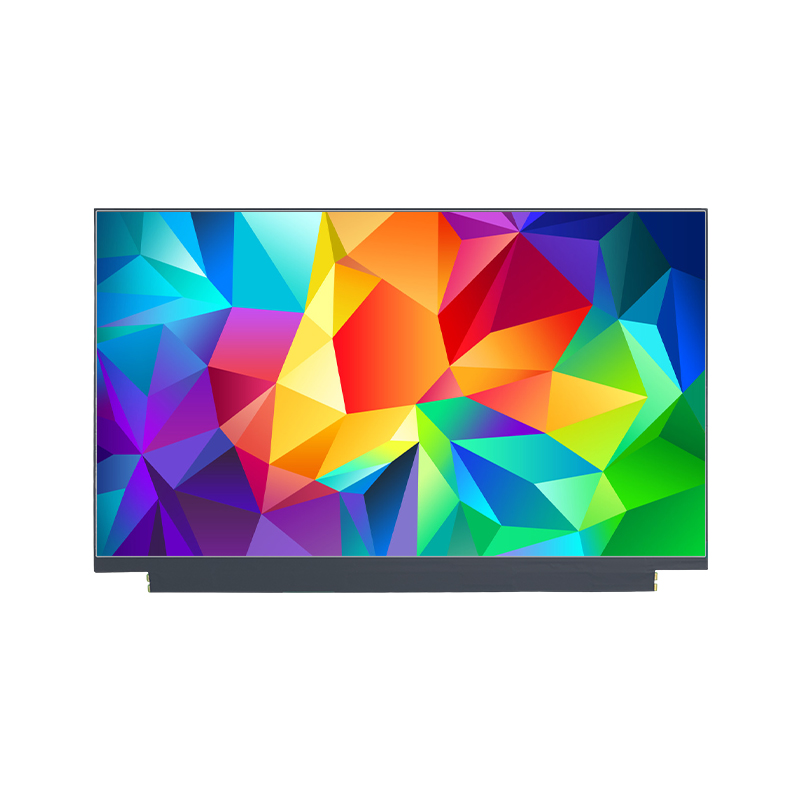

13.3'' 1366x768pixels 30 pin EDP interface view area 246*184.5(mm) 13.3 inch tft lcd display for industrial

13.3'' 1366x768pixels 30 pin EDP interface view area 246*184.5(mm) 13.3 inch tft lcd display for industrial

13.3'' 1366x768pixels 30 pin EDP interface view area 246*184.5(mm) 13.3 inch tft lcd display for industrial

13.3'' 1366x768pixels 30 pin EDP interface view area 246*184.5(mm) 13.3 inch tft lcd display for industrial

Display Mode :Normal White
Size: 13.3
Resolution: 1366*780
Interface: EDP
Product description: Hicenda Technology Co., Ltd can supply 13.3 inch High Quality Lcd Screen Project,Small display 1366*768 LCD 13.3 inch TFT display
INQUIRY

1. Display Specifications

LCD Size: 13.3 inches
Dot Matrix Size: 1366*780
LCD Color: 262k
Hardware Interface: EDP interface
Driver IC: ST7789
Operating Temperature: -20 - 70
Working Power Supply: 3.3V

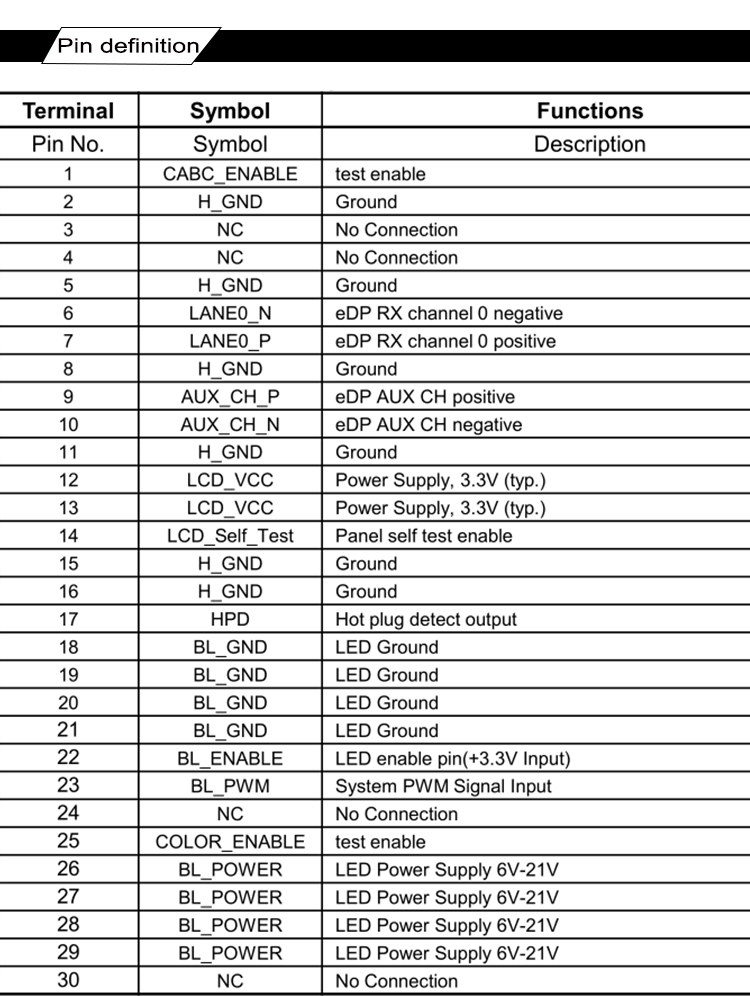

PIN NO: 30Pin
Display Area: 293.41*164.96mm
Size: 306.72*189.2*3mm

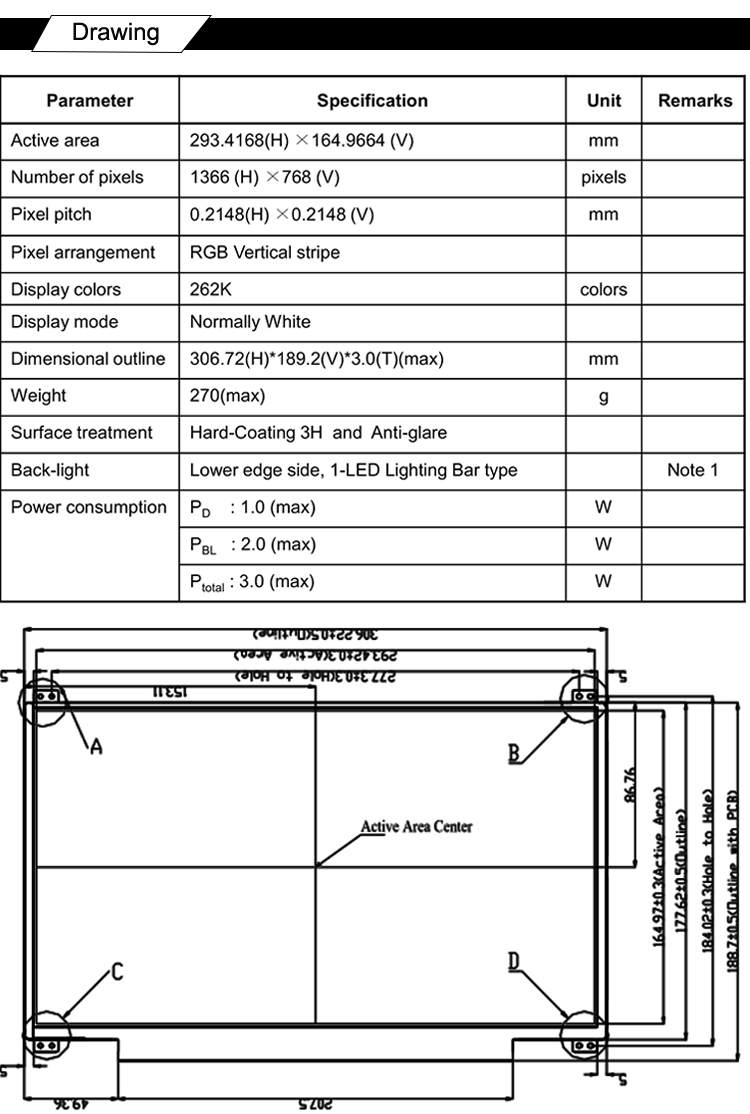

2. Mechanical Specifications

Product Name	13.3 Inch TFT Module
Active Area (WxH)	293.41(H) x 164.96(V)
Display Outline Size	306.72(H) x189.2(V) x 3(D)
Resolution	1366RGBx780DOTS
Polarizer Mode	RGB Stripe
Backlight	White-LED
Interface Type	lLVDS 1port
Technology Type	a-Si TFT active matrix
Controller / Driver	ST7789

PREVIOUS：12.1 inch tft lcd panel screen display 20pin LVDS interface Active Area 245.76*184.32 for industrial NEXT：15 inch 4:3 lcd display tft 1024*768 LVDS for medical and industrial products
