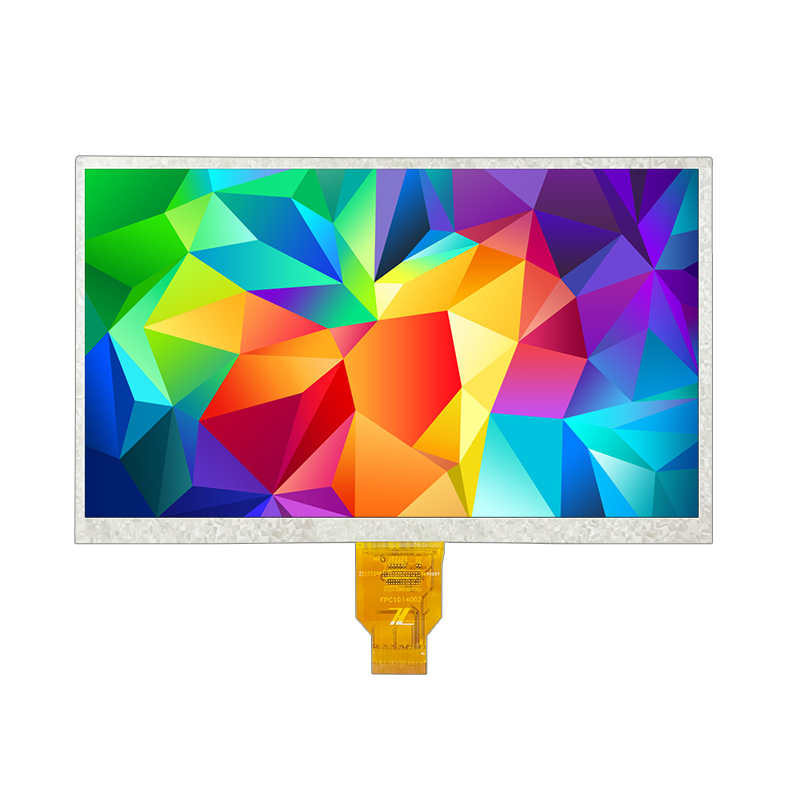

Selling well screen 1024x600 10.1 inch TFT LCD display with LVDS interface for Elevator display

Selling well screen 1024x600 10.1 inch TFT LCD display with LVDS interface for Elevator display

Selling well screen 1024x600 10.1 inch TFT LCD display with LVDS interface for Elevator display

Selling well screen 1024x600 10.1 inch TFT LCD display with LVDS interface for Elevator display

Driver element:a-Si TFT active
Size:10.1
Resolution: 1024*600
Interface:LVDS
Product description: Hicenda Technology Co.,ltd can supply high quality 10.1 inch small tft display for medical or industrial device.HD 600*1024 dot matrix 10.1 Inch tft lcd display,10.1 inch TFT LCD display with LVDS in
INQUIRY

1. Display Specifications

LCD Size: 10.1 inches
Dot Matrix Size: 600*1024
lCD Module:a-Si TFT
Hardware Interface: LVDS
Display mode: Normally White,Transmissive
Operating Temperature: -20 - 70
Working Power Supply: 3.0V
PIN NO: 40Pin

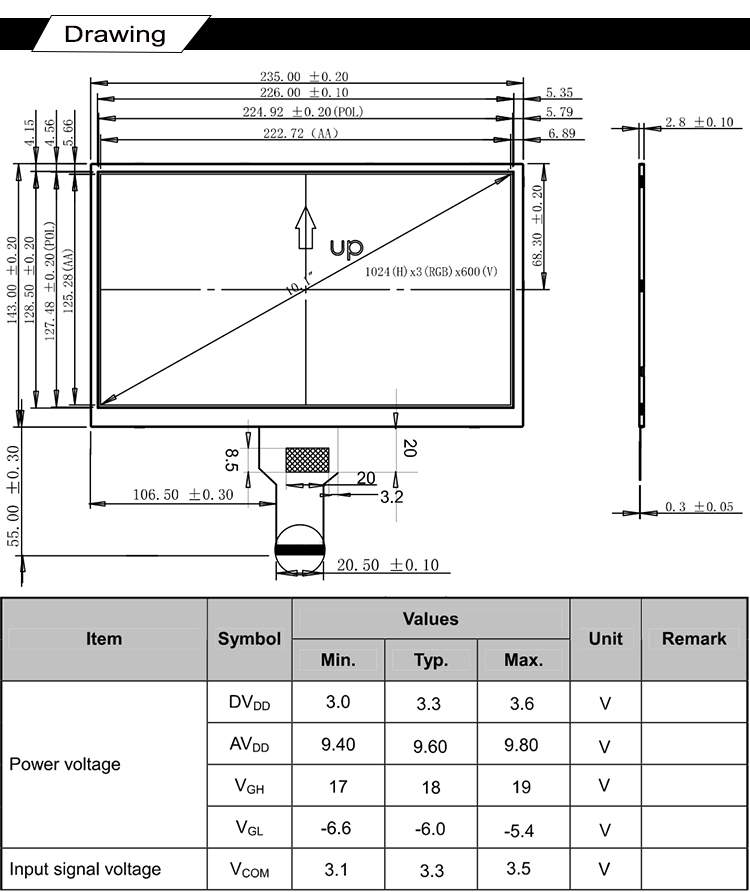

Display Area:222.72x125.28 mm
Size:235(H)x143(V)x2.8(D)
Viewing Direction: ALL

PINo Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 3.3V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
