  • Display mode:Normally white
  • Size:10.1
  • Resolution: 1024*600
  • Interface:RGB
  • Product description: Hicenda Technology Co.,ltd can supply high quality 10.1 tft lcd monitor screen display for medical or industrial device.HD 600*1024 dot matrix 10.1 Inch tft lcd display,10.1 inch TFT LCD display with
  • INQUIRY

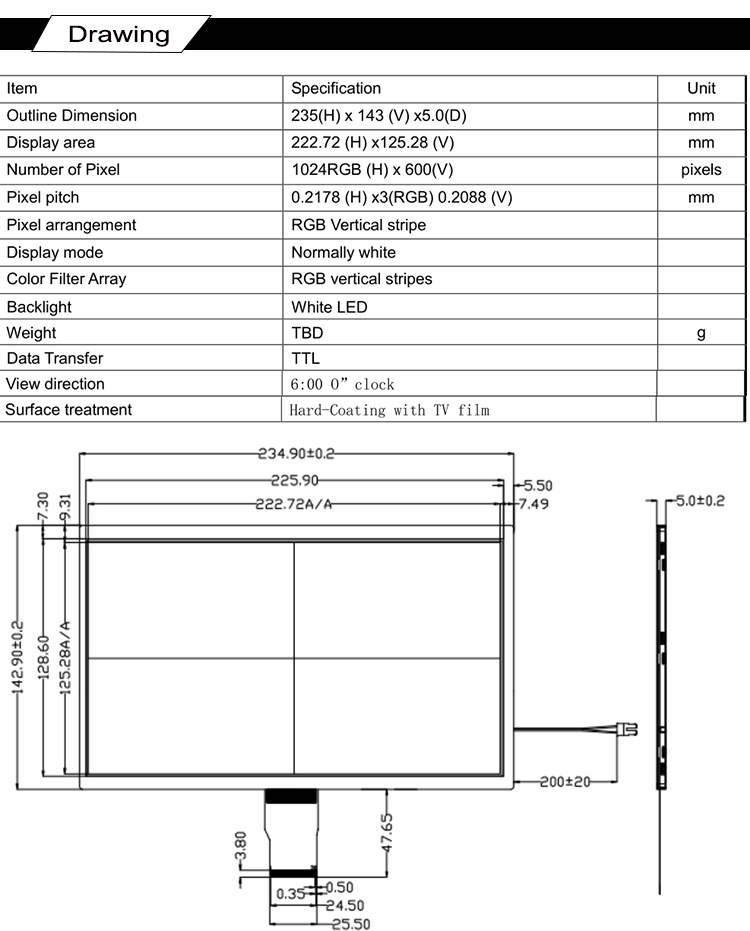

1. Display Specifications

  • LCD Size: 10.1 inches
  • Dot Matrix Size: 600*1024
  • lCD Module:a-Si TFT
  • Hardware Interface: RGB
  • Display mode: Normally white
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  50Pin
  • Display Area:222.72x125.28 mm
  • Size:123.5(H)x143(V)x5(D)
  • Viewing Direction: 6 O'clock

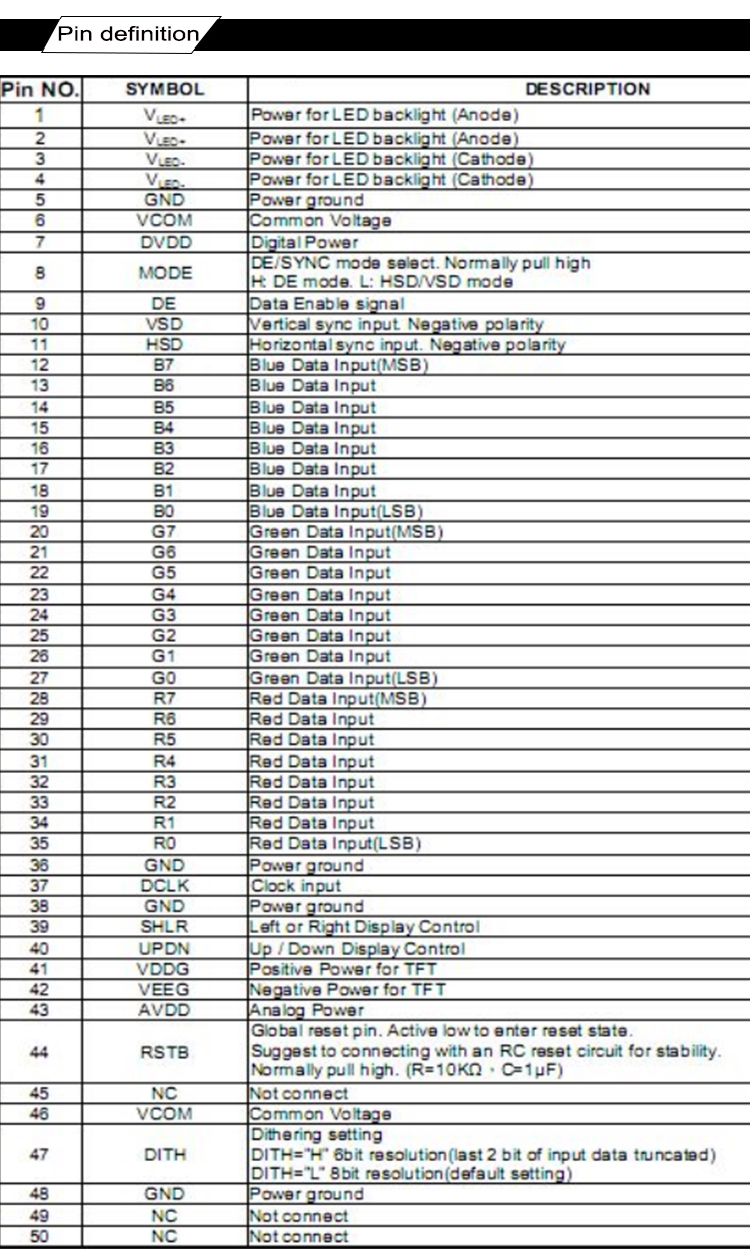

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
