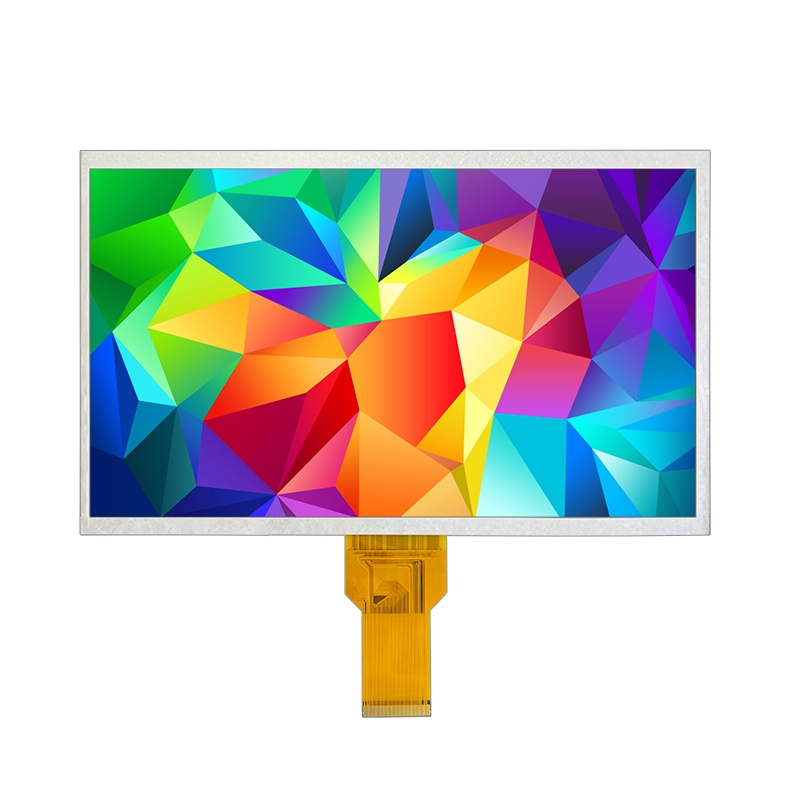

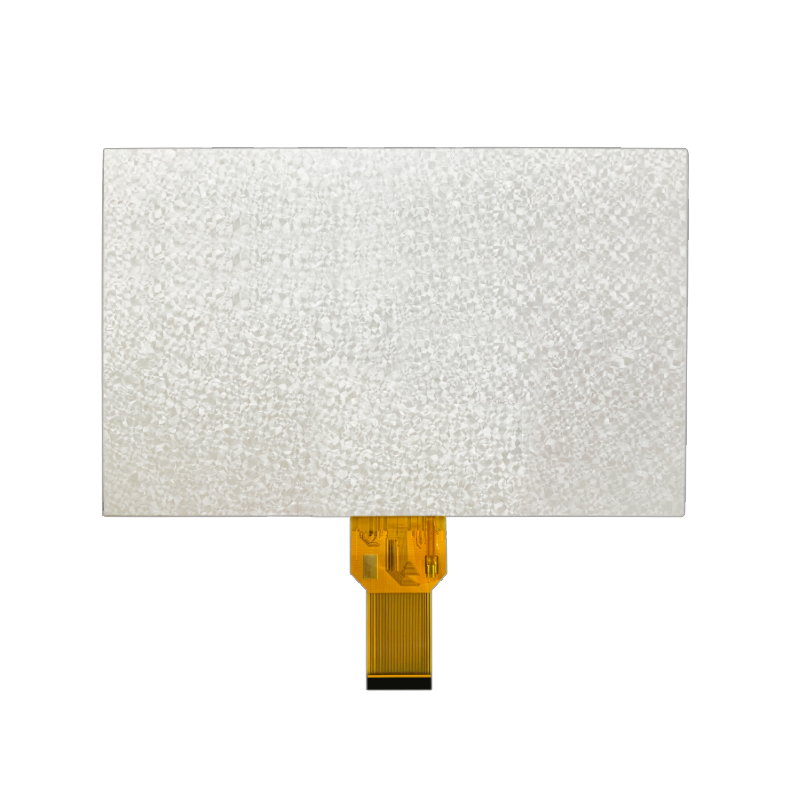

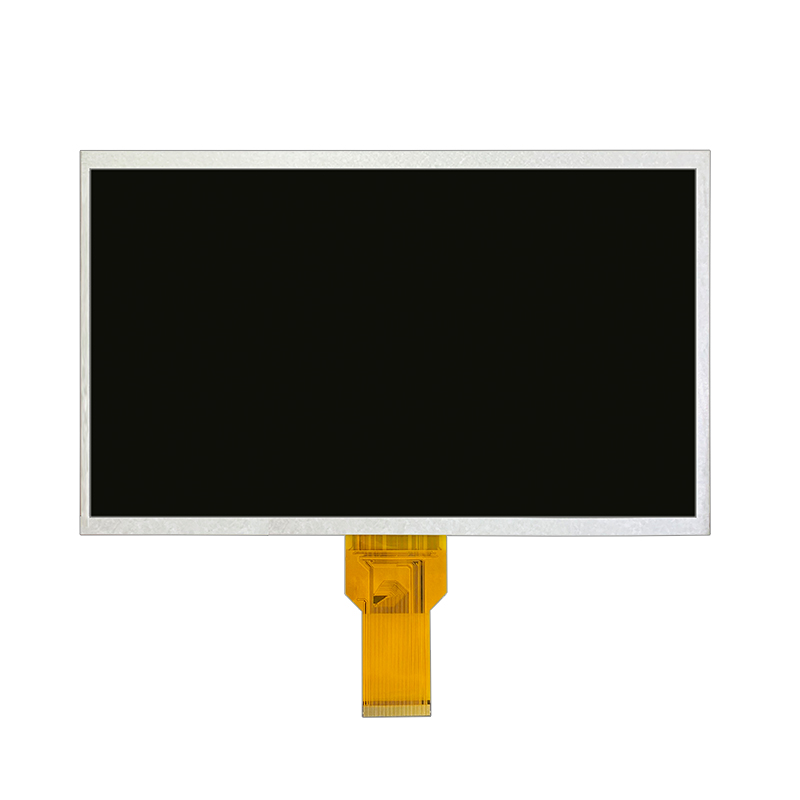

 10.1 inch screen 1024x600 dots TFT LCD display with RGB interface for Elevator display - 副本 10.1 inch screen 1024x600 dots TFT LCD display with RGB interface for Elevator display - 副本 10.1 inch screen 1024x600 dots TFT LCD display with RGB interface for Elevator display - 副本

10.1 inch screen 1024x600 dots TFT LCD display with RGB interface for Elevator display - 副本

  • Driver element:a-Si TFT active
  • Size:10.1
  • Resolution: 1024*600
  • Interface:RGB
  • Product description: Hicenda Technology Co.,ltd can supply high quality 10.1 inch lcd tft display for medical or industrial device.HD 600*1024 dot matrix 10.1 Inch tft lcd display,10.1 inch TFT LCD display with LVDS inte
  • INQUIRY


1. Display Specifications

  • LCD Size: 10.1 inches
  • Dot Matrix Size: 600*1024
  • lCD Module:a-Si TFT
  • Hardware Interface: RGB
  • Display mode: a-TFT,Transmissive
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  Plug 50Pin

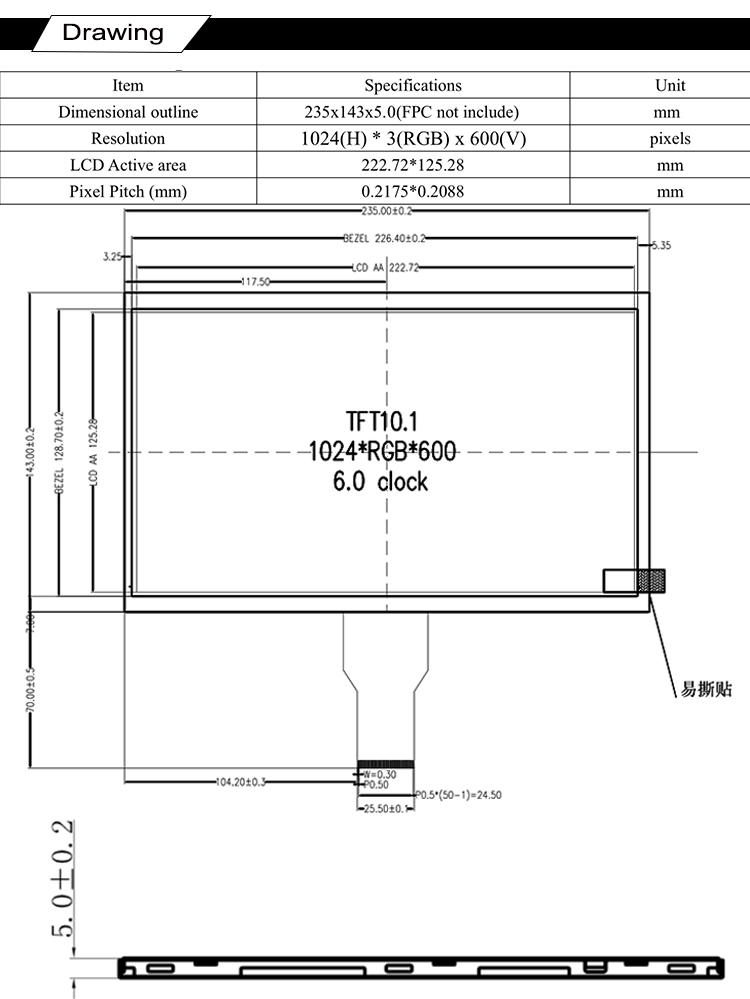

  • Display Area:222.72x125.28 mm
  • Size:235(H)x143(V)x5(D)
  • Viewing Direction: ALL

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
