Please kindly contact us for full data sheet of the display.
DESCRIPTION

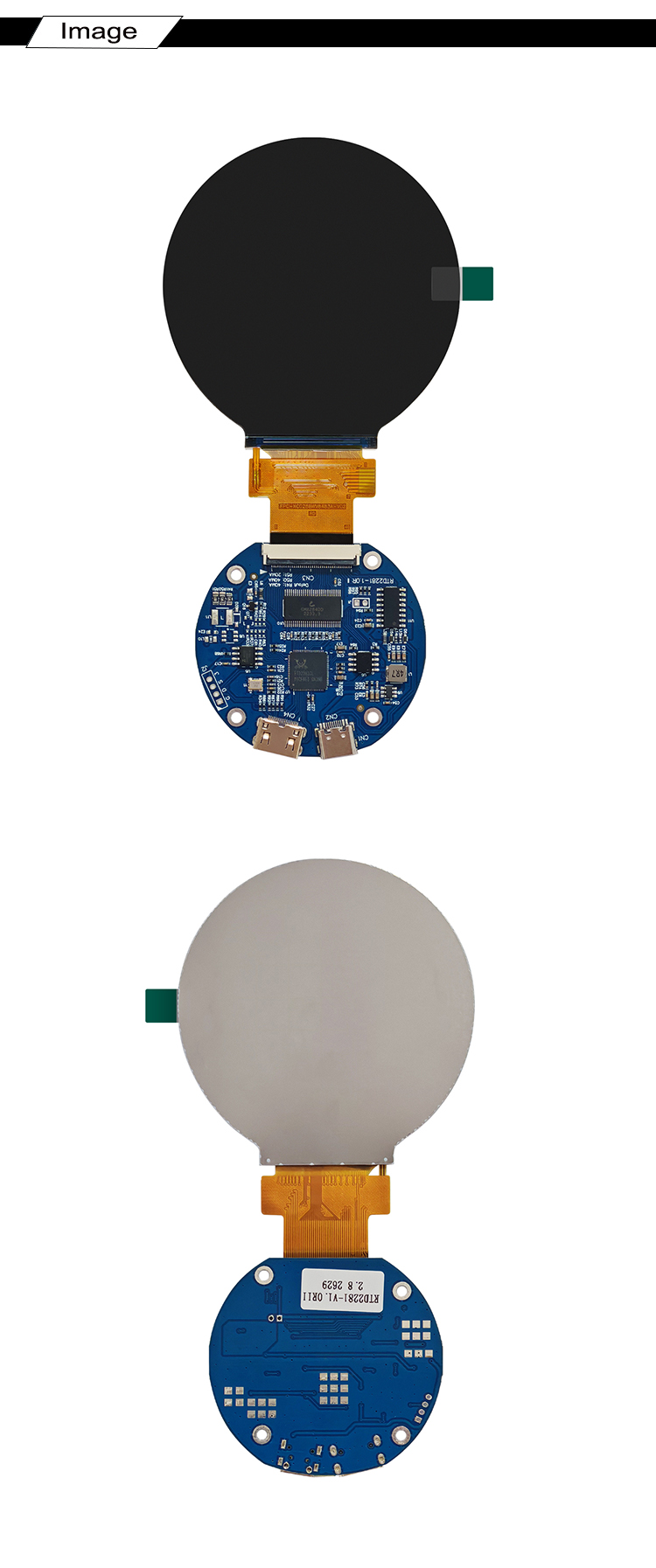

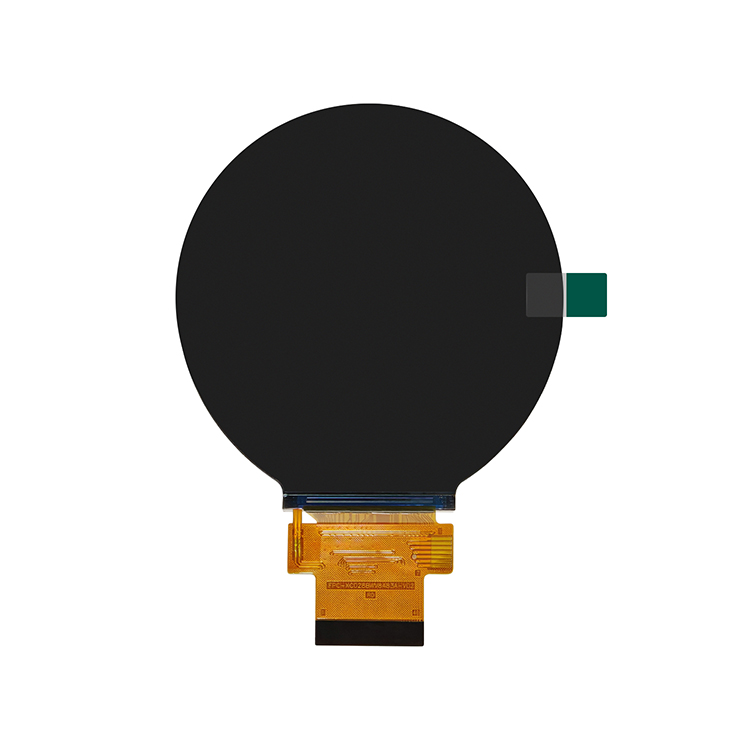

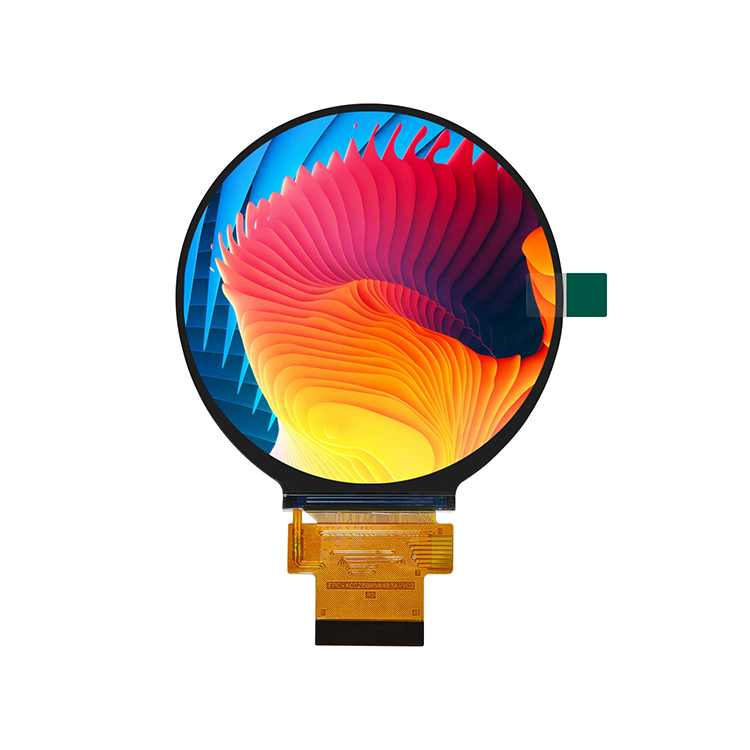

HICENDA HT028BWV8483BNT,Bring a sleek, circular display to your next project with this 2.8" Round TFT LCD Screen. Featuring a crisp 480×480 IPS panel and 350 nits of brightness, it stays clear and readable even in well-lit rooms — ideal for smart home control panels, wearable prototypes, automotive gauges, or any device that calls for a compact circular interface.

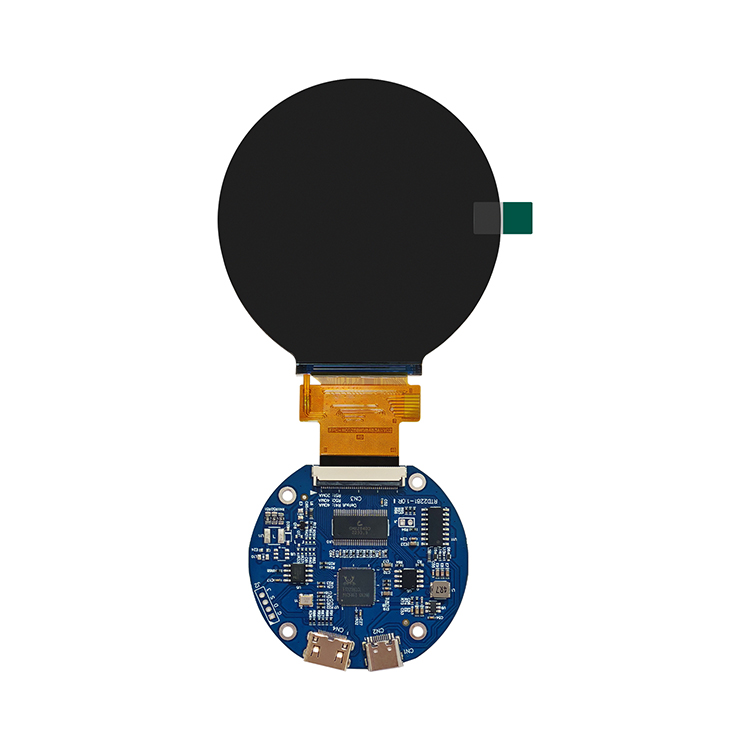

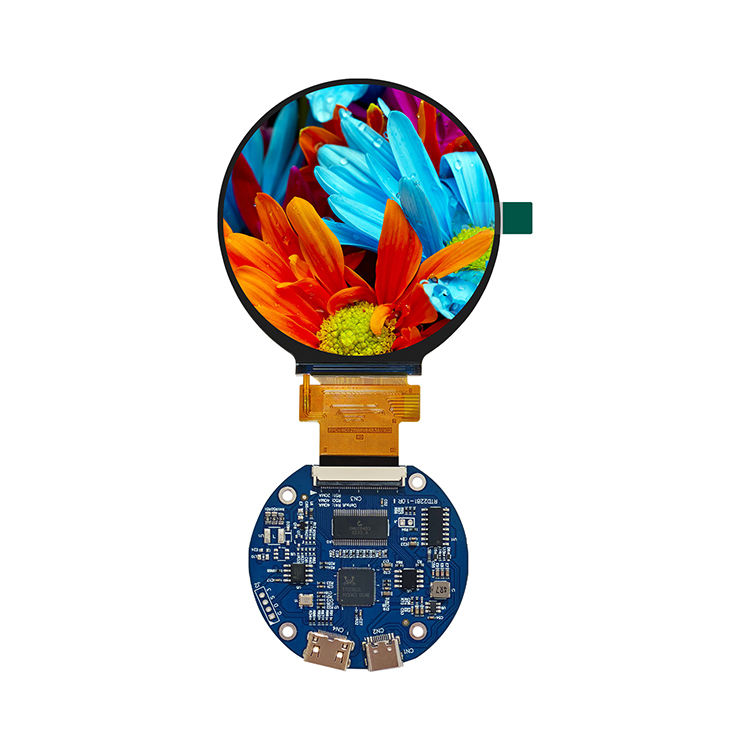

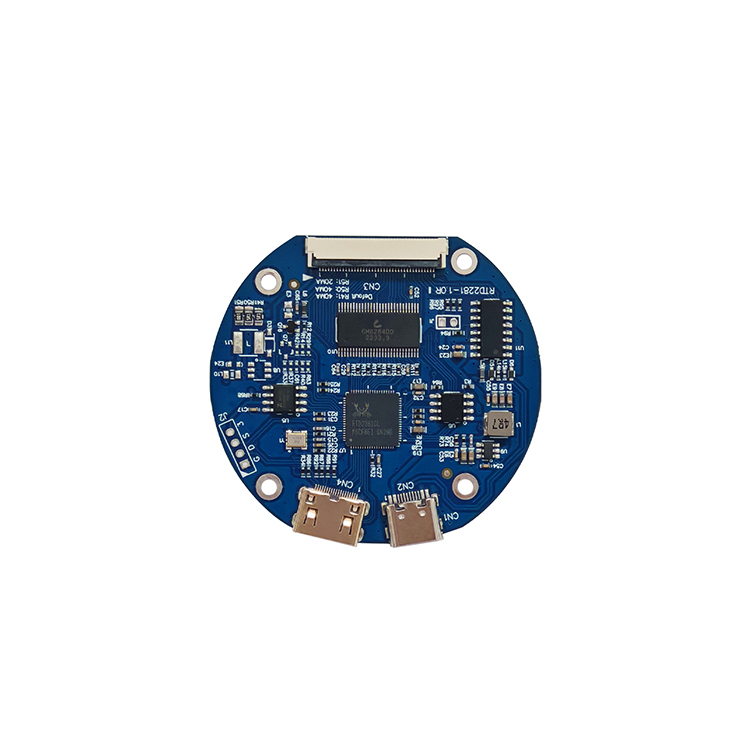

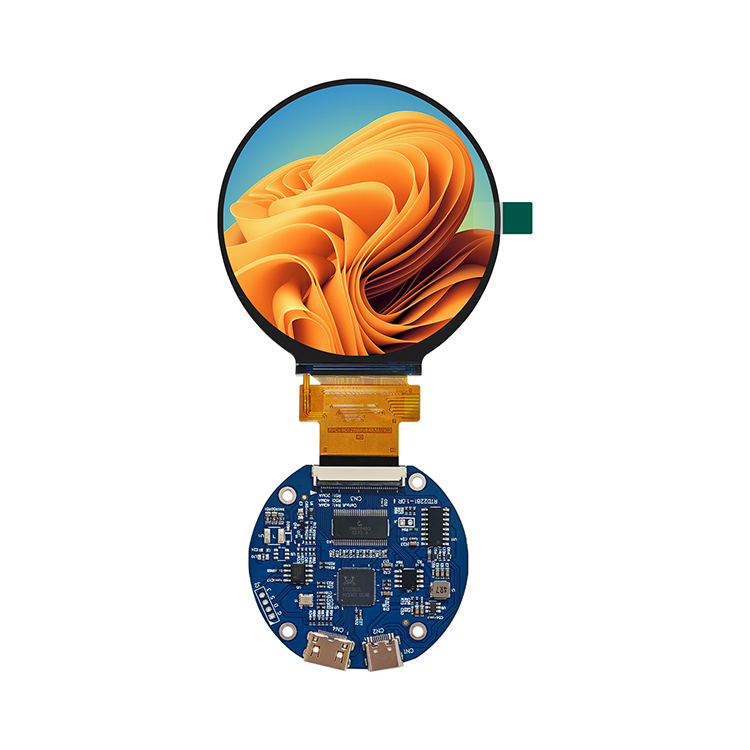

Unlike bare panel modules that require custom wiring, this display comes with a ready-to-use HDMI driver board, so you can connect it directly to a Mini HDMI source — a Raspberry Pi, single-board computer, or PC — and get an image on screen in minutes, no soldering or custom firmware required.
Whether you're building a custom smart mirror, a desktop gauge cluster, or a compact IoT dashboard, this round display gives your project a polished, professional look without the usual driver-board headaches.
GENERAL SPECIFICATION
| Specification | Details |
|---|---|
|
|
| Category | Feature | Specifications |
| Basic Info | Model No. | HT028BWV8483BNT |
| Display Spec. | LCD type |
2.76 inch
|
| Resolution (H*V) |
480(RGB) × 480
|
|
| Technology Type |
a-Si TFT
|
|
| Pixel Configuration |
R.G.B. Vertical Stripe
|
|
| Display Mode |
Normally Black
|
|
| Viewing Direction |
ALL
|
|
| Gray Scale Inversion Direction |
-
|
|
| Mechanical Characteristics | Outline Dimensions (W x H x T) (mm) |
73.03*76.48*2.34
|
| Active Area (mm) |
70.13*70.13
|
|
| CTP View Area (mm) |
/
|
|
| With / Without Touch screen |
Without CTP
|
|
| Connector Type |
0.5 PITCH 40PIN
|
|
| Backlight Type |
LED
|
|
| Weight (g) |
TBD
|
|
| Electrical Characteristics | Display Interface |
3SPI+18RGB
|
| Number of color |
262K
|
|
| Display Driver IC |
ST7701S
|
|
| Environmental Characteristics | Operating Temperature | -20 to 70 ℃ |
| Storage Temperature | -30 to 80 ℃ | |
| Optical Characteristics | Contrast Ratio | 900 |
| Luminance | 350 cd/m² |

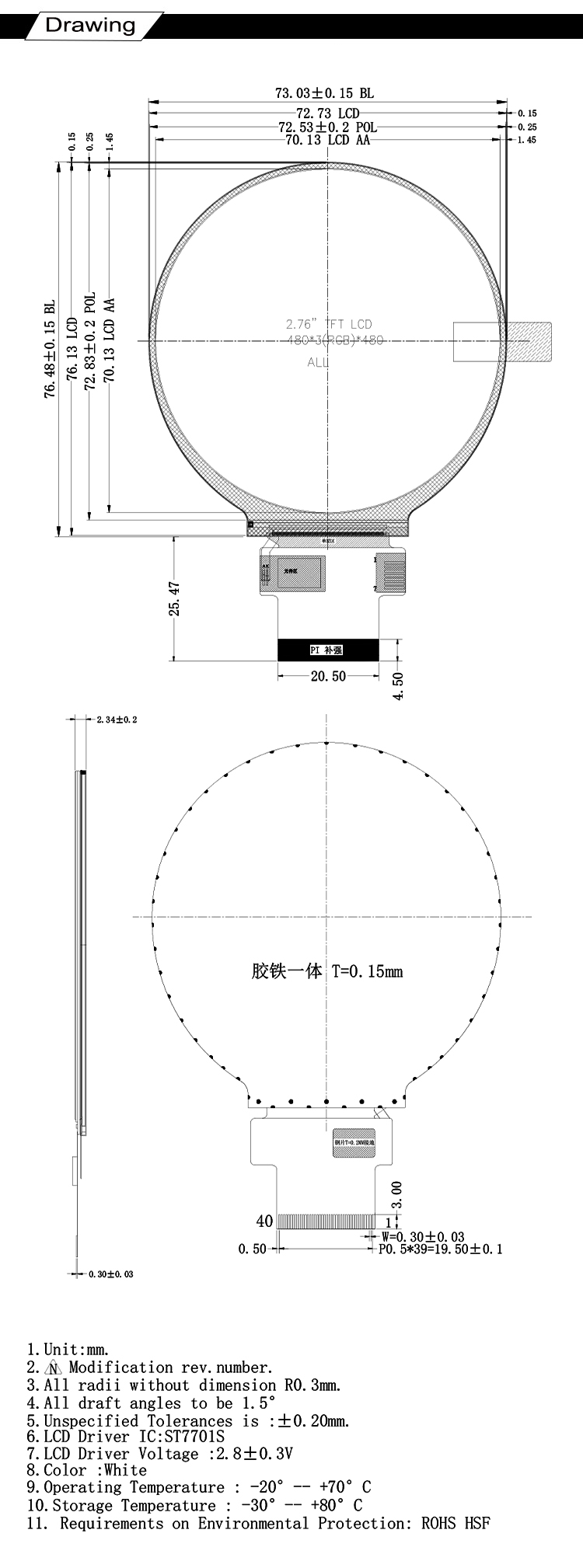

DRAWING

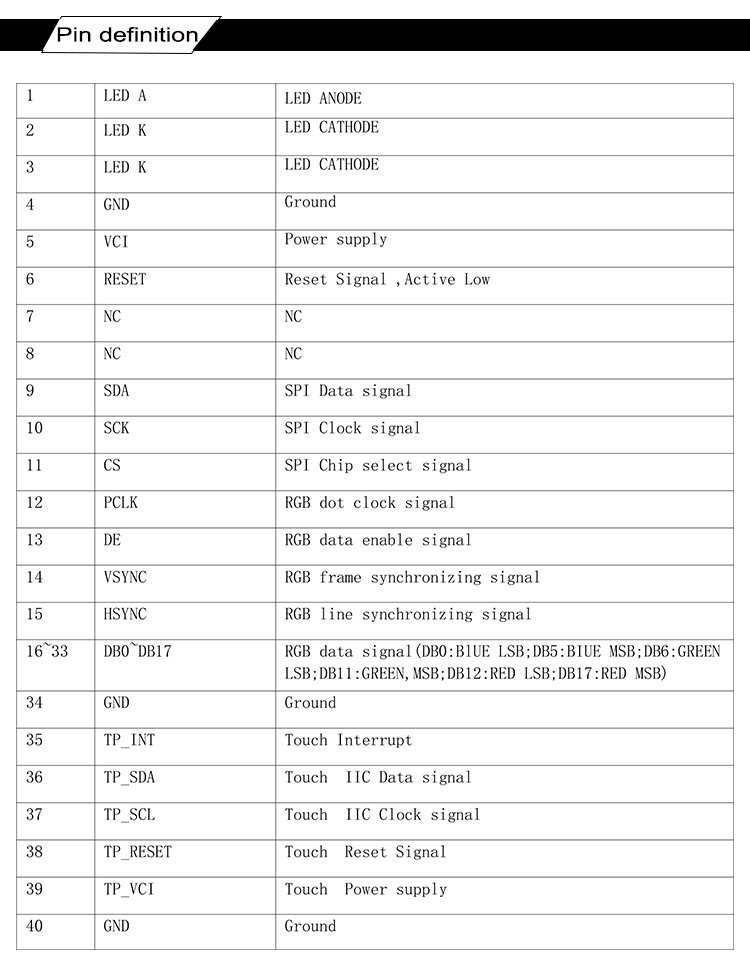

INTERFACE PIN FUNCTION
480×480 IPS Panel, 350 Nits Brightness — Stable optical performance for demanding applications
Integrated HDMI Driver Board — Reduces your integration time and R&D cost
Customizable — Brightness, touch, connector, and interface (HDMI/MIPI/SPI) can be tailored to your project
Flexible MOQ — From sample orders to mass production runs
Fast Lead Time & Stable Supply Chain — In-house production ensures on-time delivery
Technical Support Included — Datasheet, wiring diagram, and firmware guidance provided
uality Assurance — [ISO/RoHS/CE
