1.03"

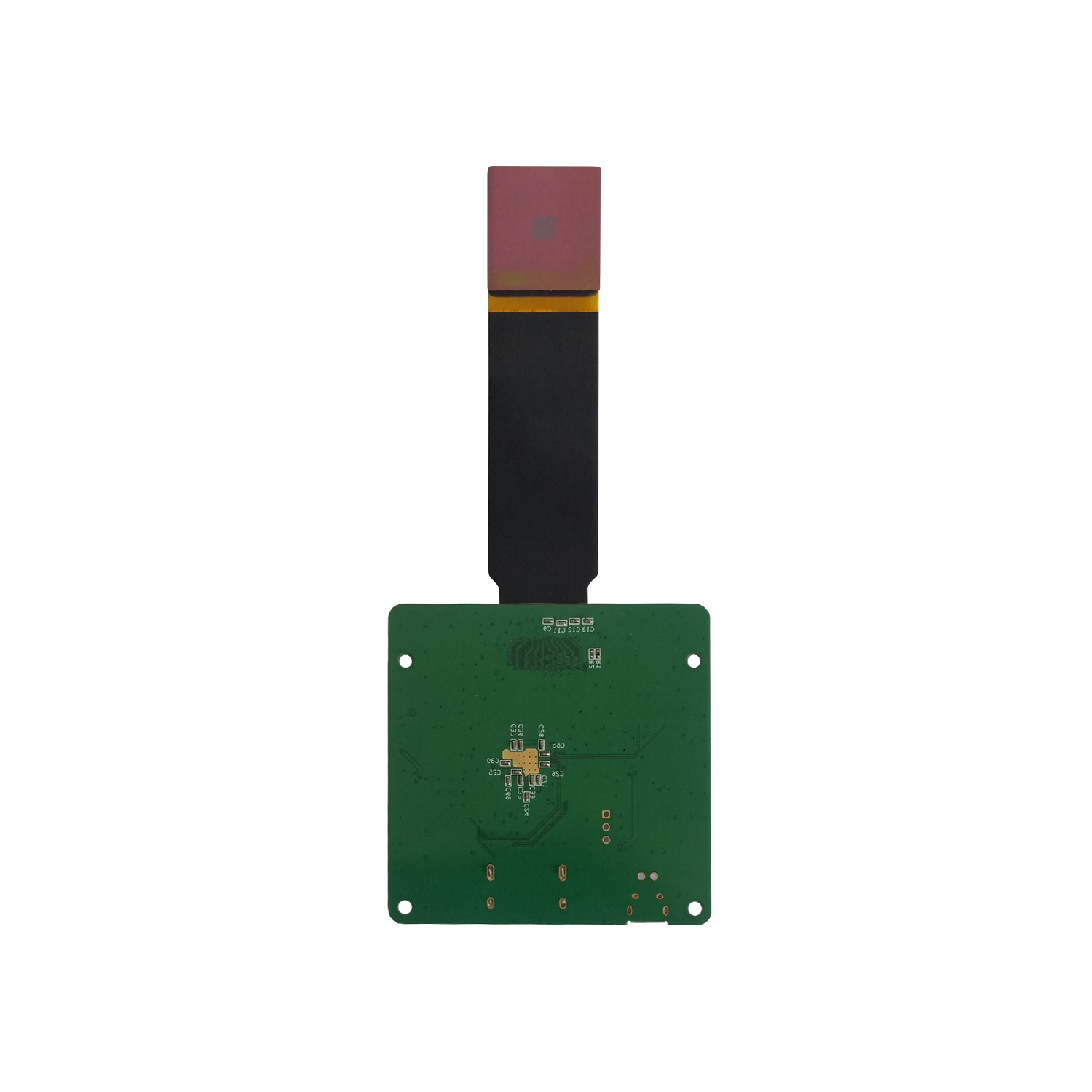

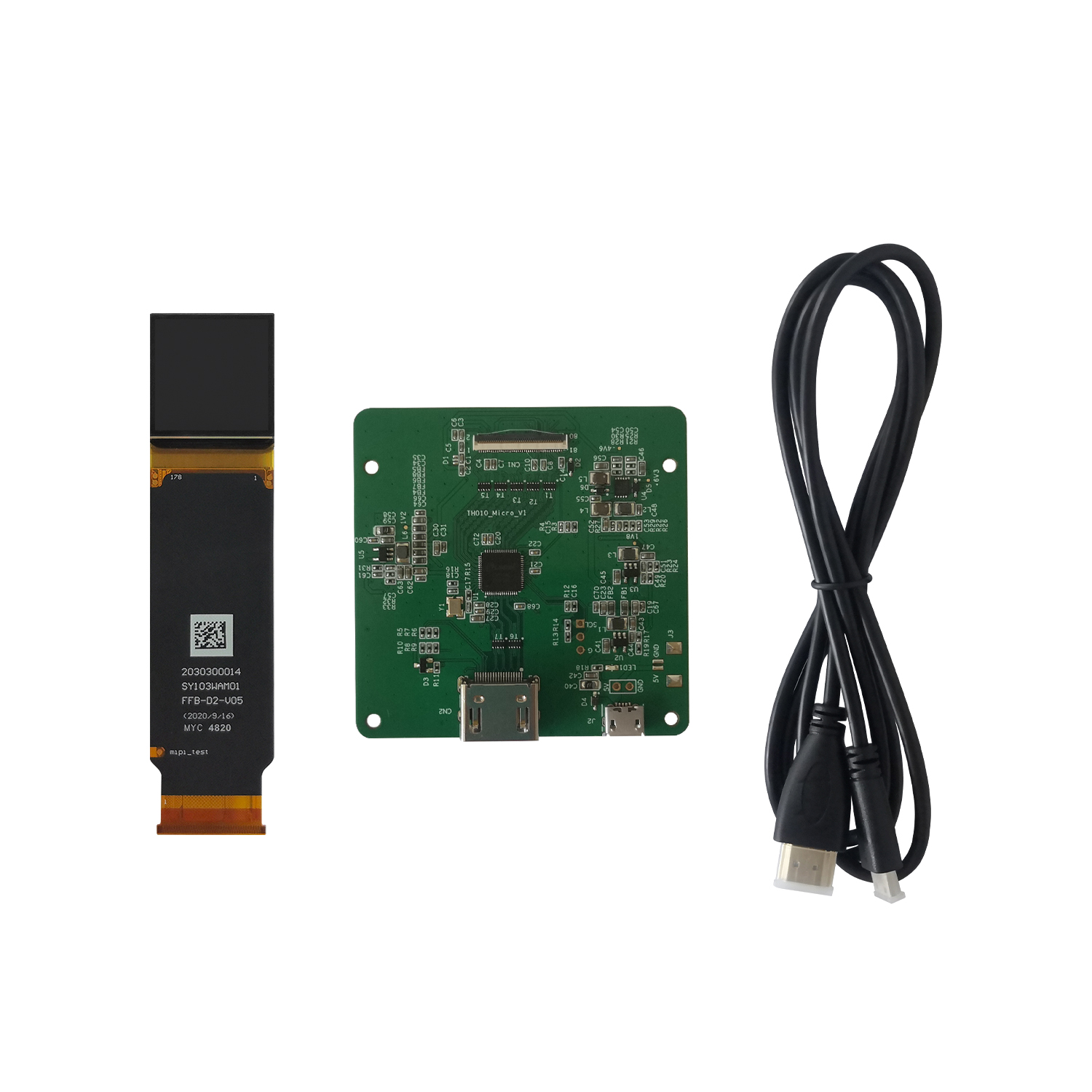

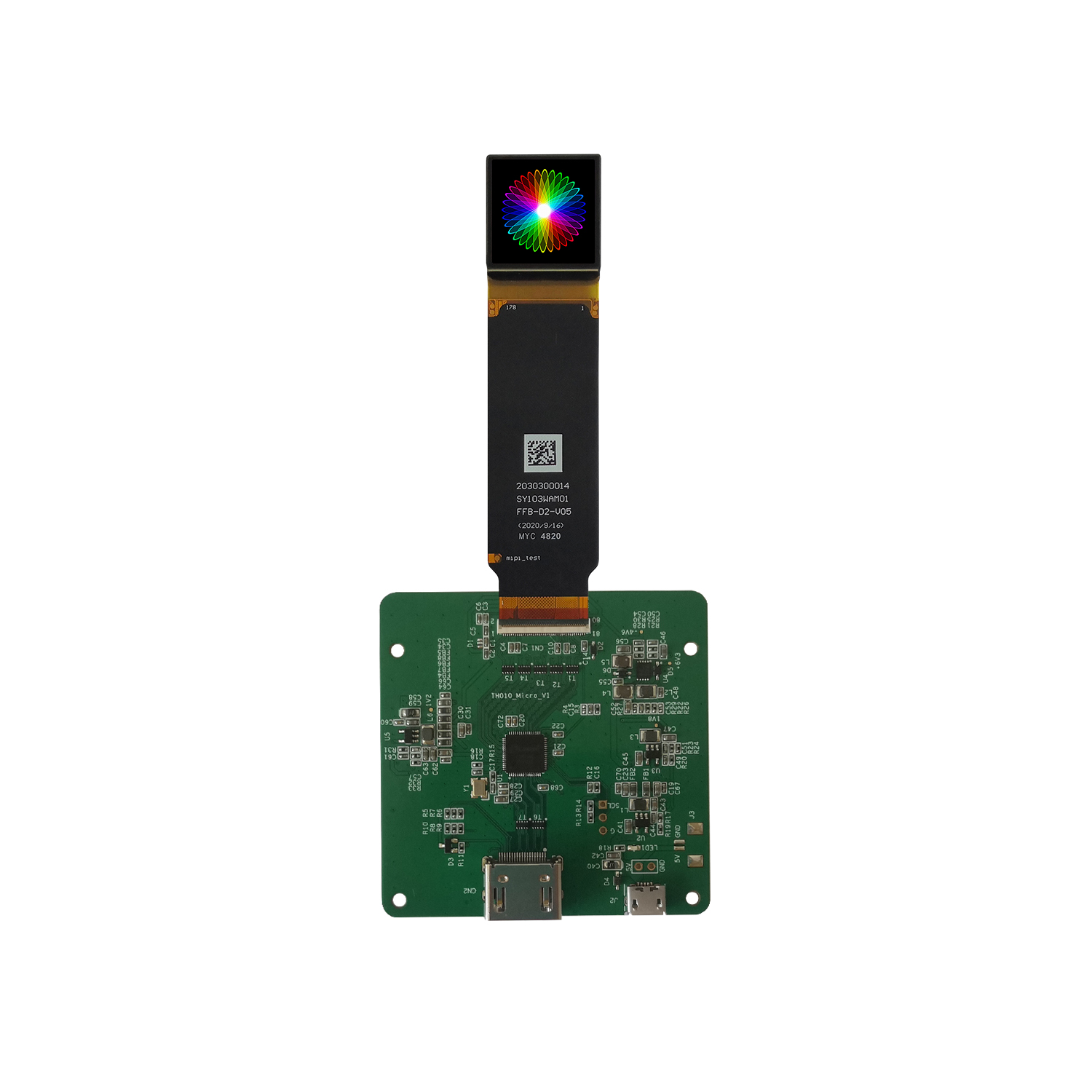

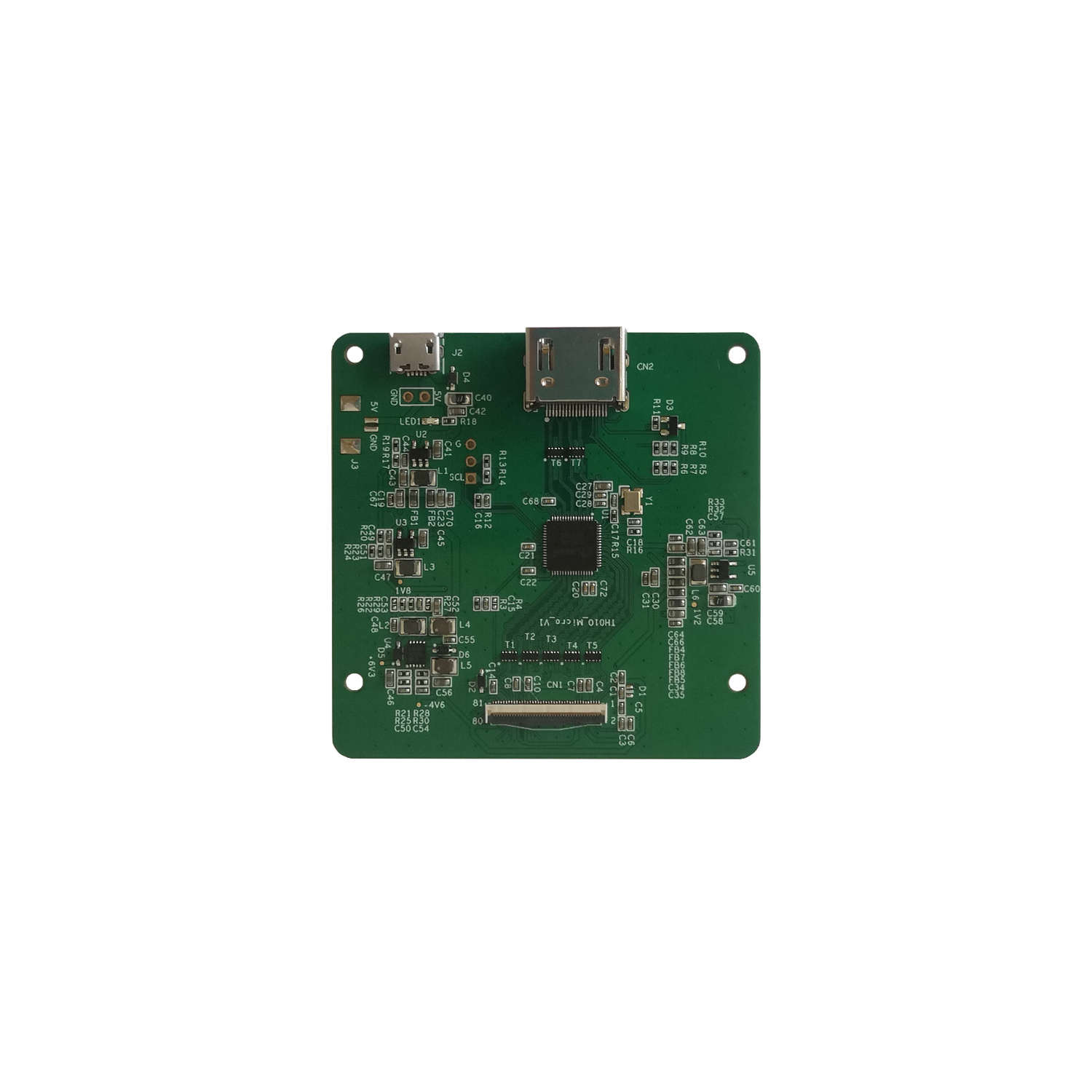

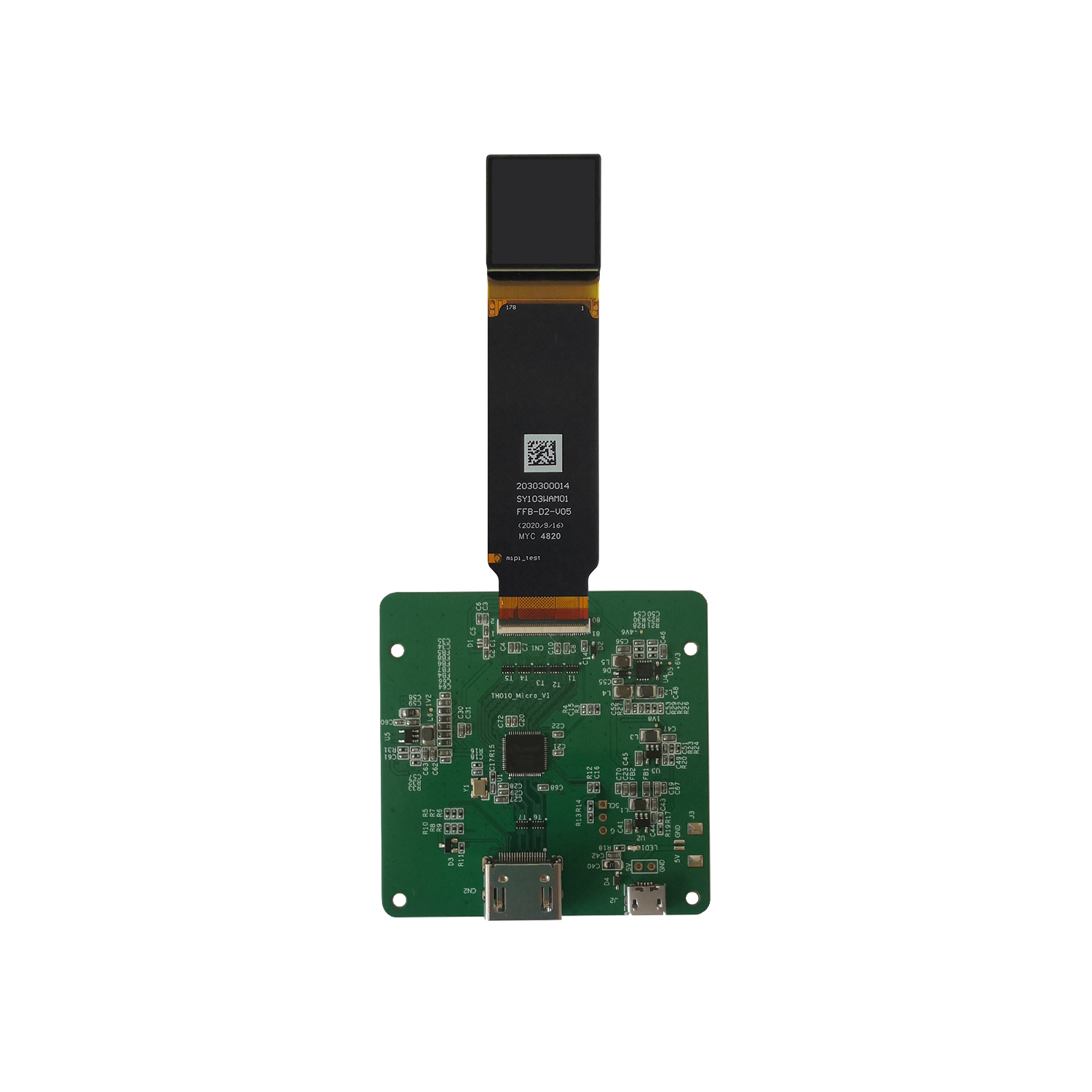

  • 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI
  • 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI
  • 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI
  • 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI
  • 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI
  • 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI
1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI 1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI

1.03 inch AMOLED Microdisplay,2560(RGB)X2560, HDMI BoardI

  • Display Size:1.03
  • Resolution:2560(RGB)X2560
  • Interface: MIPI (1-port C-PHY/2-port D-PHY)
  • Brightness:1500cd/m² typical
  • Product description: 1.03 inch high resolution micro oled display 2560*2560 mipi dsi interface oled with HDMI board
  • INQUIRY

1.03 inch AMOLED Microdisplay,2560(RGB)X2560, MIPI


DESCRIPTION


1.03 inch high resolution micro oled display 2560*2560 mipi dsi interface oled with HDMI board





SPECIFICATIONS





General Specification



Display Type AM-OLED, OLED Display Brand -
Interface Screen Size 1.03
Orientation Landscape Display Color Full Color
Manufacturer
Resolution

2560 (RGB

)×2560

Driver IC

Bezel Area(mm) -
Luminance 3000 cd/m² (Typ.) Viewing Angle -55。~55。
Color Depth
Mass -
Refresh Rate - Signal Type

RGB

Voltage Supply - Operating Temp -30 ~ 70 °C
Storage Temp -40 ~ 85 °C Aspect Ratio 16:9 (H:V)
Mode Name HG103OLED
Screen Type AM-OLED/OLED
Arrangement - Outline(mm) -
Treatment - Response -
Work Mode - Backlight No B/L
Used For AR Glass/Telescope/Gunsight/Thermal imager Touch Panel none
Contrast Ratio >500,000 : 1 Outdoor Visibility

Sunlight

readable
