1.03 inch AMOLED Microdisplay,2560(RGB)X2560, MIPI

  • Display Size:1.03
  • Resolution:2560(RGB)X2560
  • Interface: MIPI (1-port C-PHY/2-port D-PHY)
  • Brightness:3000cd/m² typical

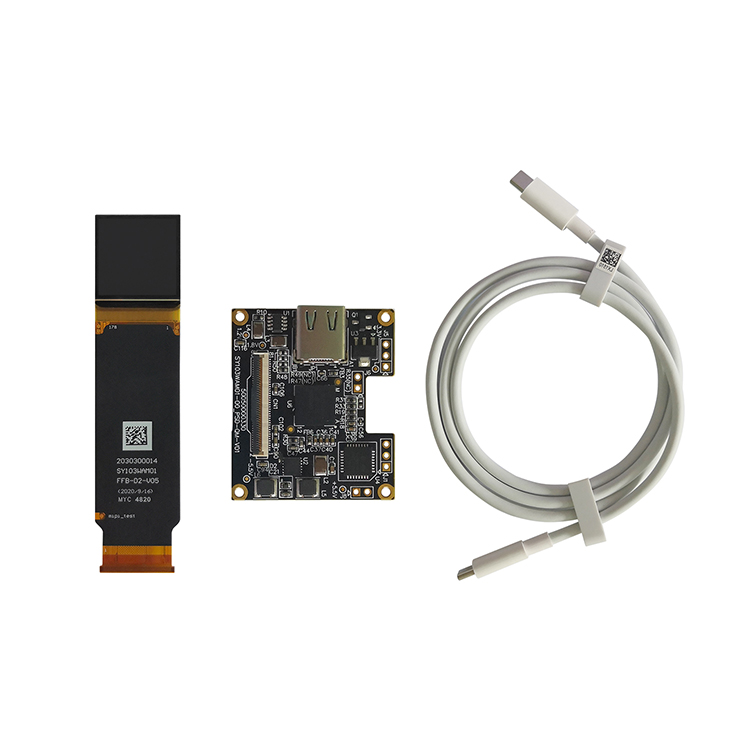

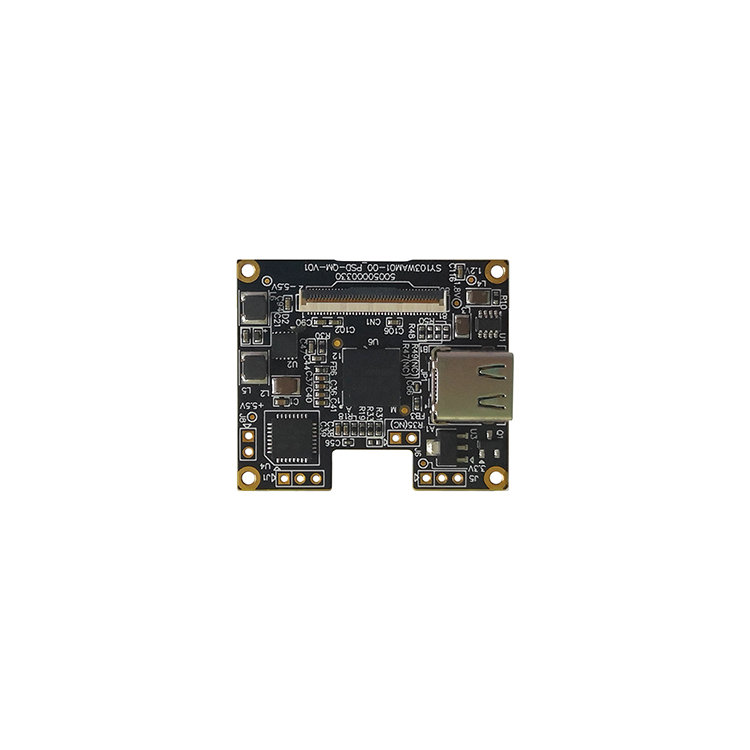

  • Product description: 1.03 inch high resolution micro oled display 2560*2560 mipi dsi interface oled with HDMI board
  • INQUIRY

1.03 inch AMOLED Microdisplay,2560(RGB)X2560, MIPI


DESCRIPTION


1.03 inch high resolution micro oled display 2560*2560 mipi dsi interface oled with HDMI board





SPECIFICATIONS





General Specification



Display Type AM-OLED, OLED Display Brand -
Interface Screen Size 1.03
Orientation Landscape Display Color Full Color
Manufacturer
Resolution

2560 (RGB

)×2560

Driver IC

Bezel Area(mm) -
Luminance 3000 cd/m² (Typ.) Viewing Angle -55。~55。
Color Depth
Mass -
Refresh Rate - Signal Type

RGB

Voltage Supply - Operating Temp -30 ~ 70 °C
Storage Temp -40 ~ 85 °C Aspect Ratio 16:9 (H:V)
Mode Name HG103OLED
Screen Type AM-OLED/OLED
Arrangement - Outline(mm) -
Treatment - Response -
Work Mode - Backlight No B/L
Used For AR Glass/Telescope/Gunsight/Thermal imager Touch Panel none
Contrast Ratio >500,000 : 1 Outdoor Visibility

Sunlight

readable
