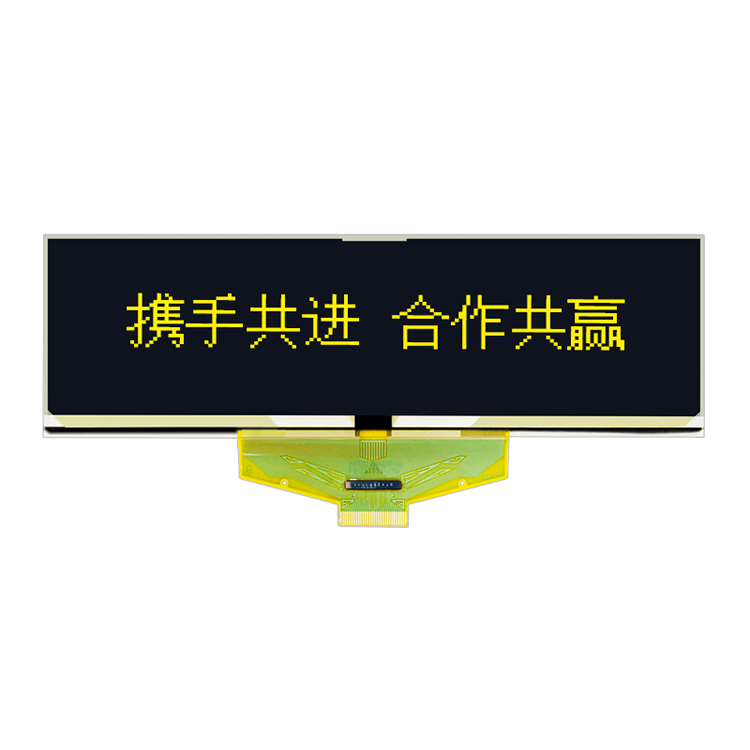

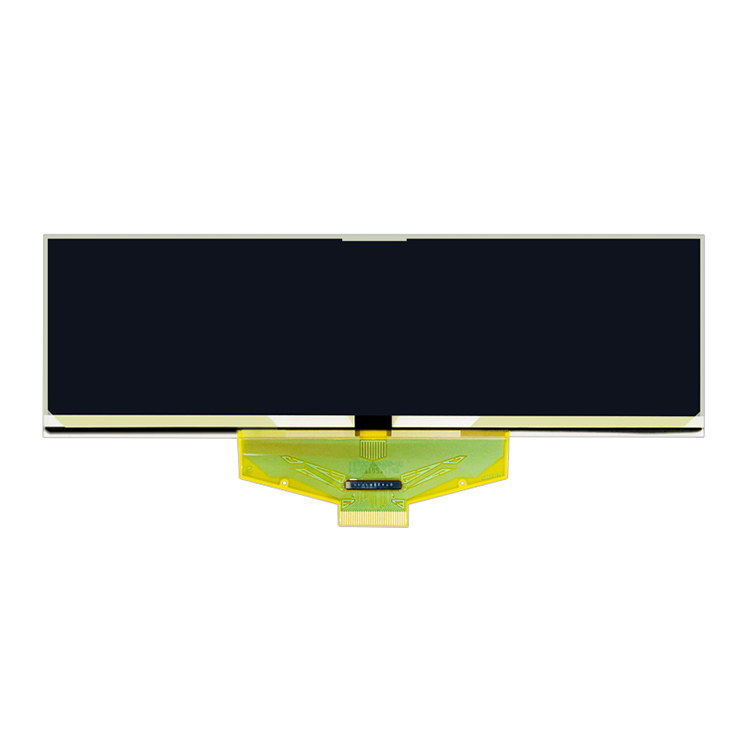

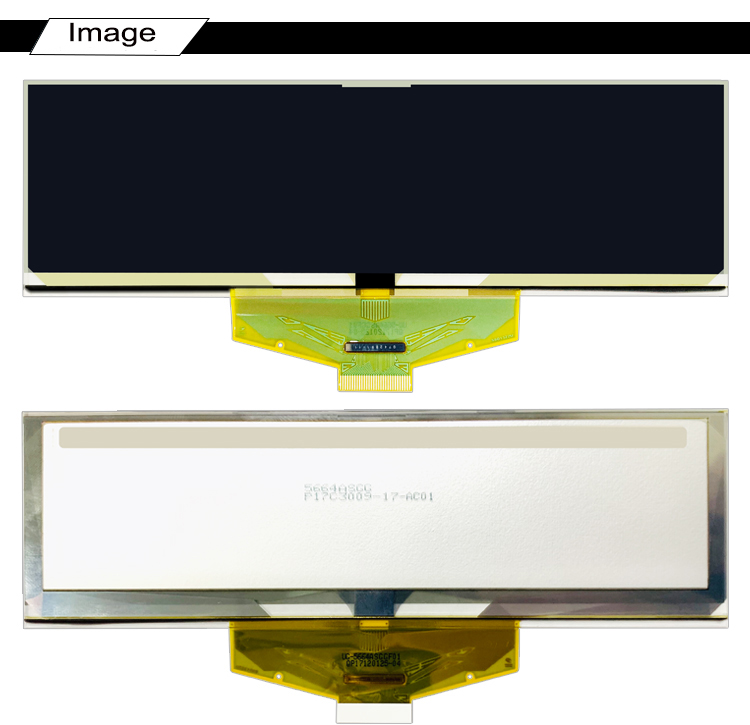

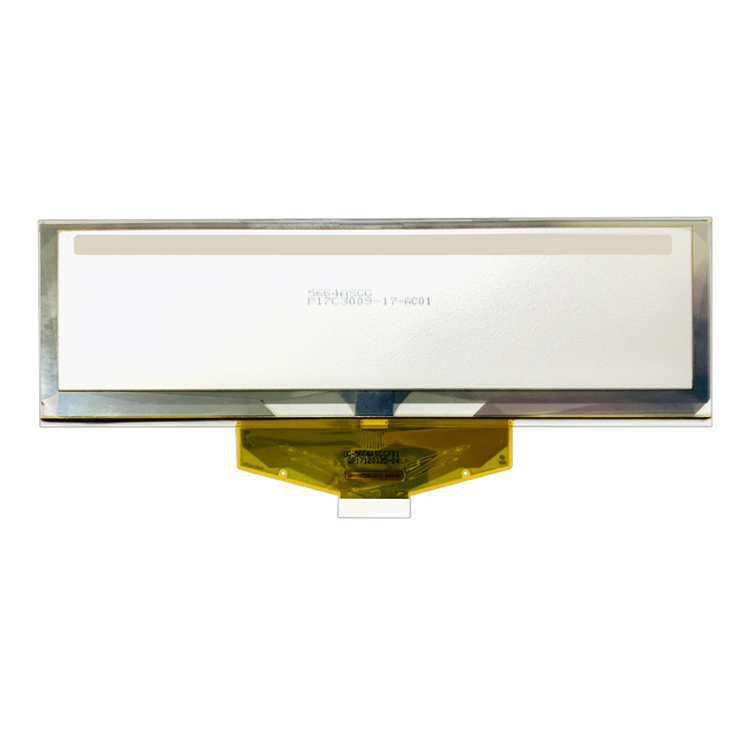

DESCRIPTION

HICENDA OLED 5.5 is a  passive matrix micro OLED display module which is made of 256X64 dots. It has the module dimension of 146.0 × 65.0 × 2.00 mm and Active Area size 135.65 × 33.89 mm. This OLED micro display is built in with SSD1322 IC, it supports  6800/8080/SPI interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 5.5 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

GENERAL SPECIFICATION

Display Type:	oled display  (White/Yellow/GREEN/BLUE)
Display Mode:	Passive Matrix
Model Number:	HT-5664ASGGF01
Diagonal Screen size:	5.5 inch
Interface:	6800/8080/4-Wires SPI 30P (Connector)
Drive Duty:	1/64 Duty
Number of Pixels:	256X64
Panel Size	146.0 × 65.0 × 2.00  (mm)
Driver IC:	SSD1322
Active Area:	135.65 × 33.89(mm)
Pixel Pitch:	0.53 × 0.53 (mm)
Pixel Size:	0.50 × 0.50 (mm)
Weight:	27.1 (g)
Operating Temperature:	-40~85°

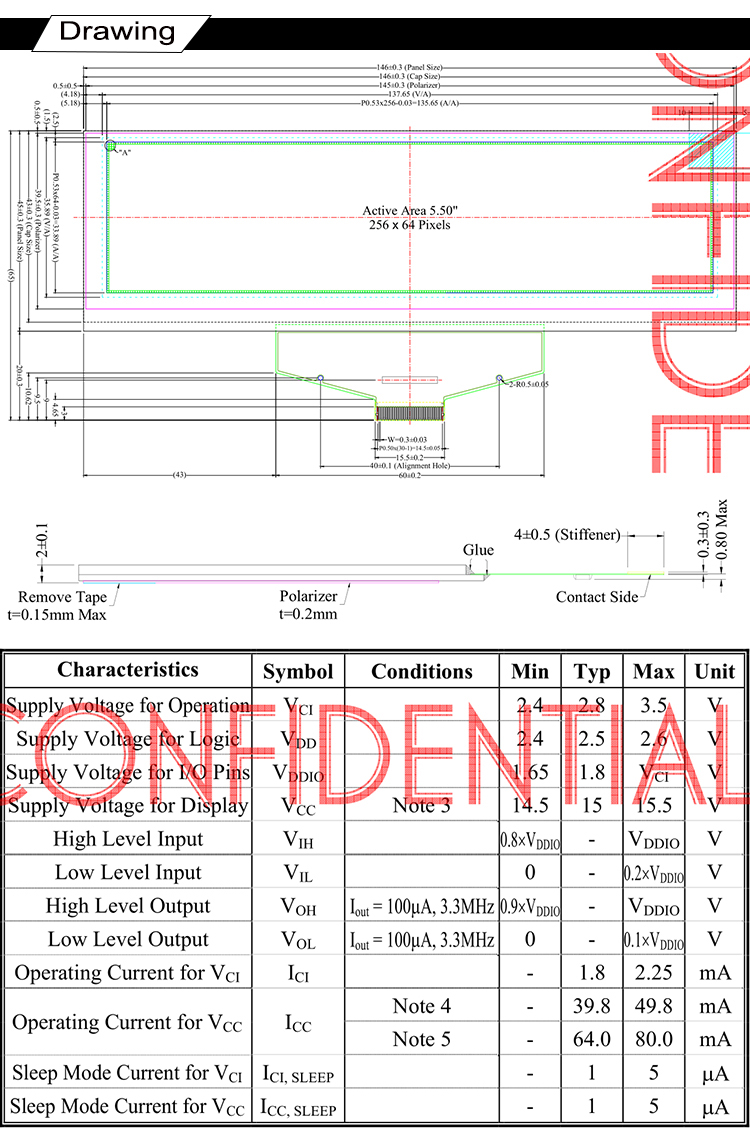

DRAWING

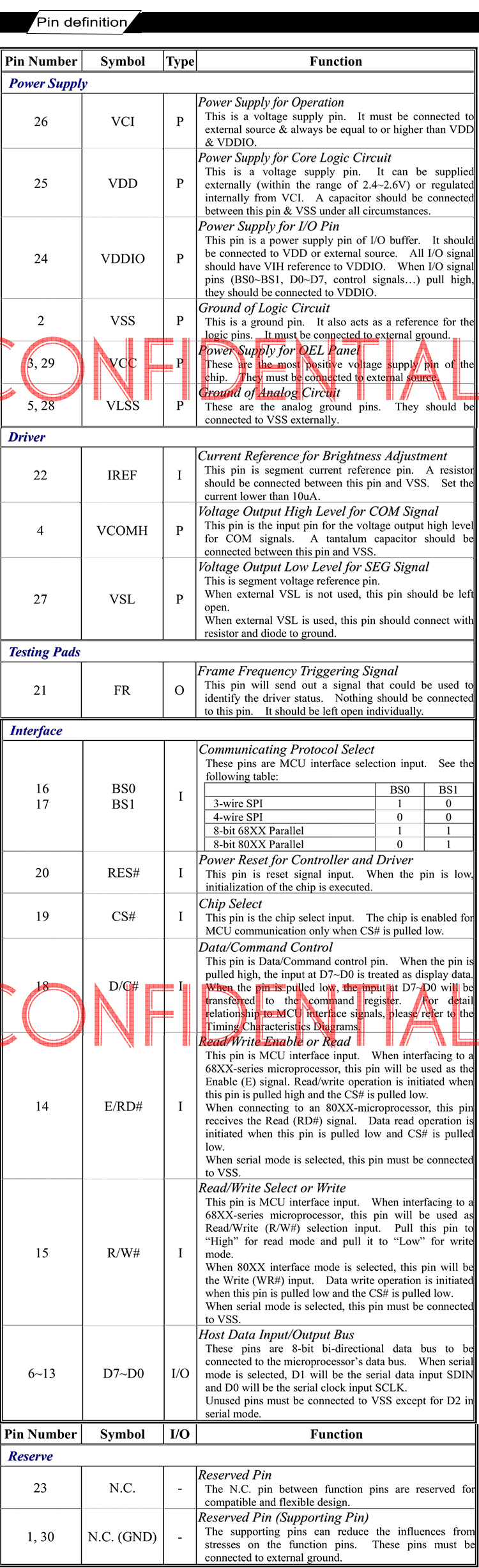

INTERFACE PIN FUNCTION
