12.6

OLED Display 12.6 inch 2K AMOLED screen 1600x2560

OLED Display 12.6 inch 2K AMOLED screen 1600x2560

OLED Display 12.6 inch 2K AMOLED screen 1600x2560

OLED Display 12.6 inch 2K AMOLED screen 1600x2560

OLED Display 12.6 inch 2K AMOLED screen 1600x2560

OLED Display 12.6 inch 2K AMOLED screen 1600x2560

OLED Display 12.6 inch 2K AMOLED screen 1600x2560

OLED Display 12.6 inch 2K AMOLED screen 1600x2560

Size:12.6"
Interface：MIPI 4 lanes
Resolution: 1600RGBx2560
Display color：16.7M (RGB x 8bits)
Product description: 12.6 inch 2K AMOLED Display 1600X2560 OLED screen
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA HAM1260QBC75.A uses an organic light emitting diode display (OLED) . This 2k AMOLED display module is 12.6 inch in Diagonal, has a high resolution of 1600x2560 pixels and can display up to

16.7M (RGB x 8bits)

.

Features

1)Display color：16.7M (RGB x 8bits)

2)Display format：12.6” (1600RGBx2560)

3)Pixel arrangement：Real RGB

4)Interface：MIPI 4 lanes

5)Collocation IC：RM69380 (COF) / RM692E6

Potential applications

Tablet PC

Notebook PC

GENERAL SPECIFICATION

Display Type:	amoled display
Display Mode:	COLOR AMOLED
Model Number:	HAM1260QBC75.A
Diagonal Screen size:	12.6 inch
Interface:	MIPI 4 lanes
Surface treatment:	Glare
Number of Pixels:	1600RGBx2560
Pixel Arrangement	RGB Stripe Type
Driver Element:	RM69380 (COF) / RM692E6
Active Area:	271.4112 x 169.632
Pixel Pitch:	106.02 × 106.02um
Display Colors:	16.7M (RGB x 8bits)
Thickness of glass	0.3 / 0.3
Weight:	167.54g

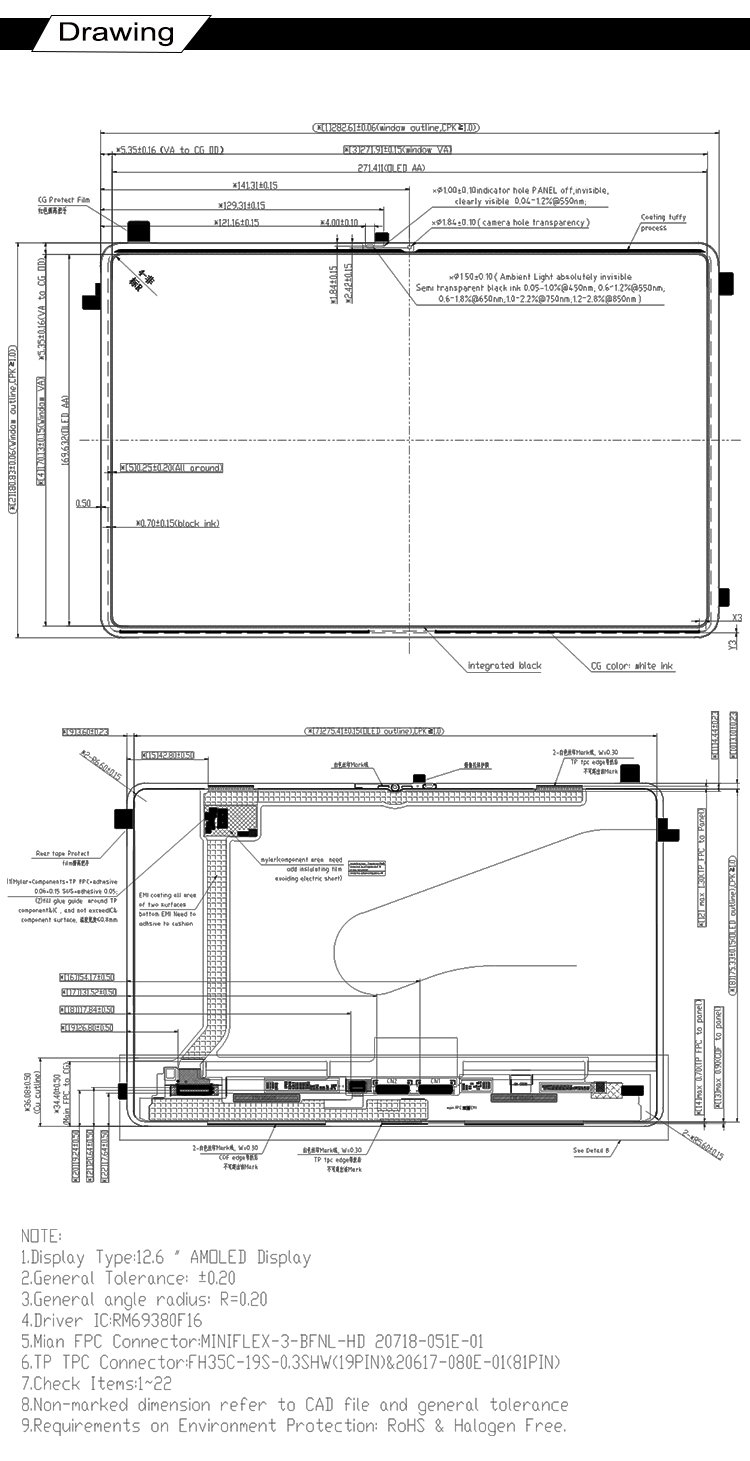

DRAWING

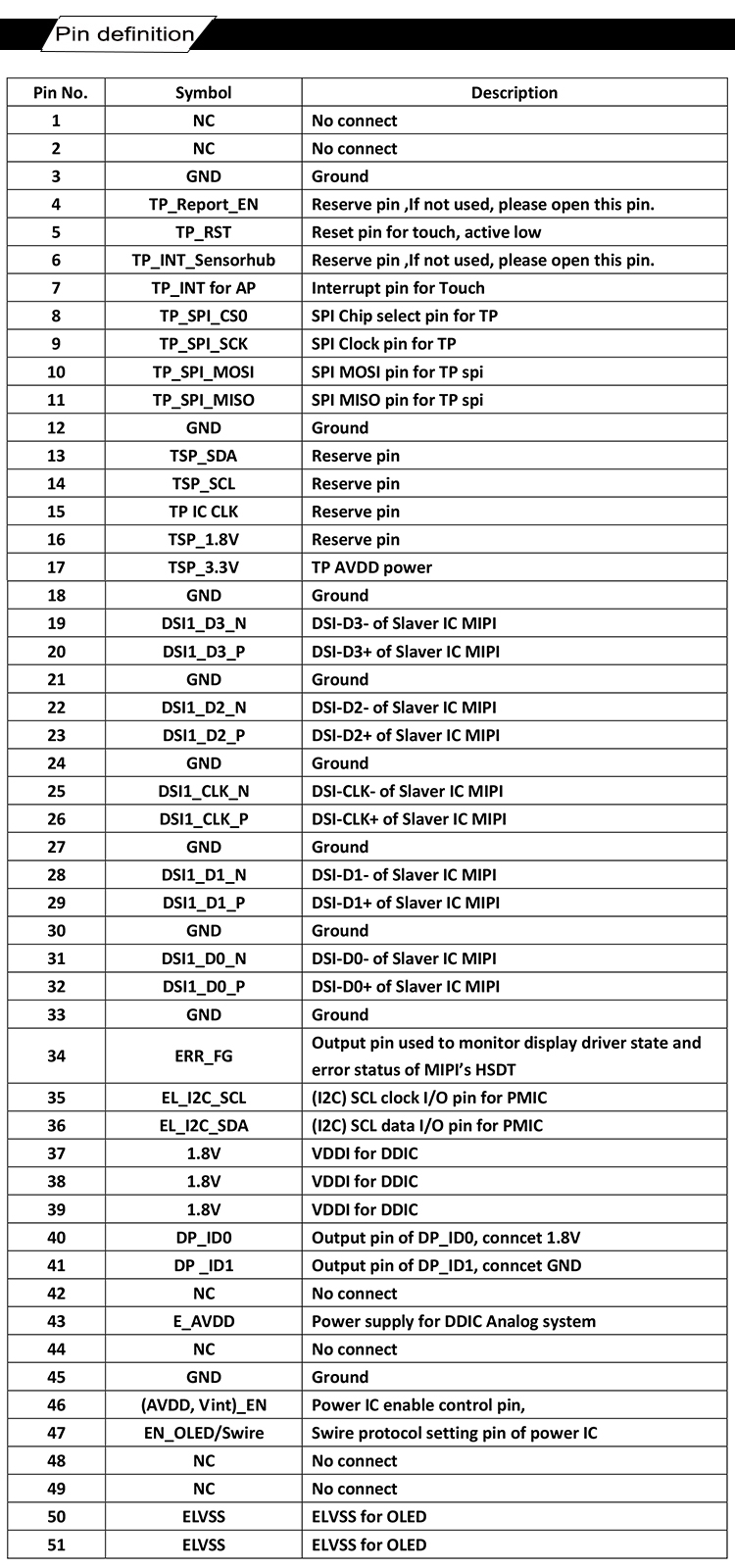

Pin definition:

PREVIOUS：Flexible Display 8 inch 2K 2480X1860 curved AMOLED display touch panel NEXT：2.4 inch AMOLED Display 450x600 with touch panel
