Please kindly contact us for full data sheet of the display.

DESCRIPTION

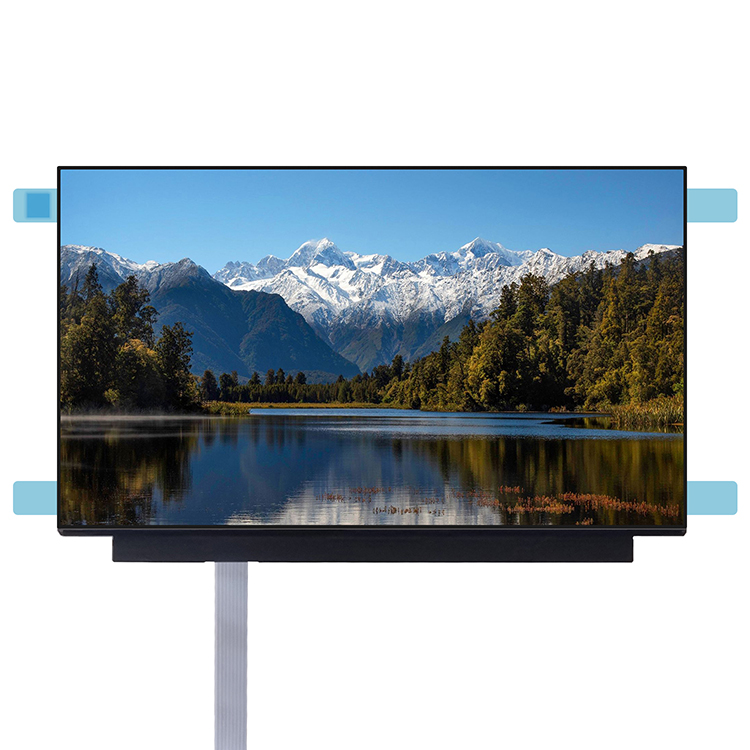

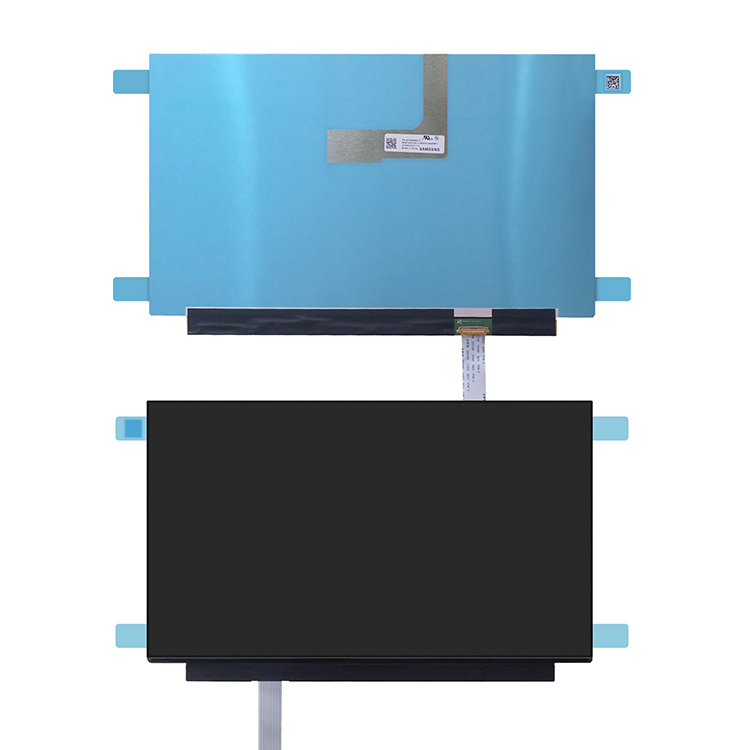

HICENDA  HTNA33XC11-0 uses an organic light emitting diode display (OLED) that uses low temperature poly silicon TFTs as switching components. This model is composed of a TFT OLED panel, a driver circuit.This 13.3” model has a resolution of 1920 x 1080 pixels and can display up to 1,074M colors.

Features

eDP(V1.4b)

Potential applications

GENERAL SPECIFICATION

Display Type:	amoled  display
Display Mode:	COLOR AMOLED
Model Number:	HTNA33XC11-0
Diagonal Screen size:	13.3 inch
Interface:	eDP
Surface treatment:	Glare
Number of Pixels:	1080(RGB)*1920
Pixel Arrangement	RGB Stripe Type
Driver Element:	LTPS TFT active matrix
Active Area:	293.76 (H) x 165.24 (V) (13.3”diagonal)
Pixel Pitch:	153 x 153 um
Display Colors:	1,074M(RGB 8bit+2FRC)
Thickness of glass	0.816
Environmental safe regulation:	Pb Free, Halogen Free

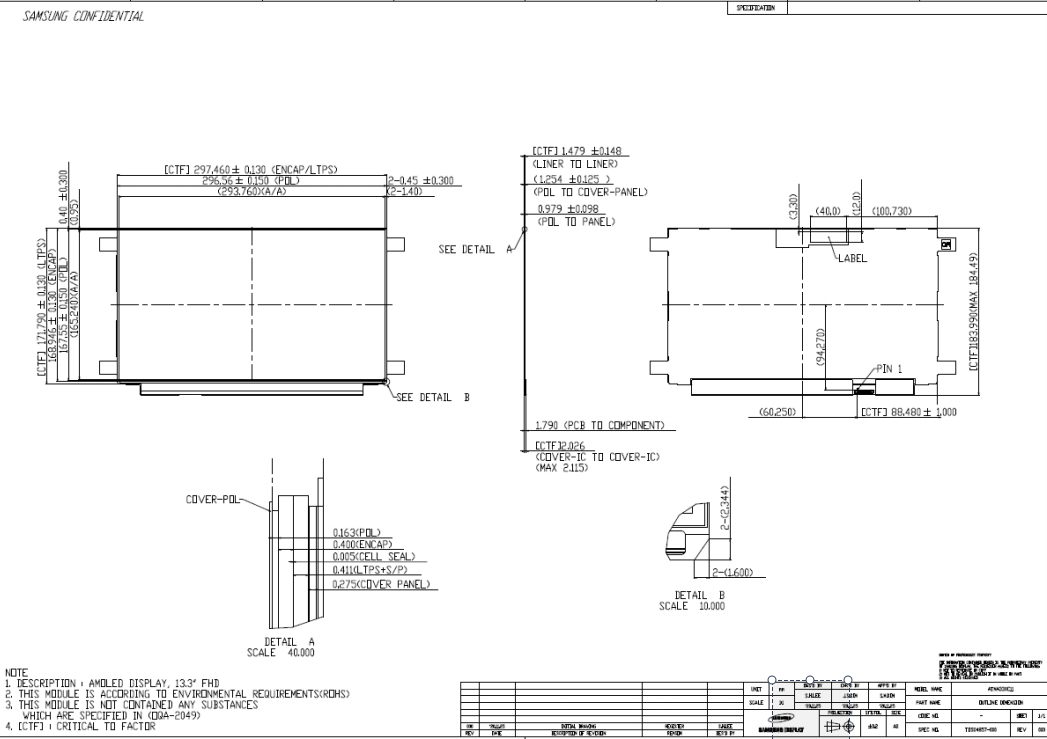

DRAWING
