Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA 1280(RGB)X720 FLCOS  micro display is a high-resolution, High light-emitting OLED micro display based on a CMOS backplane that also has a standard video interface.The display integrates a panel drive unit and a logic drive unit, while using low power consumption and RGB interface.

This product has high contrast, high consistency and highlight performance.

GENERAL SPECIFICATION

Display Type:	flcos display
Display Mode:	Field sequential color
Model Number:	flcos038
Diagonal Screen size:	0.38 Inch
Interface:	YCbCr(4:2:2)-parallel (16 data, Hd, Vd,Clock)
Number of Pixels:	1280(RGB)X720
Panel Size:	9.693mm (0.38'')(mm)
Active Area:	8.448 x 4.752mm (mm)
Weight:	TBD
Operating Temperature:	-10~70°

DRAWING

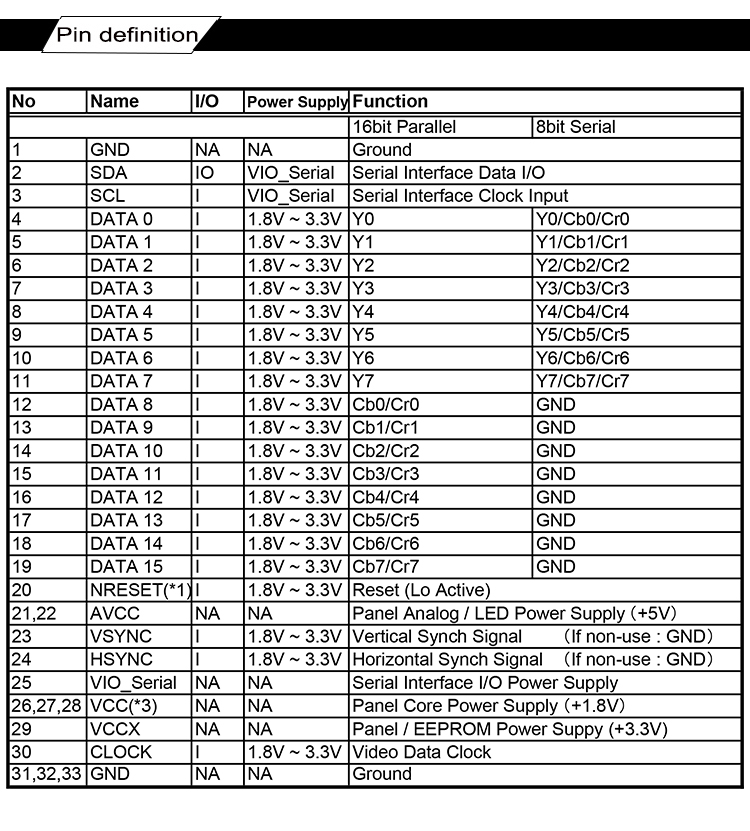

INTERFACE PIN FUNCTION
