3.7

E-Ink Display 3.7 inch E-Paper Module 240×416

E-Ink Display 3.7 inch E-Paper Module 240×416

E-Ink Display 3.7 inch E-Paper Module 240×416

E-Ink Display 3.7 inch E-Paper Module 240×416

E-Ink Display 3.7 inch E-Paper Module 240×416

E-Ink Display 3.7 inch E-Paper Module 240×416

E-Ink Display 3.7 inch E-Paper Module 240×416

Size:3.7 Eink
Controller IC:UC8253C
Resolution:240(H)×416(V)
Interface:4-wire SPI or 3- wire SPI i

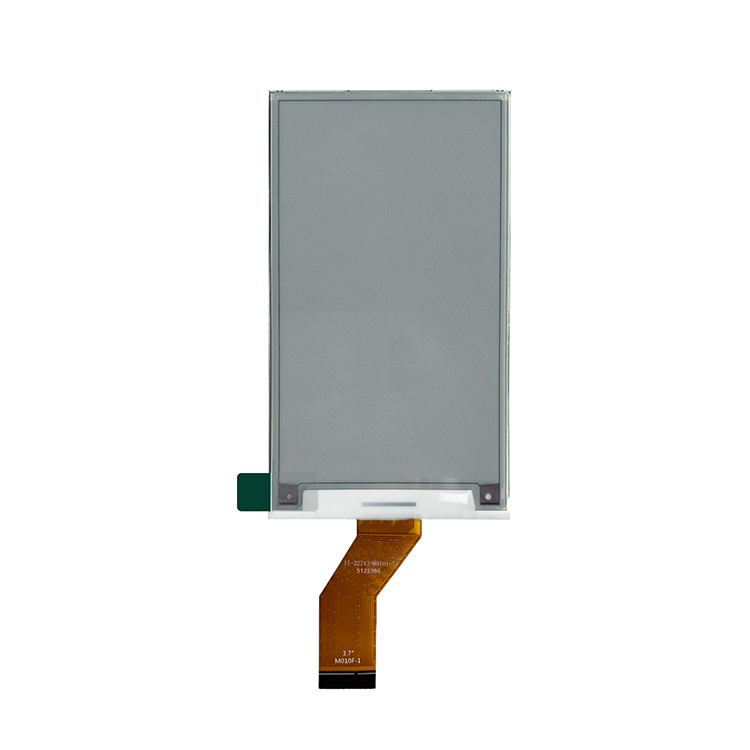

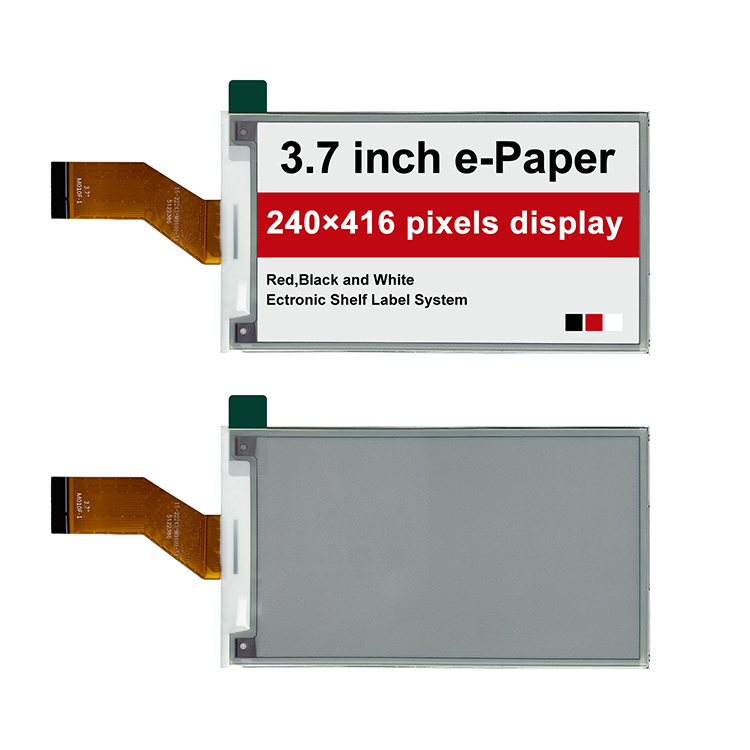

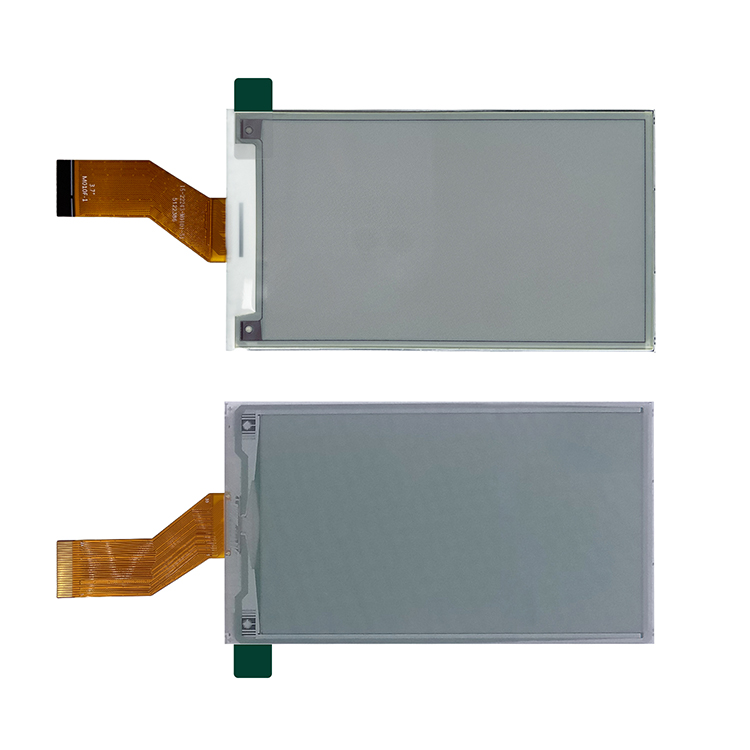

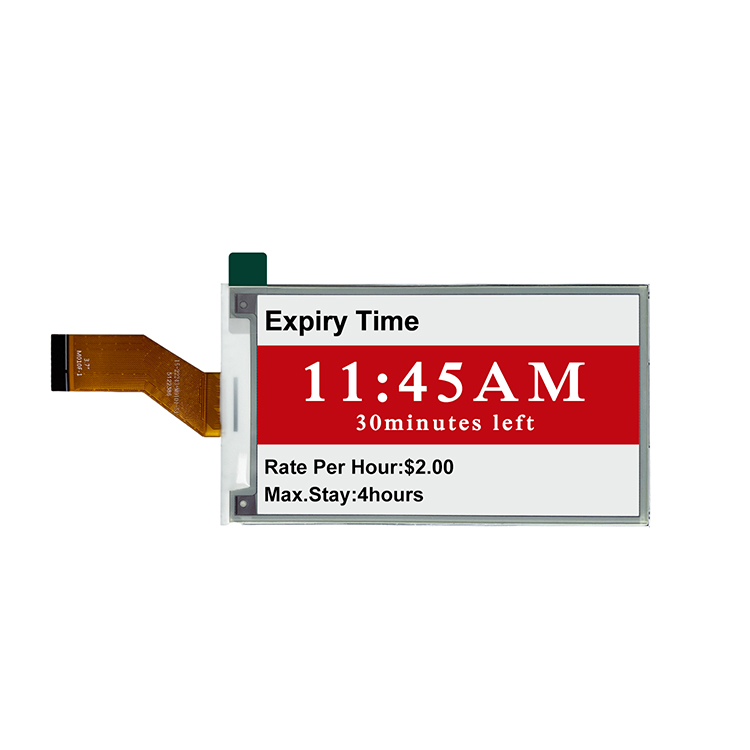

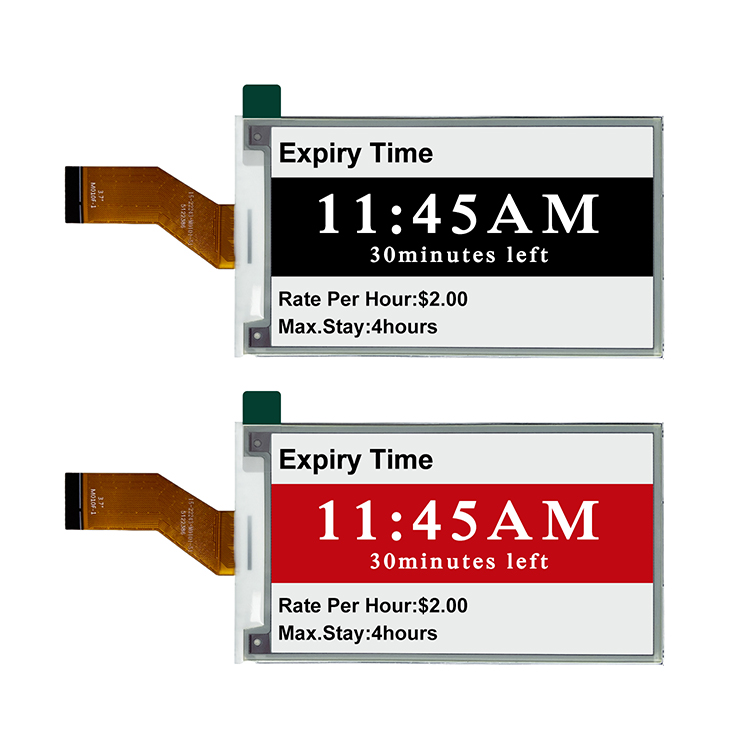

Product description: E-Ink Display 3.7 inch E-Paper Module 240×416
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA HE010F is an Active Matrix Electrophoretic Display (AMEPD),with interface and a reference

system design.The 3.7”active area contains 240×416pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

GENERAL SPECIFICATION

Display Type:	Eink display
Display Mode:	Active Matrix Electrophoretic Display
Model Number:	HE010F
Diagonal Screen size:	3.7 inch
Interface:	4-wire SPI or 3-wire SPI i
Number of Pixels:	240(H)×416(V)
Panel Size:	53(H)×92.99 (V) ×0.92(D)(mm)
Driver IC:	UC8253C
Active Area:	47.04(H)×81.54(V)(mm)
Display Mode:	EINK
Pixel Pitch:	0.202×0.203(mm)
Weight:	8.5±0.5(g)
Color:	Eink

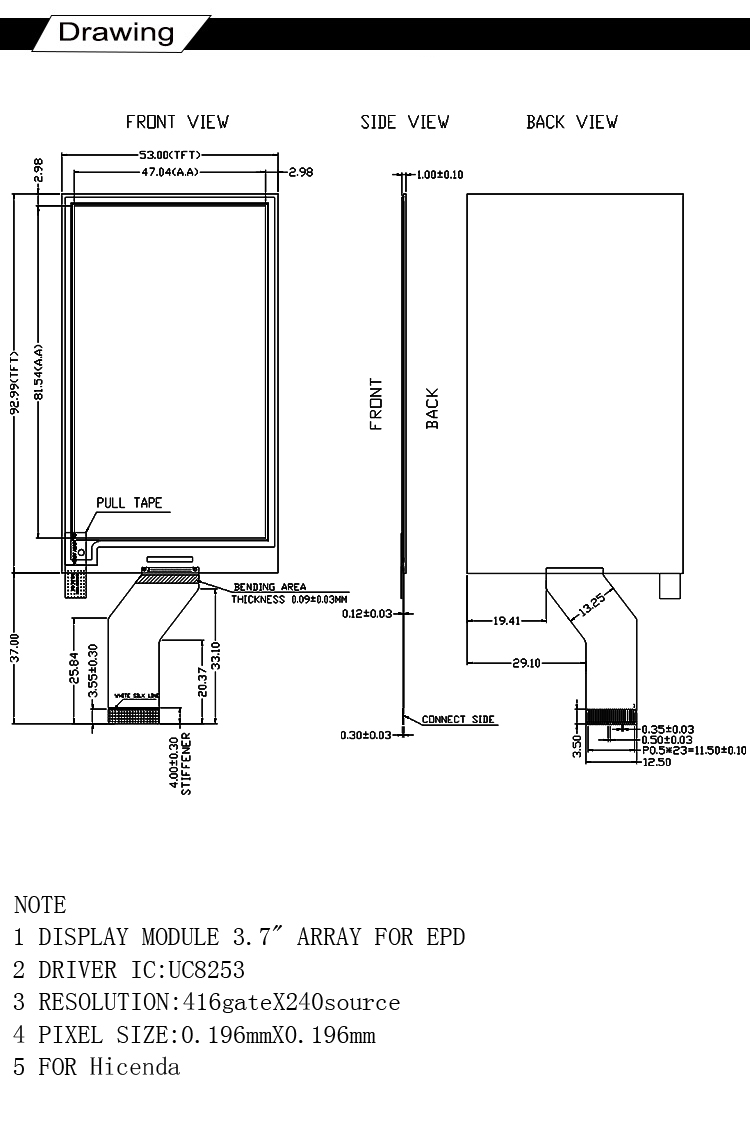

DRAWING

INTERFACE PIN FUNCTION
