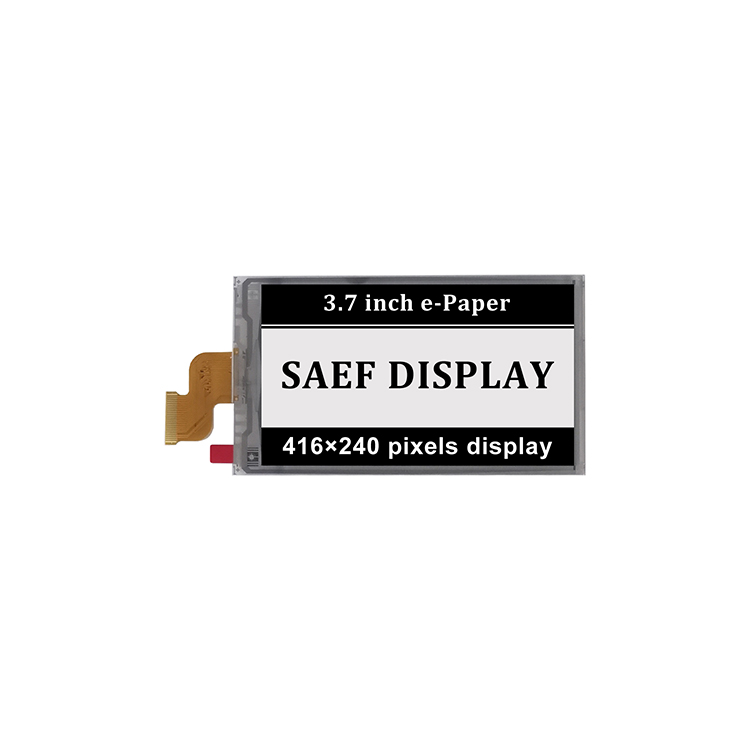

Eink display 3.7",240(H)×416(V) pixel

Size: 3.7
Controller IC: UC8253
Resolution:240(H)×416(V) pixel
Interface:I2C
Product description: Eink display 3.7",240(H)×416(V) pixel
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA HEDP0370BSU253F4 is an Active Matrix Electrophoretic Display (AM EPD), with interface

and a reference system design. The display is capable to display images at 1-bit white and black full

display capabilities.The 3.7inch active area contains 416×240 pixels. The module is a TFT-array

driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU

interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in

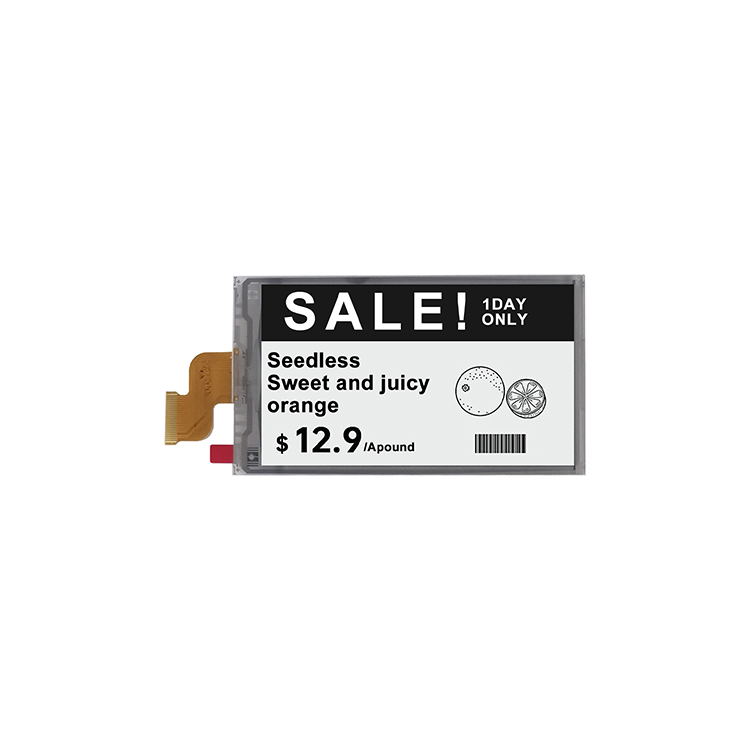

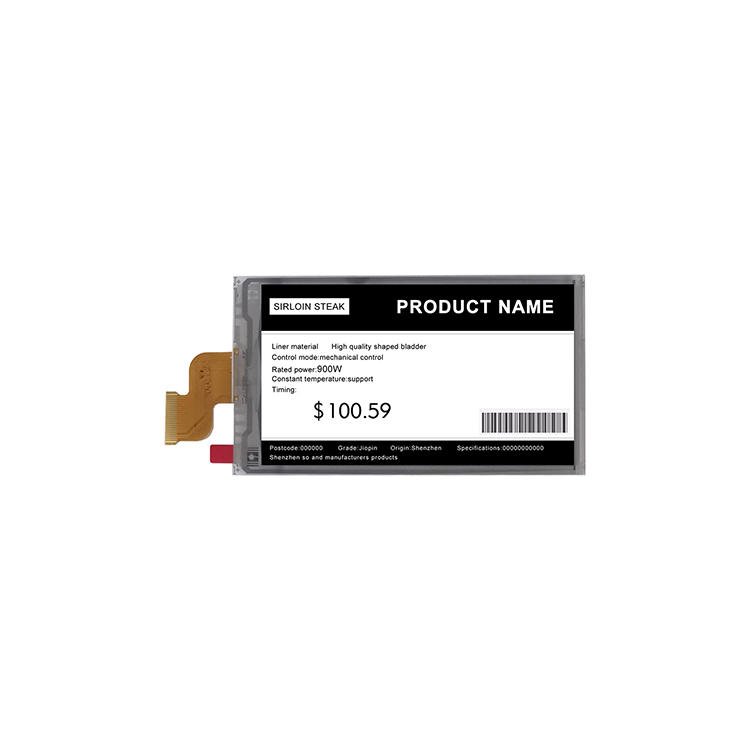

portable electronic devices, such as Electronic Shelf Label (ESL) System

GENERAL SPECIFICATION

Display Type:	Eink display
Display Mode:	Active Matrix Electrophoretic Display
Model Number:	HEDP0370BSU253F4
Diagonal Screen size:	3.7 inch
Interface:	I2C Interface
Number of Pixels:	416×240 pixels
Panel Size:	53(H)×92.99 (V) ×1.0(D) (mm)
Driver IC:	UC8253
Active Area:	47.04×81.54 (mm)
Display Mode:	EINK
Pixel Size:	0.196×0.196 (mm)
Weight:	8.88±0.5(g)
Color:	Eink

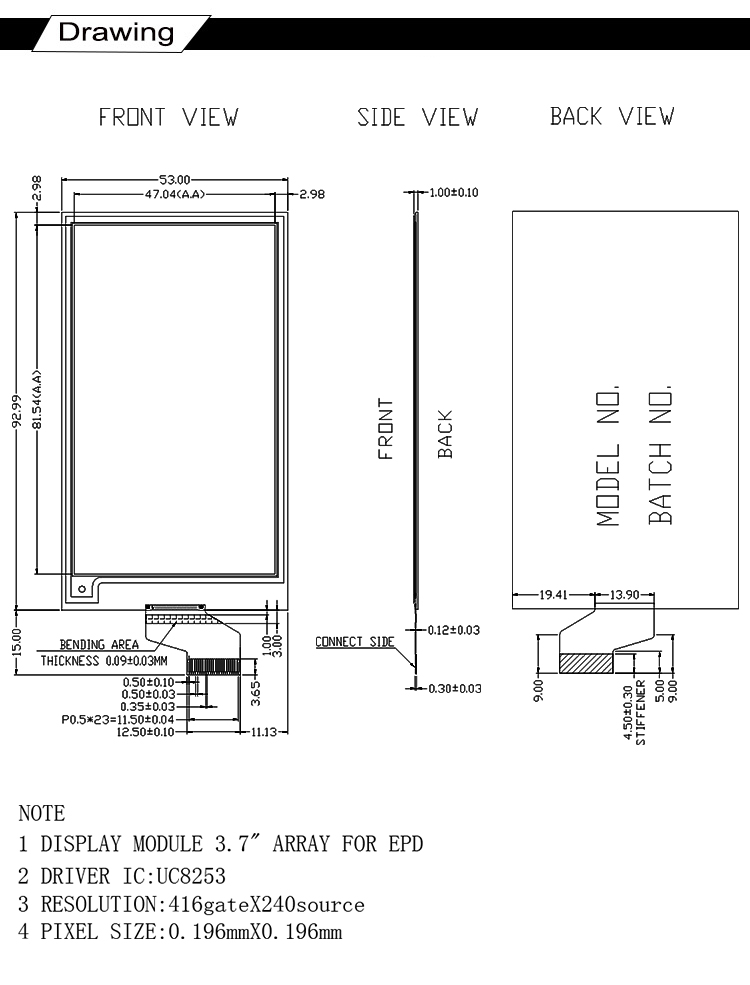

DRAWING

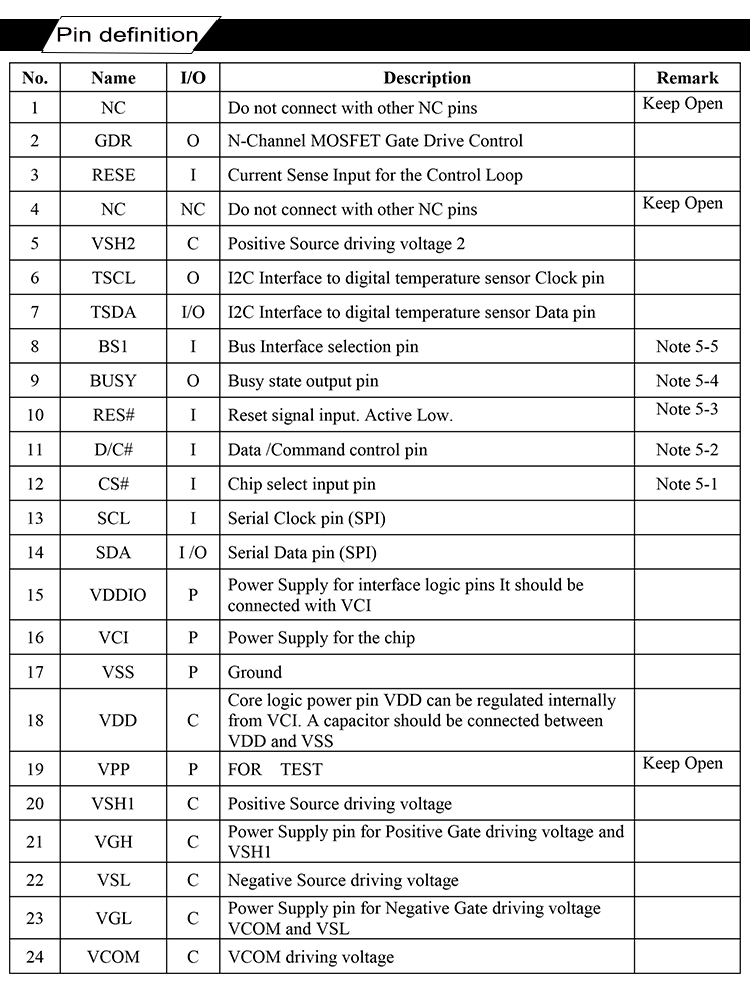

INTERFACE PIN FUNCTION
