Please kindly contact us for full data sheet of the display.
DESCRIPTION

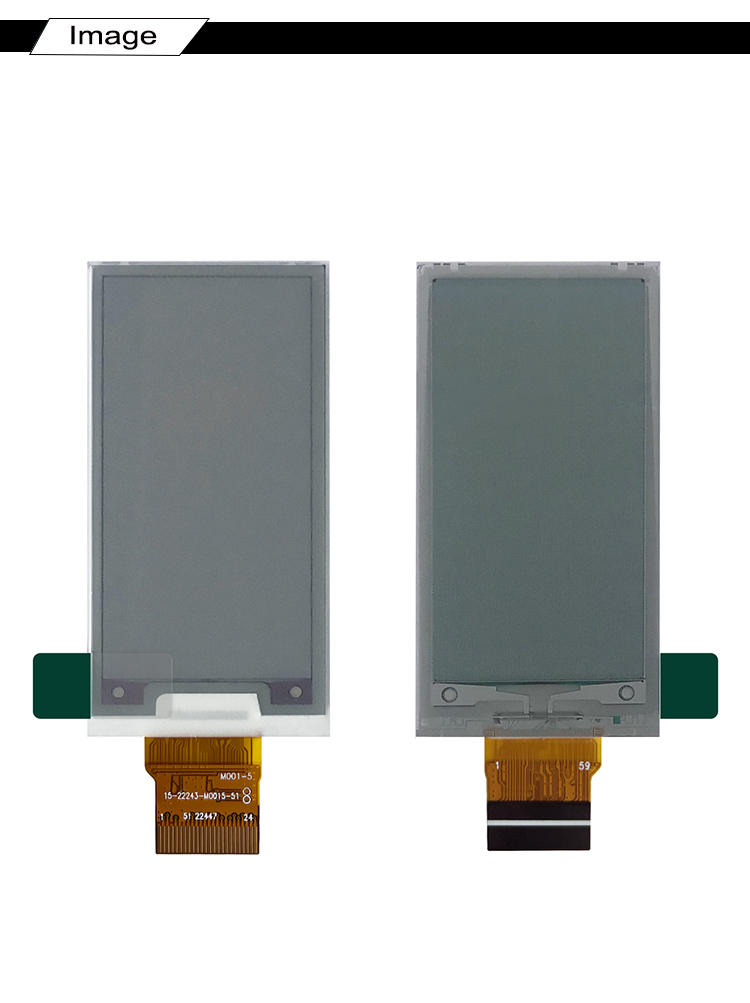

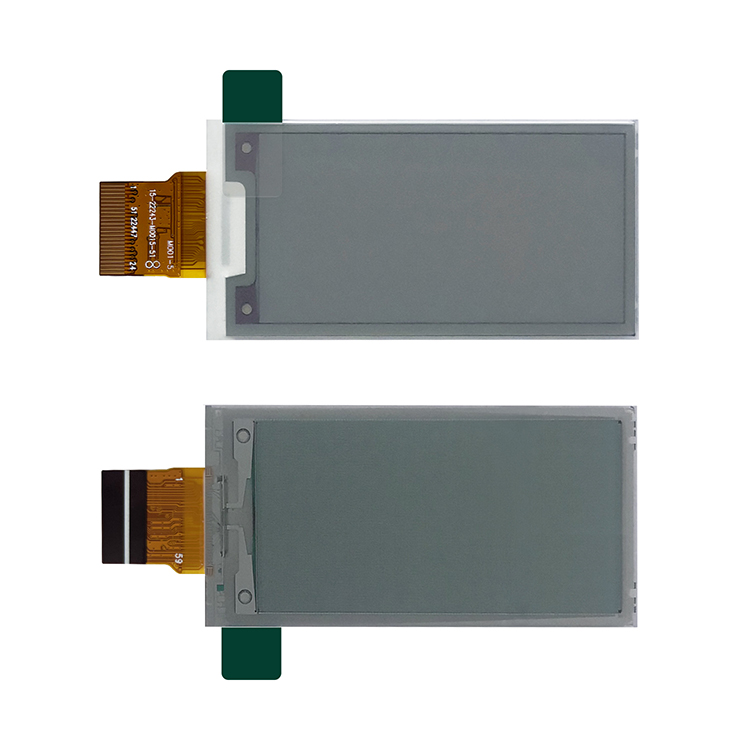

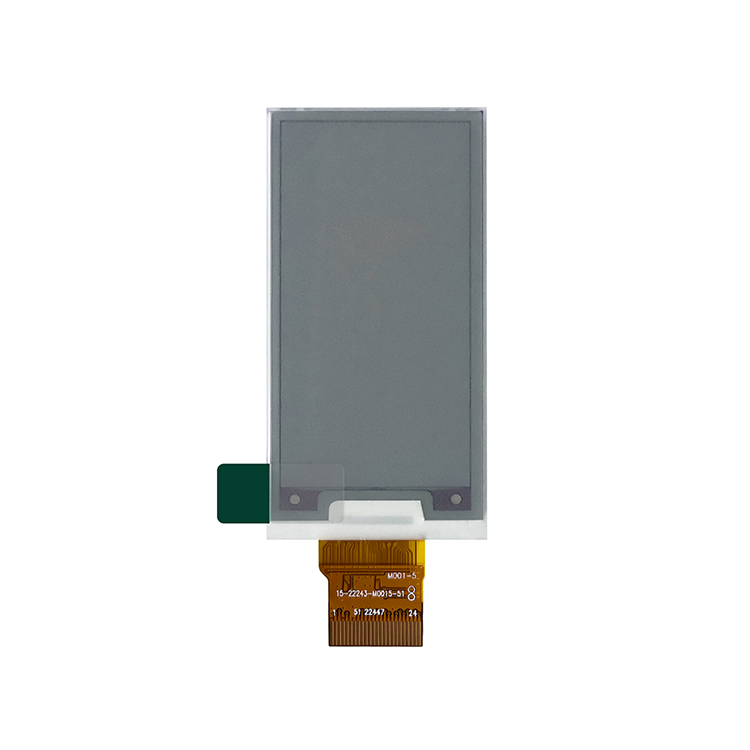

HICENDA HEDP0213BNS800F41 is an Active Matrix Electrophoretic Display (AM EPD), with
interface and a reference system design. The display is capable to display images at 1-bit white and

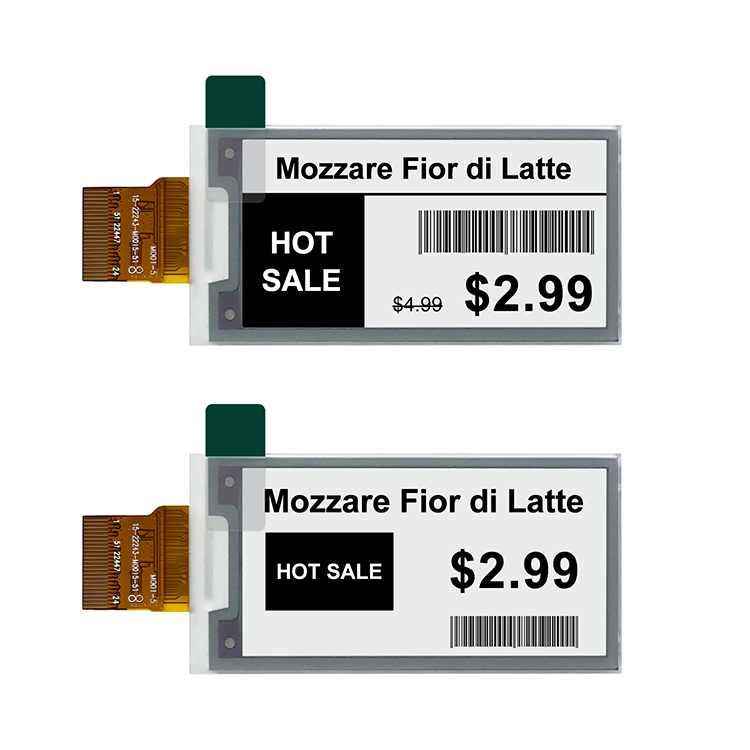

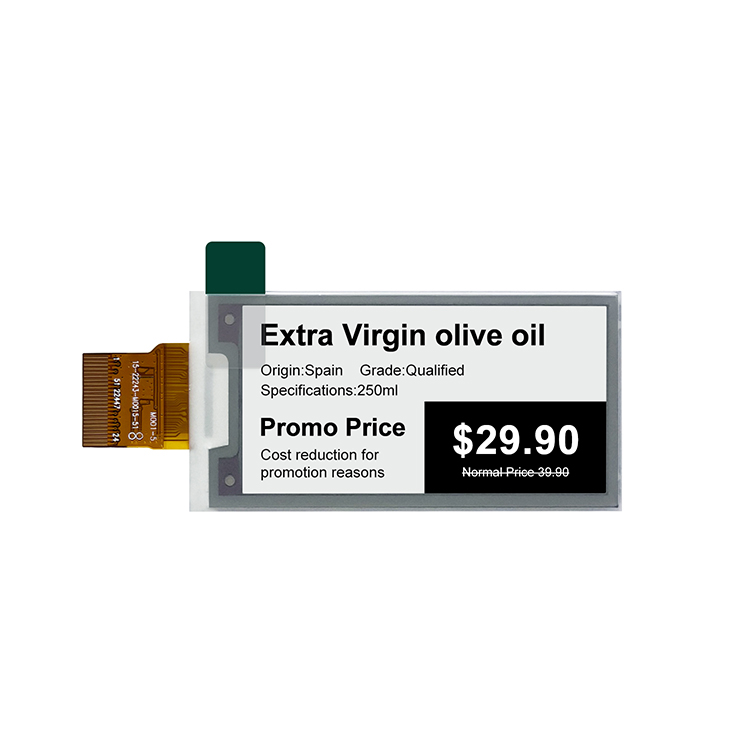

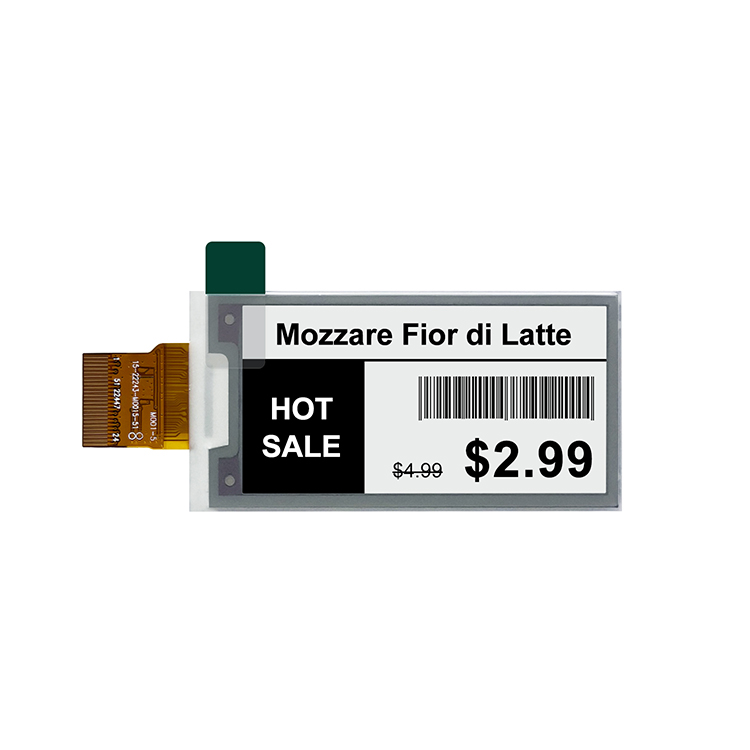

black full display capabilities.The 2.13 inch active area contains 122×250 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.
GENERAL SPECIFICATION
| Display Type: | Eink display |
| Display Mode: |
Active Matrix Electrophoretic Display
|
| Model Number: | HEDP0213BNS800F41 |
| Diagonal Screen size: | 2.13 inch |
| Interface: |
4-wire SPI or 3-wire SPI i
|
| Number of Pixels: |
122(H)×250(V)
|
| Panel Size: |
29.2(H)×59.2 (V) ×1.0(D)(mm)
|
| Driver IC: |
SSD1680Z8 |
| Active Area: |
23.705×48.55 (mm)
|
|
Display Mode:
|
EINK
|
| Pixel Size: |
0.1942×0.1942(mm)
|
|
Weight: |
3.2±0.5(g)
|
|
Color:
|
Eink
|

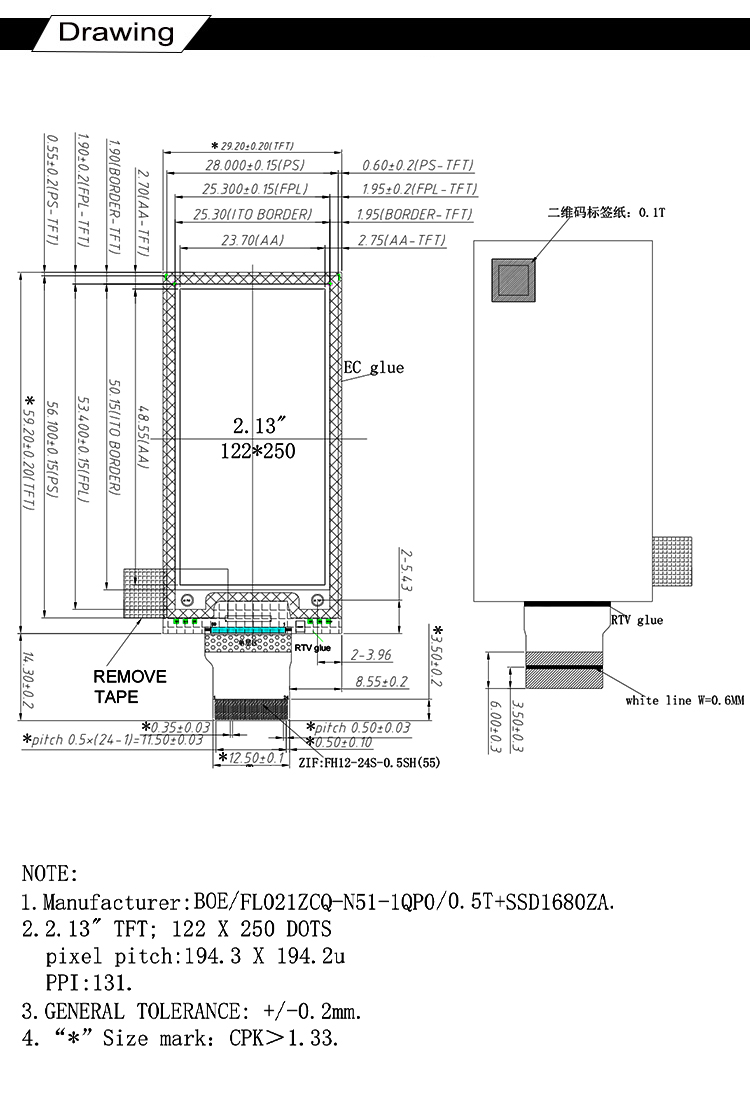

DRAWING

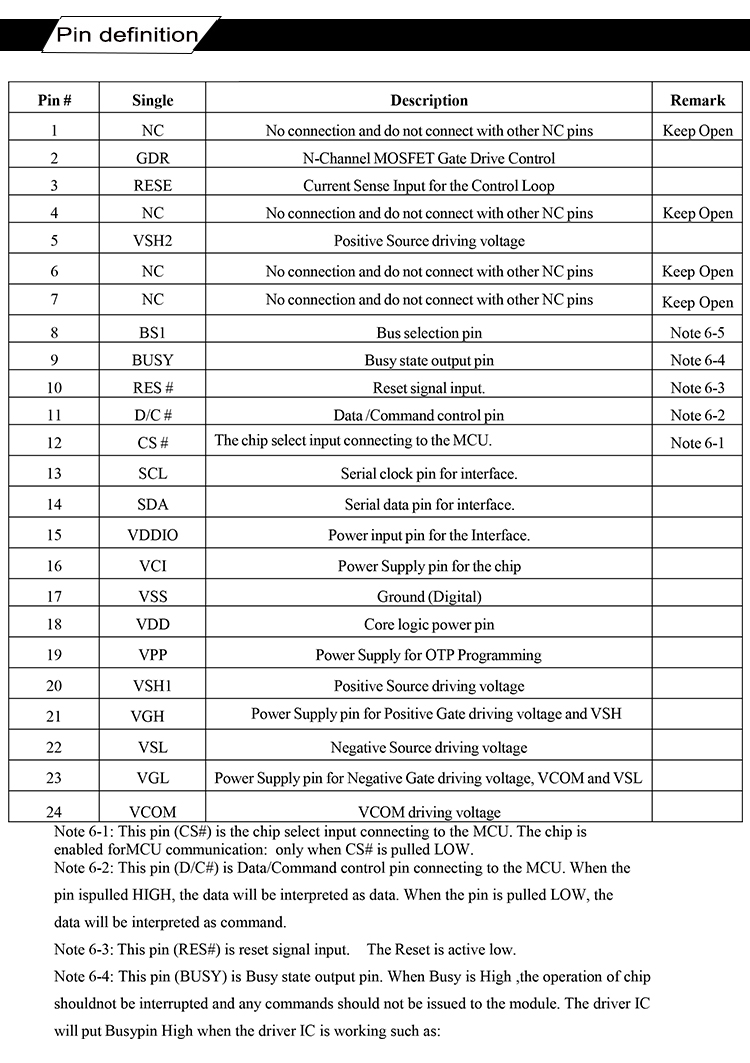

INTERFACE PIN FUNCTION
